User Guide

Get certified by completing our SPORIFY Users Training course which is available via the CorrIT Training Academy. Contact your local SPORIFY administrator for more information.

General Information

System Overview

The features of the system include:

Functions

• Provide the ability to match preformatted lists (CSV or Excel) to SPOR Master Data Management Services RMS & OMS and G-SRS Substance List (Target Systems) via a matching module.

• Provide the ability to create and set Resolution Status to each term on your uploaded list.

• Provide the ability to assign Tags to Source and Target Data.

• Export each list you have uploaded along with the associated Resolution Status, Tags, Data Insights and any associated Mapping Data from the matched Target System as applicable to your list.

• Provide an overview of your activity and Mapping Status via chart-based reports. These reports are known inside SPORIFY as Dashboard, Overview and Data Insight pages.

• Provide an overview of the information available in Target Systems services.

• Provide notifications to highlight when Target Information is updated.

• Follow Favourites: Allow users to follow SPOR RMS Lists or OMS Organisations that are of interest to them.

• Provide the ability to govern Referentials, Organisations and Substances data records.

Note: Features available are dependent on the subscription plan you have licensed; not all features are available for all subscription plans.

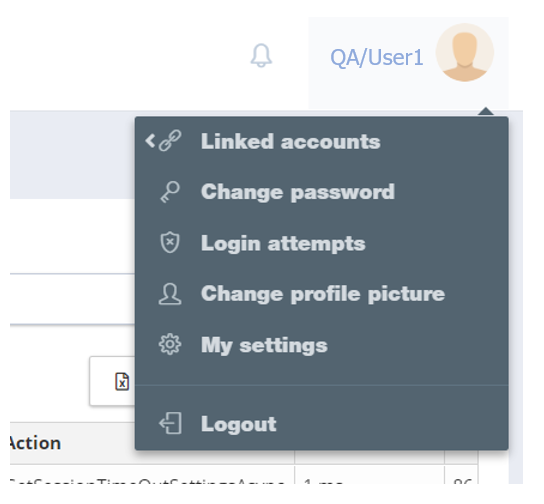

Profile Settings

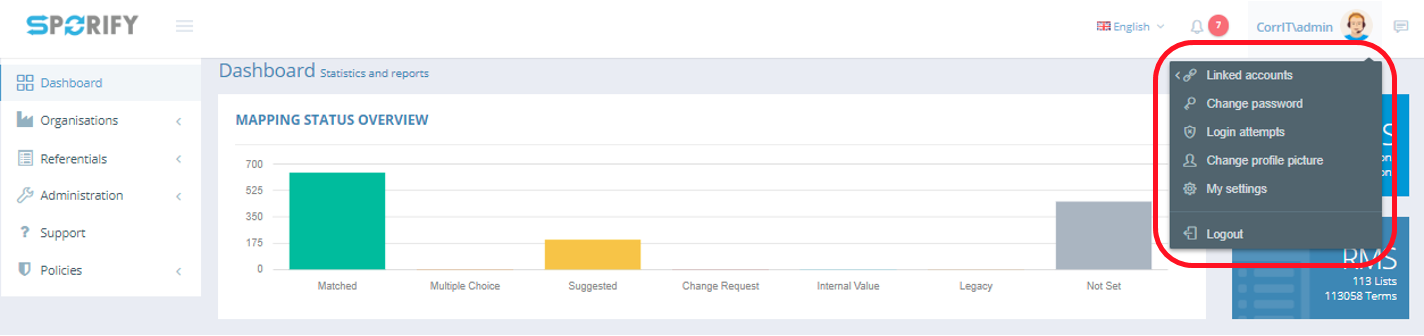

Profile Settings can be accessed by clicking on the Profile Settings icon (Username and Image) at the top right-hand corner of the screen.

Available Actions:

• Linked Accounts > Manage Accounts

  • Enterprise customers who have multiple tenant accounts can link their user accounts across their tenant accounts. This allows the user to login to SPORIFY once to work on behalf of multiple tenants if required.

  • To view and manage linked accounts, click on Linked Accounts, then Manage Accounts.

  • To link a new account, click on the Link New Account button and fill in the presented fields, which are Tenancy Name, Username, and Password.

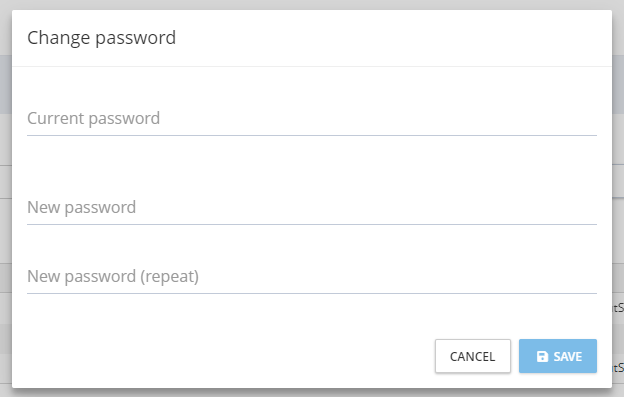

• Change Password

  • The user can change their password by selecting Change Password, filling in the presented fields (Current Password, New Password, New Password [Repeat]), and clicking Save.

• Login Attempts

  • Clicking on Login Attempts presents a list of all login attempts to your account.

  • For each listed login attempt, it shows the associated IP Address, Browser, Time, and whether it was a Success or Failure.

• Change Profile Picture

  • Users have the option to upload their profile picture to the system using a JPG, JPEG, or PNG file.

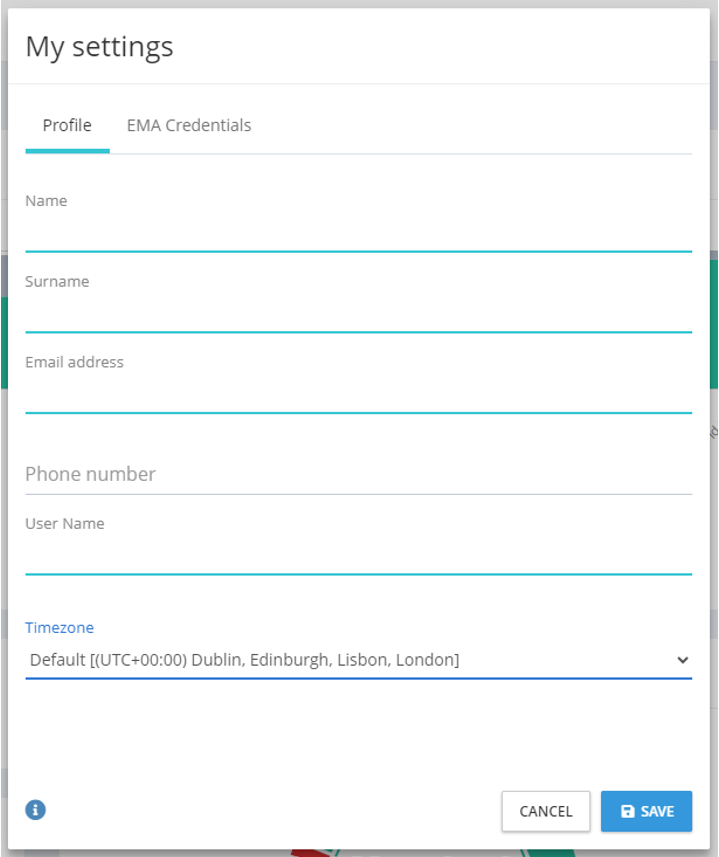

• My Settings

  • Users can manage their settings in the My Settings area.

  • Using the Profile tab, they can make changes to the following: Name, Surname, Email Address, Phone Number, Username, and Timezone.

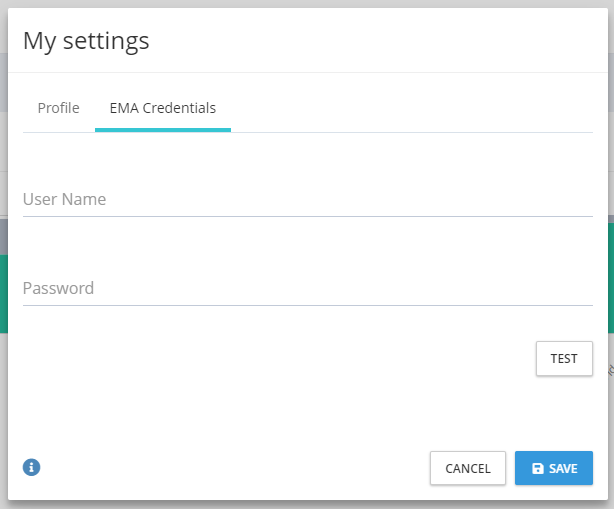

  • Using the EMA Credentials tab, they can enter, test, and save their EMA credentials, which are utilised to validate account permissions when exporting SPOR data, and for the download of Change Requests where applicable.

Single Sign On (SSO)

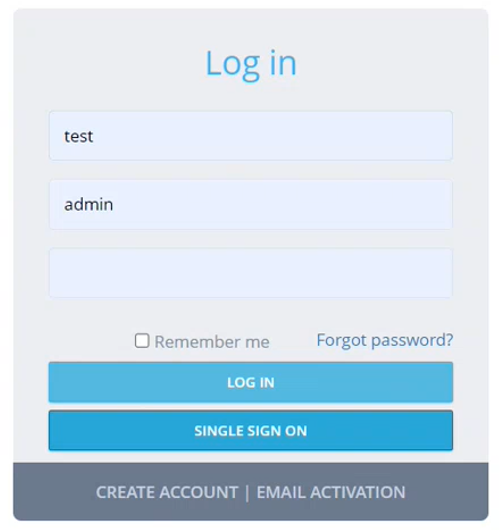

Logging In To SPORIFY Using SSO:

• Insert the relevant credentials.

• Click the Single Sign On button.

  • The user is redirected to Okta/Azure/OneLogin.

• Login via Okta/Azure/OneLogin.

  • If the user has already signed up, they are redirected to SPORIFY.

  • If the user has not already signed up, they are redirected to the SPORIFY Sign Up screen.

• To sign up, fill in the following fields:

  • Tenant

  • First name

  • Surname

  • Email

• Click the Submit button.

  • A confirmation email is sent to the user. Via this email, the user is required to confirm their email address.

  • The user must then wait for their account to be activated by system admin.

Notifications

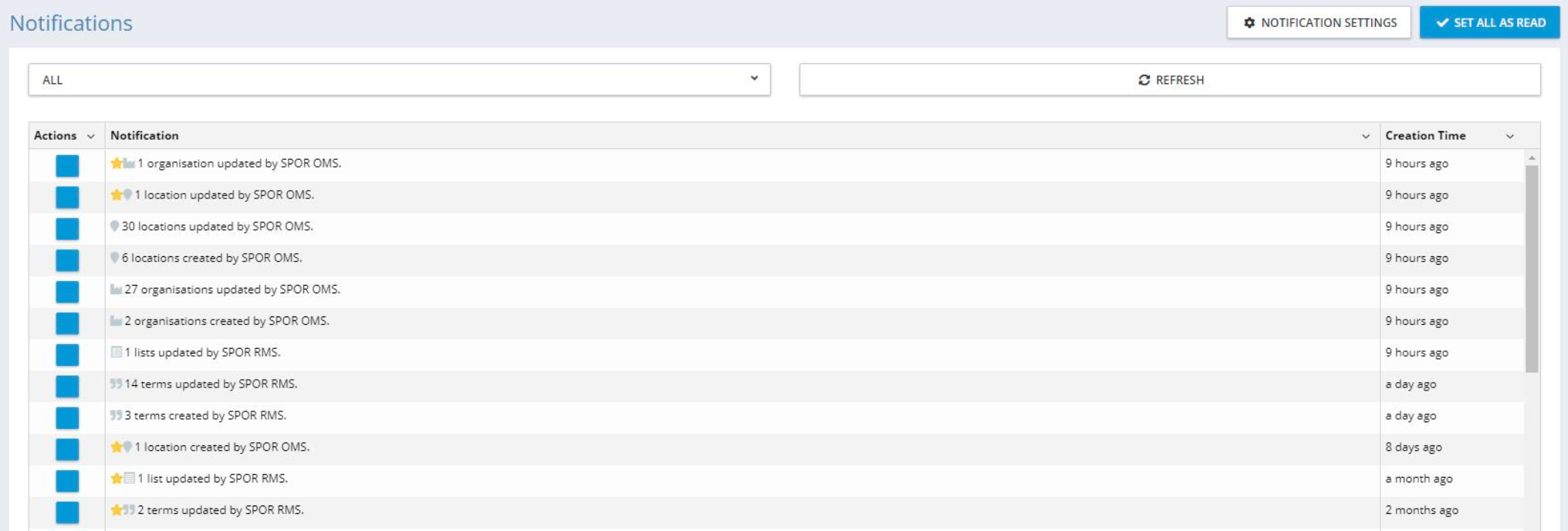

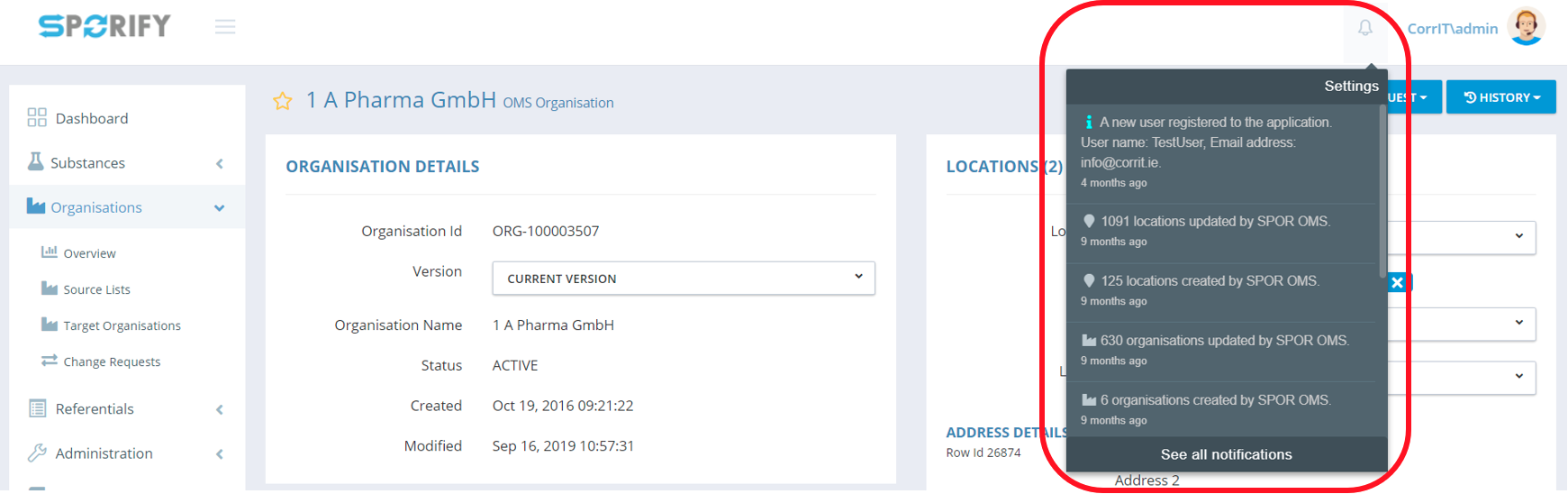

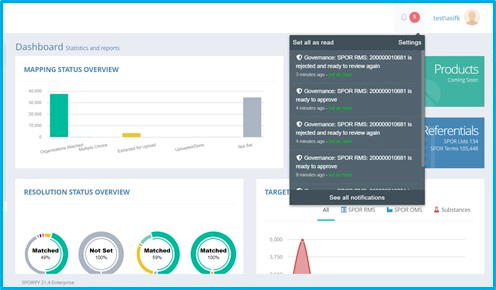

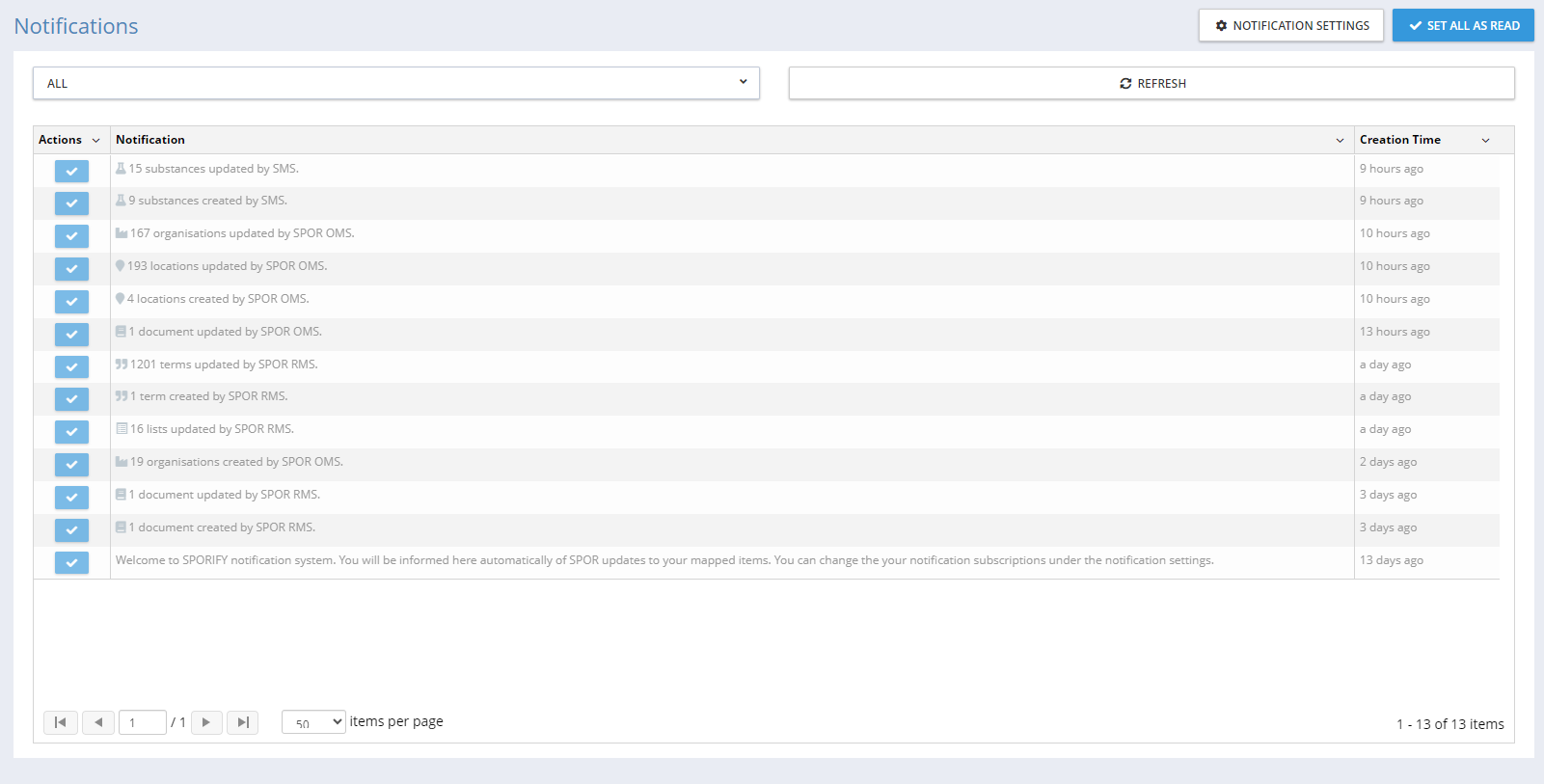

Notification Centre

• Clicking on the bell icon presents a summary of all Target System Activity since you last logged into SPORIFY.

• The latest 10 are shown in the list, while all others are made available by clicking See All Notifications. On this screen, notifications can be filtered by All and Read; simply select the filter from the drop-down menu and click Refresh.

• Clicking a notification navigates to the Target System Activity page, which is filtered to display the items that the notification refers to.

• Reset the Notifications icon count by clicking Set All As Read.

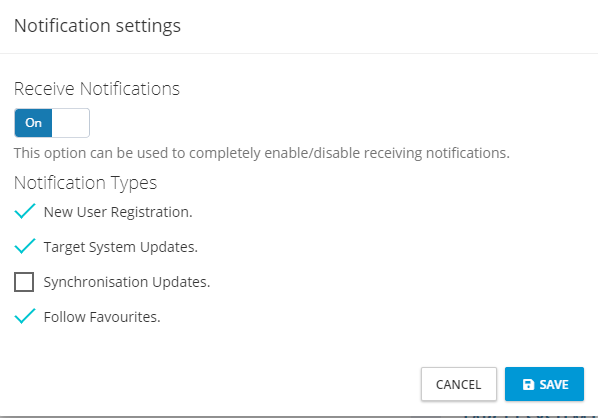

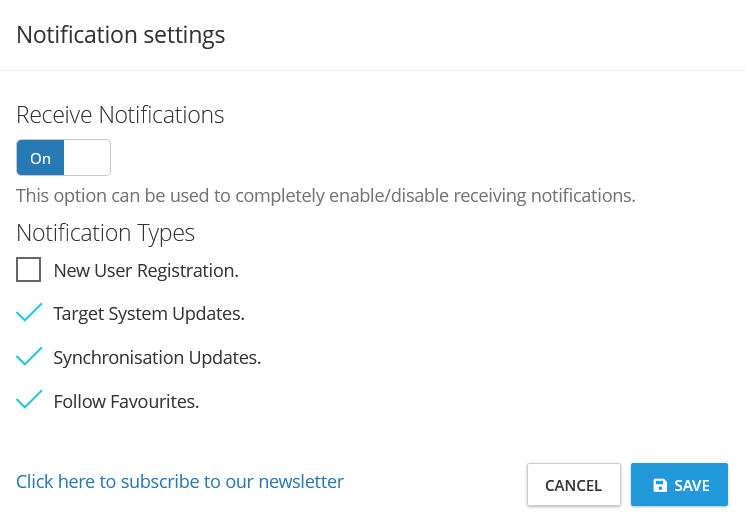

Notification Settings

Available Settings:

• Receive Notifications

  • Switch On to receive notifications

  • Switch Off if you do not wish to receive notifications

• Notification Types

  • New User Registration

    • This option is only available for administrators.

  • Target System Updates

  • Synchronisation Updates

  • Follow Favourites

• Subscribe to Newsletter

  • Click on the ‘Click here to subscribe to our newsletter’ link.

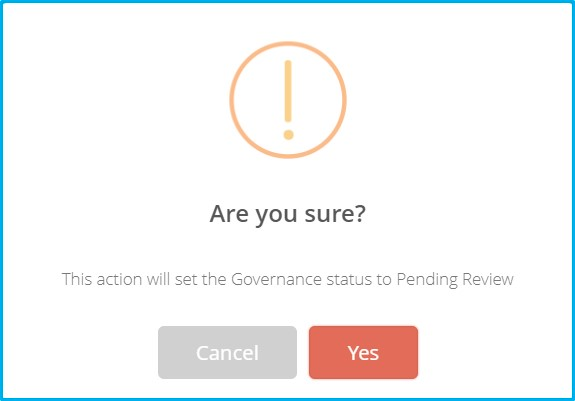

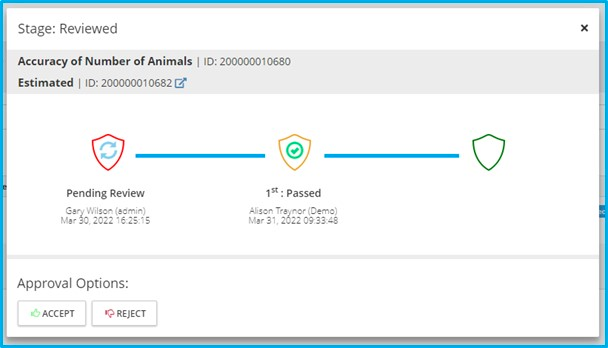

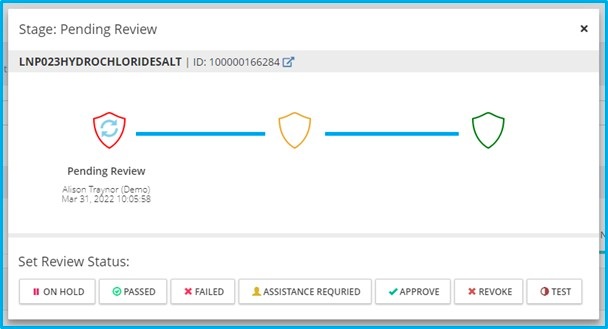

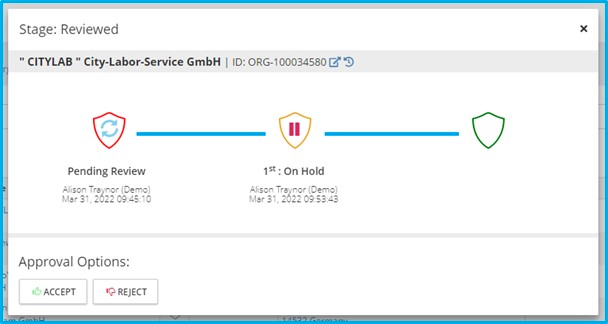

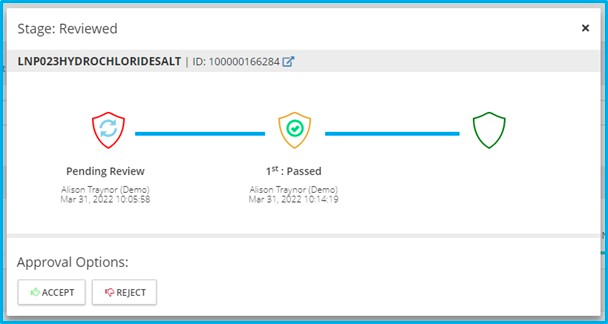

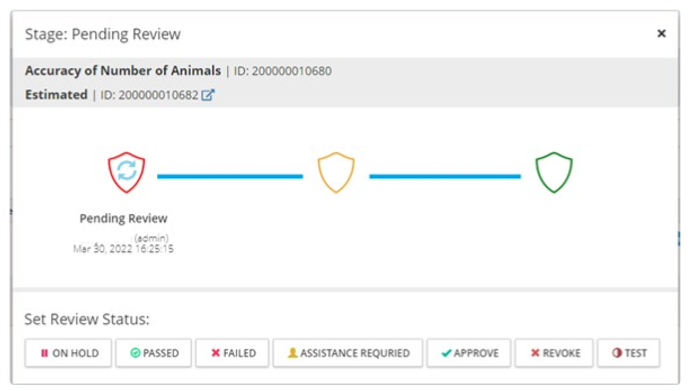

Data Governance Notifications

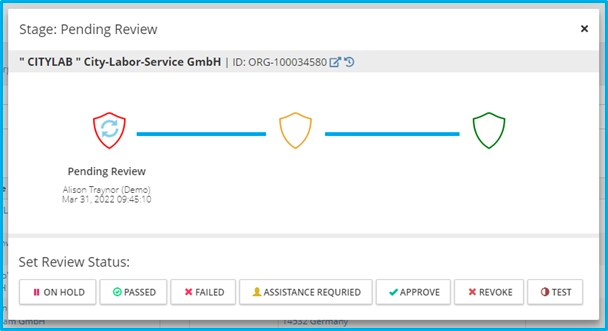

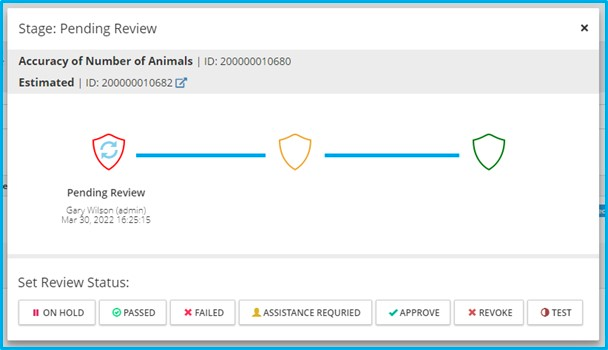

Notifications are sent to reviewers and approvers during the data governance process.

• Reviewers are notified when a record is ready to be reviewed.

• Approvers are notified when a record is ready to be approved.

• Reviewers are notified when an approver has rejected a relevant record.

SPORIFY Dashboard

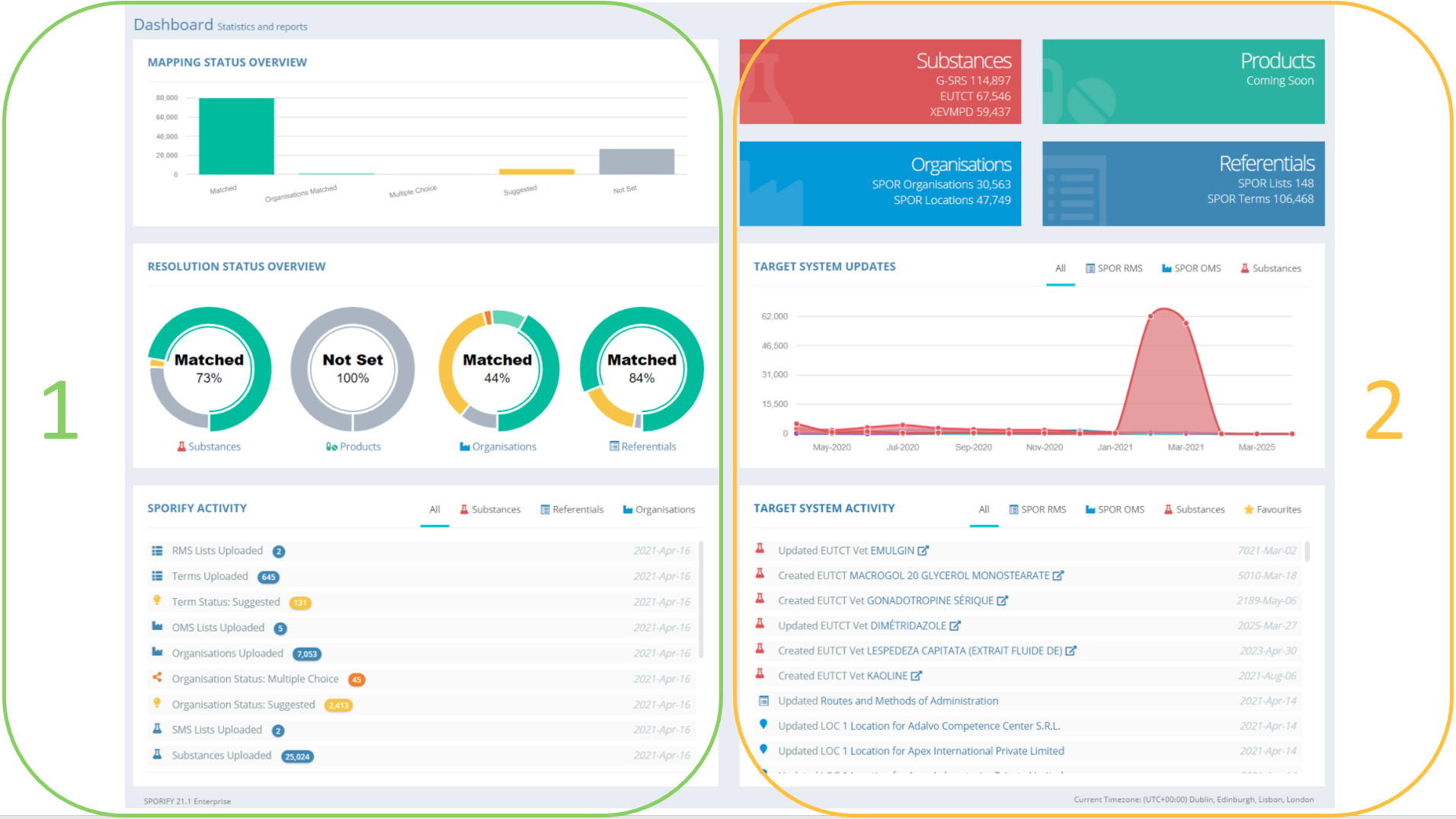

Dashboard Explained

The SPORIFY Dashboard provides an overview of your activity on SPORIFY and external activity on Target Master Data Systems. Where applicable, the data in charts and activity lists can be filtered to a particular domain by selecting the relevant tabs.

The left-hand side of the Dashboard is dedicated to SPORIFY activity, showing the activity that your users have carried out in the system. The right-hand side of the Dashboard is dedicated to Target Master Data activity, showing the latest information and activities from each Target System available in SPORIFY.

The following areas are presented on the Dashboard:

• Mapping Status Overview

  • The Mapping Status Overview area provides counts of the mapping statuses that have been applied to records across the system in the form of a bar chart.

• Domain Statistics

  • The Domain Statistics boxes present target record counts for SPOR Substances, Organisations, Referentials, and Products domains.

  • For Substances, G-SRS, EUTCT, XEVMPD, and SMS records are counted.

  • For Organisations, SPOR Organisations and SPOR Locations are counted.

  • For Referentials, SPOR Lists and SPOR Terms are counted.

  • For Products, counts are not yet available.

• Resolution Status Overview

  • The Resolution Status Overview area provides counts of applied Resolution Statuses as they pertain to Substances, Products, Organisations, and Referentials domains. A donut chart is presented for each domain.

  • Simply hover the mouse over a chart segment to see the associated percentage for the given Resolution Status.

• Target System Updates

  • The Target System Updates area provides an overview of the updates being made to SPOR OMS, SPOR RMS, and Substances target systems.

  • This graph can be filtered by All, SPOR RMS, SPOR OMS, and Substances.

  • Hover the mouse over a graphed update to view the month in which the update occurred, and counts of the updated records.

• SPORIFY Activity

  • The SPORIFY Activity area shows the recent activity that has occurred in your SPORIFY system.

  • It can be filtered by All, Substances, Referentials, and Organisations.

  • For each listed activity, the activity’s name, date, and record count is presented.

• Target System Activity

  • The Target System Activity area shows the latest updates to subscribed external Target Master Data Systems and provides click-through access to the details on each item listed.

  • If you subscribe to the Follow Favourites feature, you can also view your selected Favourites and click on each item for more detail.

  • The Target System Activity heading provides a link to the Target System Activity details page.

  • It can be filtered by All, SPOR RMS, SPOR OMS, Substances, and Favourites.

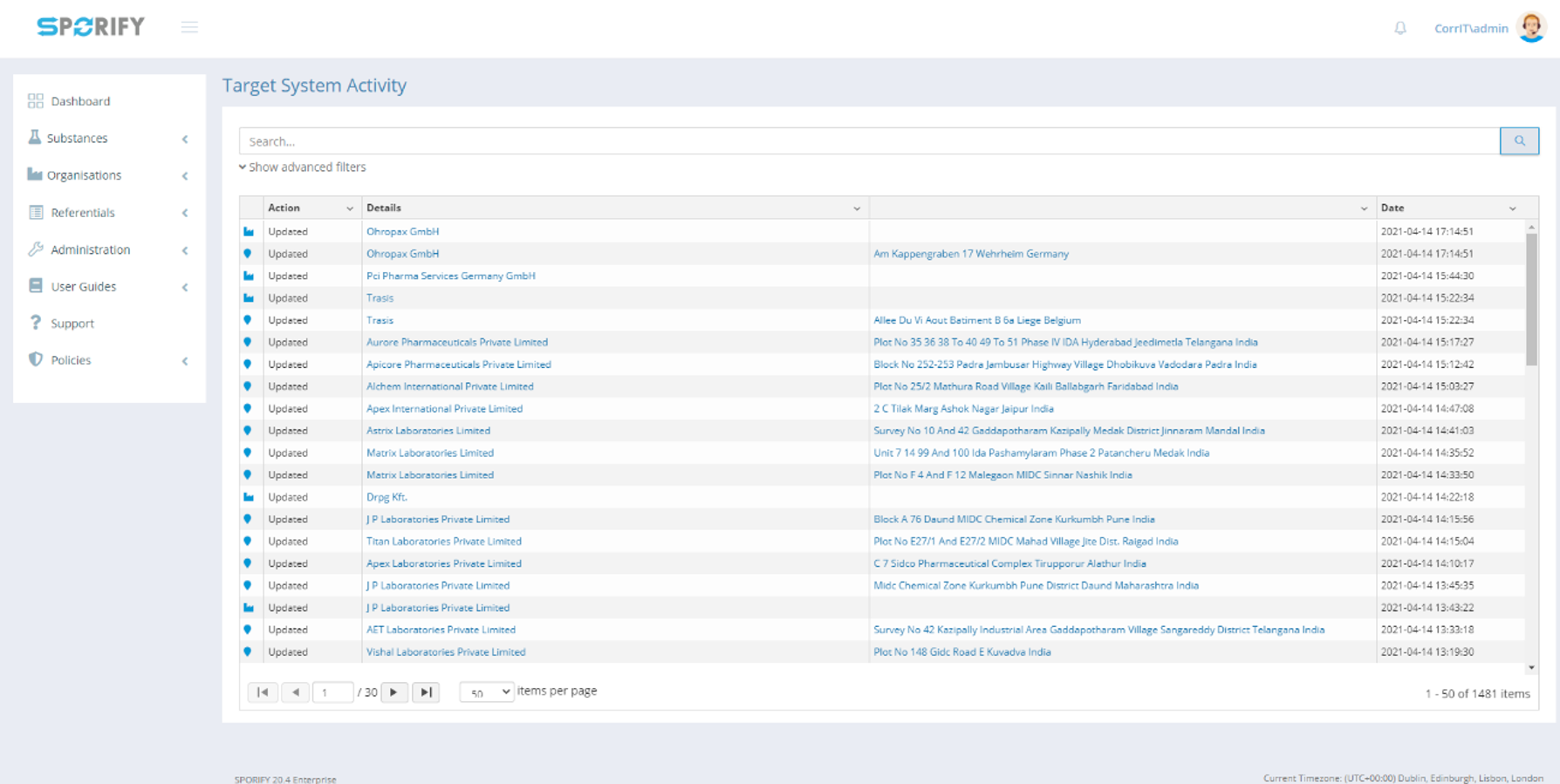

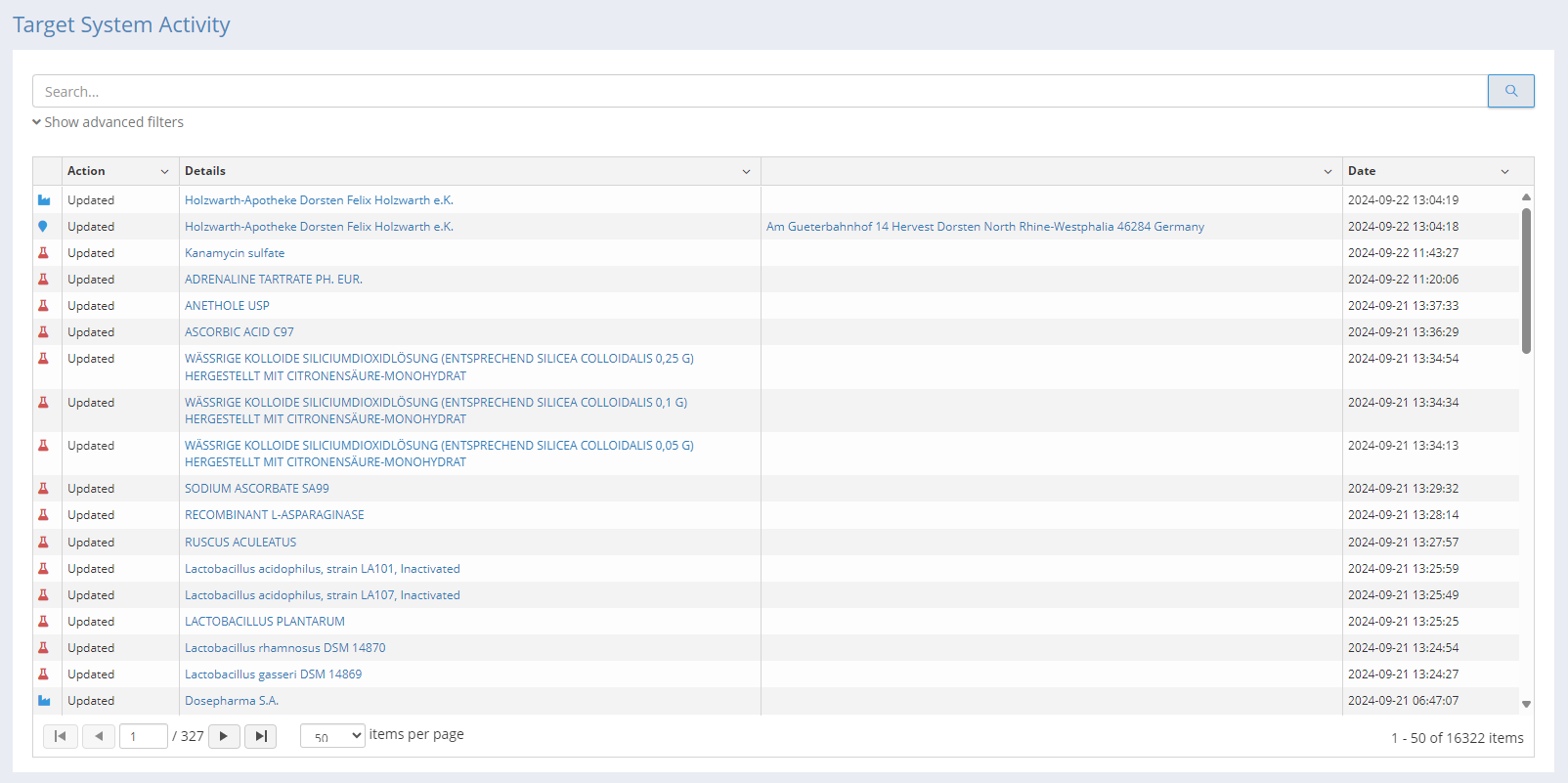

Target System Activity

The Target System Activity screen presents a list of all activity that has occurred in the Target System. For each listed item, the following information is shown: Domain (see icons on left hand side of grid), Action, Details, and Date.

Target System Activity can be searched via the search bar based on the following criteria:

• Term Name

• Organisation Name

• Substance Name

Target System Activity can be filtered by:

• Date Range

  • Today

  • Yesterday

  • Last 7 Days

  • Last 30 Days

  • Last Month

  • Last Year

  • Custom Range

• System

  • All

  • SPOR RMS Lists

  • SPOR RMS Terms

  • SPOR RMS Change Requests

  • SPOR RMS Documents

  • SPOR OMS Organisations

  • SPOR OMS Locations

  • SPOR OMS Change Requests

  • SPOR OMS Documents

  • G-SRS Substances

  • EUTCT Substances

  • EUTCT Vet Substances

  • XEVMPD Substances

  • SMS Substances

• Favourites

  • All

  • Favourites Only

    • Note: This filter only shows activity for records that you have added to your Favourites.

• Action

  • All

  • Created

  • Updated

Referentials

Overview

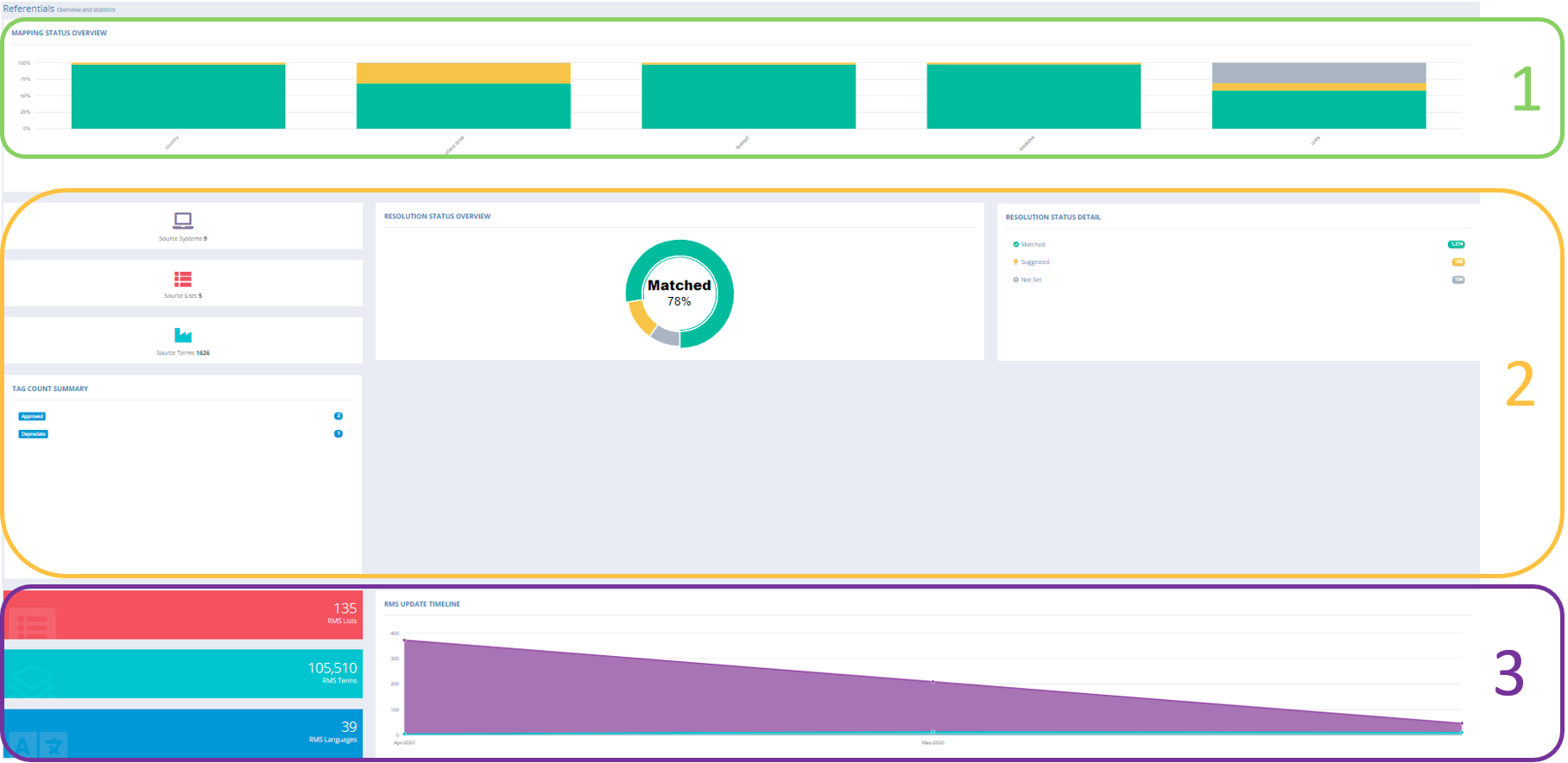

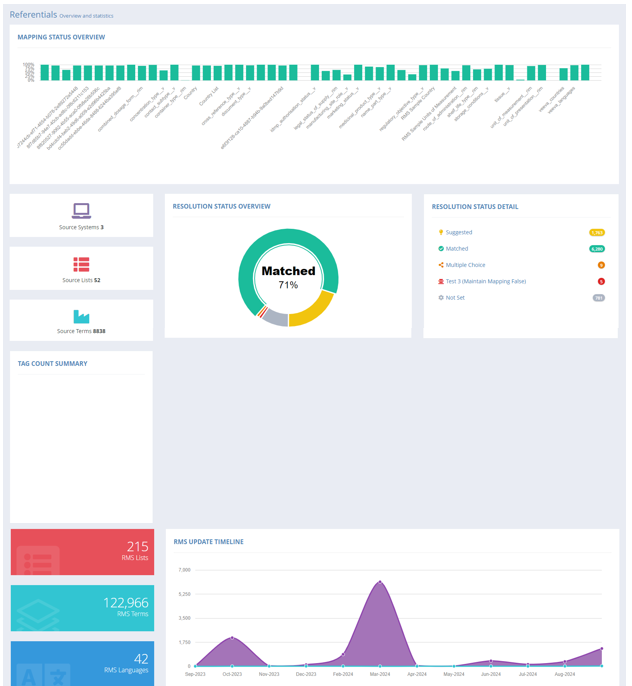

The Referentials Overview area provides high-level summaries and statistics pertaining to SPORIFY’s Referentials domain.

The following sections are presented on this screen:

• Mapping Status Overview

  • The Mapping Status Overview section presents a bar chart outlining the mapping statuses that have been applied to the Referentials lists currently uploaded to the system.

  • To view an exact breakdown of mapping status percentages, hover the mouse over the relevant bar on the chart.

• Source Referentials Statistics

  • The Source Referentials Statistics boxes present counts for Source Systems, Source Lists, and Source Terms.

• Resolution Status Overview

  • The Resolution Status Overview area provides counts of applied Resolution Statuses for the Referentials domain in the form of a donut chart.

  • Simply hover the mouse over a chart segment to see the associated percentage for the given Resolution Status.

• Resolution Status Detail

  • The Resolution Status Detail area lists overall counts of each Resolution Status type that has been applied to Referentials records in the system.

• Tag Count Summmary

  • The Tag Count Summary section lists overall counts of each Tag that has been applied to Referentials records in the system.

• Target Referentials Statistics

  • The Target Referentials Statistics boxes present counts for RMS Lists, RMS Terms, and RMS Languages.

• RMS Update Timeline

  • The RMS Update Timeline area provides an overview of the updates being made to the SPOR RMS target system.

  • Hover the mouse over a graphed update to view the month in which the update occurred, and counts of the updated records.

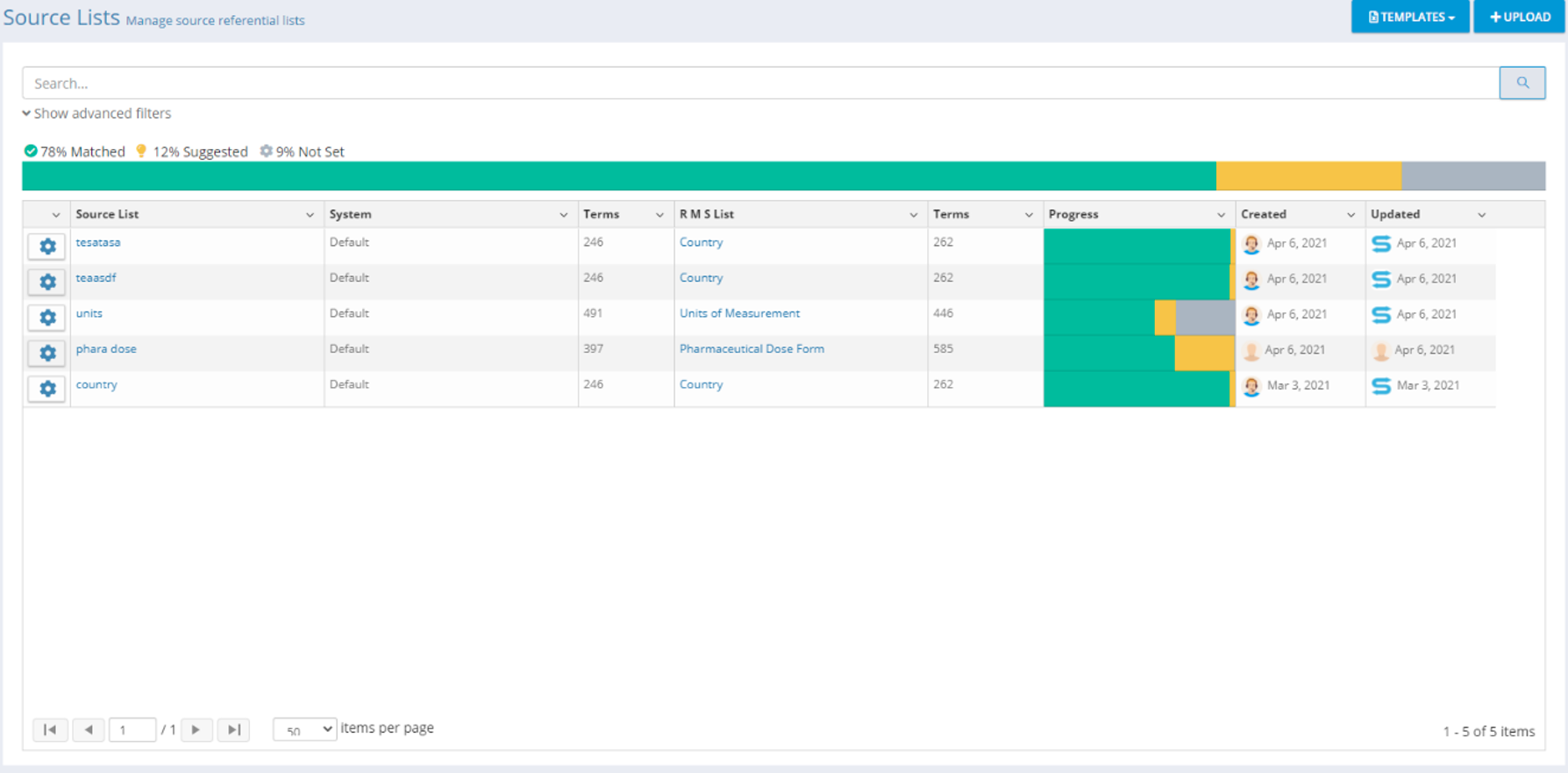

Source Lists (Mapping)

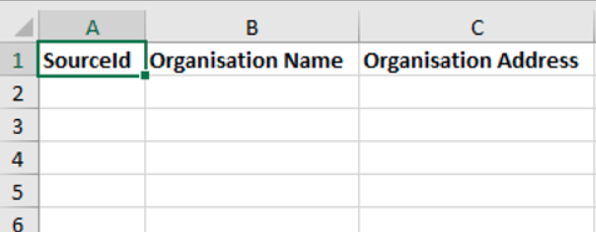

Templates: Formatting Source Data

Using Standard Templates:

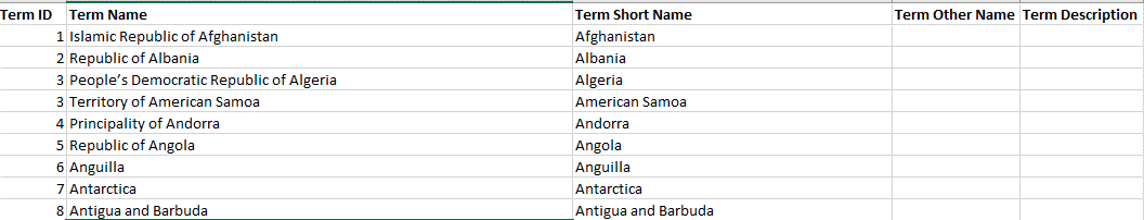

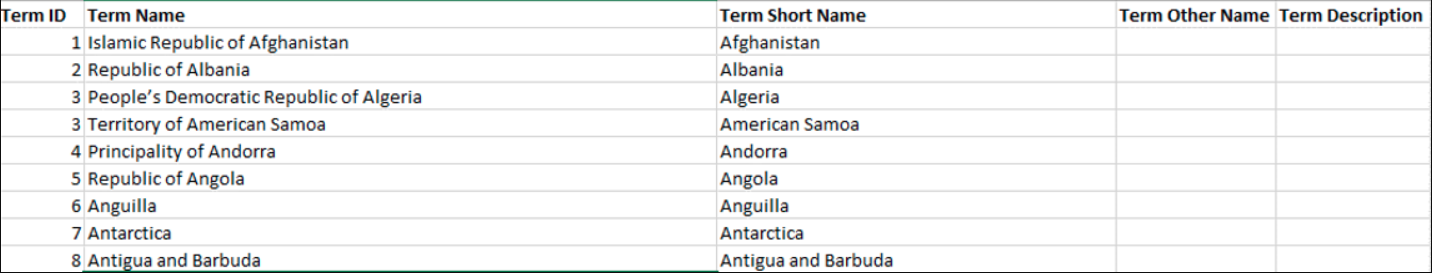

To format your Source Data, download the Standard Referentials Excel or CSV Template by clicking on the Templates actions button and selecting CSV (Standard) or Excel (Standard). This template can be used for all of your Source Referentials Lists.

SPORIFY requires two mandatory* pieces of information to carry out Referentials Data Mapping. Three optional pieces of information can also be added to enhance mapping. These are as follows:

• Term ID* (Unique identifier)

• Term Name* (Full term name)

• Term Short Name (Short name of term)

• Term Other Name (Alternative name of term)

• Term Description (Description of term details)

Using Excel: If your workbook has multiple worksheets, you must select the required worksheet to import from.

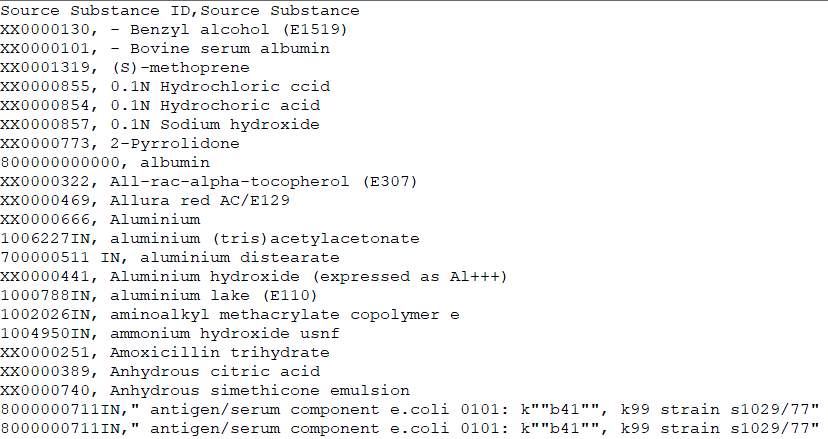

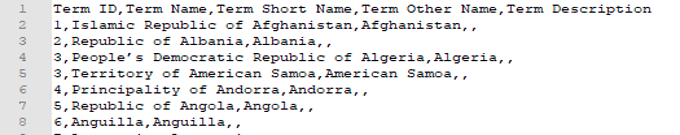

Using CSV: Each column of data should be delimited with a comma. If your column text contains the delimiter character, the text should be wrapped in quotation marks. For example, Capsule, Soft is formatted as “Capsule, Soft” to correctly import the delimiter character. CSV files should be saved with UTF-8 encoding to preserve special characters.

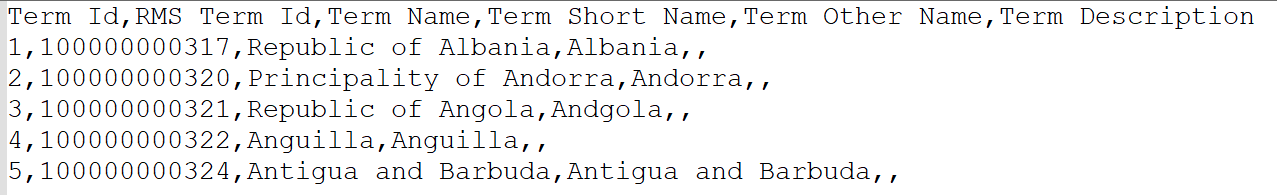

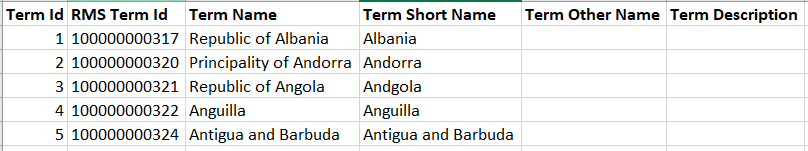

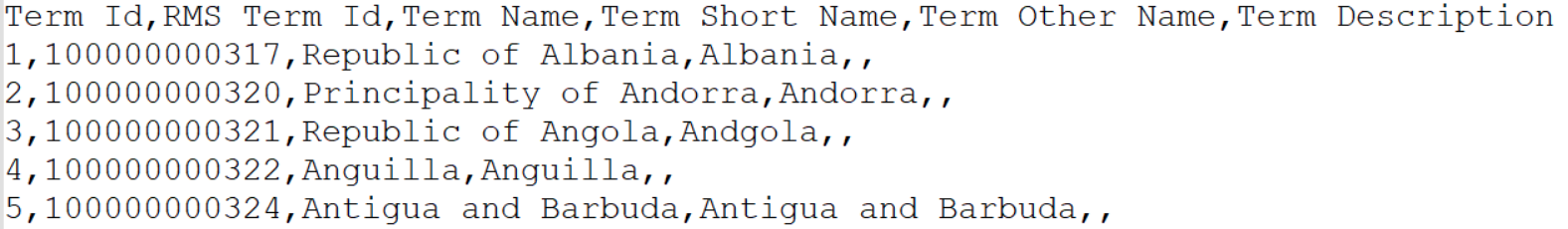

Using Advanced Templates:

To format your Source Data, including existing Term mappings, download the Advanced Referentials Excel or CSV Template by clicking on the Templates actions button and selecting CSV (Advanced) or Excel (Advanced). This template can be used for all of your Source Referentials Lists.

SPORIFY requires two mandatory* pieces of information to carry out Referentials Data Mapping. Four optional pieces of information can also be added to enhance mapping. These are as follows:

• Term ID* (Unique identifier)

• RMS Term ID (ID associated with the RMS term)

• Term Name* (Full term name)

• Term Short Name (Short name of term)

• Term Other Name (Alternative name of term)

• Term Description (Description of term details)

Using Excel: If your workbook has multiple worksheets, you must select the required worksheet to import from.

Using CSV: Each column of data should be delimited with a comma. If your column text contains the delimiter character, the text should be wrapped in quotation marks. For example, Capsule, Soft is formatted as “Capsule, Soft” to correctly import the delimiter character. CSV files should be saved with UTF-8 encoding to preserve special characters.

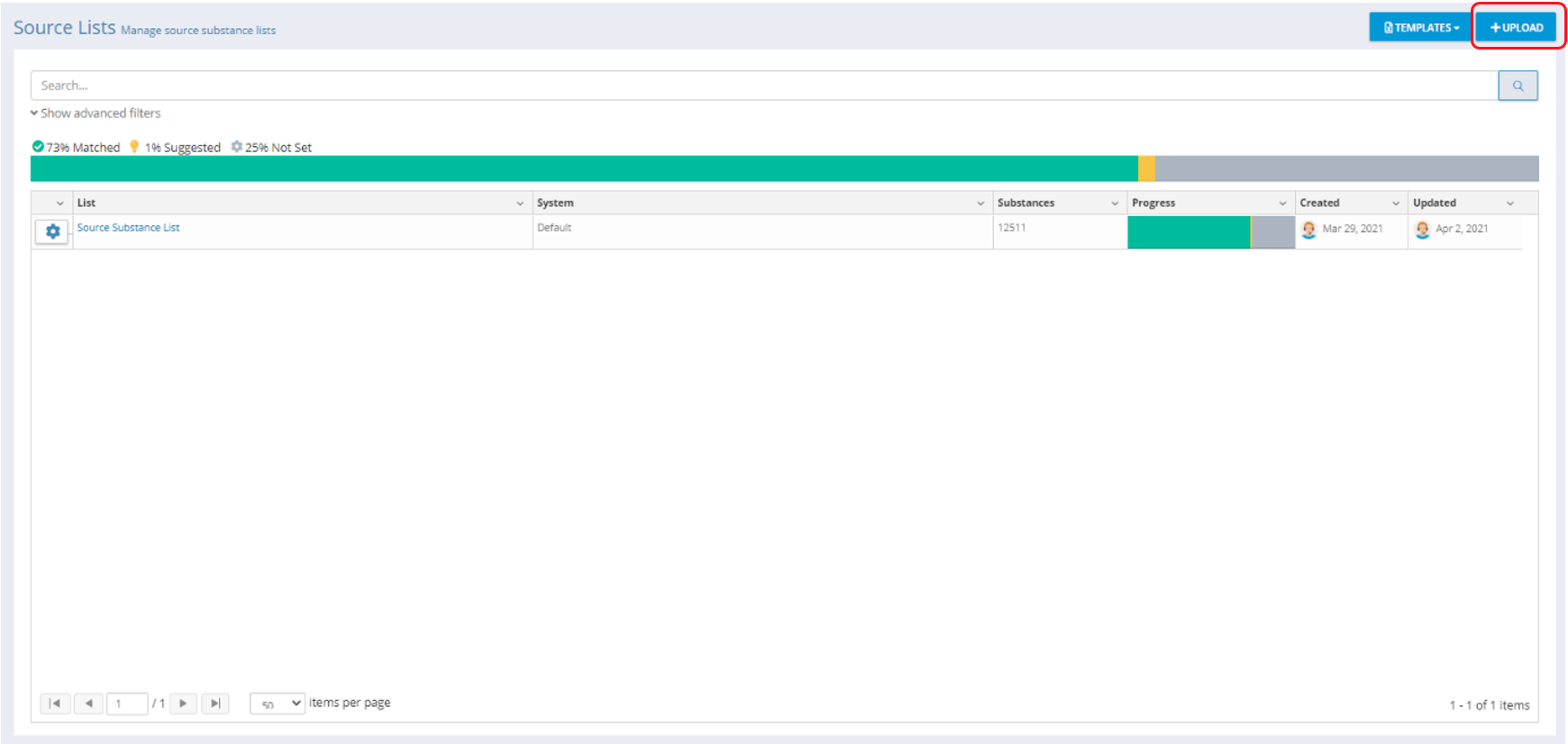

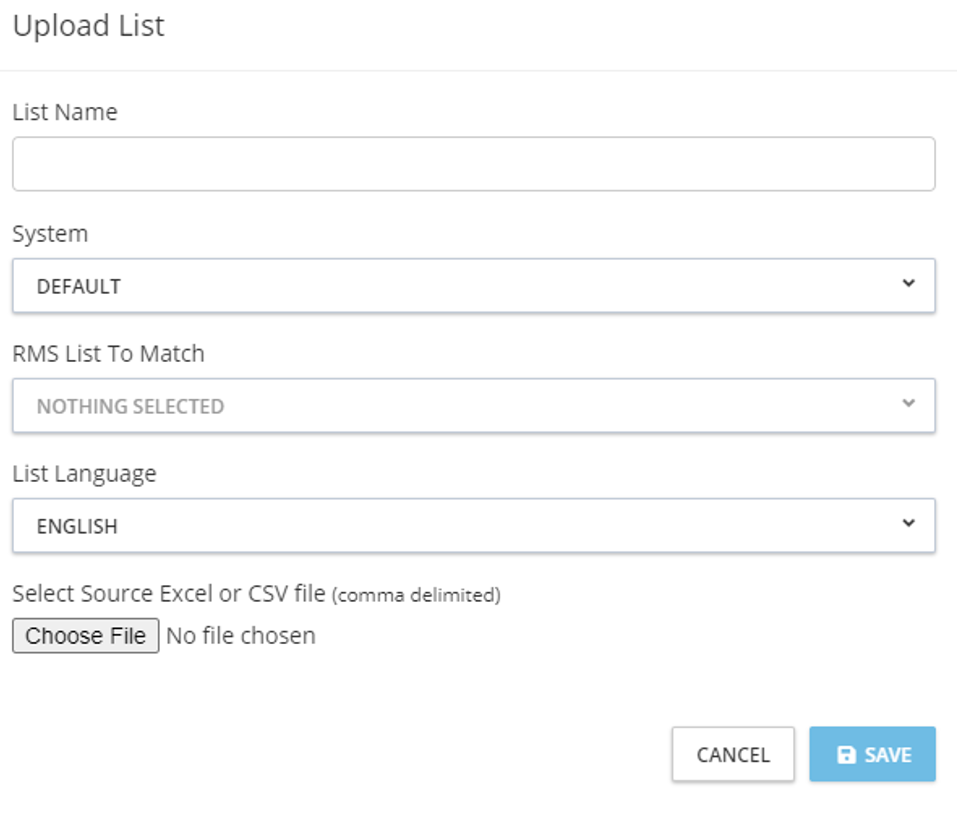

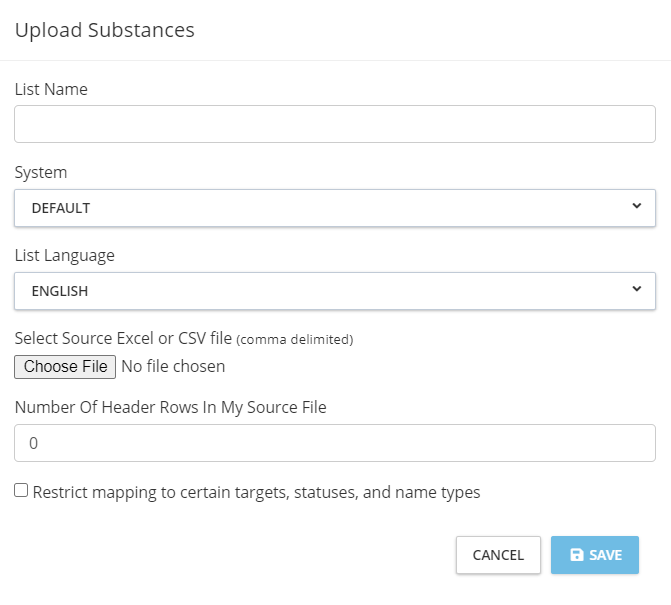

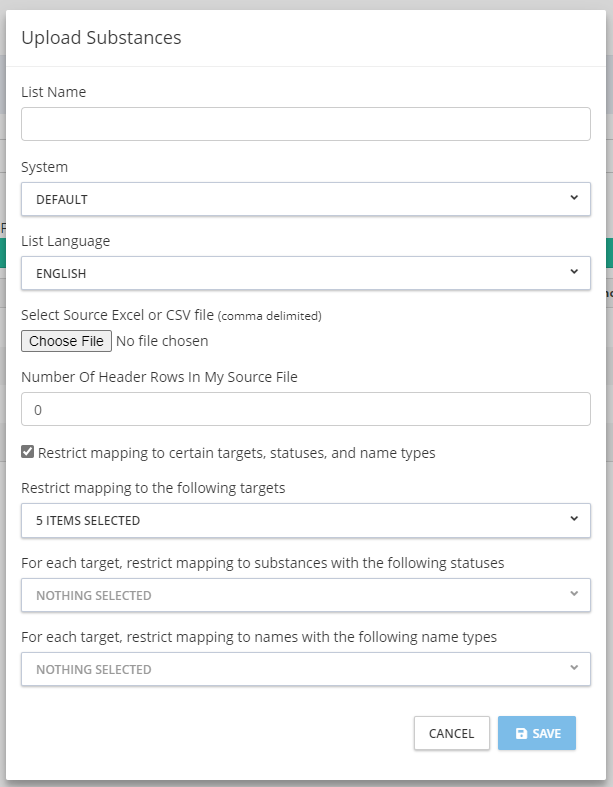

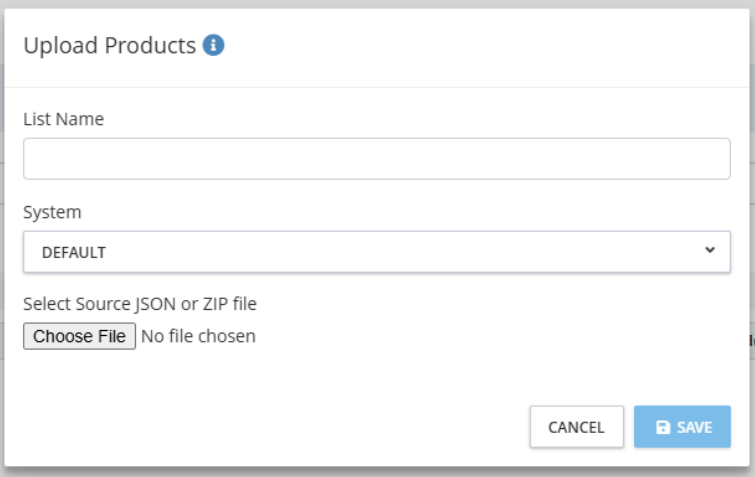

Upload: Importing Data

Fields Explained:

• List Name: Local list name/friendly name used to recognise your internal list.

• System: Name of the Local System that your list is from. Custom System Names are subject to subscription level. If only one system is available, the name is always “Default”.

• RMS List To Match: Select the list you wish to match your local list against from the available list names.

• List Language: This drop-down menu is populated based on the Referentials list selected in the previous field. Every Language available in the Referentials list will be displayed for selection. SPORIFY uses a matching algorithm to search across all available languages for matches, but you can select your primary language here.

• Select Source Excel or CSV File: Browse your computer network and select the source file to upload. By default, the system expects CSV files to be delimited with a comma.

  • Click Save to import your data and run the SPORIFY matching algorithms.

  • Click Cancel to clear all fields and return to previous screen.

Note: Source Lists containing more than 1000 records will be imported via a background job. As soon the import is finished, a notification is displayed.

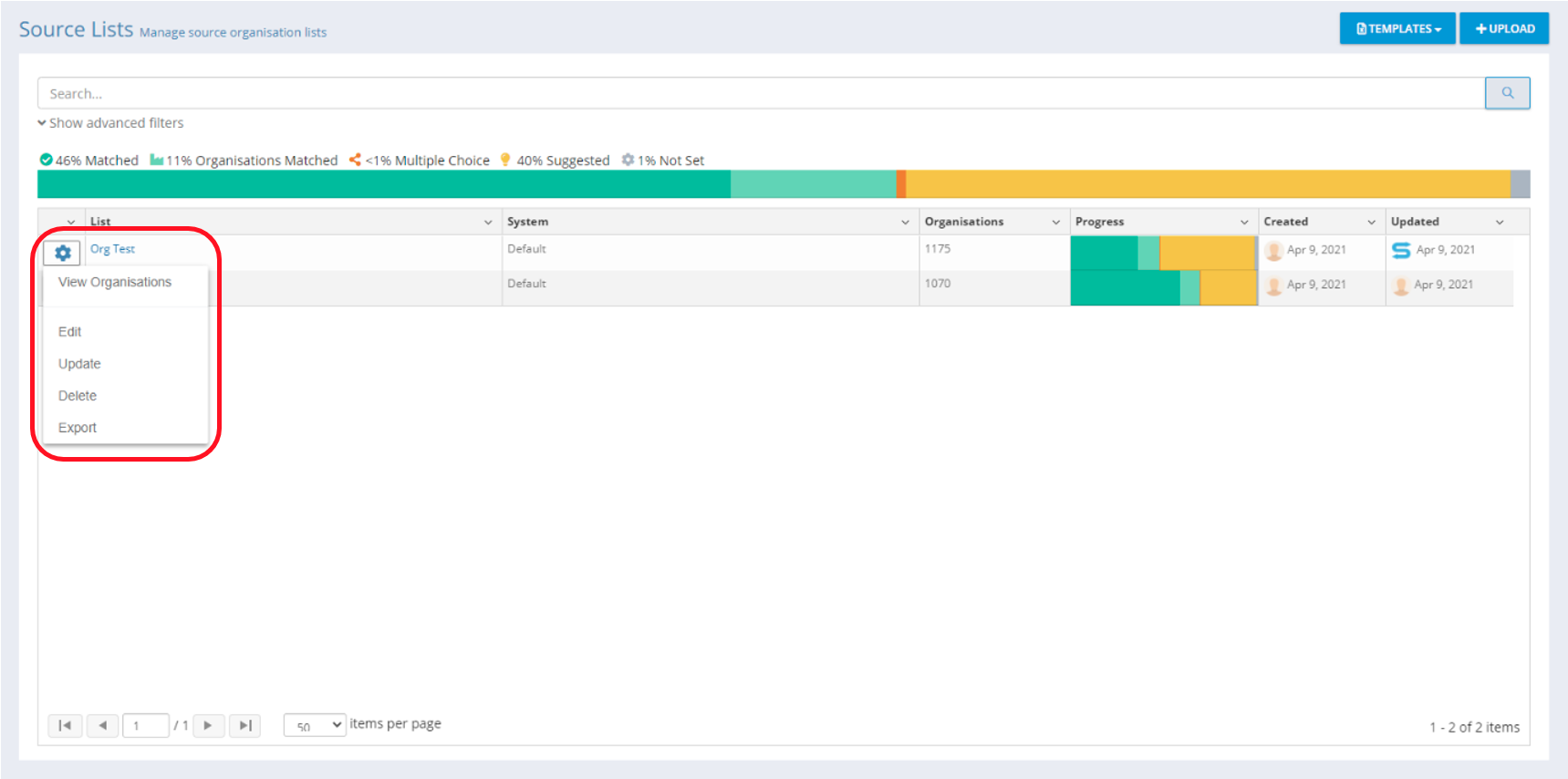

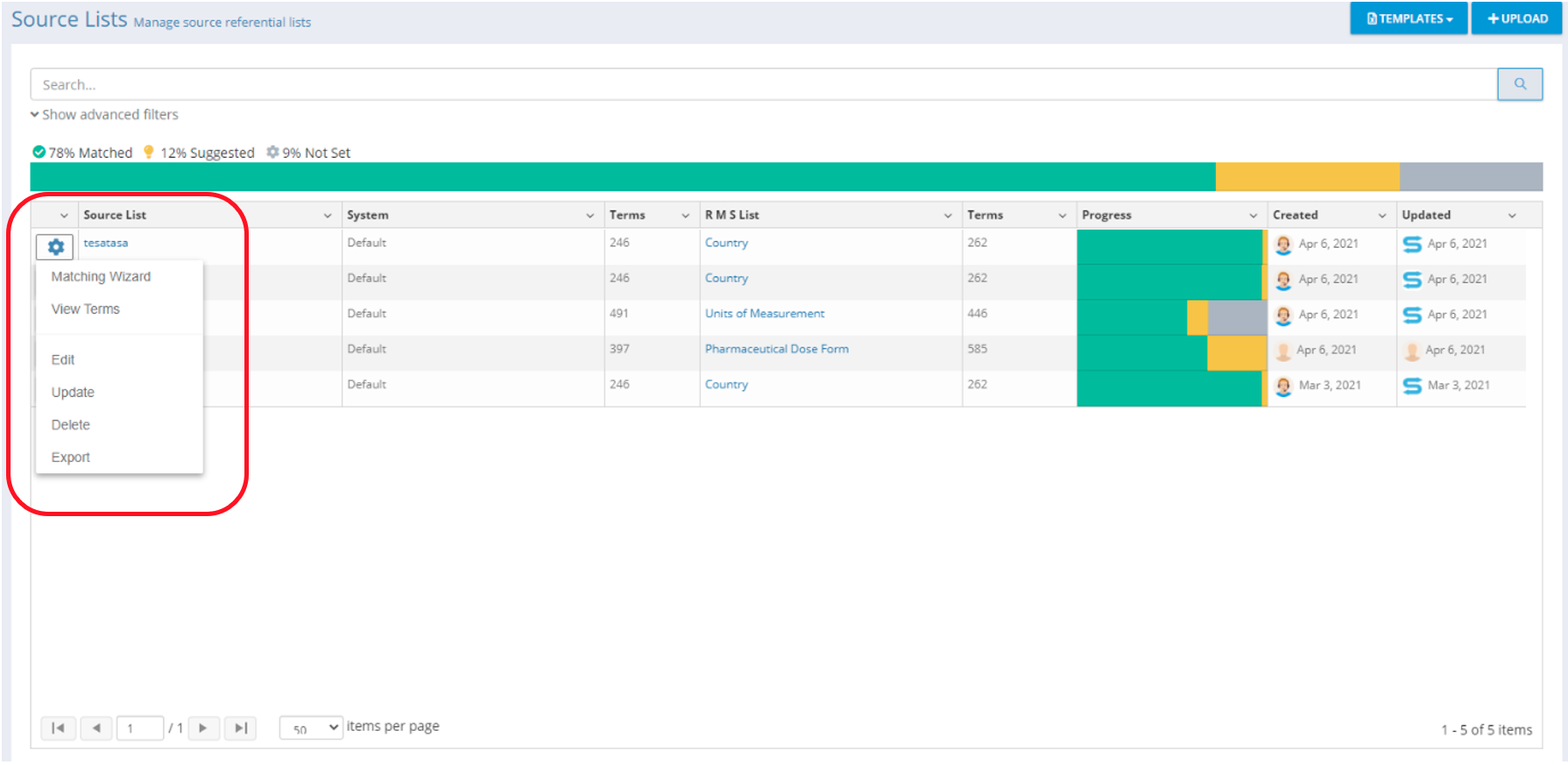

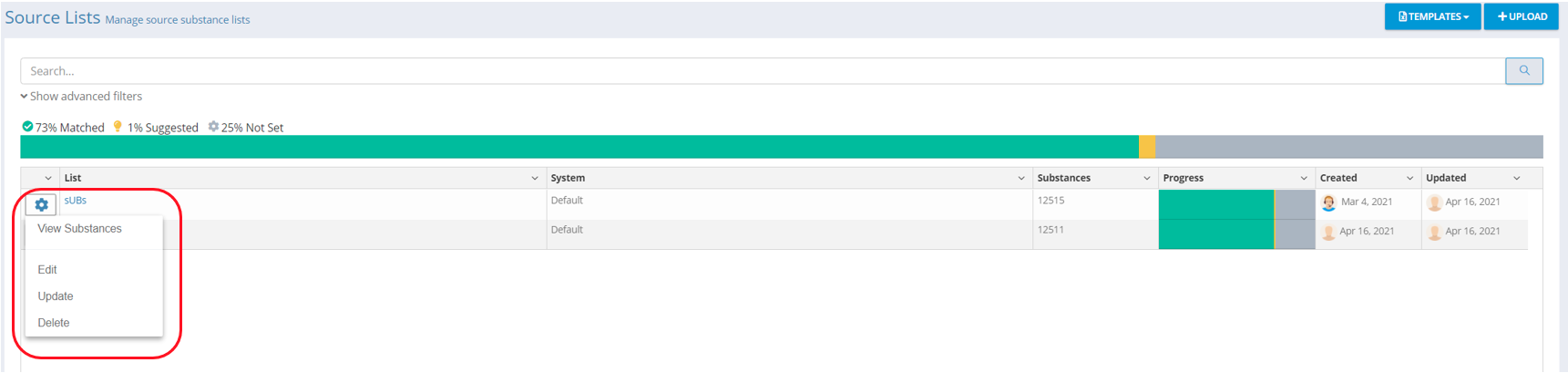

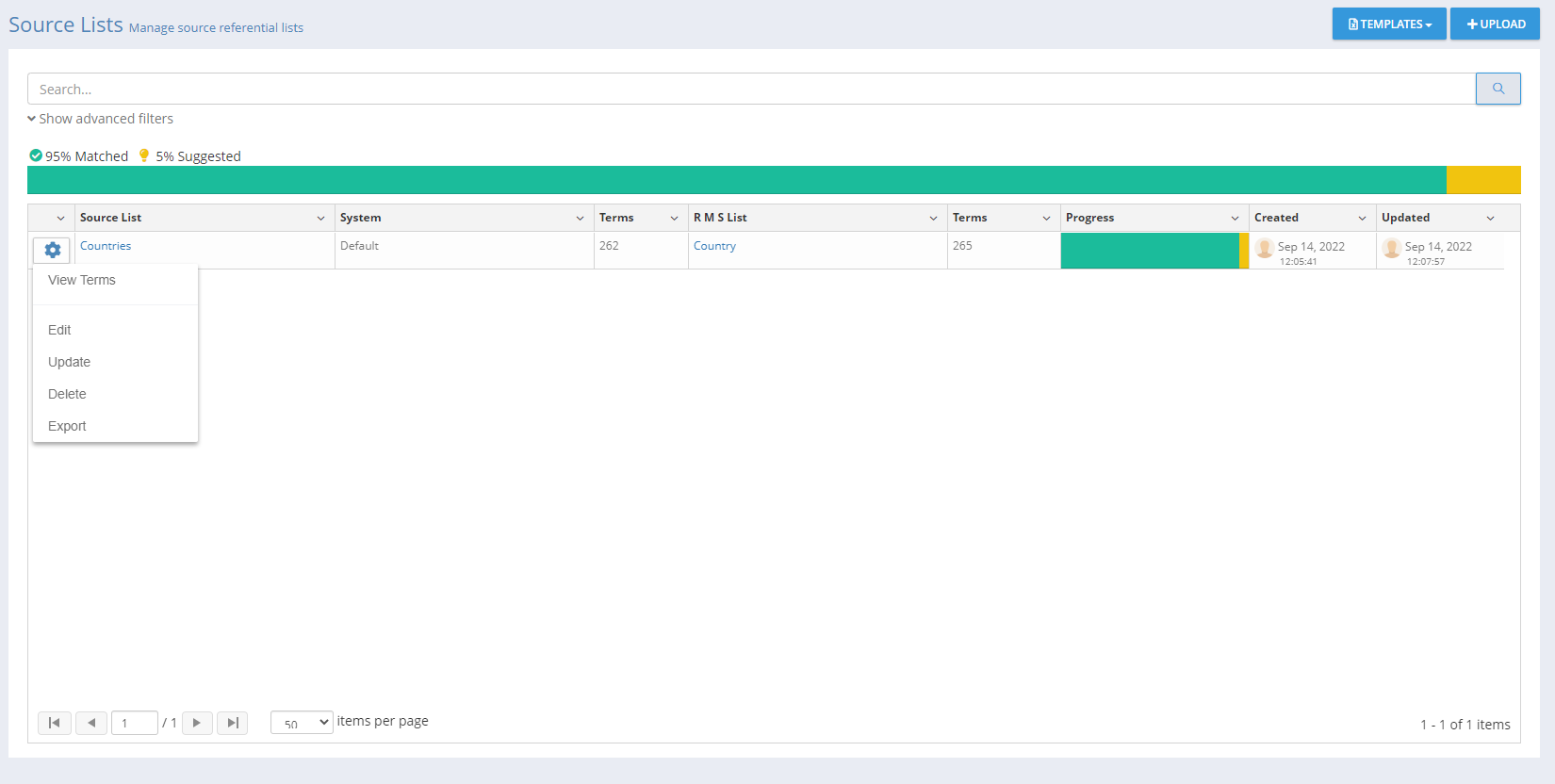

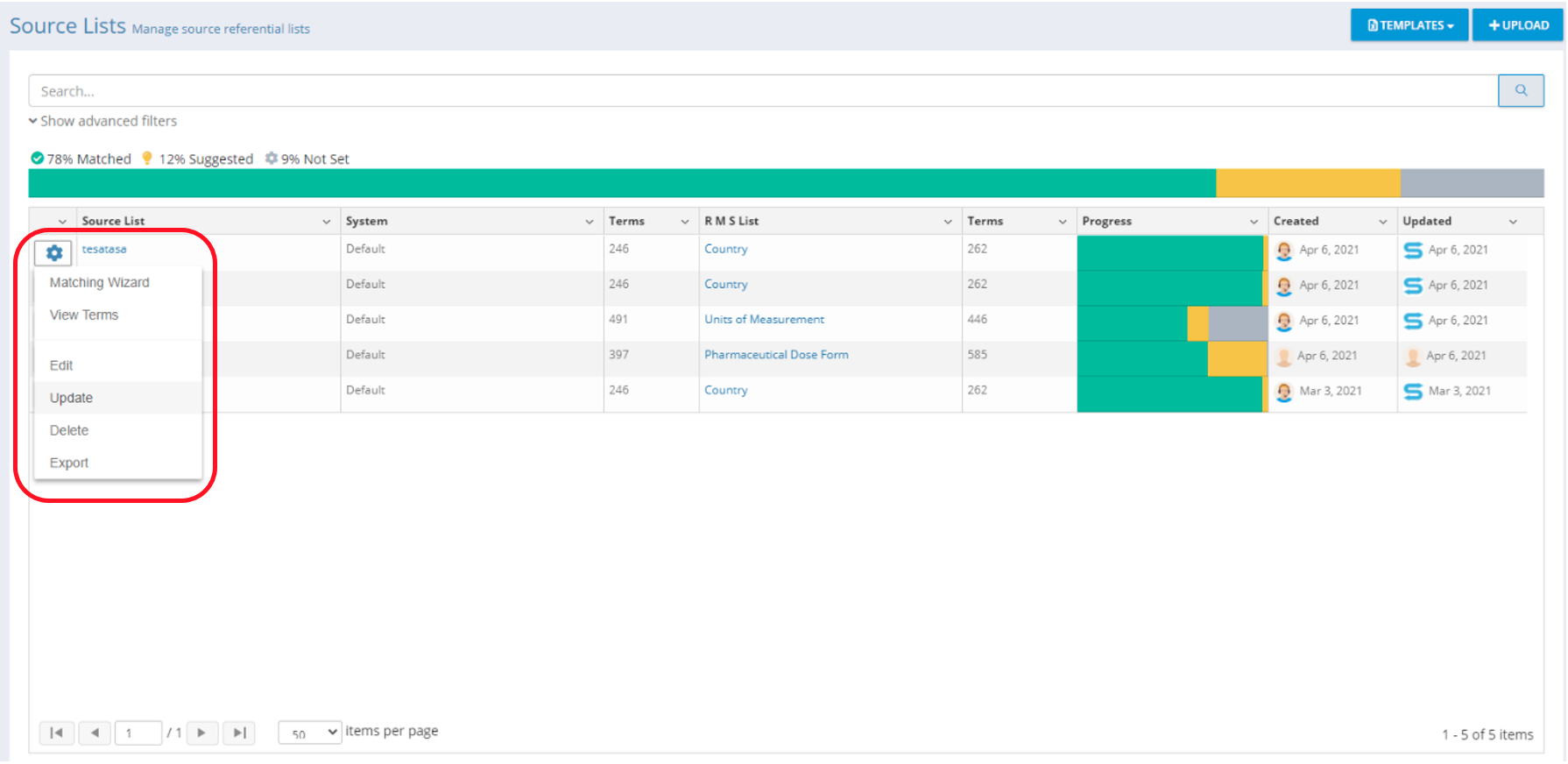

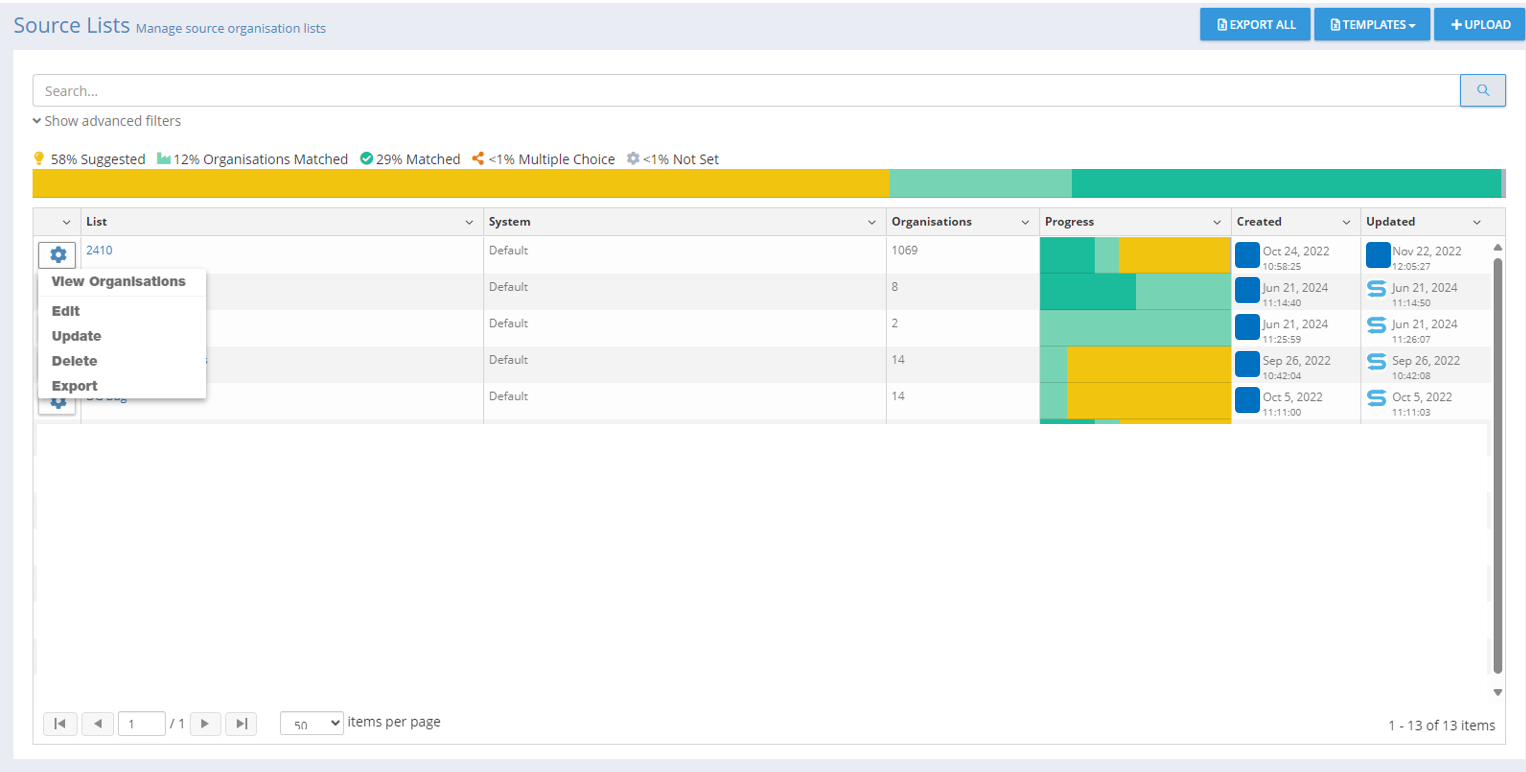

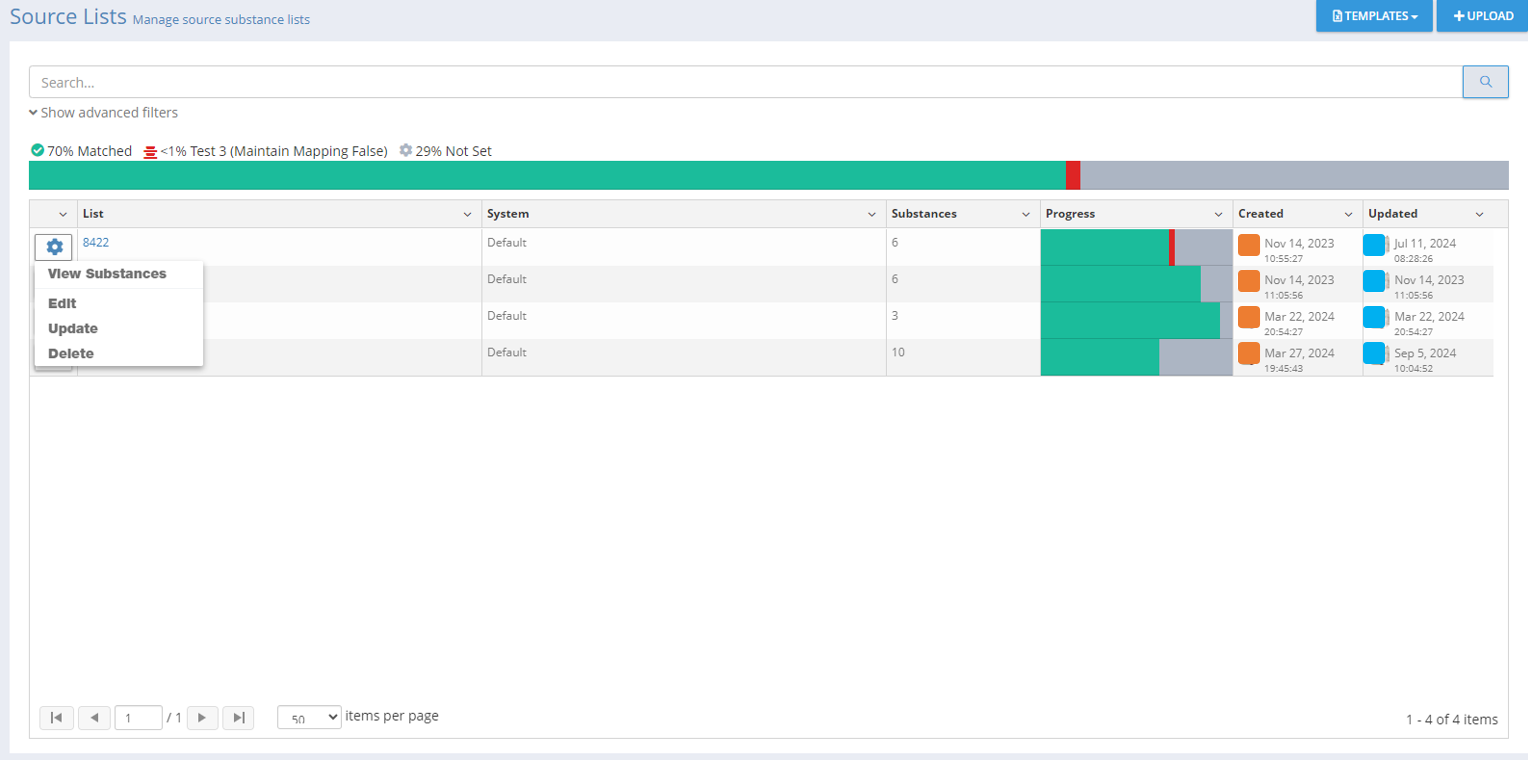

Actions Available on List

View Terms

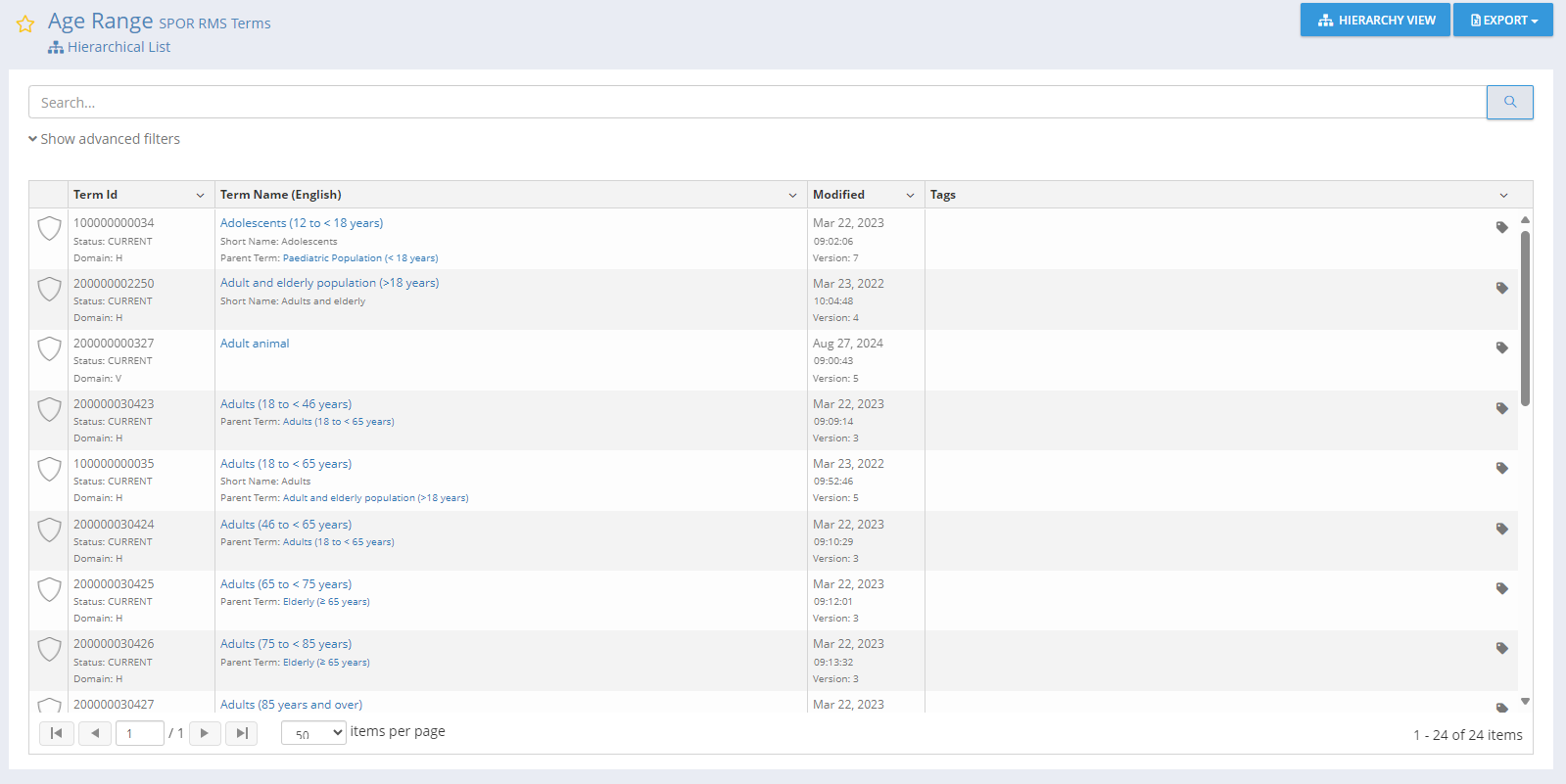

Click View Terms to view all of the Source Referentials Terms contained on the given Source List, as well as their associated mappings.

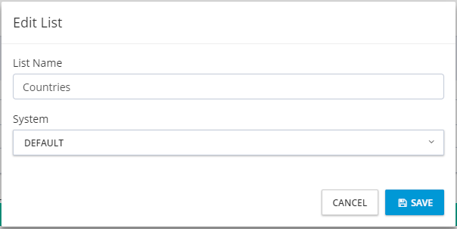

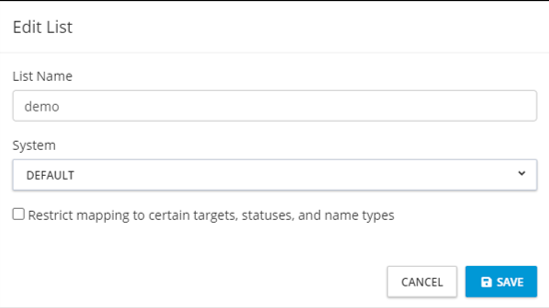

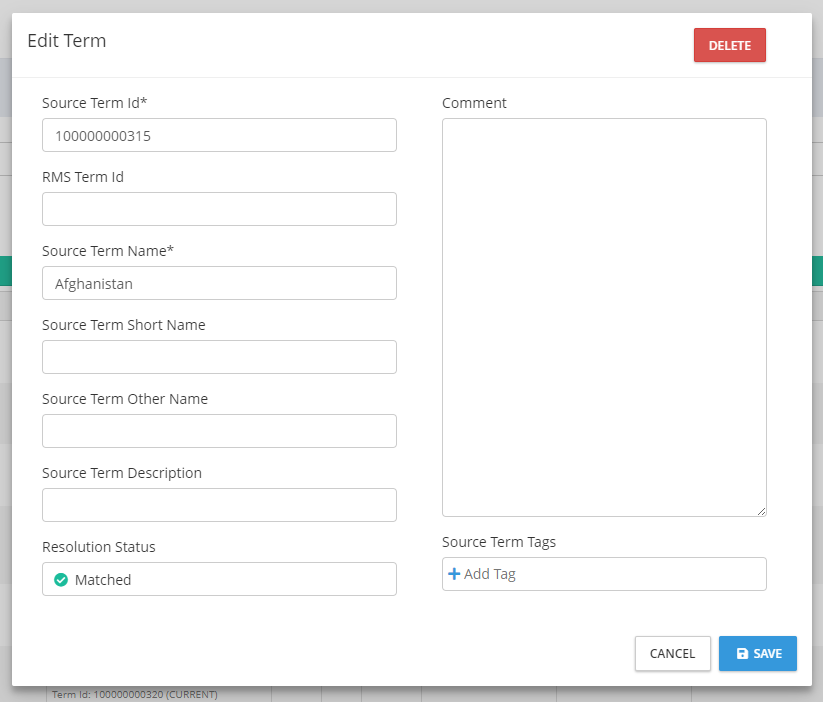

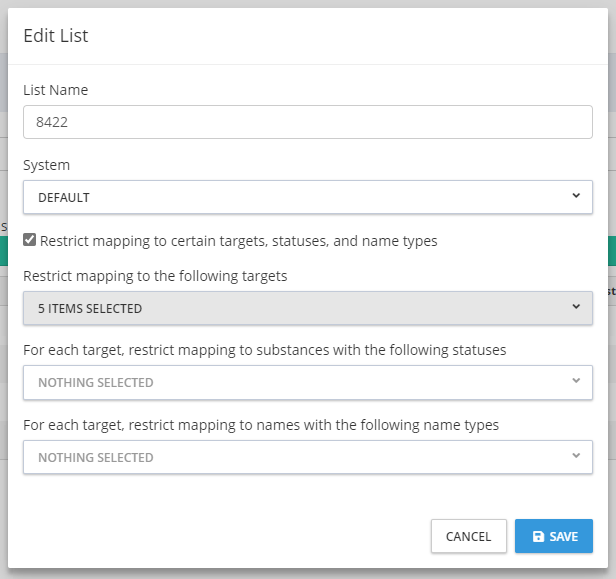

Edit

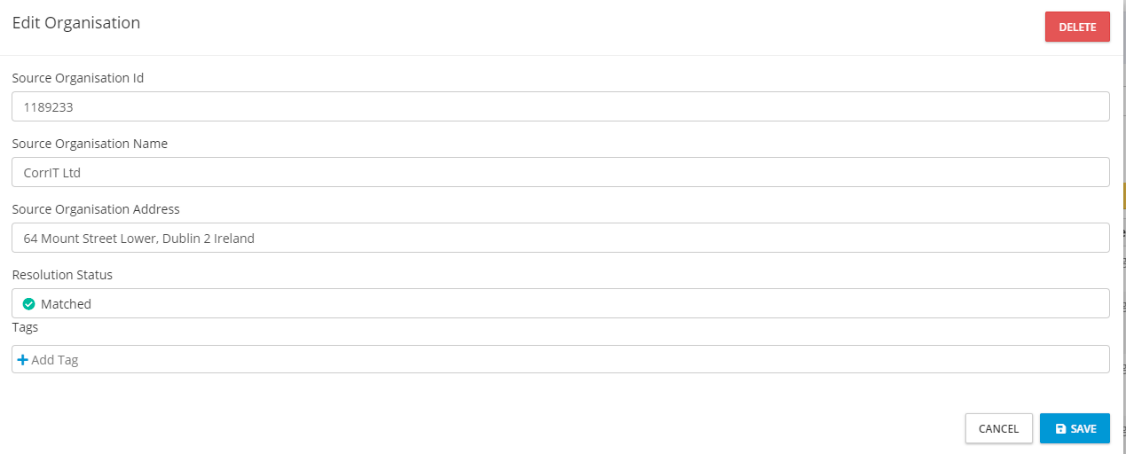

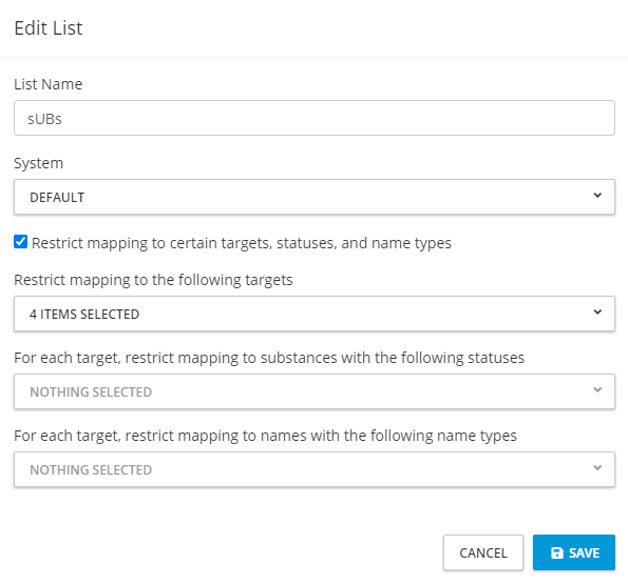

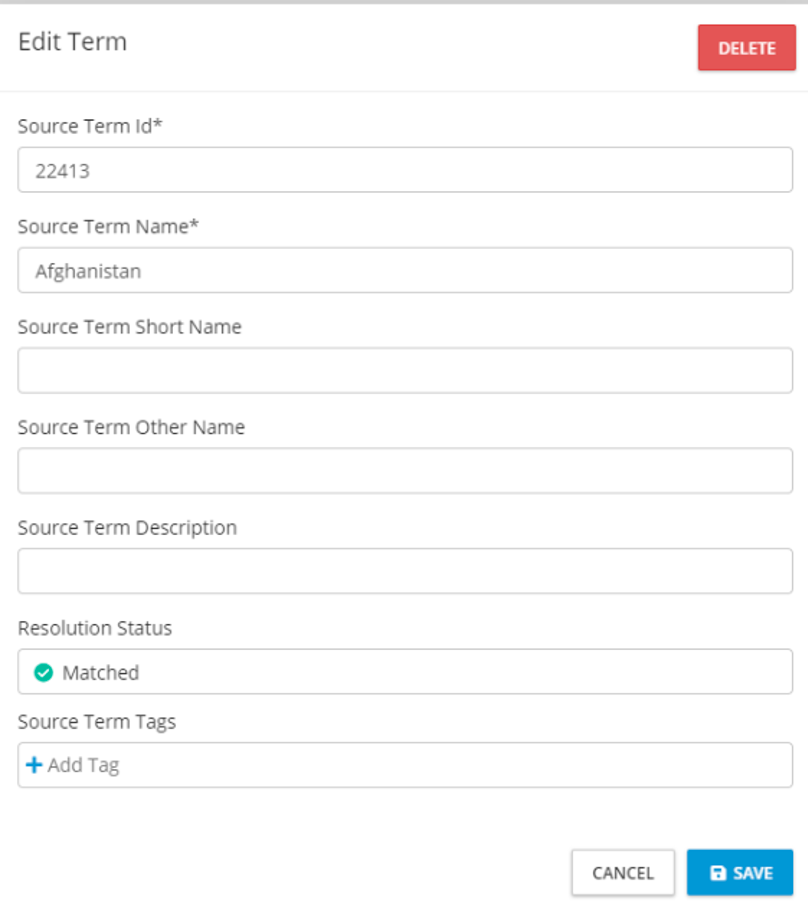

Select Edit to make changes to the list in question. Here, users can edit the List Name and associated System.

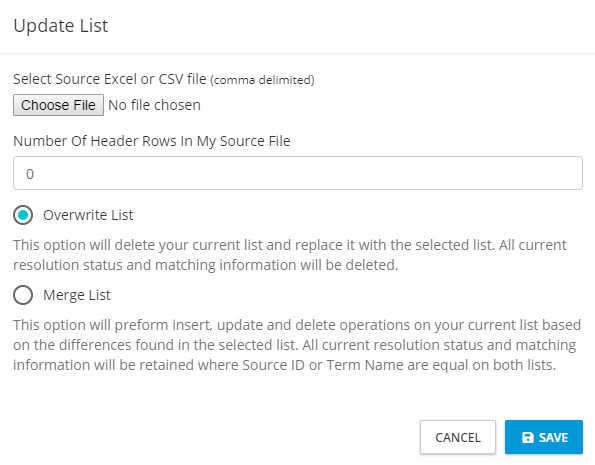

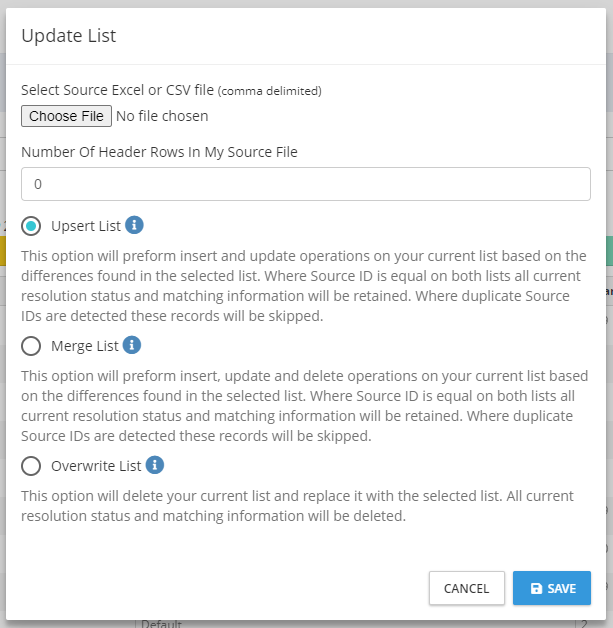

Update

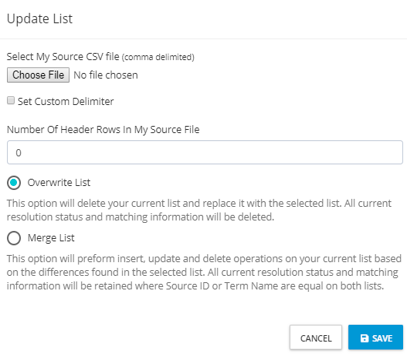

Select Update to Upsert, Merge, or Overwrite the given list.

Fields Explained:

• Select Source Excel or CSV file: Upload the relevant record from your device.

• Upsert List: This option will perform insert and update operations on your current list based on the differences found in the selected list. Where the Source ID is equal on both lists, all current resolution status and matching information will be retained. Where duplicate Source IDs are detected, these records will be skipped.

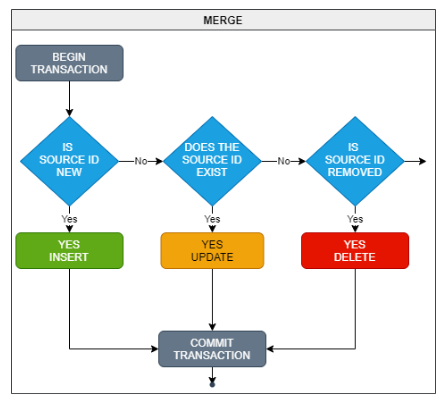

• Merge List: This option will perform insert, update and delete operations on your current list based on the differences found in the selected list. Where Source ID is equal on both lists, all current resolution status and matching information will be retained. Where duplicate Source IDs are detected, these records will be skipped.

• Overwrite List: This option will delete your current list and replace it with the selected list. All current resolution status and matching information will be deleted.

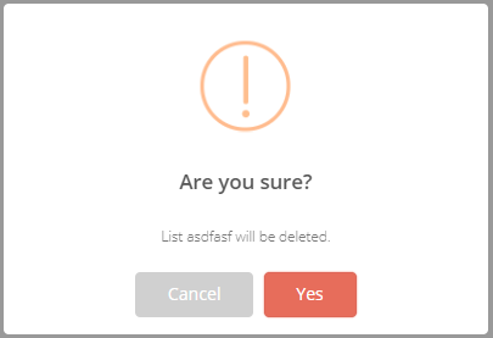

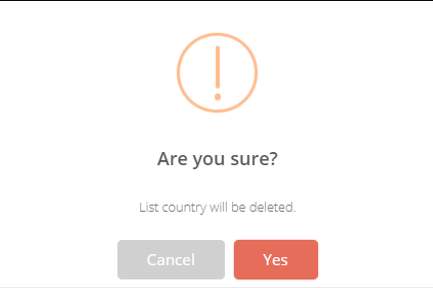

Delete

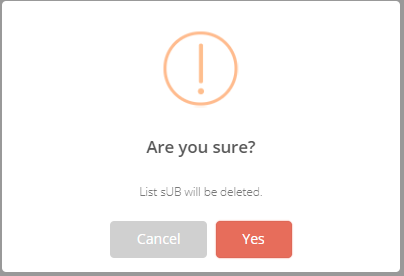

Select this option to delete your current list from SPORIFY. You will be prompted to confirm the deletion. This operation is not reversible.

Export

Select Export to export the list to Excel. The export will contain your original data and also the matched data and any associated Resolution Statuses, Tags or Data Insights. The Excel file will download directly to your device.

Mapping

• By default, SPORIFY will analyse your uploaded data and apply a Resolution Status to every term you have uploaded.

• SPORIFY’s system-based Resolution Statuses are:

  1. Matched: SPORIFY has located an exact match for your term on the Target Referentials list.

  2. Multiple Choice: SPORIFY has located multiple exact matches for your term on the Target Referentials list. Note: When matching to Hierarchical lists, multiple choice will be allocated where identical Term Names with different Term IDs are related to different parent terms.

  3. Suggested: SPORIFY found Target Referentials terms that are closely related to your local term.

  4. Not Set: SPORIFY could not locate any term similar to your local term.

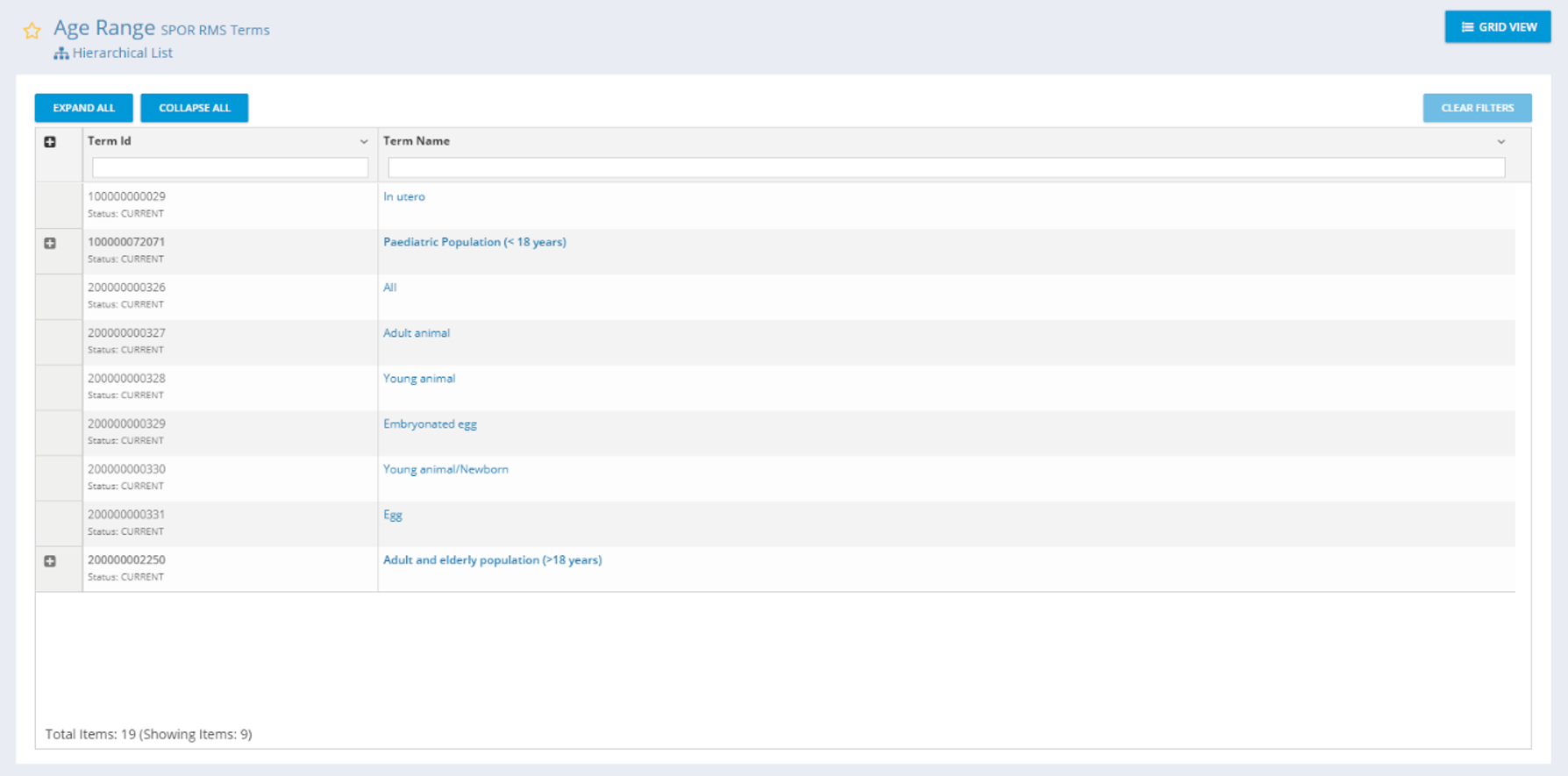

• SPORIFY provides mapping functionality for both Hierarchical and Non-Hierarchical lists. When matching to a Hierarchical list, the corresponding matched terms will display the term parent in sub-text under the matched term. When reviewing suggestions, users can view parent term information by hovering their mouse over the relevant term name text in the list of returned suggestions.

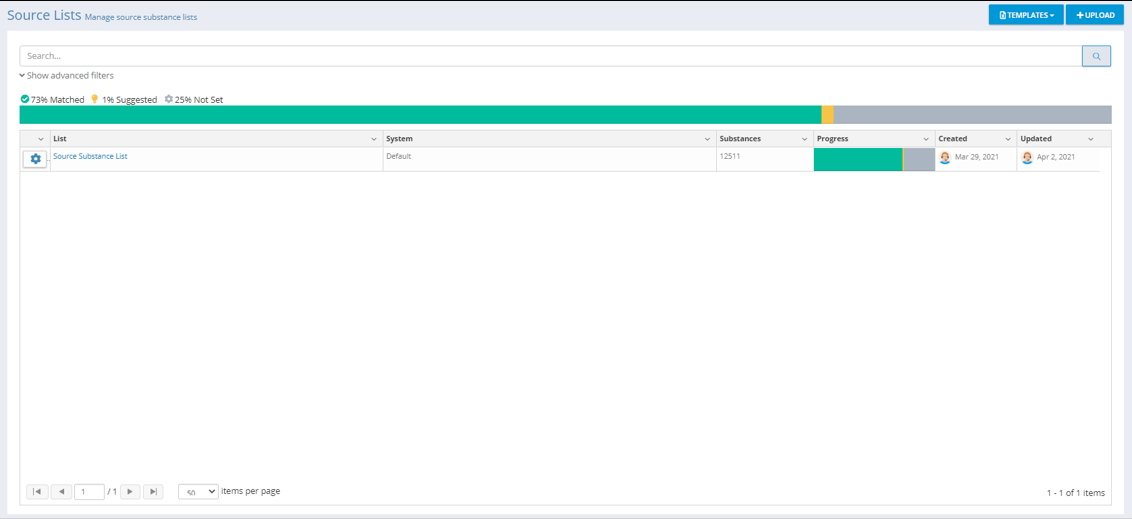

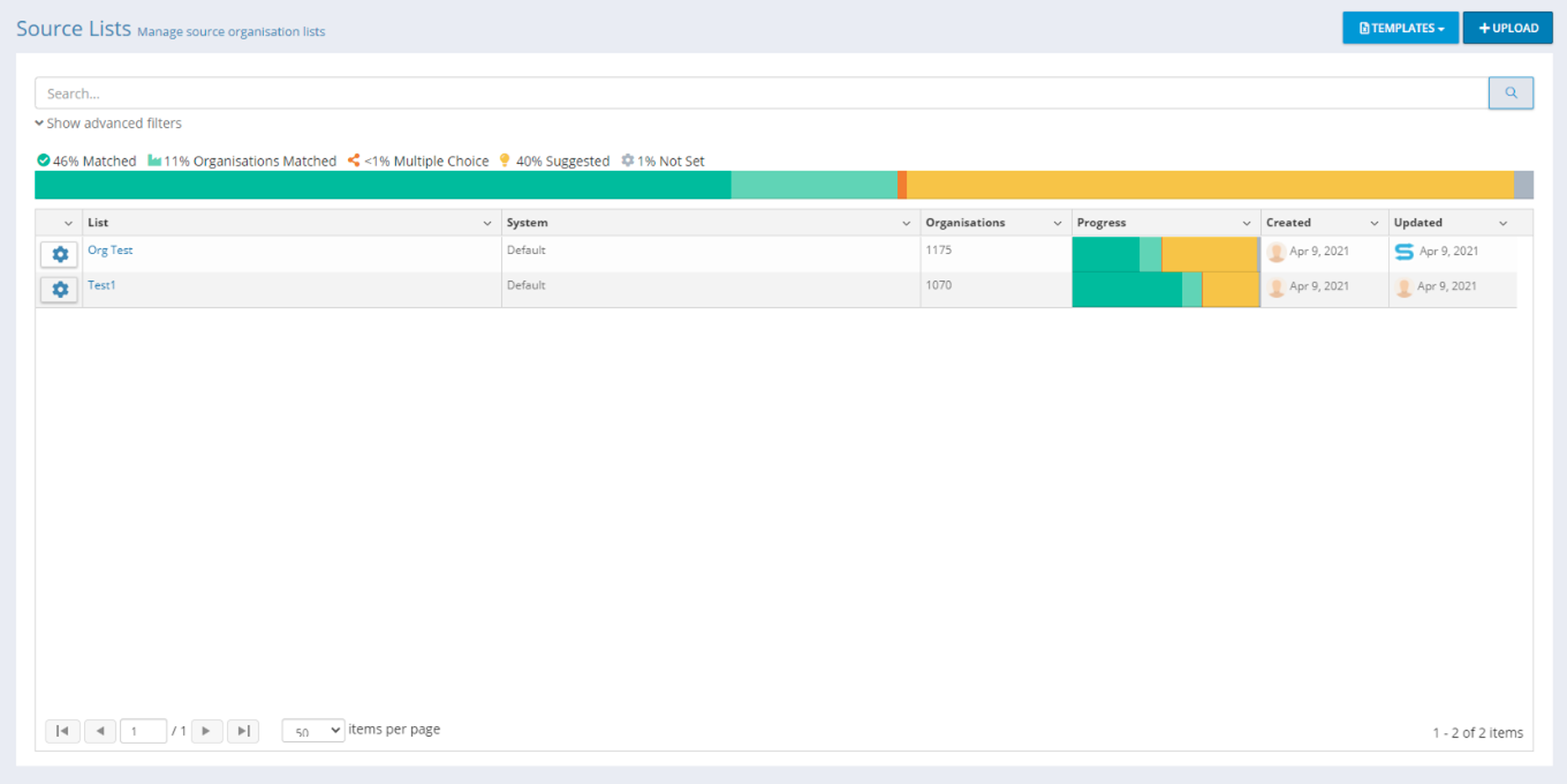

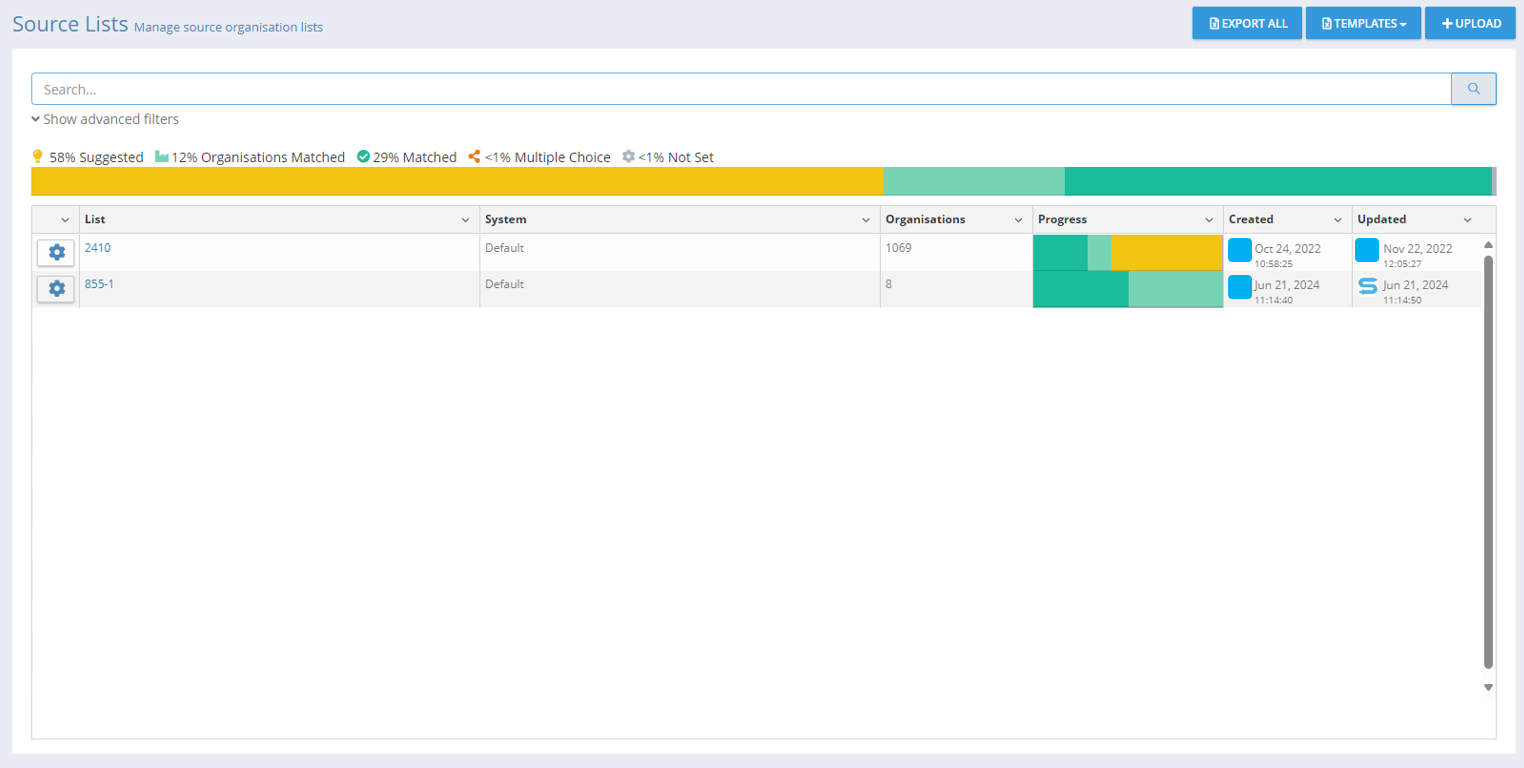

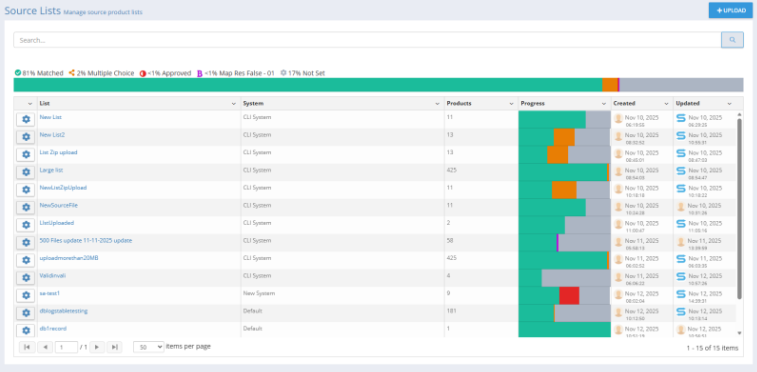

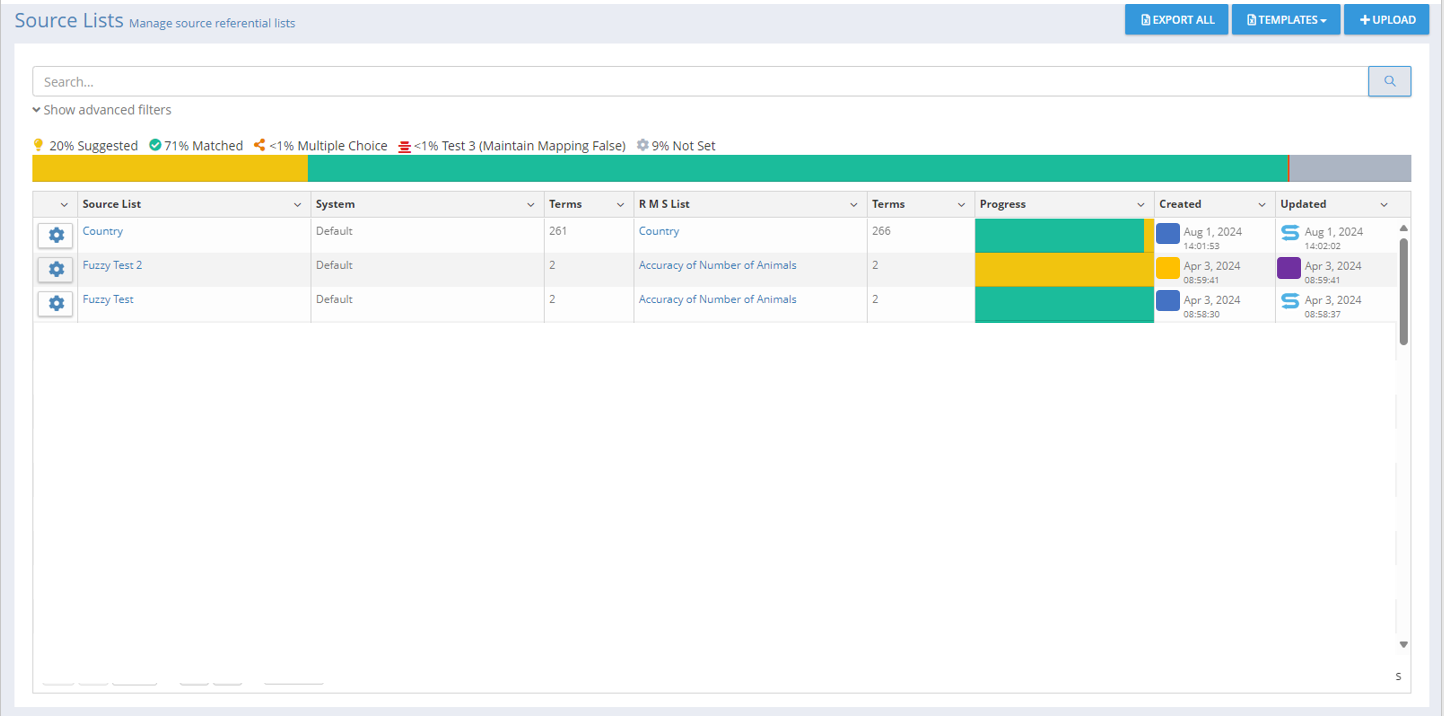

• Once your lists are uploaded, each list will have a progress bar showing Resolution Status percentages for the given list.

• Above the lists, an overall progress bar will show your Resolution Status percentage across all lists.

• Colour-coding is used to indicate match types. In the case of imported mappings only, colour-coding will be based on the text match, even if the mapping was done by an exact ID match.

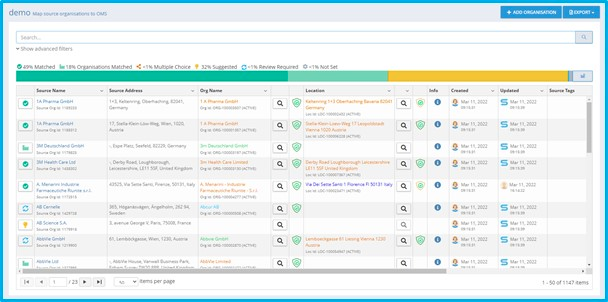

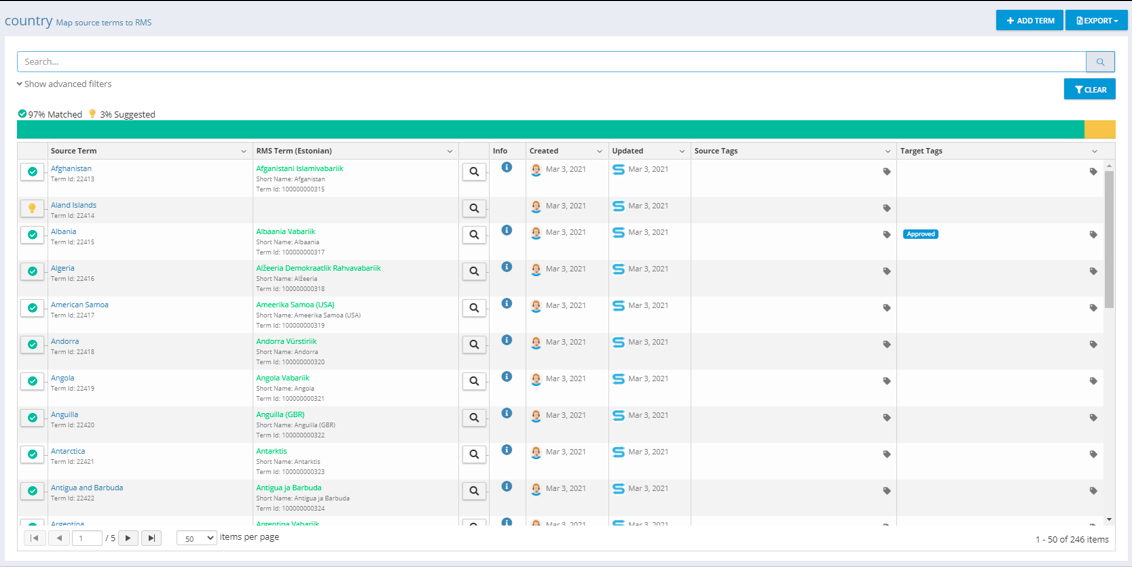

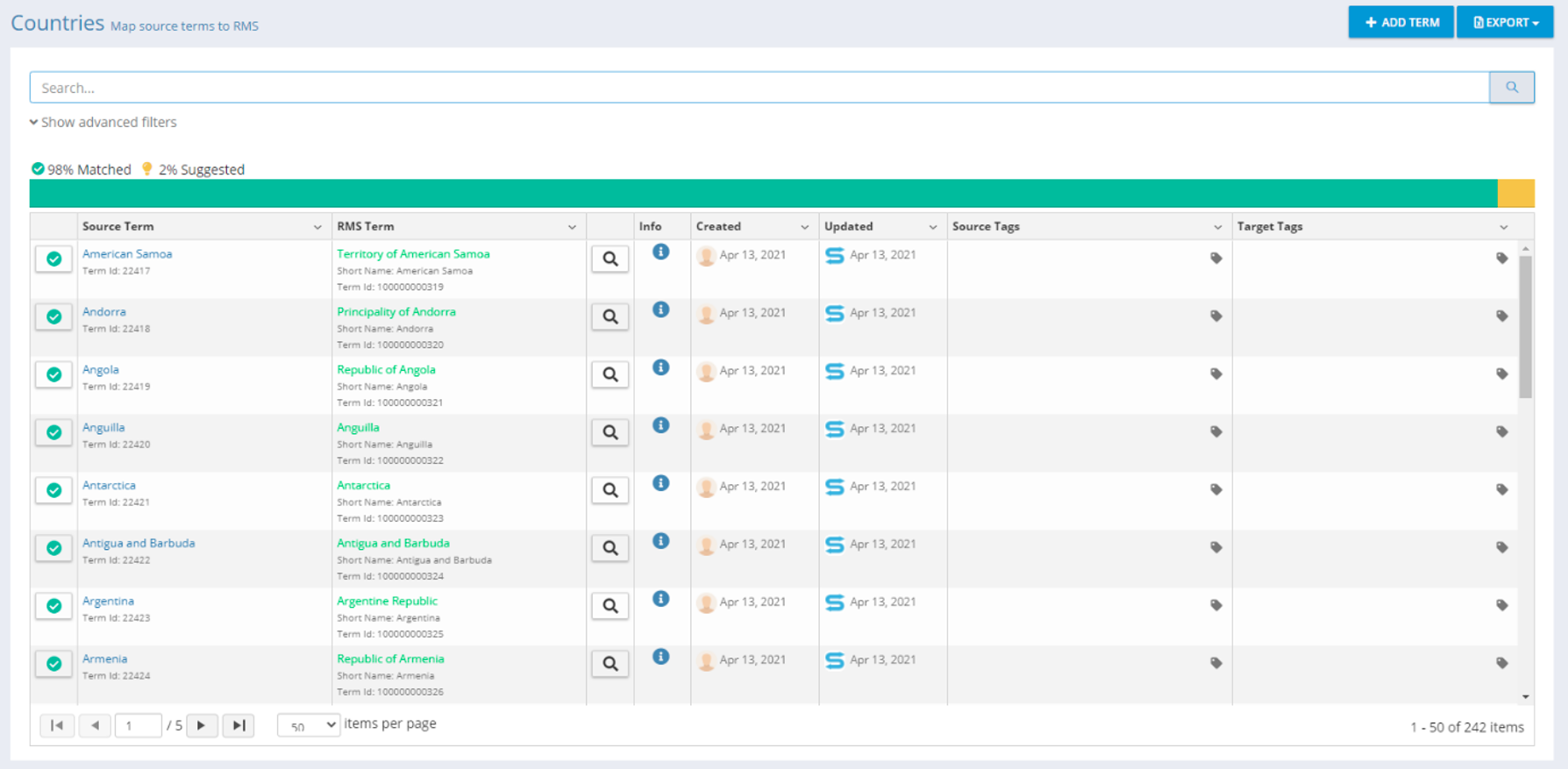

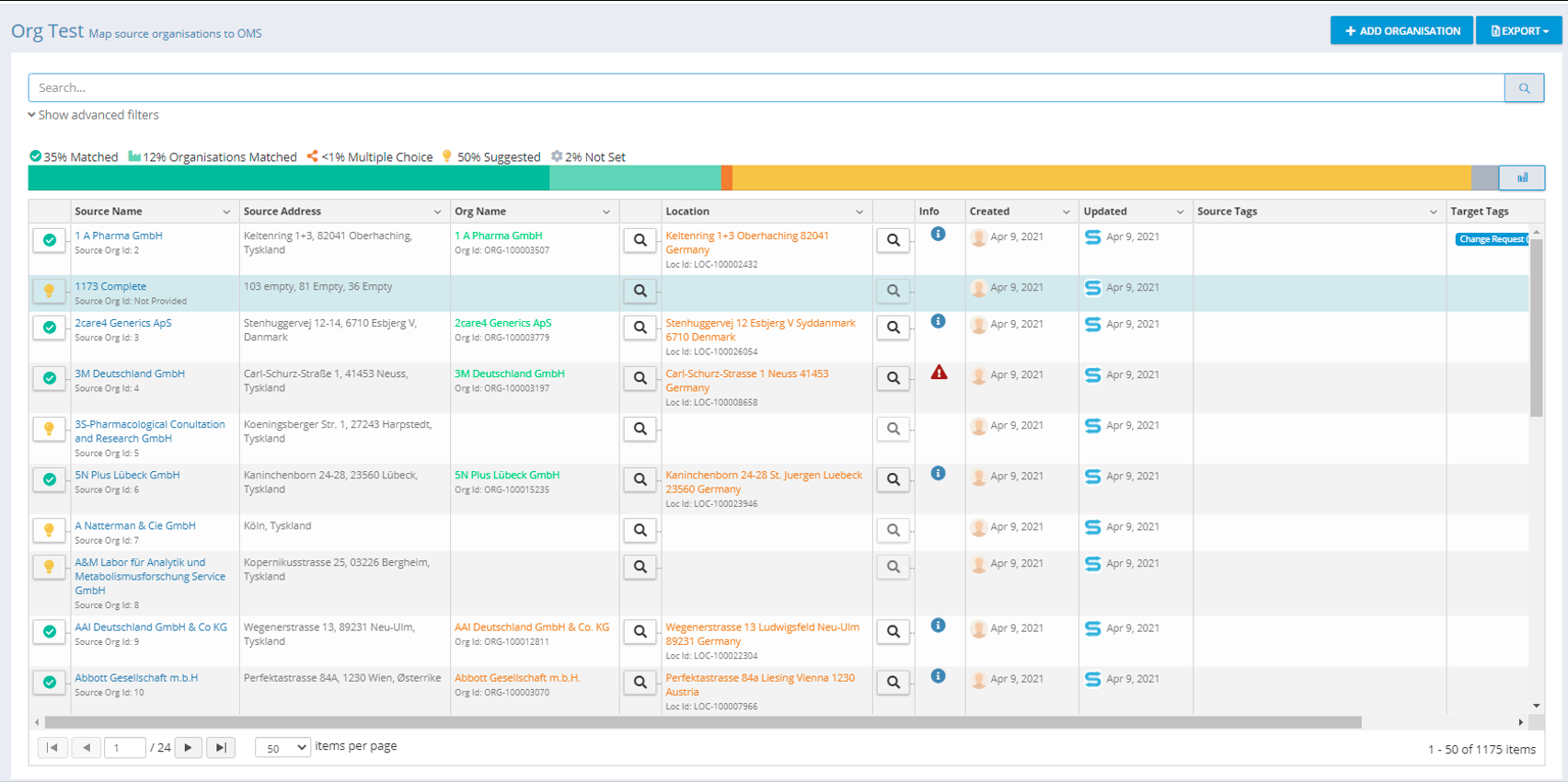

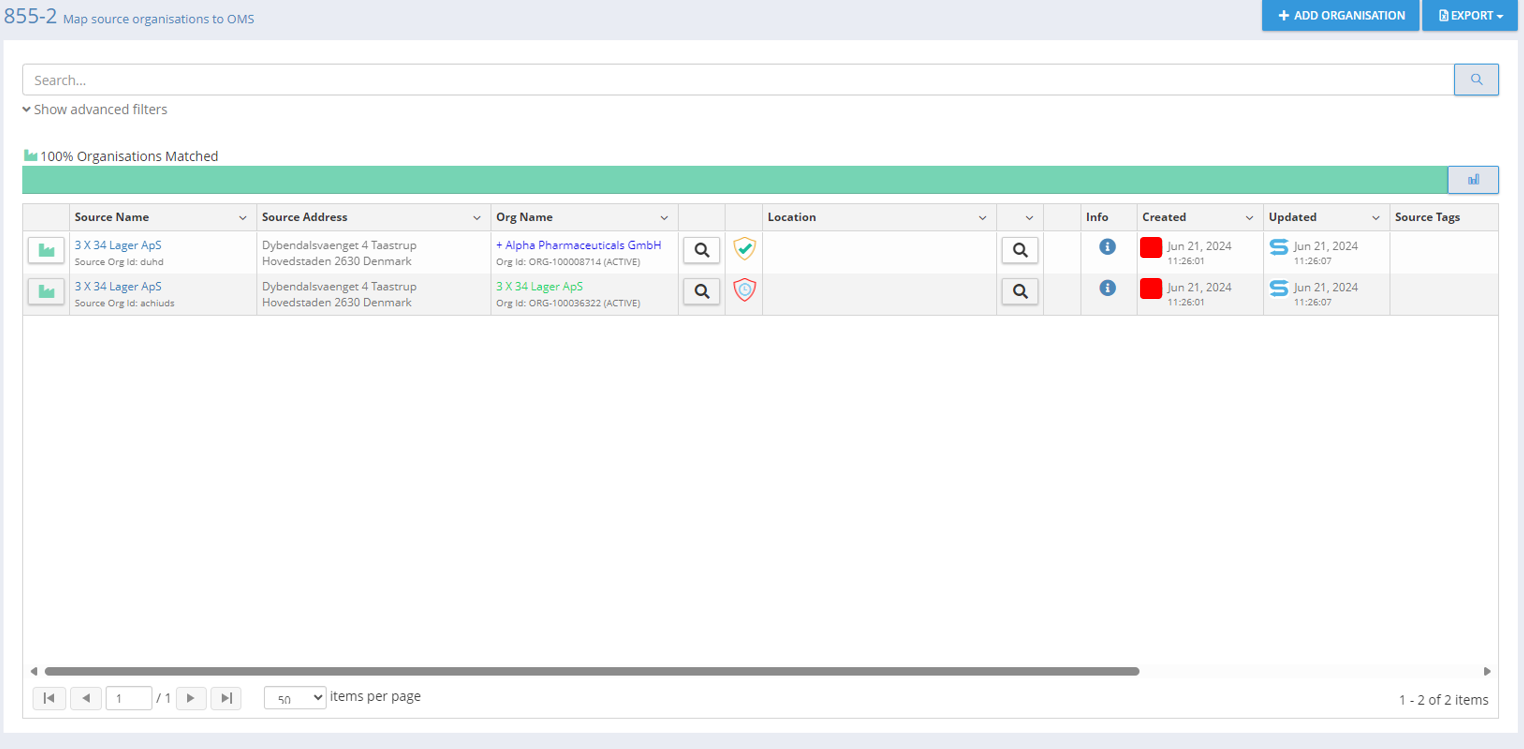

Manually Matching Terms

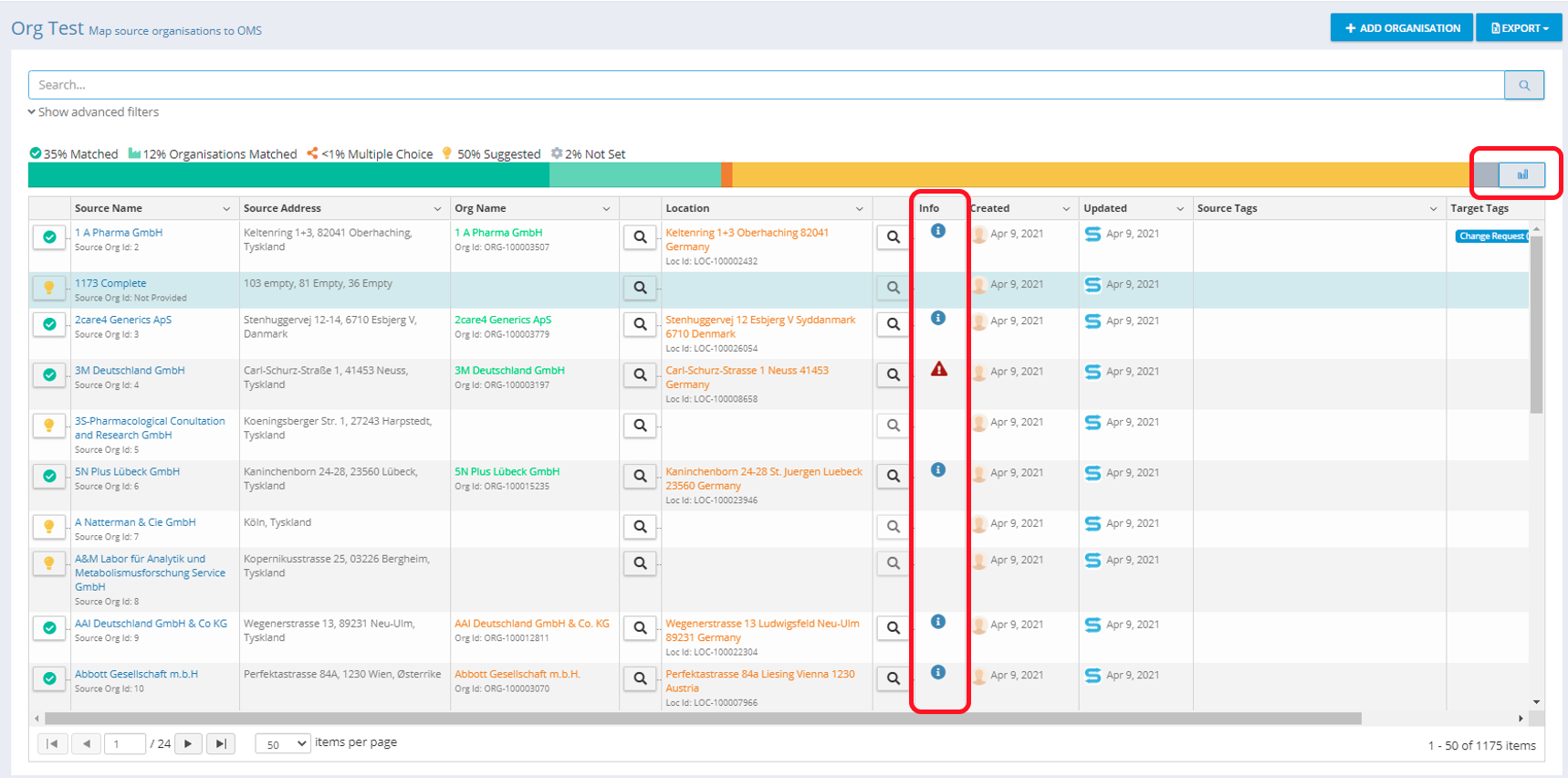

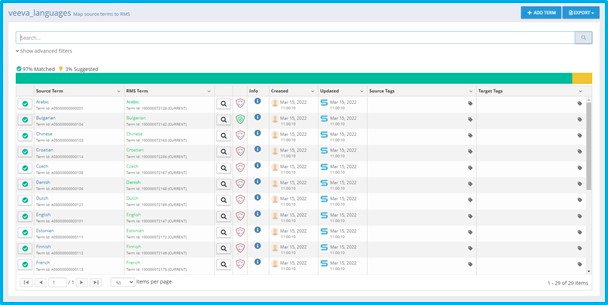

• Click on the relevant Source List Name to move to the manual matching grid.

• For each term on the manual matching grid, the following information is presented:

  • Resolution Status: This is the icon on far left-hand side of grid.

  • Source Term: Presents Term Name, Short Name, and Term ID.

  • Manual Matching Search: This is the clickable magnifying glass icon.

  • Info: This column displays Match Type information e.g. exact or fuzzy match

  • Created: Who created this record and when.

  • Updated: Who updated this record and when.

  • Source Tags: Tags associated with your local data.

  • Target Tags: Tags associated with the target term data.

• Click on the Manual Matching Search icon.

• Search as required using the provided search bar.

• Select a match from the search results.

Assigning Tags

• Assign Source Tags: Method #1

  • Select the Source Term on the grid.

  • In the Source Term Tags field, click Add Tag and select one or more Tags as required.

  • Click Save.

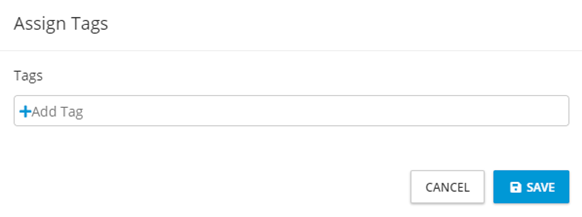

• Assign Source Tags: Method #2

  • Select the tag icon in the Source Tags column on the data grid.

  • Add or remove tags as required from the Tags control.

  • Click Save.

• Assign Target Term Tags: Method #1

  • Select the Target RMS Term on the grid.

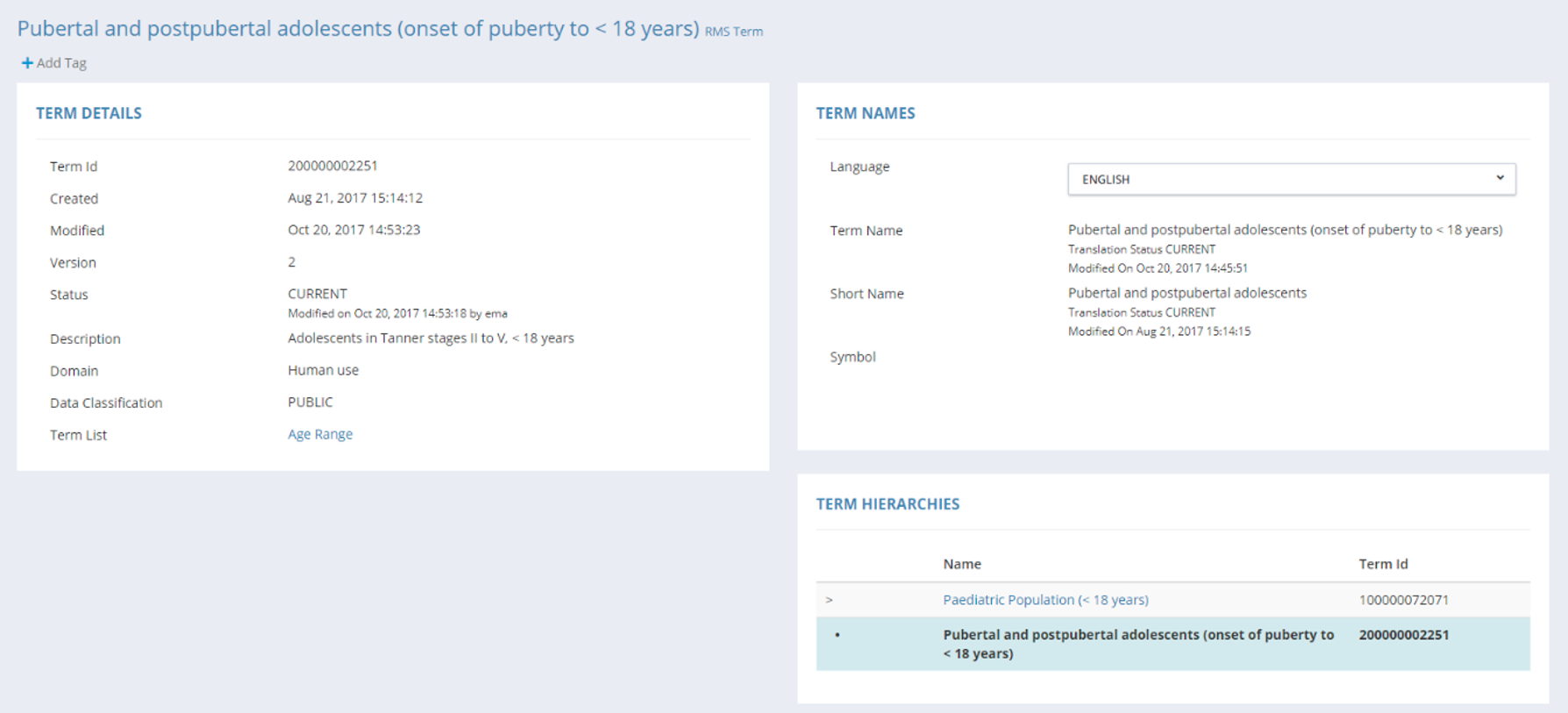

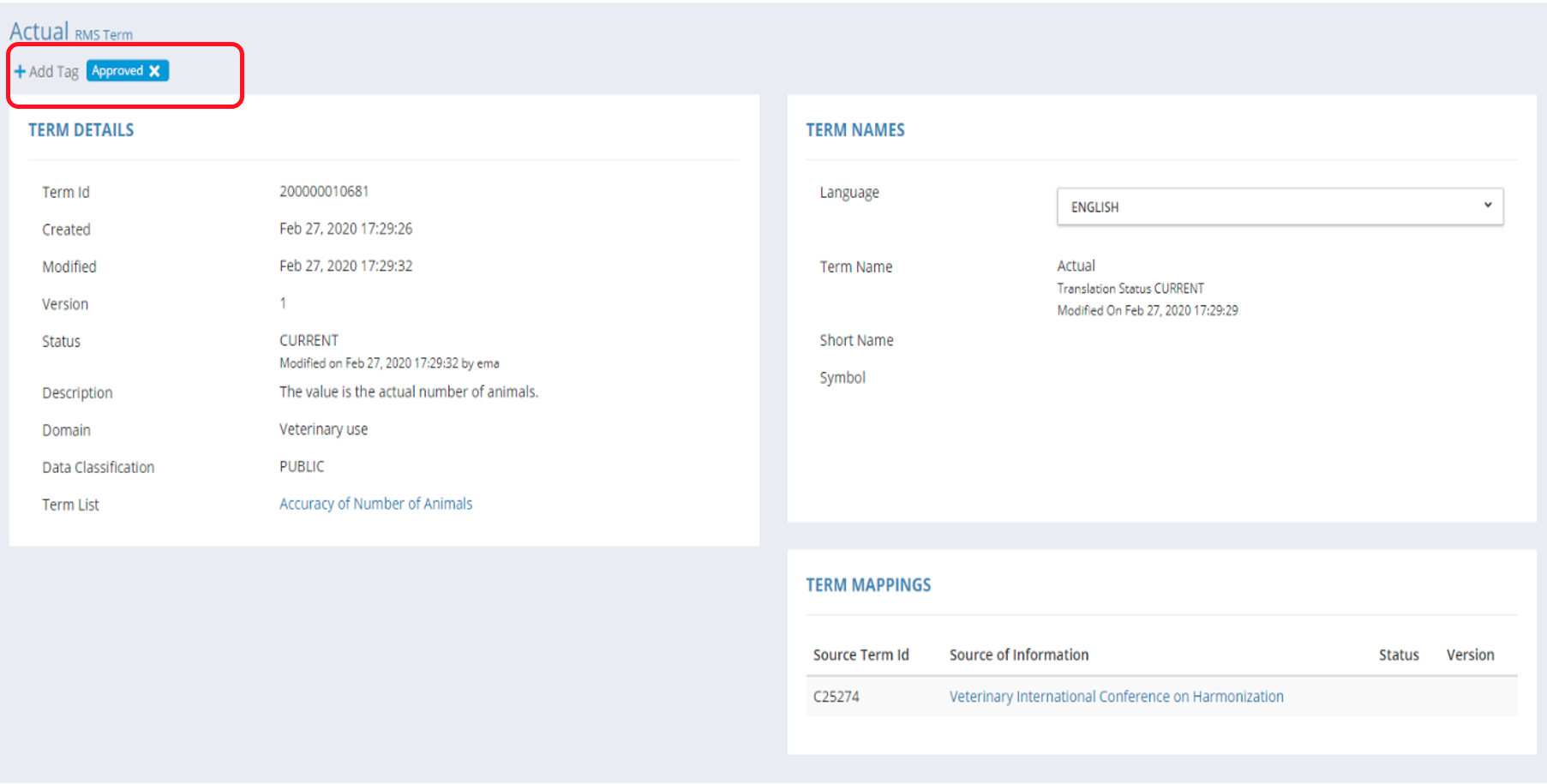

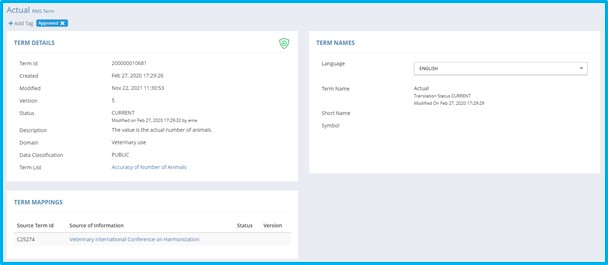

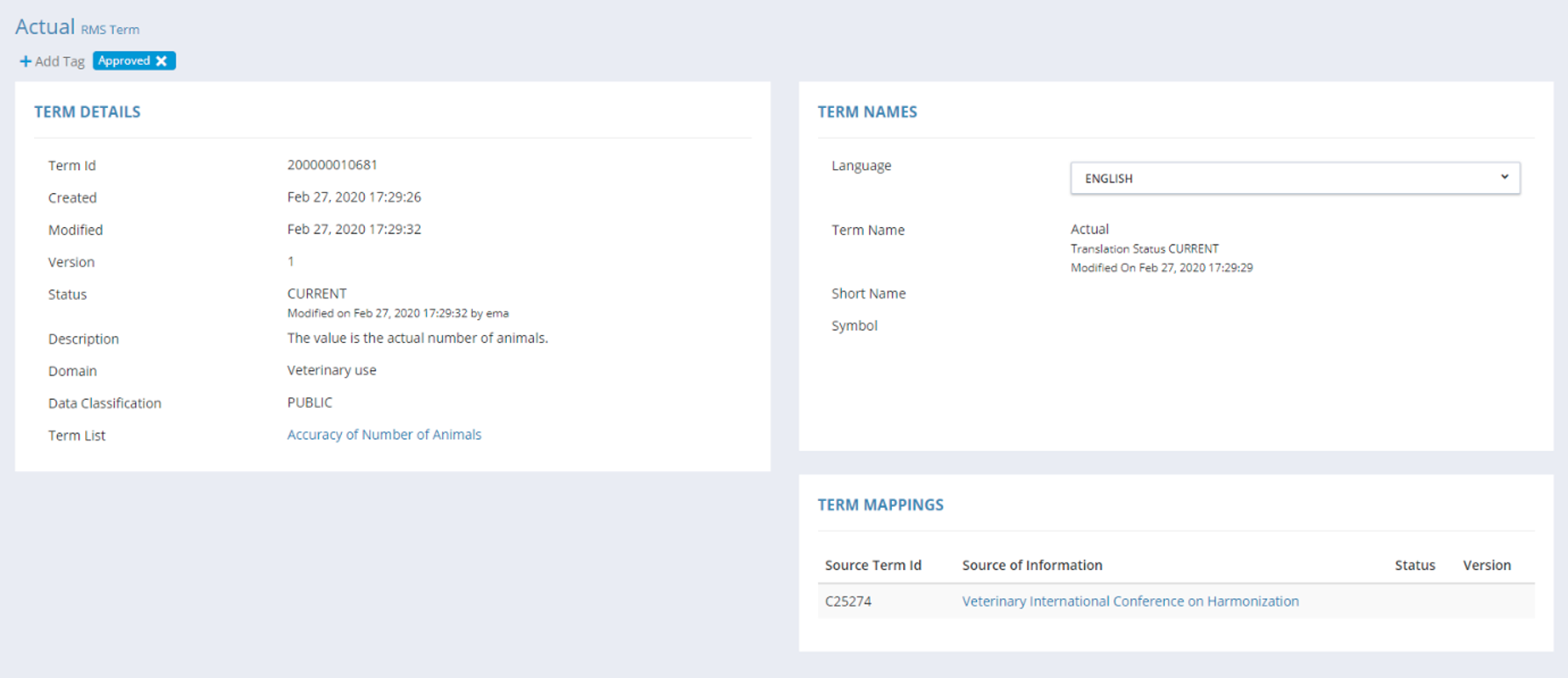

  • You will be redirected to the Term Detail page for the selected term.

  • Click Add Tags under the Term’s heading.

  • Select Tags from the menu.

  • Tags are automatically saved when assigned to Target Data.

• Assign Target Term Tags: Method #2

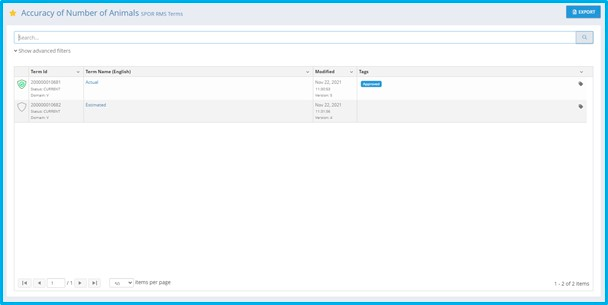

  • Select the tag icon in the Target Tags column on the data grid.

  • Add or remove Tags as required from the Tags control.

  • Click Save.

Searching and Advanced Filters

• Search the presented data using the provided search bar.

• Advanced filters allow data to be filtered by the following fields:

  1. Status

  2. Language

  3. Data Governance Stage

  4. Tag

• Refresh: Refresh the data grid with the results of the selected filters.

• Clear: Reset all filters to default.

Exporting Data

Source Lists can be exported by clicking the Export All button on the Source Lists screen. Source Terms can be exported by clicking Export, then selecting from Export English, Export All Languages, and Export with SPOR, on Source Terms screens.

Exports will contain your original data and also the matching RMS data and any associated Resolution Status, Tag or Data Insight. Remaining RMS items are also provided on the exported file. This informs you of the items you are missing from your Source Data.

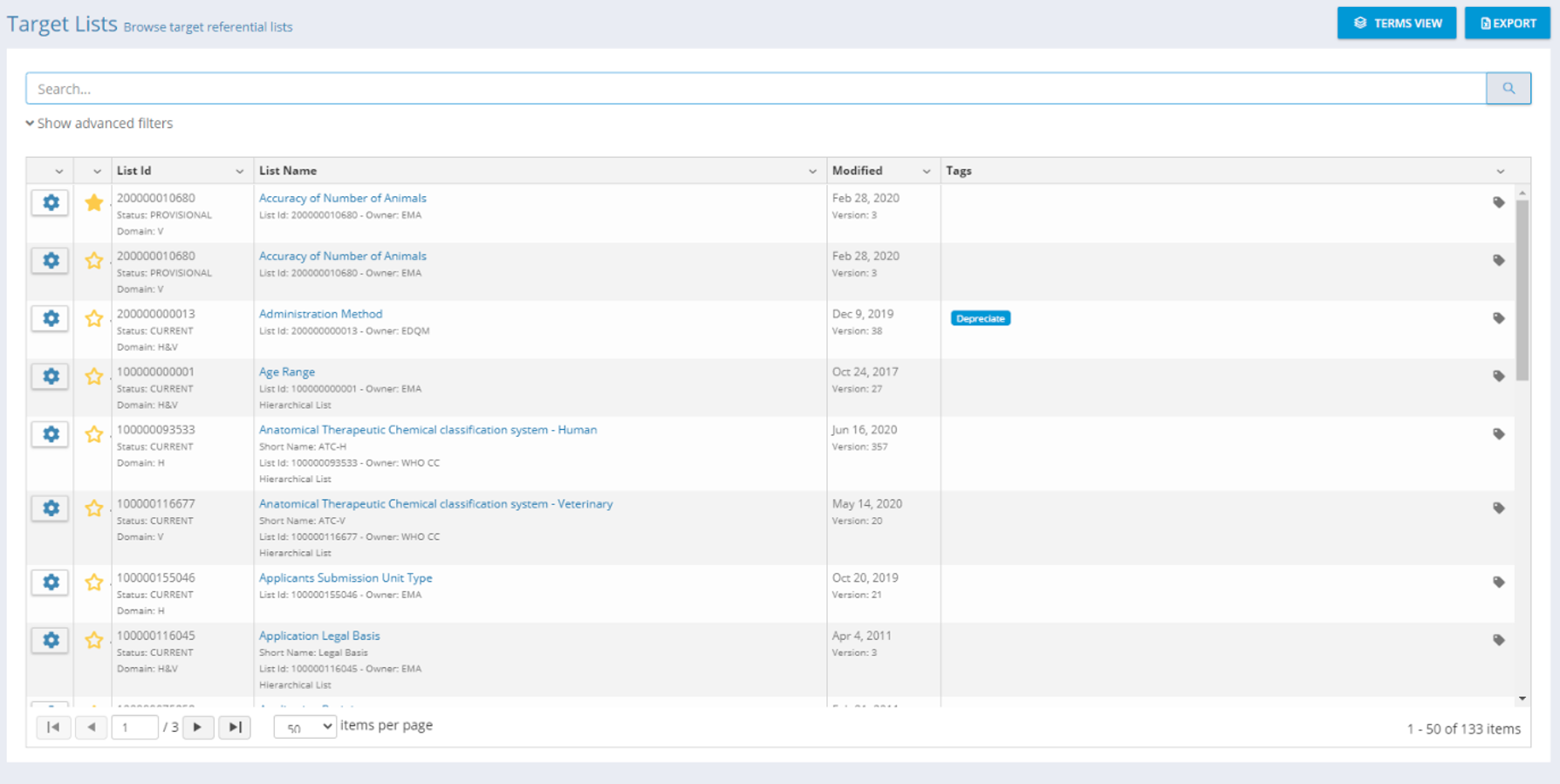

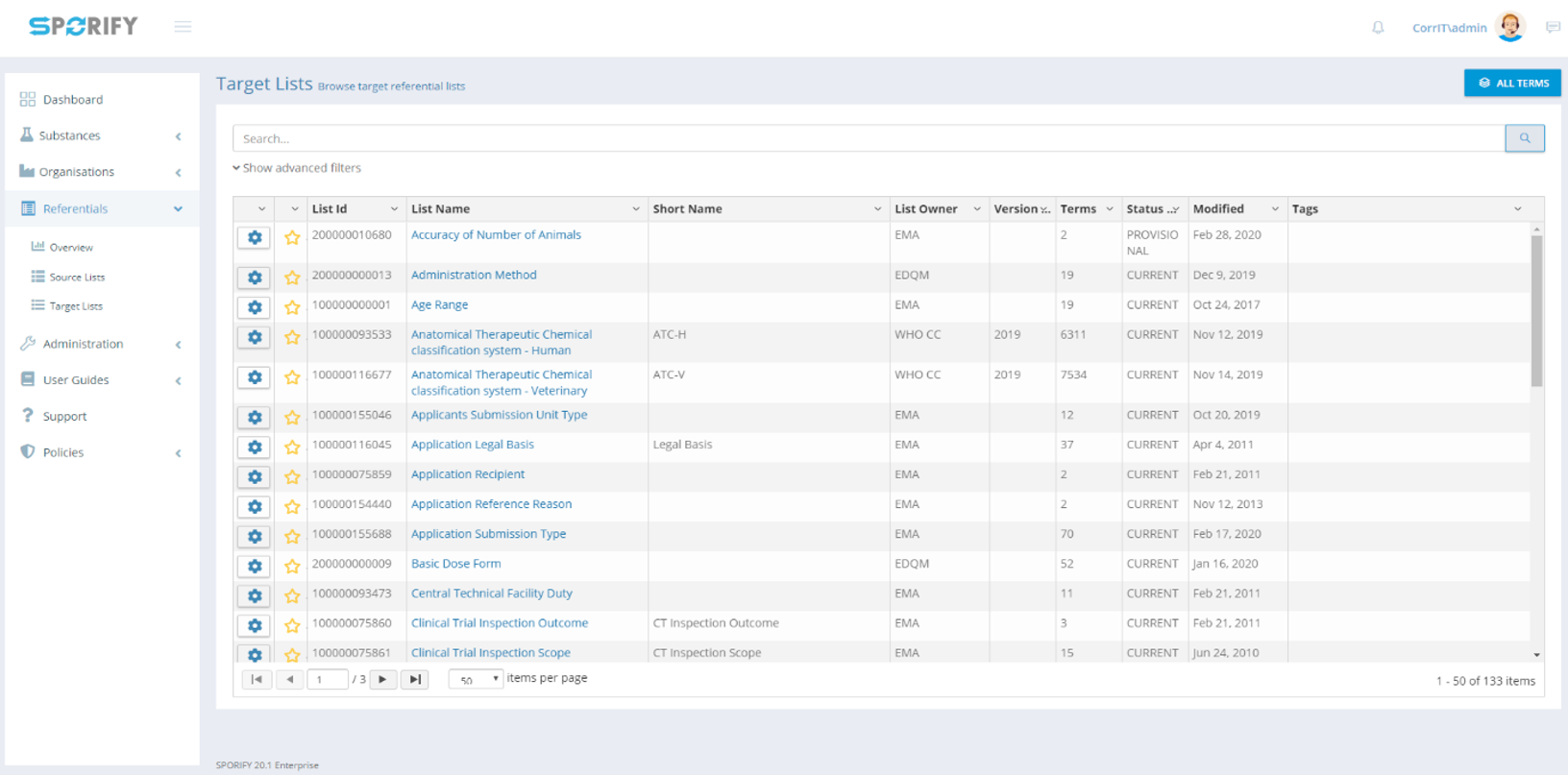

Target Lists (List View)

The Target Lists (List View) grid is designed to provide as much information about the presented lists as possible while remaining user friendly. Hyperlinks are provided inside the grid on the List Name column to navigate to pages with more detail regarding the selected record.

The information and options are provided for each list on the grid:

• Actions

  • View Terms

    • Presents all of the terms on the given list

  • View Details

    • Presents the details page for the record

  • Export SPOR CSV

• Favourites

  • Check the star icon to add a record to Favourites, or uncheck to remove from Favourites.

• List ID

  • Where available, ID, Status, and Domain are shown.

• List Name

  • Where available, List Name, List ID, Owner, and Hierarchical List (Hierarchical lists only) are shown.

• Modified

  • Modified date of the Term and the associated Term Version number in subtext.

• Tags

  • View and assign tags to the listed records.

Available Actions:

• Search: Use the search bar to search for a List Name across all available lists.

• Filter by:

  • Favourites: Limit your search to lists marked as a Favourite. Options are All and Favourites Only.

  • Domain: Limit your search to the selected domain. Options are All, Human & Veterinary Use, Human Use, and Veterinary Use.

  • Status: Limit your search to the selected status. Options are All, Current, Non_Current, Nullified, and Provisional.

  • Owners: Limit your search to the selected list owner(s). Options are All, EDQM, EMA, ISO, MSSO, WHO, and WHO CC.

  • Tags: Limit your search based on tags you have applied to the Target Data.

• Refresh: Clicking the Refresh button will update the dataset based on the selected search and filters applied.

• Clear: When filters are present, a Clear button will appear which you can click to clear all filters at once.

• Terms View: Clicking this button navigates to the Target Lists (Term View) screen.

• Export: Clicking this button downloads the presented records to your device.

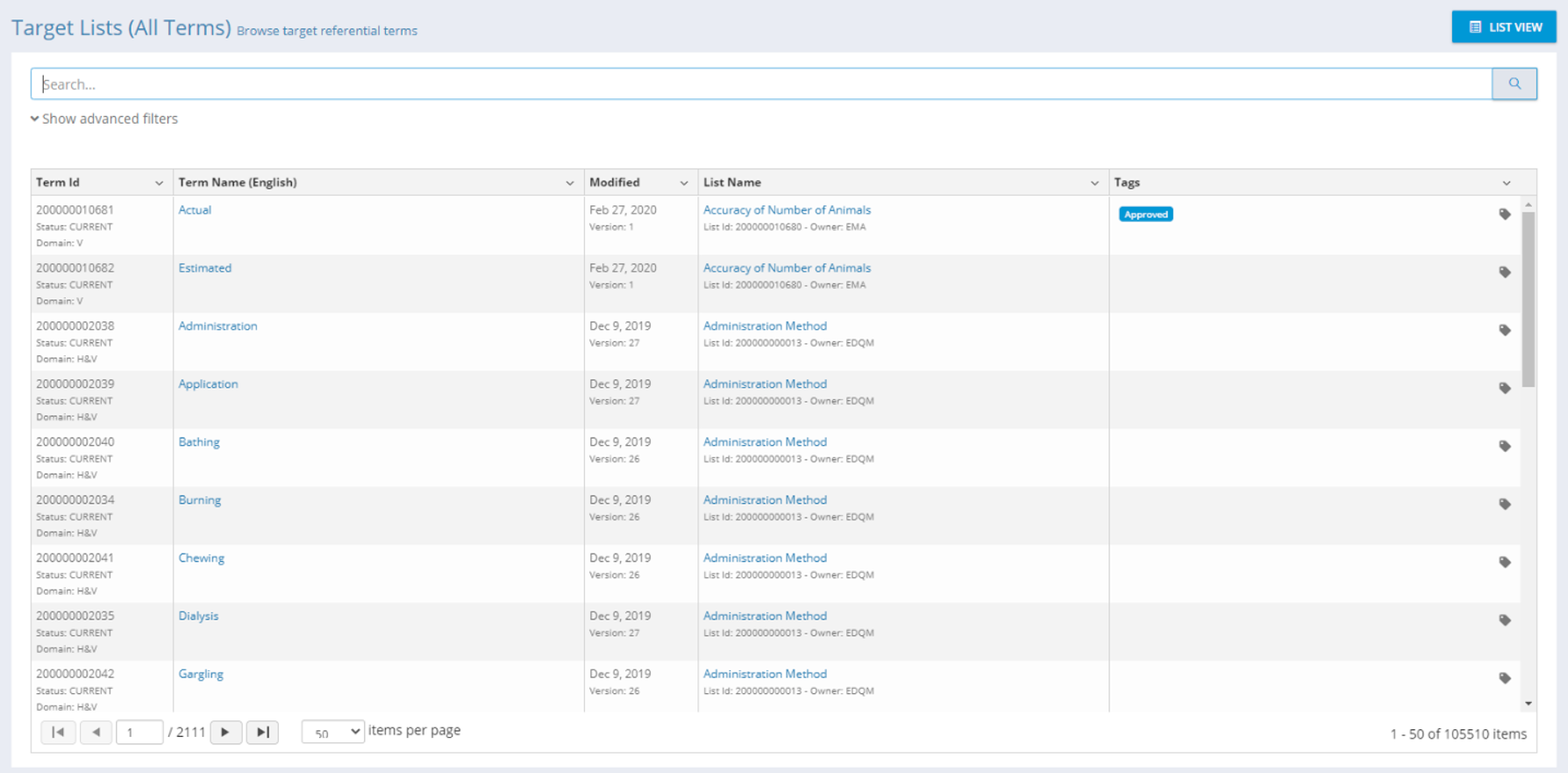

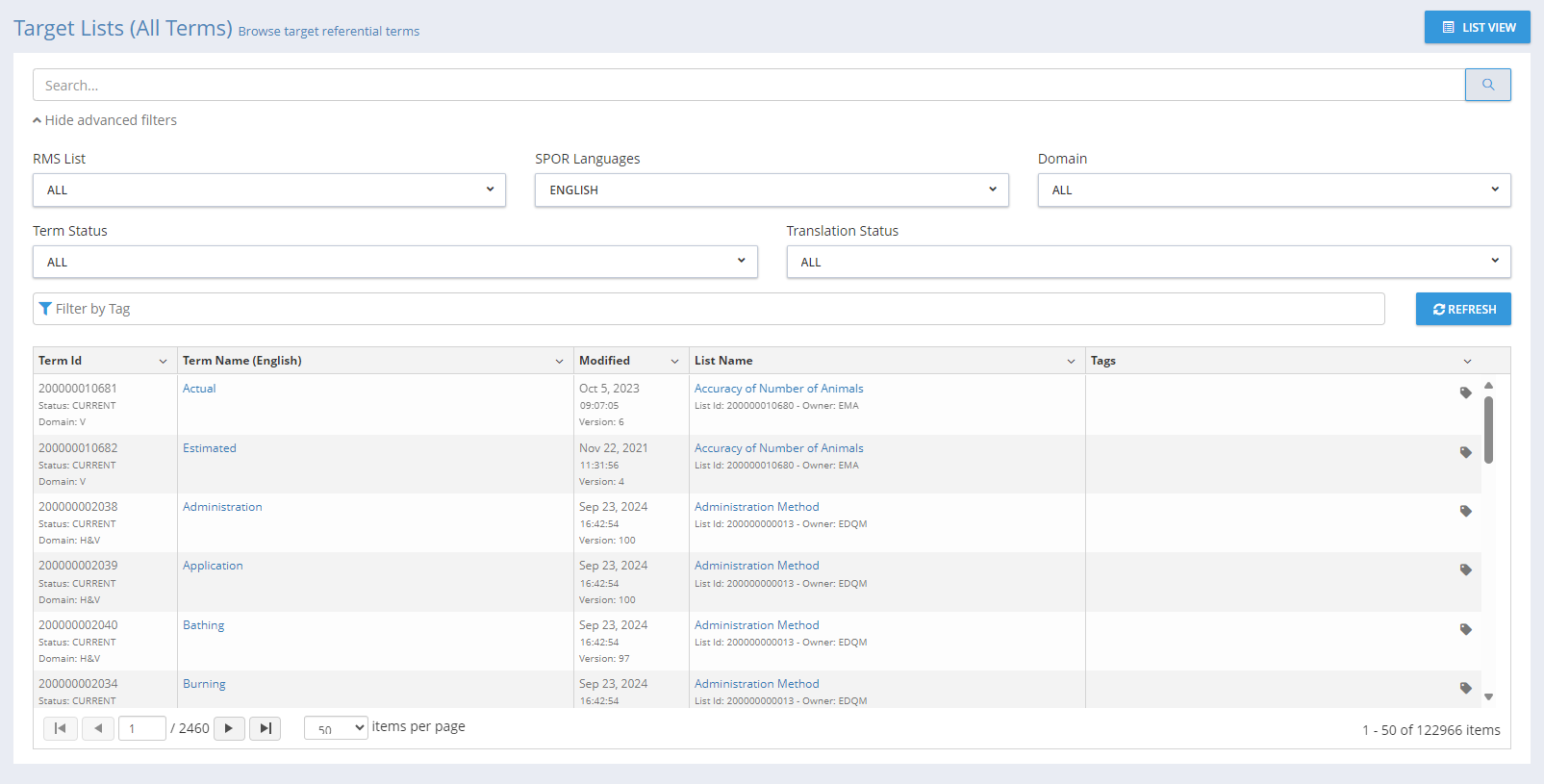

Target Lists (Term View)

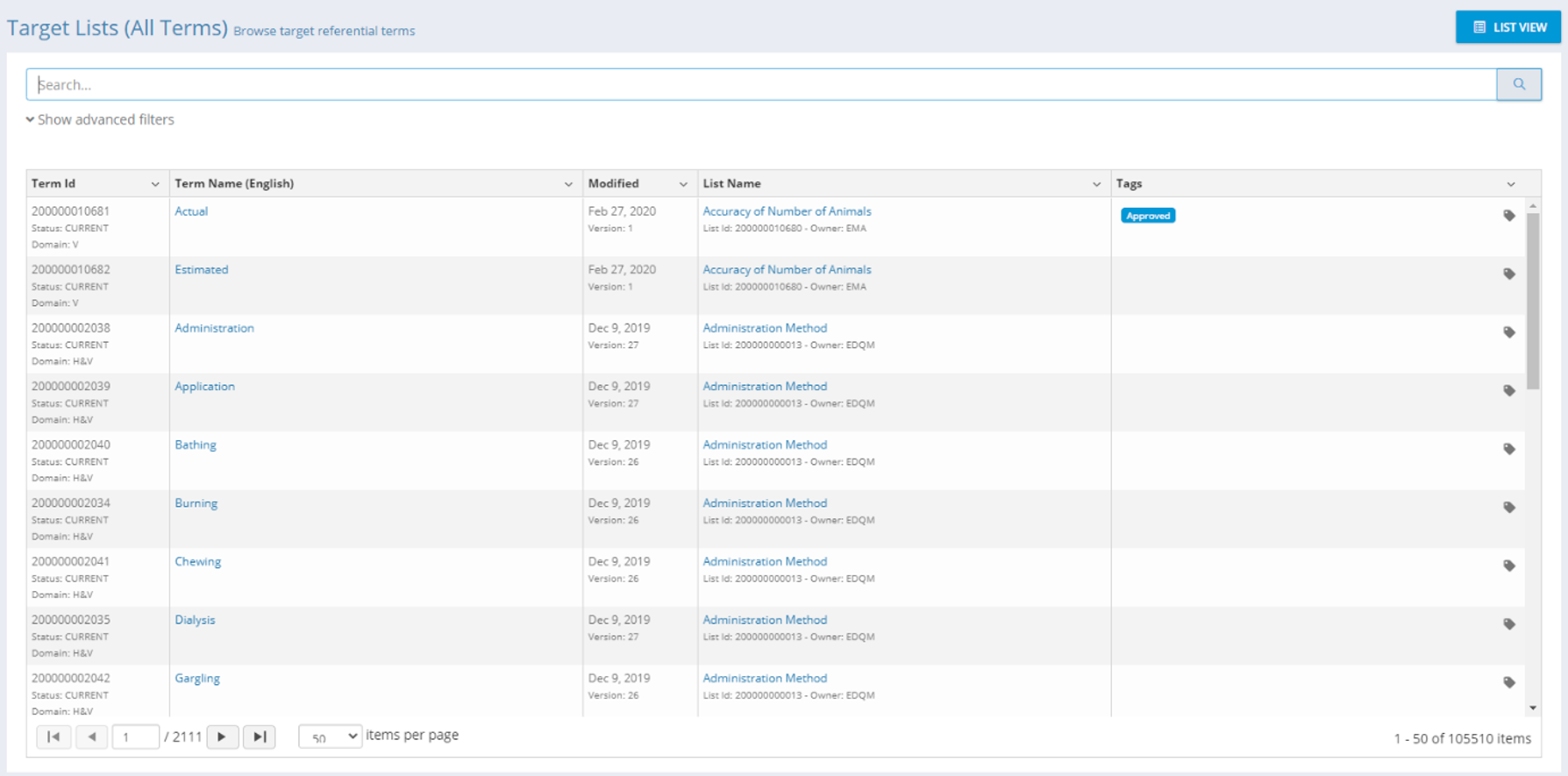

The Target Lists (Term View) All Terms grid is designed to provide as much information about terms and their current status as possible while remaining user friendly. Hyperlinks are provided inside the grid on the Term Name, List Name and List ID columns; these links navigate to pages that provide more details regarding the selected items.

For each term listed on the grid, the following information is presented:

• Term ID

  • Where available, Term ID, Status, and Domain are shown.

• Term Name (Language)

  • Term Name in displayed language and associated translation status are shown where available.

• Modified

  • Modified time, date, and version number are shown.

• List Name

  • List Name, List ID, and Owner are shown.

• Tags

  • View and assign tags to the listed records.

Available Actions:

• Search: Search for a Term Name across all available lists.

• Filter:

  • RMS List: Select All or specific RMS lists.

  • SPOR Languages: Select specific SPOR languages.

  • Domain: Options are All, Human & Veterinary Use, Human Use, and Veterinary Use.

  • Term Status: Options are All, Current, Non_Current, Nullified, and Provisional.

  • Translation Status: Options are All, Current, Non_Current, Nullified, Provisional, and Under_Consultation.

  • Tags: Limit your search based on Tags you have applied to the Target Data.

• Refresh: Clicking the Refresh button will update the dataset based on the applied filters.

• Clear: When filters are present, a Clear button will appear which you can click to clear all filters at once.

• List View: Navigate to the List View screen.

Hierarchical Lists

Hierarchical Lists are lists containing Terms that are related to one another. A Hierarchical Term may have one or more Parent Terms associated with it.

Hierarchical Lists are denoted as Hierarchical in SPORIFY under the given List Name on the Target Lists grid and also under the List Name heading on the relevant List Details page.

Hierarchical Lists have an additional viewing option known as Hierarchy View, which can be accessed by clicking on the Hierarchy View button.

While in Hierarchy View, terms are displayed in a tree view structure. Parent Terms are displayed with a + button on the left hand side of the grid, which can be clicked on to expand and show related Child Terms. Hierarchies can be multiple layers deep and the + button can be used to expand or collapse the Hierarchy as required.

On this screen, Term ID and Term Name are shown for each record. Clicking the Term Name will navigate to the Term Details page.

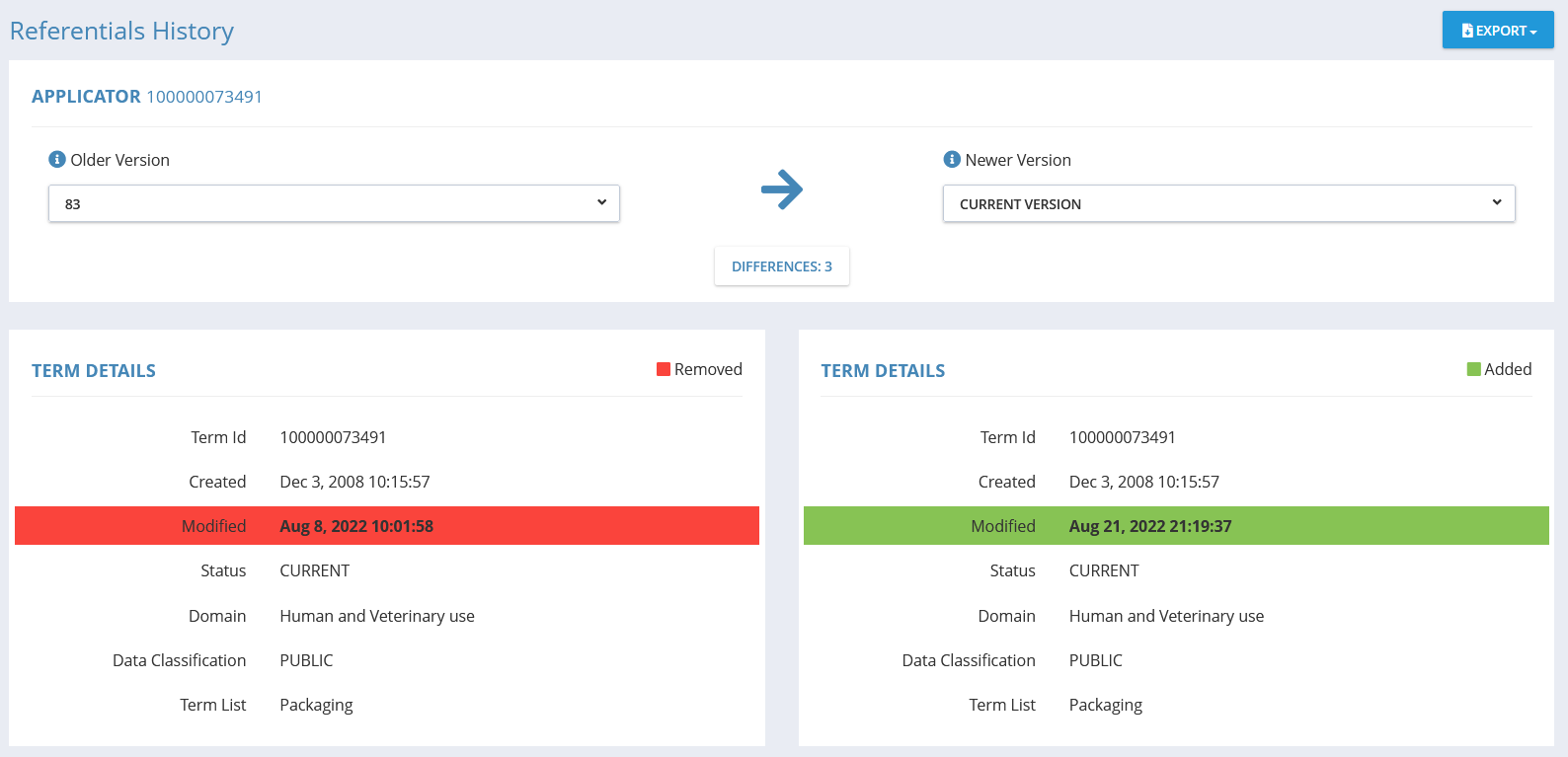

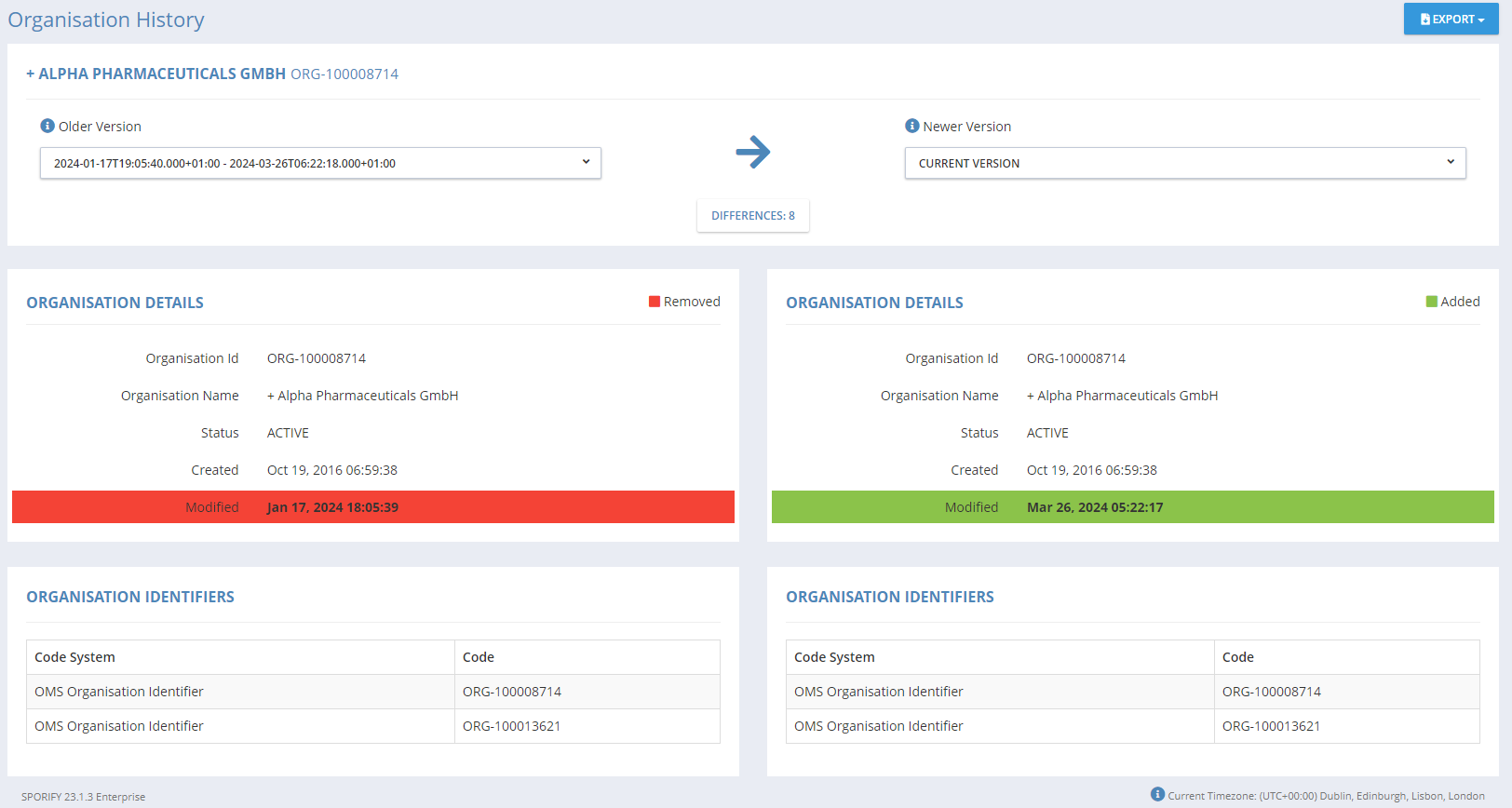

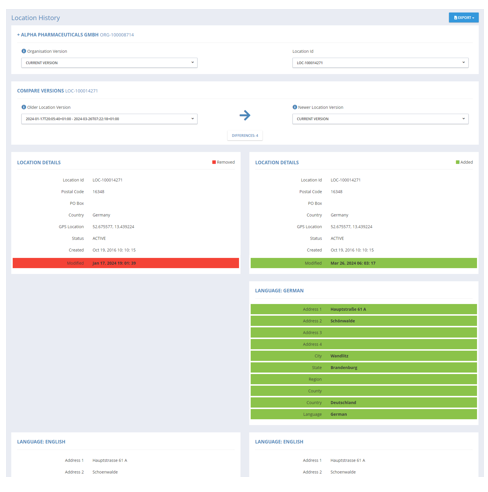

History Comparison

SPORIFY is always monitoring changes to RMS Terms and provides a History Comparison feature to compare versions of a term and highlight the changes made. Every changed value is highlighted with a colour:

• Green represents a value that was added.

• Red represents a value that was modified or removed.

The changes are captured for Term Details, Term Names, Description and Term Mappings. The total number of differences between two selected versions is displayed in the centre of the screen.

Please note that full data history is not available from SPOR. SPORIFY will archive all available versions while synchronising for comparison purposes.

Available Actions:

• Older Version

  • Use this drop-down menu to select the older version of the record you wish to compare.

• Newer Version

  • Use this drop-down menu to select the newer version of the record you wish to compare.

• Export

  • Export PNG

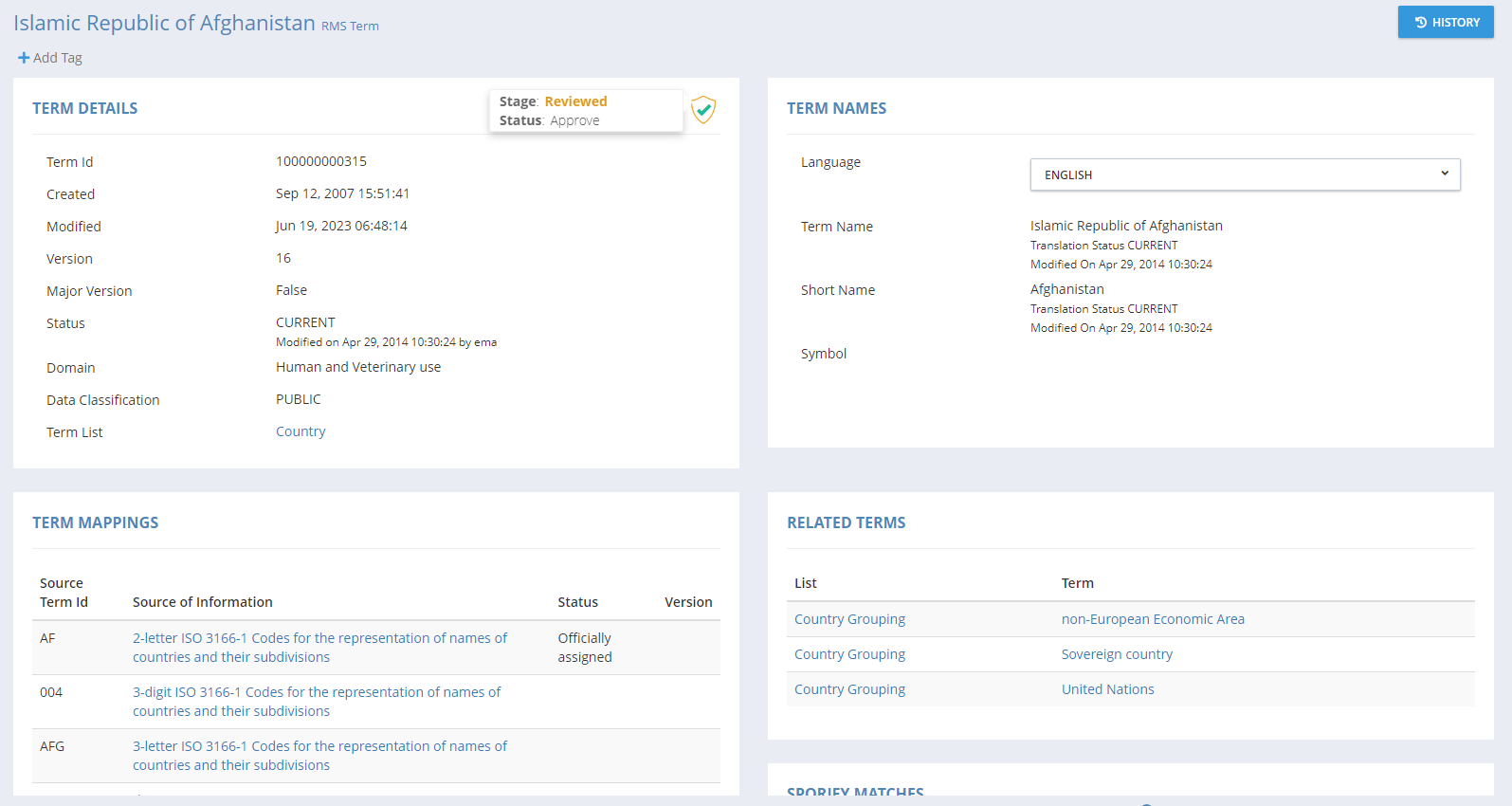

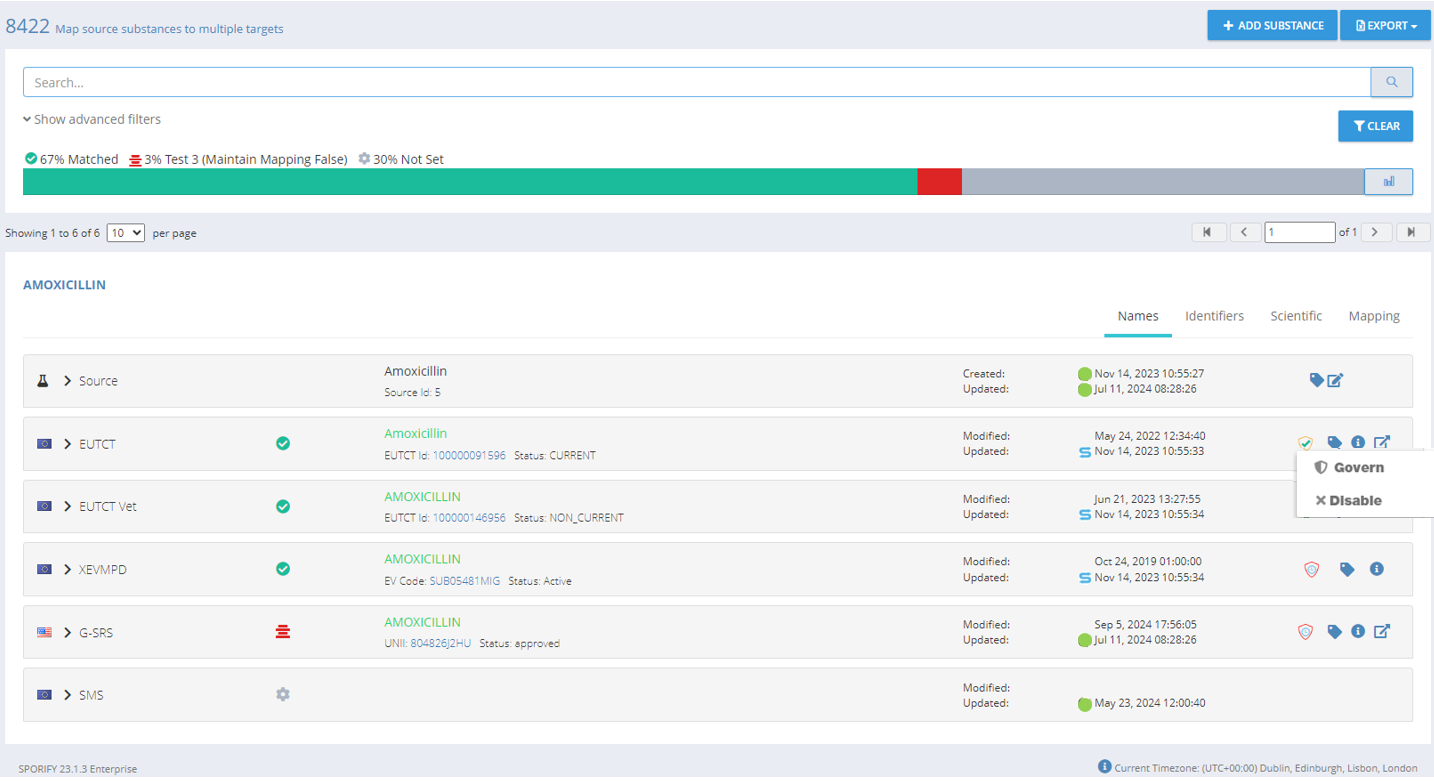

Data Governance

When Data Governance is switched on for the Referentials domain, target data records can be governed at term level.

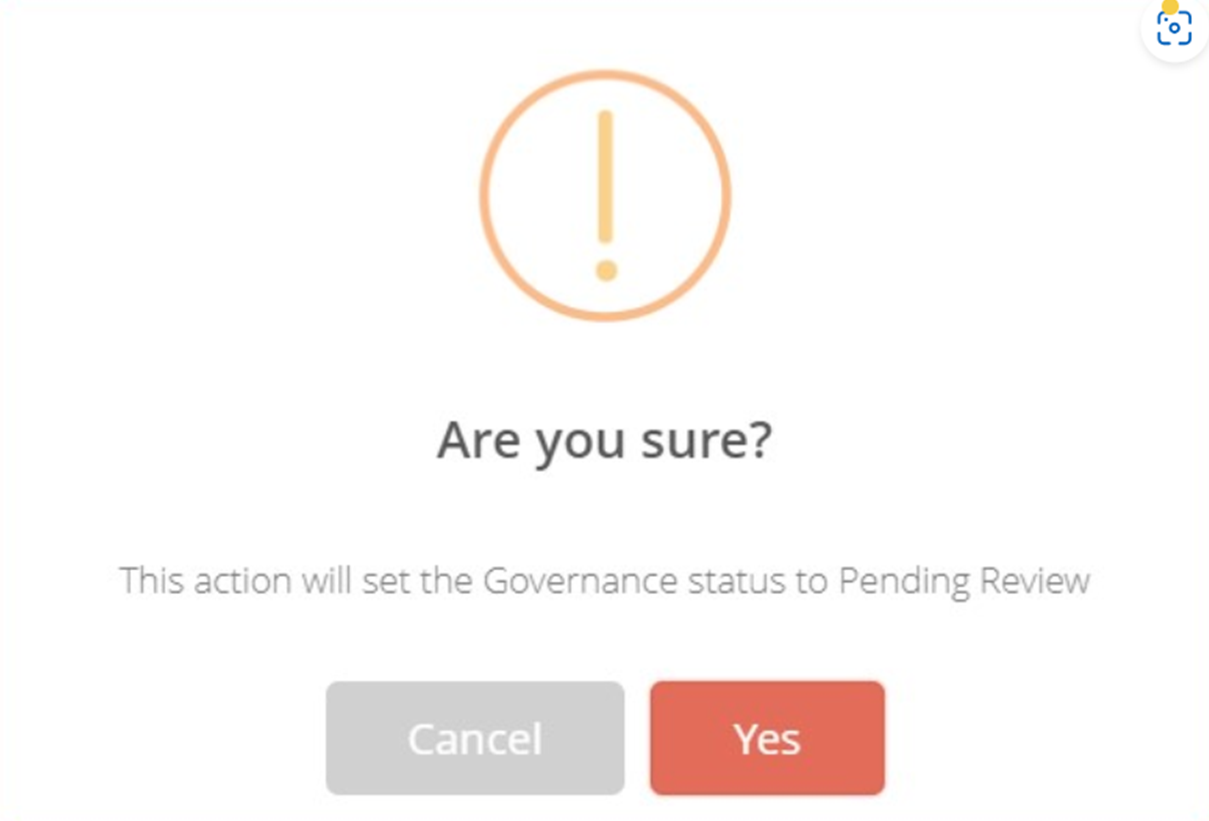

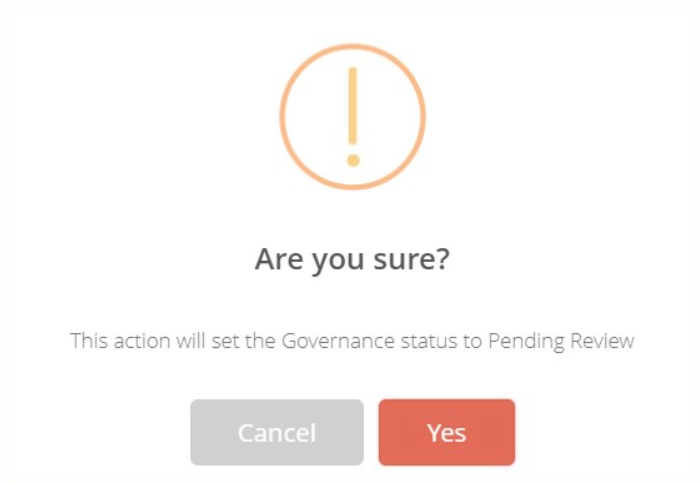

A record’s data governance status is initially set to Pending Review. The reviewer can then set a custom status and add an optional comment and the approver can thus accept or reject this status. Comments will be visible by hovering over the comment icon. If the approver rejects the status, then the record is set back to Pending Review. Any approver can also reject an item after it has already been approved to restart the process.

If the 4 eye principle is switched on, the reviewer and approver cannot be the same user.

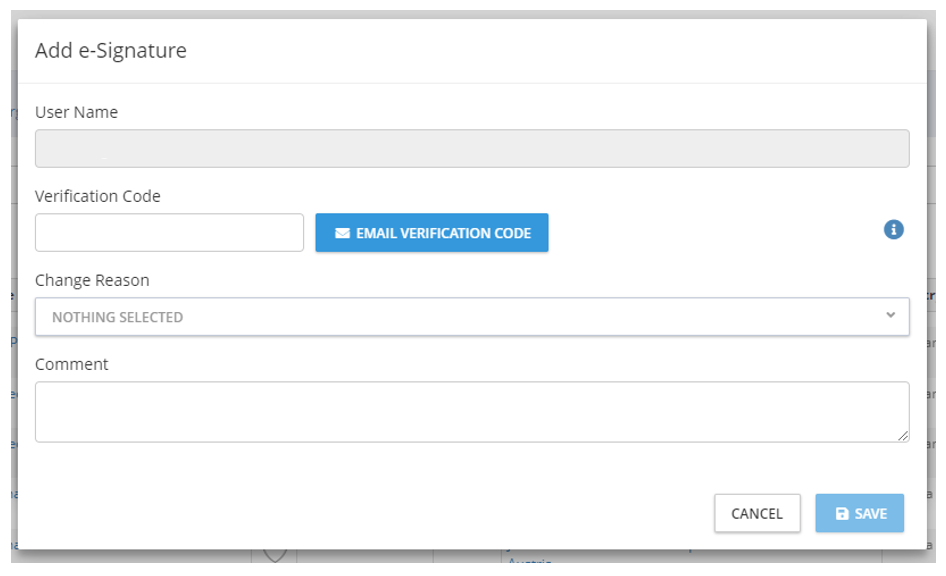

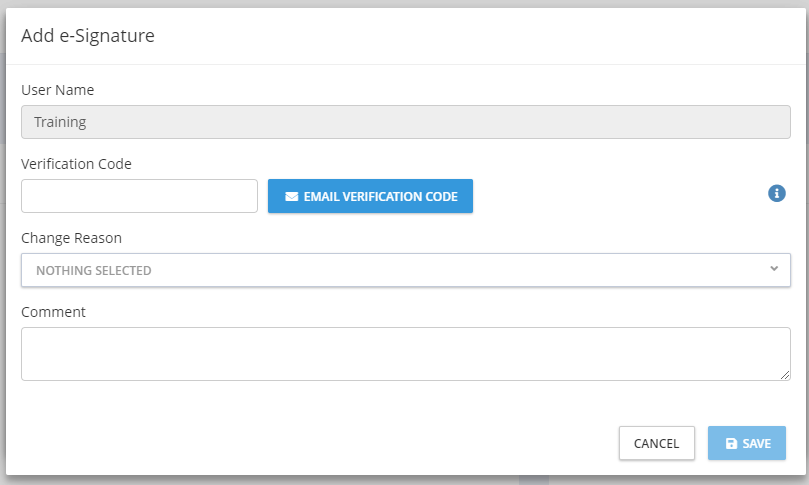

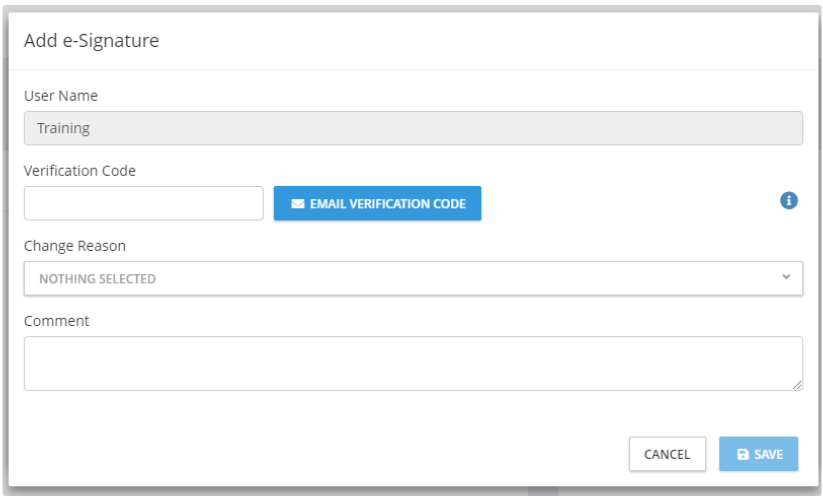

If e-signature is switched on, the user must apply an e-signature to approve the record.

Users can simultaneously govern multiple records on the Referentials Source Lists screen when Governance Required is switched on, the user has been granted the Bulk Govern permission for Referentials, and a Data Governance Stage filter has been applied. This action can be carried out using the associated Bulk Actions button.

Available Actions:

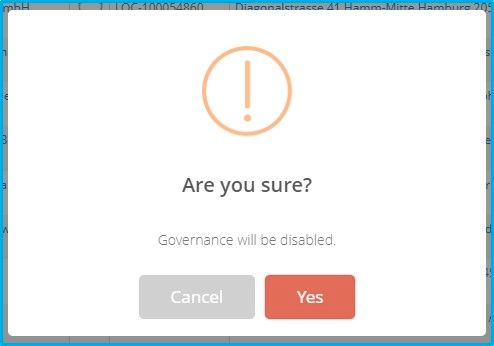

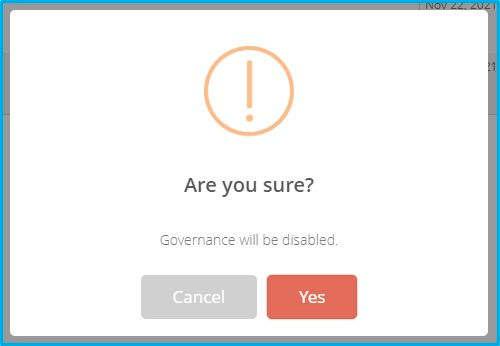

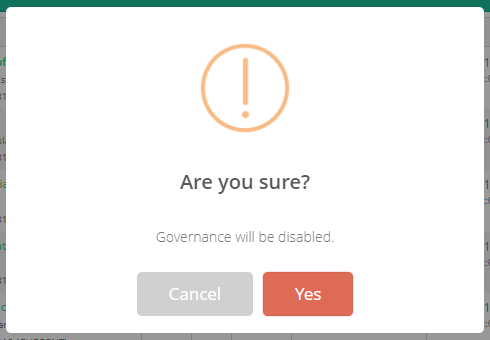

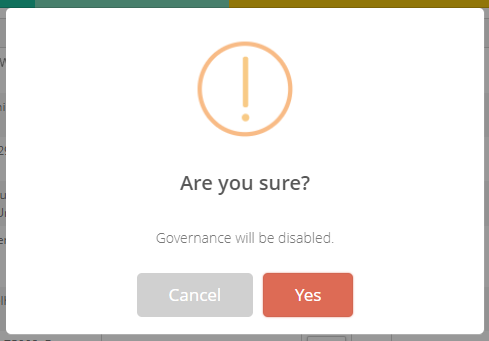

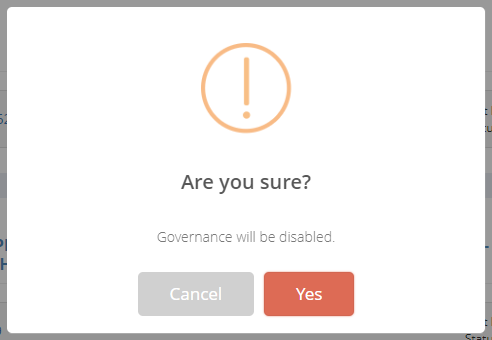

• Enable/Disable

  • Switch Data Governance on and off for the given record.

• Govern (Stage: Pending Review)

  • Set Review Status

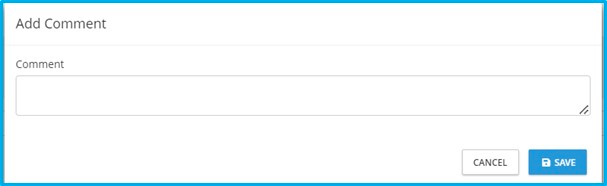

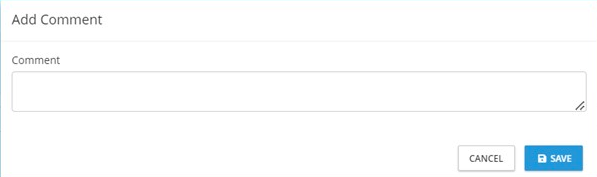

  • Add Comment

• Govern (Stage: Reviewed)

  • Accept

    • Username

    • Verification Code

    • Change Reason

    • Comment

    • e-Signature (if required)

  • Reject

Change Requests

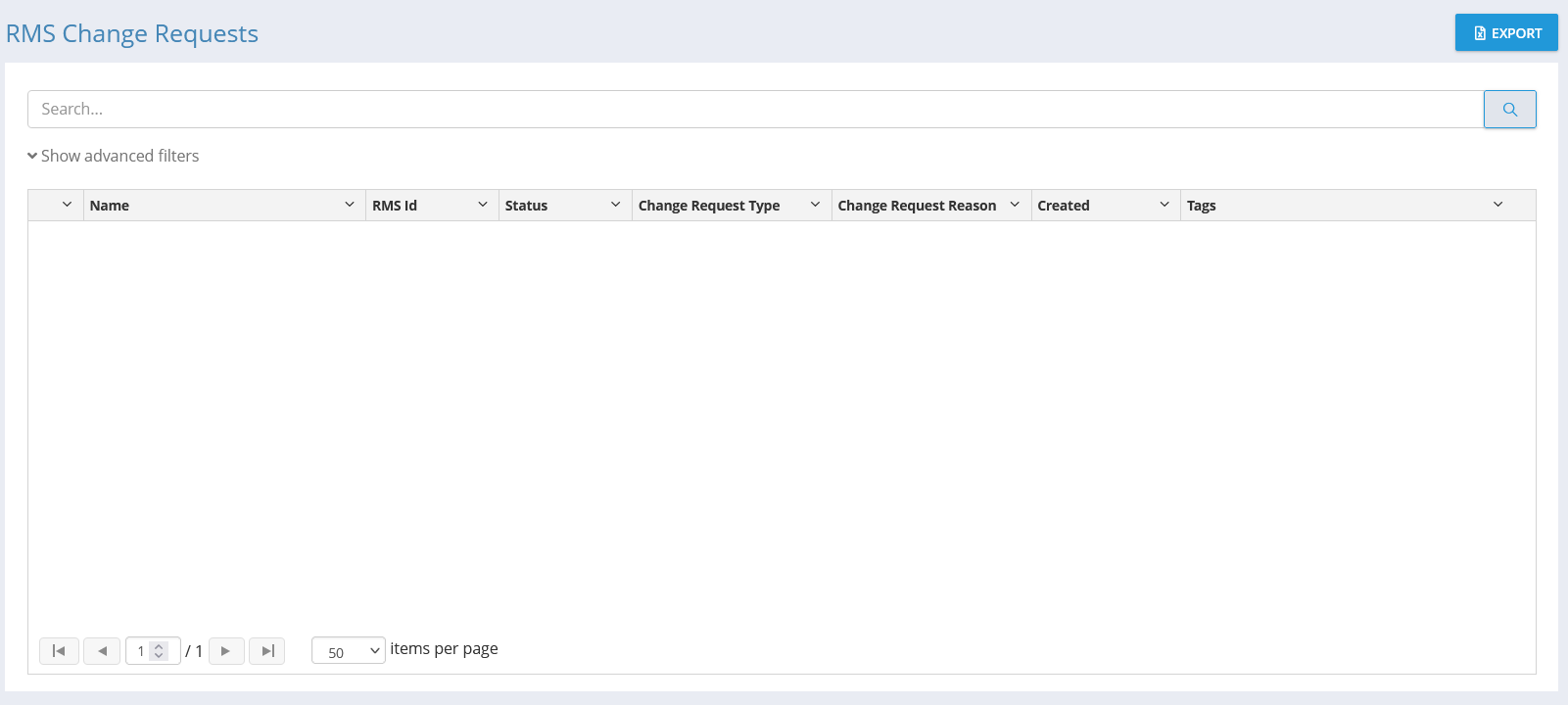

SPORIFY provides a Change Requests module in the Referentials domain to enable users to access RMS Change Requests. The Referentials Change Requests area lists all RMS Change Requests found by SPORIFY during the SPOR sync. SPORIFY’s Change Requests feature synchronises with SPOR everyday.

• For each Change Request listed on the grid, the following information is presented: Name, RRQ ID, Status, Change Request Type, Created, and Tags.

• Clicking on a Change Request’s Name presents the associated details page.

• The link in the Details column of any given Change Request shows further details, including information relating to Change Request Details, Location Details, Status Changes, Referentials Details, and Supporting Documents.

• Any comments associated with a Change Request can be viewed by hovering over the speech bubble icon beside the record’s name in the Name column.

• Change Requests can be exported using the Export button.

• Change Requests can be searched using the provided search bar.

• Change Requests can be filtered by Status, Change Request Type, and/or Tag.

• Submitted Change Requests are available to view in the Target System Activity area of the Dashboard using the SPOR RMS tab. They also appear in Notifications.

Organisations

Overview

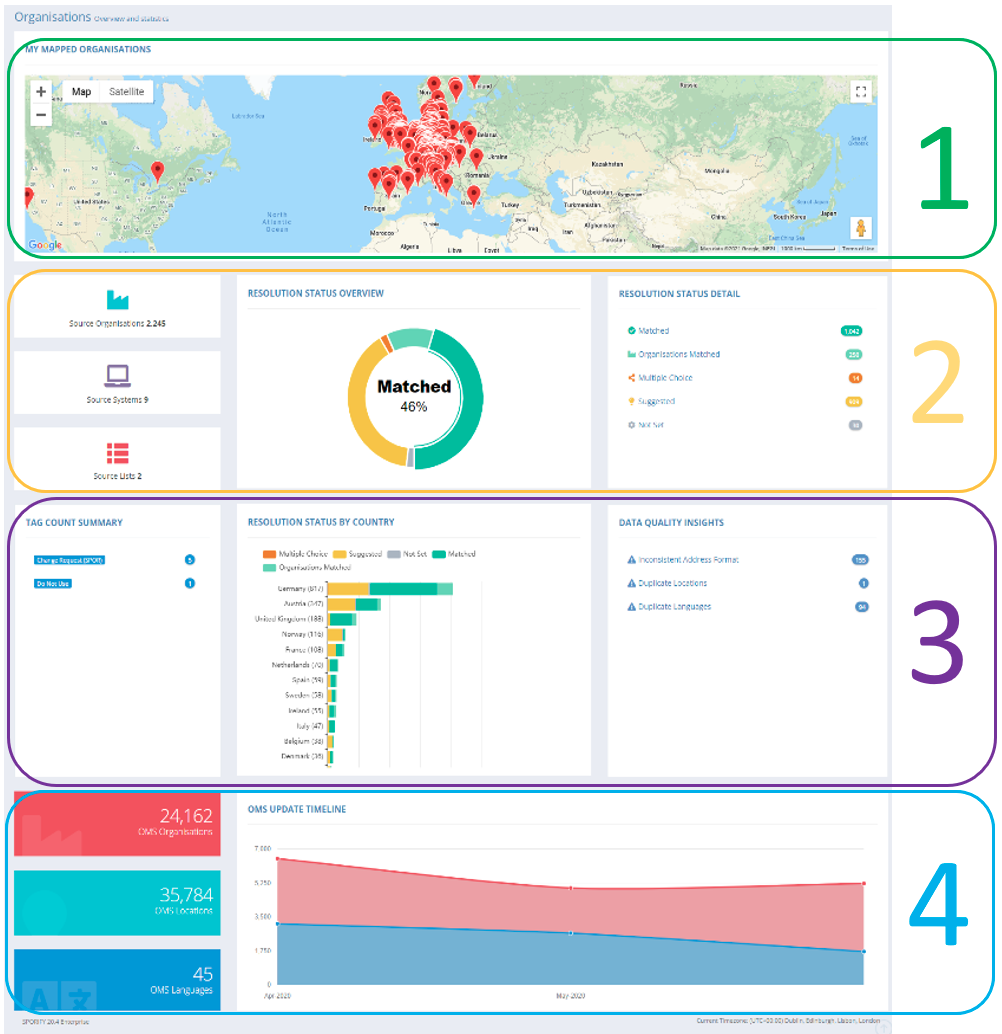

The Organisations Overview area provides high-level summaries and statistics pertaining to SPORIFY’s Organisations domain.

The following sections are presented on this screen:

• My Mapped Organisations

  • The My Mapped Organisations area presents an interactive map showing all of the user’s mapped organisations.

• Source Organisations Statistics

  • The Source Organisations Statistics boxes present counts for Source Organisations, Source Systems, and Source Lists.

• Resolution Status Overview

  • The Resolution Status Overview area provides counts of applied Resolution Statuses for the Organisations domain in the form of a donut chart.

  • Simply hover the mouse over a chart segment to see the associated percentage for the given Resolution Status.

• Resolution Status Detail

  • The Resolution Status Detail area lists overall counts of each Resolution Status type that has been applied to Organisations records in the system.

• Tag Count Summmary

  • The Tag Count Summary section lists overall counts of each Tag that has been applied to Organisations records in the system.

• Resolution Status by Country

  • The Resolution Status by Country area lists the countries with which the Organisations are associated, and presents statistics for their applied Resolution Statuses.

• Data Quality Insights

  • The Data Quality Insights area lists data quality issues that have been found during the mapping process for the Organisations domain.

• Target Organisations Statistics

  • The Target Organisations Statistics boxes present counts for OMS Organisations, OMS Locations, and OMS Languages.

• OMS Update Timeline

  • The OMS Update Timeline area provides an overview of the updates being made to the SPOR OMS target system.

  • Hover the mouse over a graphed update to view the month in which the update occurred, and counts of the updated records.

Source Lists (Mapping)

Template: Formatting Source Data

Using Standard Templates:

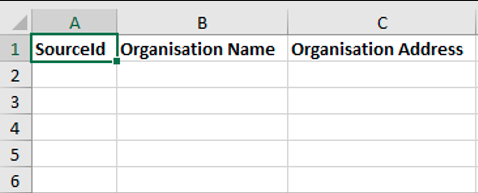

To format your Source Data, download the Standard Organisations Excel or CSV Template by clicking on the Templates actions button and selecting CSV (Standard) or Excel (Standard). This template can be used for all of your Source Organisations Lists.

SPORIFY requires two mandatory* pieces of information to carry out standard Organisations Data Mapping. One optional piece of information can also be added to enhance mapping. These are as follows:

• Source ID* (Unique local database identifier)

• Organisation Name* (Organisation’s full name)

• Organisation Address (Organisation’s location)

  • Note: the address can be spread over multiple columns. SPORIFY will take every column after column three and include it as the source address.

Using Excel: If your workbook has multiple worksheets, you must select the required worksheet to import from.

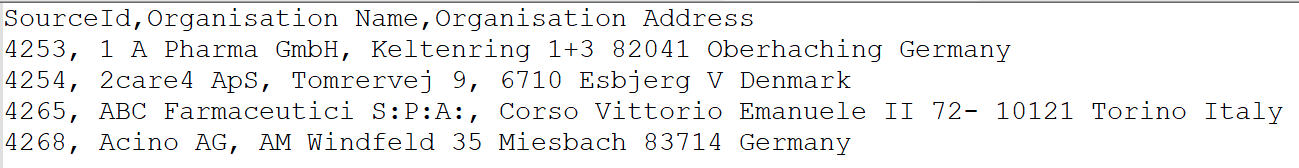

Using CSV: Each column of data should be delimited with a comma. If your column text contains the delimiter character, the text should be wrapped in quotation marks. For example, Street1, Street2, City, State, Country, Postcode should be formatted as “Street1, Street2, City, State, Country, Postcode” to correctly import the delimiter character. CSV files should be saved with UTF-8 encoding to preserve special characters.

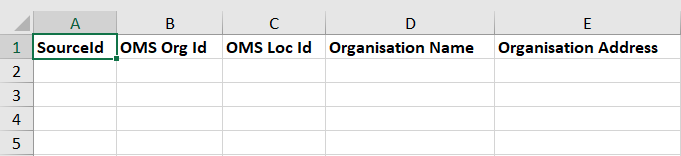

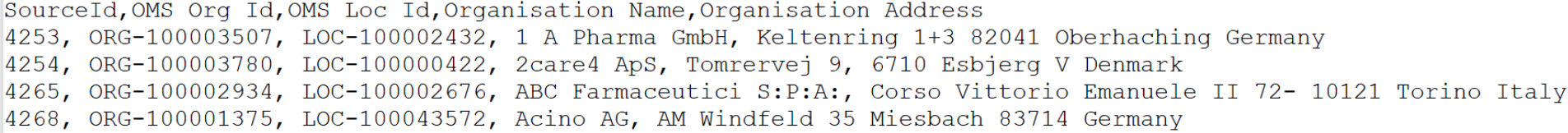

Using Advanced Templates:

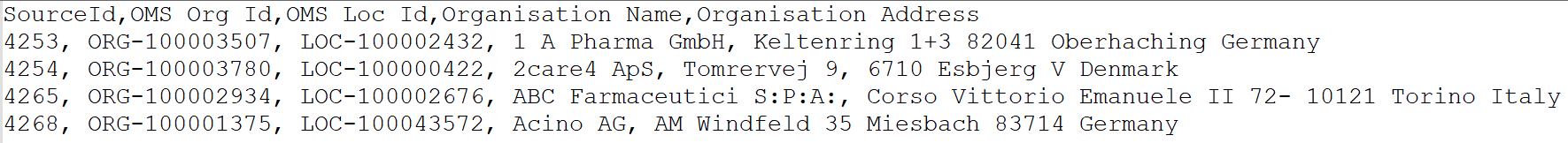

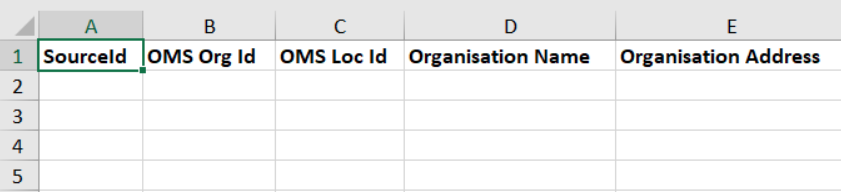

To format your Source Data, including existing Organisation or Location mappings, download the Advanced Organisations Excel or CSV Template by clicking on the Templates actions button and selecting CSV (Advanced) or Excel (Advanced). This template can be used for all of your Source Organisations Lists.

SPORIFY requires two mandatory* pieces of information to carry out advanced Organisations Data Mapping. One optional piece of information can also be added to enhance mapping. These are as follows:

• Source ID* (Unique local database identifier)

• OMS Org ID (ID associated with OMS Organisation)

• OMS Loc ID (ID associated with OMS Location)

• Organisation Name* (Organisation’s full name)

• Organisation Address (Organisation’s location address)

  • Note: the address can be spread over multiple columns. SPORIFY will take every column after column three and include it as the source address.

Using Excel: If your workbook has multiple worksheets, you must select the required worksheet to import from.

Using CSV: Each column of data should be delimited with a comma. If your column text contains the delimiter character, the text should be wrapped in quotation marks. For example, Street1, Street2, City, State, Country, Postcode should be formatted as “Street1, Street2, City, State, Country, Postcode” to correctly import the delimiter character. CSV files should be saved with UTF-8 encoding to preserve special characters.

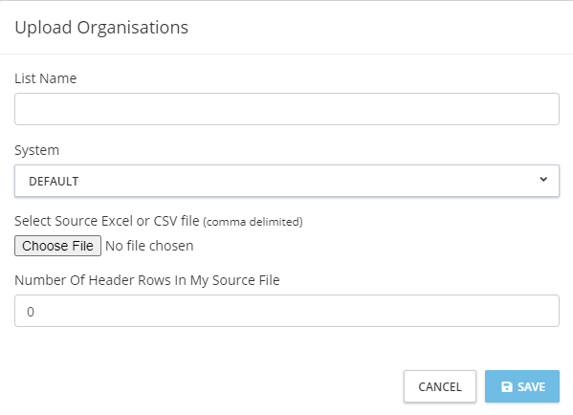

Upload: Importing Data

Fields Explained:

• List Name: Local list name/friendly name used to recognise your internal list.

• System: Name of the local System that your list is from. Custom System Names is subject to subscription level. If only one system is available, the name is always “Default”.

• Select Source Excel or CSV File: Browse your computer network and select the source file to upload. The system expects CSV files to be delimited with a comma.

• Number of Header Rows in My Source File: If your file contains header information, you can enter the number of rows you wish SPORIFY to skip when importing your data.

  • Click Save to import your data and run the SPORIFY matching algorithms.

  • Click Cancel to clear all fields and return to previous screen.

Note: Source Lists containing more than 1000 records will be imported via a background job. As soon the import is finished, a notification is displayed.

Actions Available on List

View Organisations

Click View Organisations to view all of the Source Organisations contained on the given Source List, as well as their associated mappings.

Edit

Select Edit to make changes to the list in question. Here, users can edit the List Name and associated System.

Update

Select Update to Upsert, Merge, or Overwrite the given list.

Fields Explained:

• Select Source Excel or CSV file: Upload the relevant record from your device.

• Number of Header Rows in my Source File: Insert the relevant number of header rows.

• Upsert List: This option will perform insert and update operations on your current list based on the differences found in the selected list. Where the Source ID is equal on both lists, all current resolution status and matching information will be retained. Where duplicate Source IDs are detected, these records will be skipped.

• Merge List: This option will perform insert, update and delete operations on your current list based on the differences found in the selected list. Where Source ID is equal on both lists, all current resolution status and matching information will be retained. Where duplicate Source IDs are detected, these records will be skipped.

• Overwrite List: This option will delete your current list and replace it with the selected list. All current resolution status and matching information will be deleted.

Delete

Select this option to delete your current list from SPORIFY. You will be prompted to confirm the deletion. This operation is not reversible.

Export

Select Export to export the list to Excel. The export will contain your original data and also the matched data and any associated Resolution Statuses, Tags or Data Insights. The Excel file will download directly to your device.

Mapping

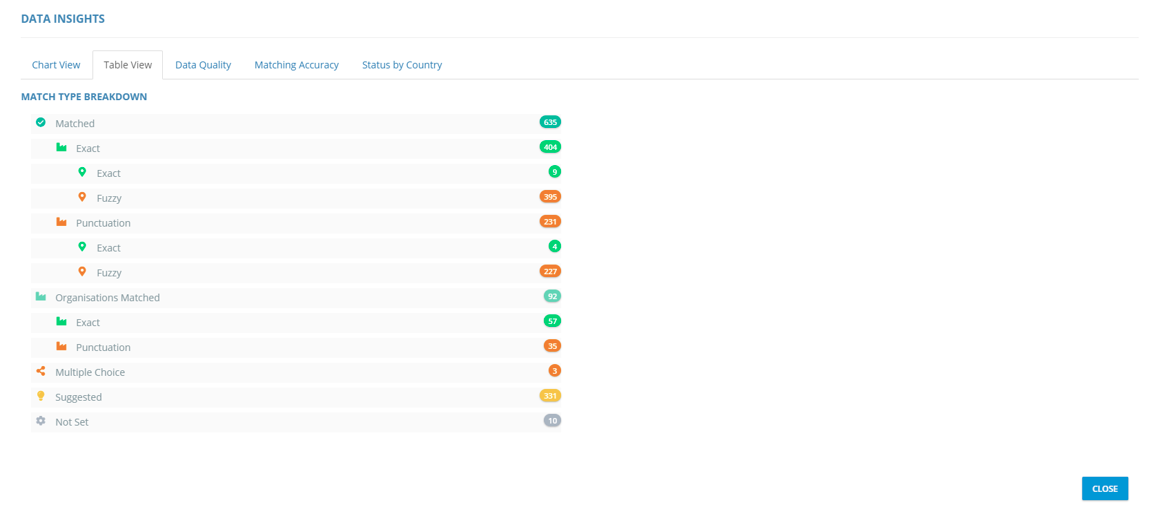

• By default, SPORIFY will analyse your uploaded data and apply a Resolution Status to every term you have uploaded.

• SPORIFY’s system-based Resolution Statuses are:

  • Matched: SPORIFY has located an exact match for your organisation on the Target Organisations list.

  • Organisation Matched: Organisation mapped, location not mapped.

  • Multiple Choice: SPORIFY has located multiple exact matching Organisation Names for your data on the Organisations list.

  • Suggested: SPORIFY found Organisation Names that are closely related to your data.

  • Not Set: SPORIFY could not locate any Organisation similar to your data.

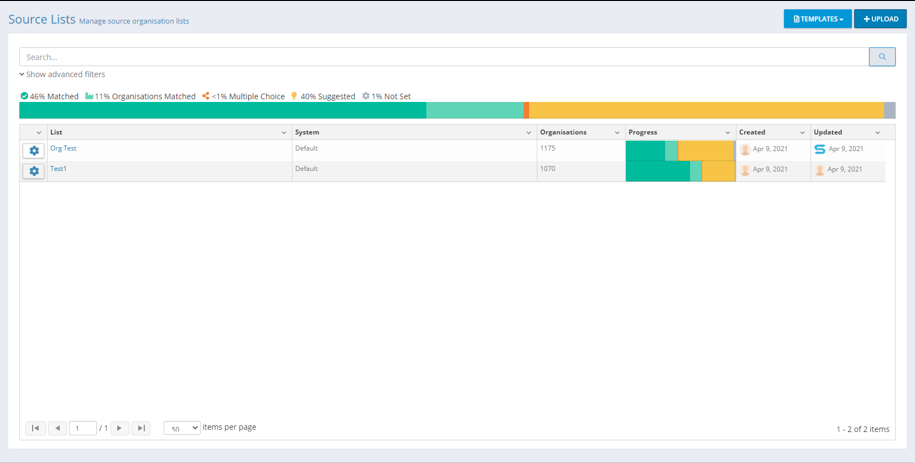

• Once your lists are uploaded, each list will have a progress bar showing Resolution Status percentages for the given list.

• Above the lists, an overall progress bar will show your Resolution Status percentage across all lists.

• Colour-coding is used to indicate match types. In the case of imported mappings only, colour-coding will be based on the text match, even if the mapping was done by an exact ID match.

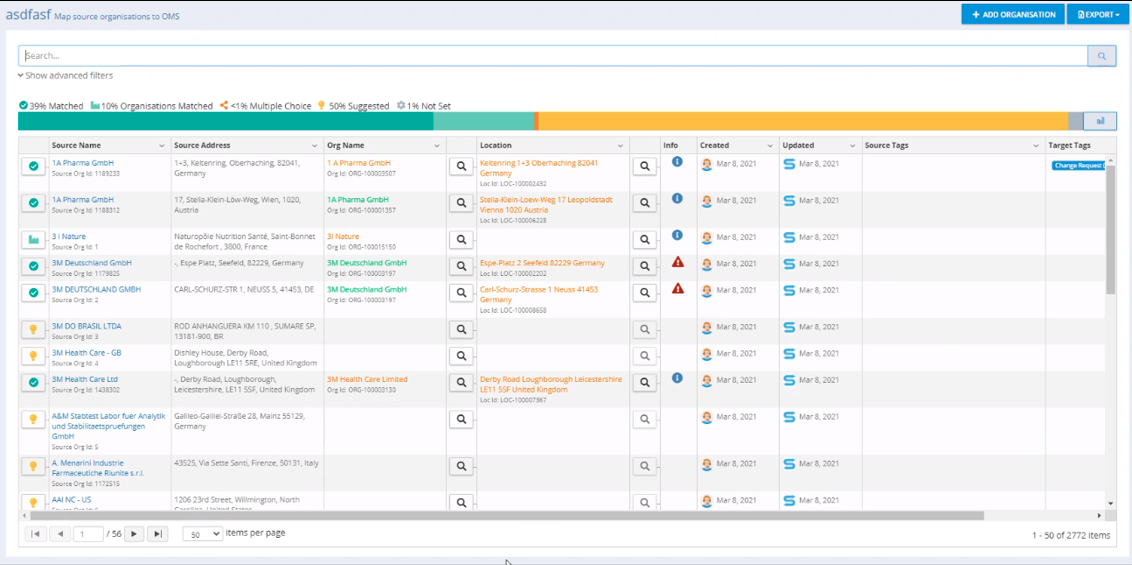

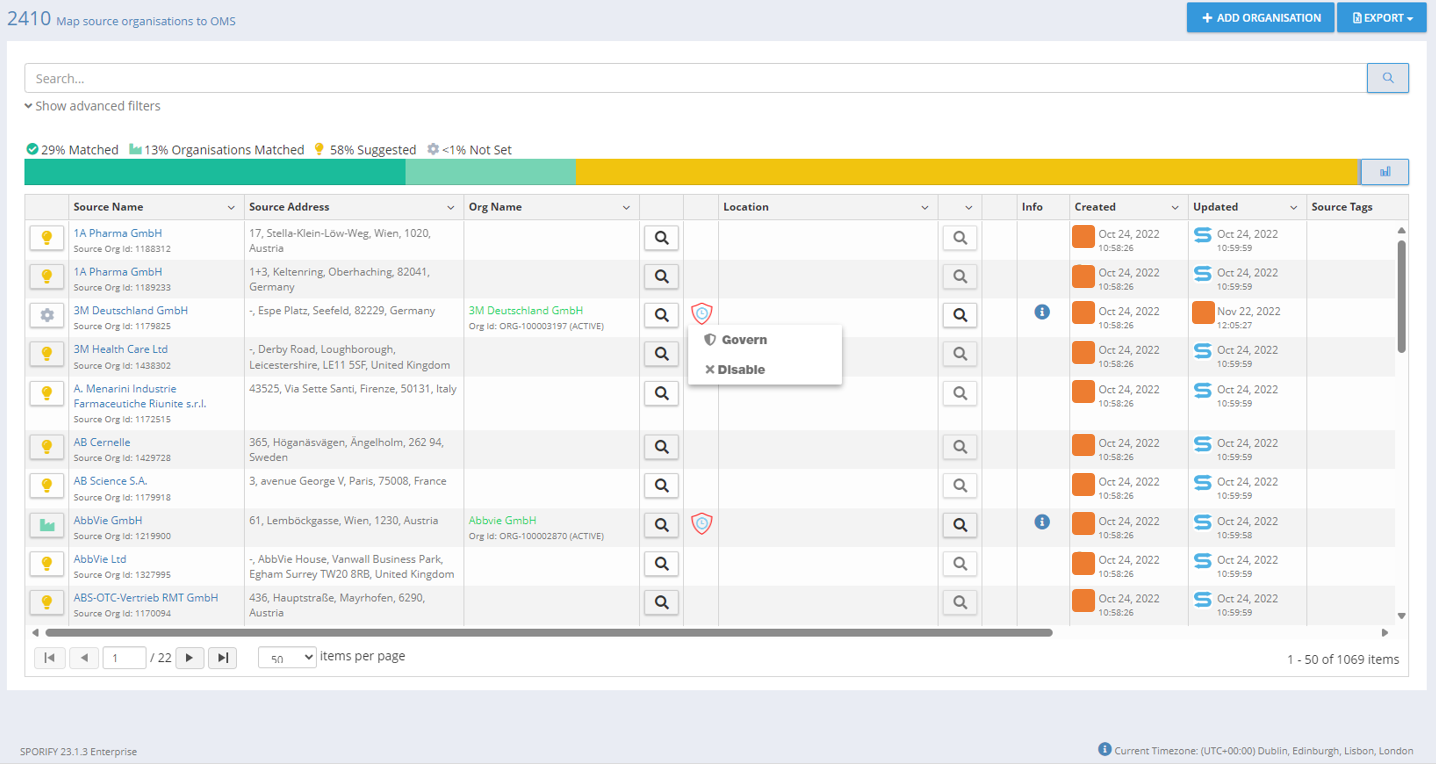

Manually Matching Organisations and Locations

• Organisations matching is slightly different to Referentials and Substances matching as it requires two layers of matching: (1) Organisations and (2) Locations.

• Automatic matching is applied at both the Organisation and Location level where possible.

• For each term on the manual matching grid, the following information is presented:

  • Resolution Status: This is the icon on far left-hand side of grid.

  • Source Name: Presents the Name and Source Org ID of the source record.

  • Source Address: Presents the Organisation’s full address.

  • Org Name: Presents the name of the Organisation.

  • Manual Matching Search (Orgs): This is the first clickable magnifying glass icon.

  • Location: Presents the Organisation’s associated Location.

  • Manual Matching Search (Locs): This is the second clickable magnifying glass icon.

  • Info: This column displays Match Type information e.g. exact or fuzzy match

  • Created: Who created this record and when.

  • Updated: Who updated this record and when.

  • Source Tags: Tags associated with your local data.

  • Target Tags: Tags associated with the target data.

• Click on the Manual Matching Search icon.

• Search as required using the provided search bar.

• Select a match from the search results.

Assigning Tags to Source Data and Target Location Data

• Assign Source Tags: Method #1

  • Select the Source Name on the grid.

  • Click Add Tag and select one or more Tags as required.

  • Click Save.

• Assign Source Tags: Method #2

  • Select the tag icon on the Source Tags column on the data grid.

  • Add or Remove Tags as required from the Tags control.

  • Click Save.

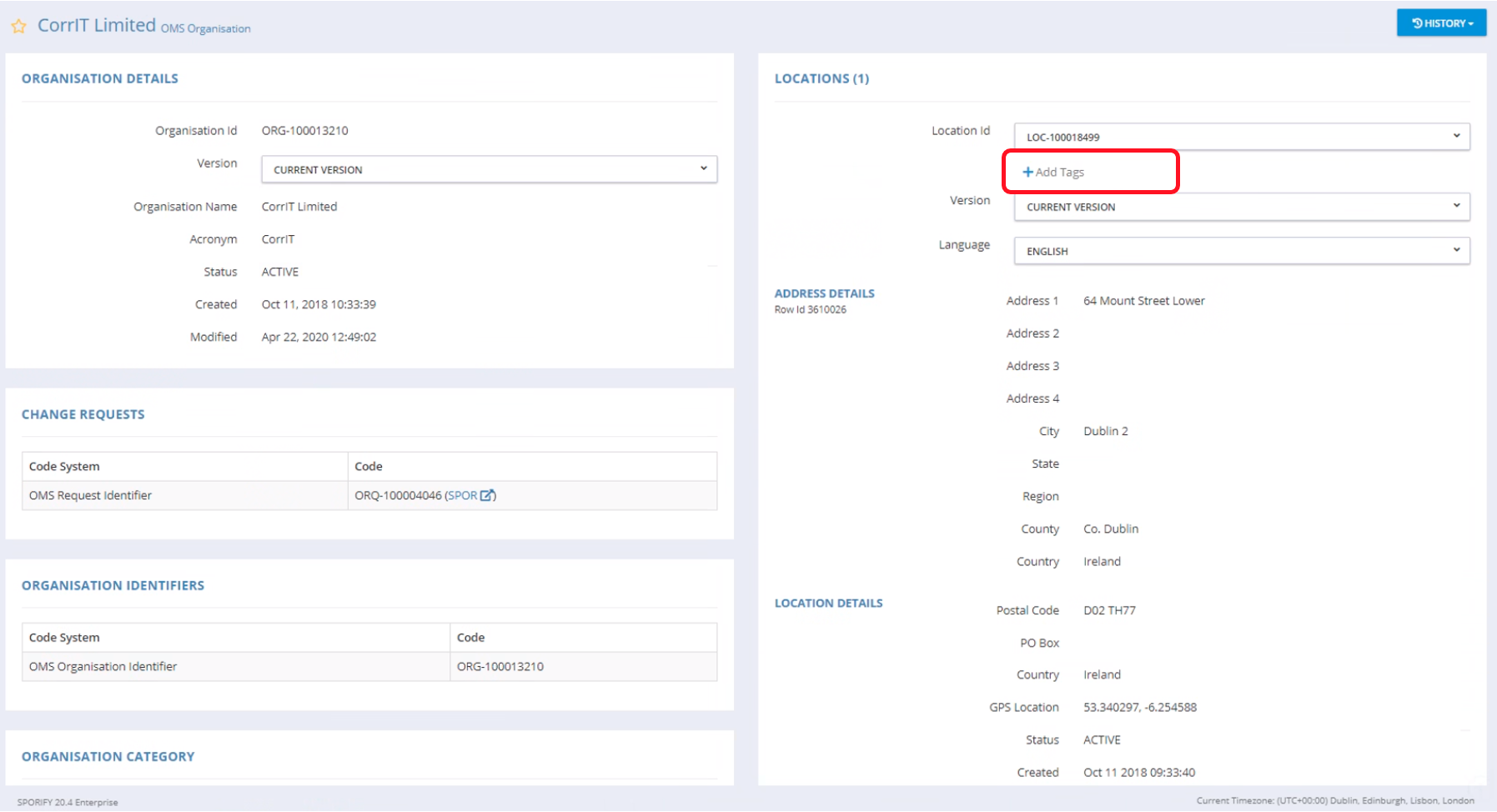

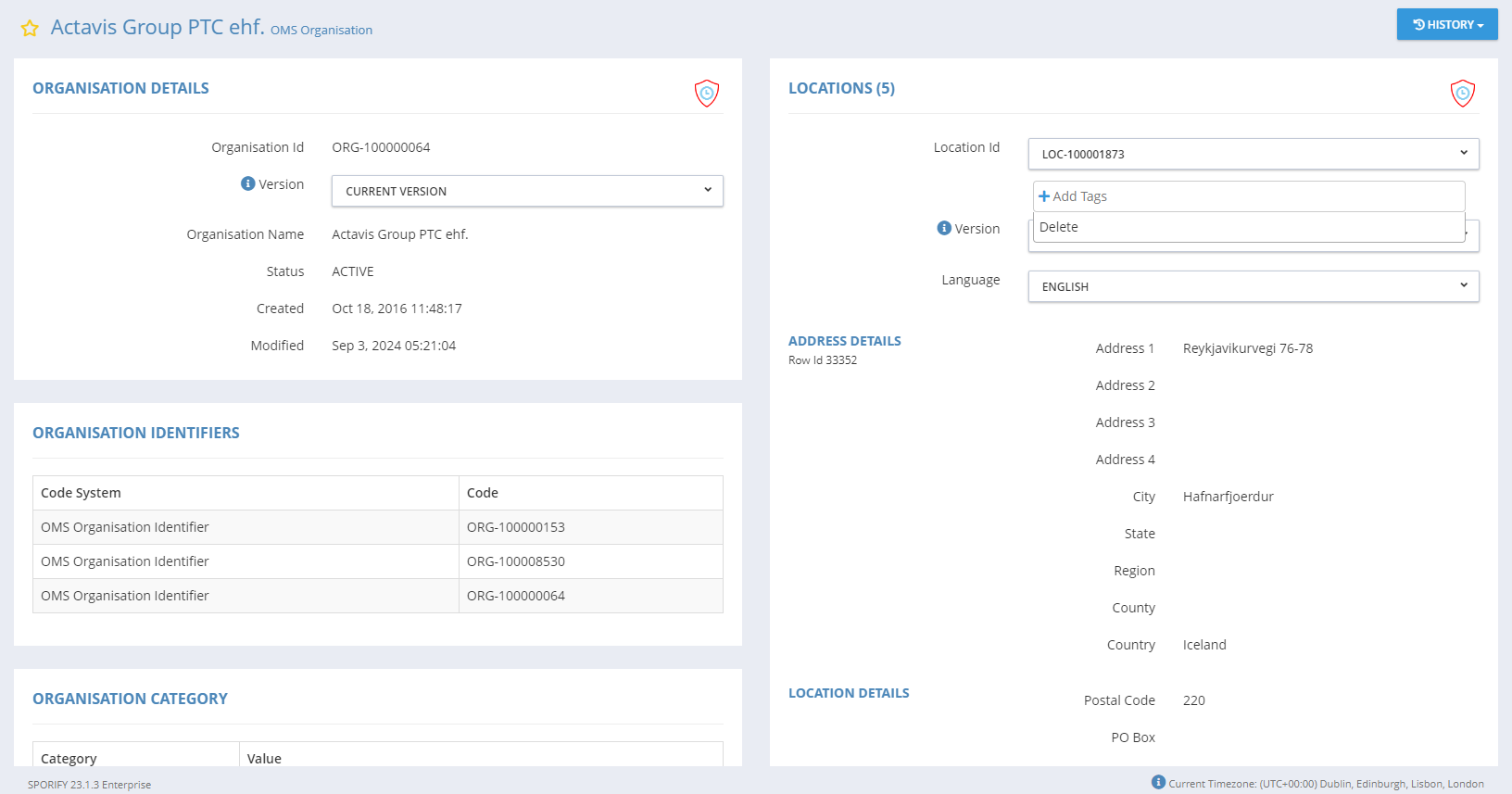

• Assign Target Tags to a Location

  • Select the Location on the grid. You will be redirected to the Organisation Details page associated with the selected location.

  • In the Locations panel, click Add Tags.

  • Select the desired tag(s).

  • Tags are automatically saved when assigned to Target Data.

• Assign Target Tags to an Organisation

  • Select the tag icon on the Target Tags column on the data grid.

  • Add or Remove Tags as required from the Tags control.

  • Click Save.

Searching and Advanced Filters

• Search for specific Organisations using the provided search bar.

• Advanced filters allow source records to be filtered by the following:

  • System

  • Status

• Advanced filters allow target records to be filtered by the following:

  • Favourites

  • Data Insights

  • Language

  • Country

  • Categories

  • Data Governance Stage

  • Tags

• Refresh: Refresh the data grid with the results of the selected filters.

• Clear: Reset all filters to default.

Match Type Explained

Organisations Match Types:

Locations Match Types:

Note: Target Organistaion Names and Locations will be colour-coded based on the Match Type applied.

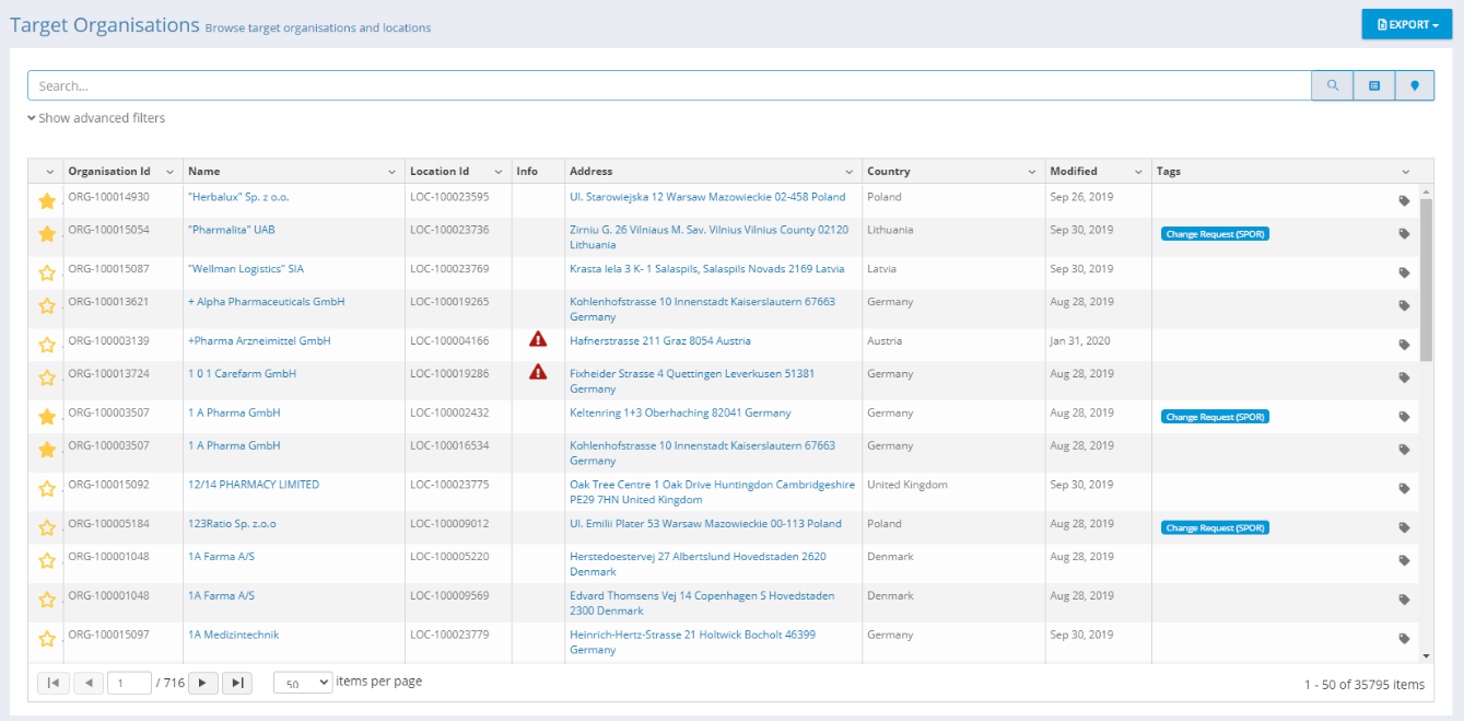

Data Insights Explained

• When Data Insights are shown, it means that SPORIFY detected something that may highlight potential issues with the target data.

• How to view Data Insights:

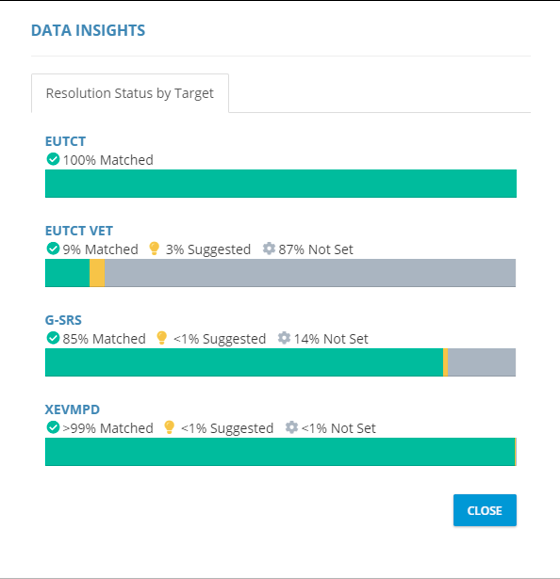

  • Chart View: Available by clicking the Data Insights button to the right side of the SPORIFY Progress Bar. Here, users can access match type breakdowns in both chart and table view, SPOR OMS data quality insights, a matching accuracy overview, and resolution statuses by country.

  • Grid View: Data Insights are also shown in the Info column on the grid. Just hover over the presented icon for further information.

  • Details Page View: Each data insight will be displayed in more detail on the associated Location Details page. To view this information simply click the location address and hover over the Data Insights icon.

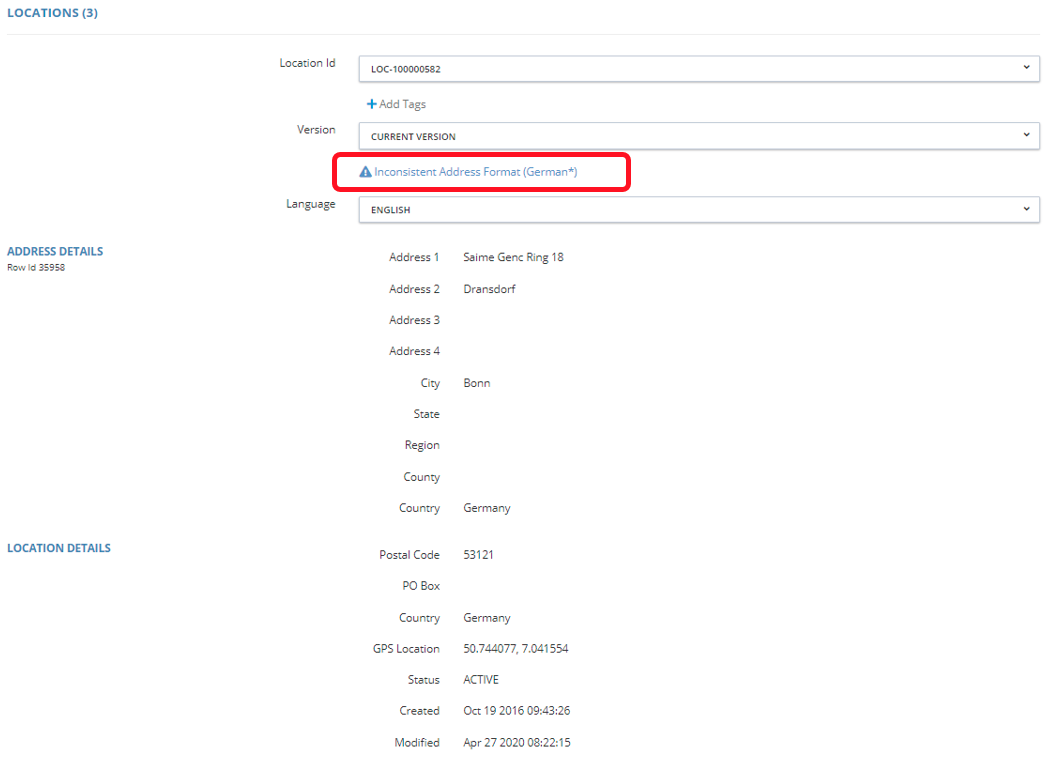

Note: In the above example the language dropdown will highlight the inconsistent translation records. In an effort to uniquely identify each translation record, we have included the SPOR Internal Row ID for the specific language records under the Address detail label for the associated language.

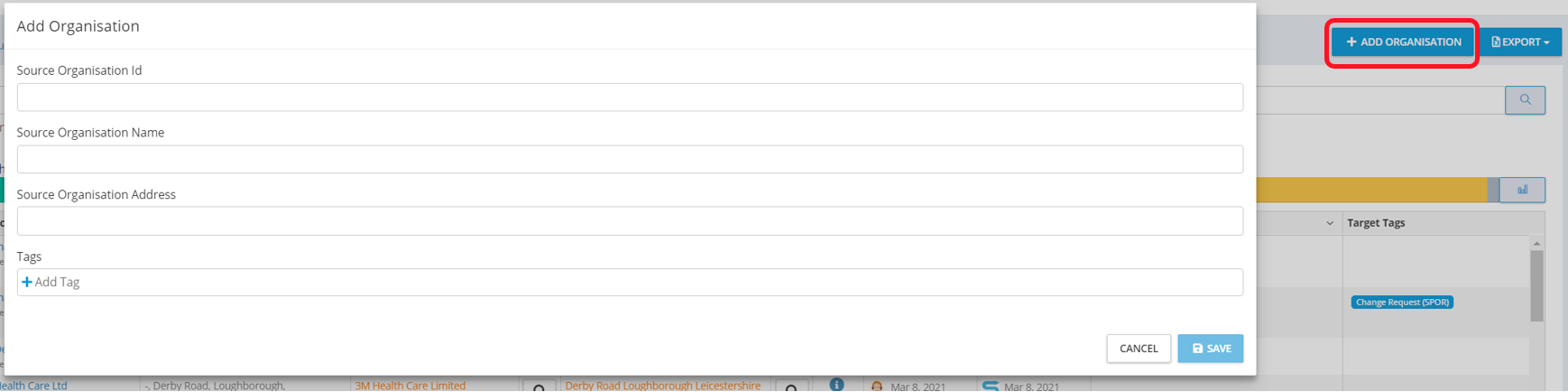

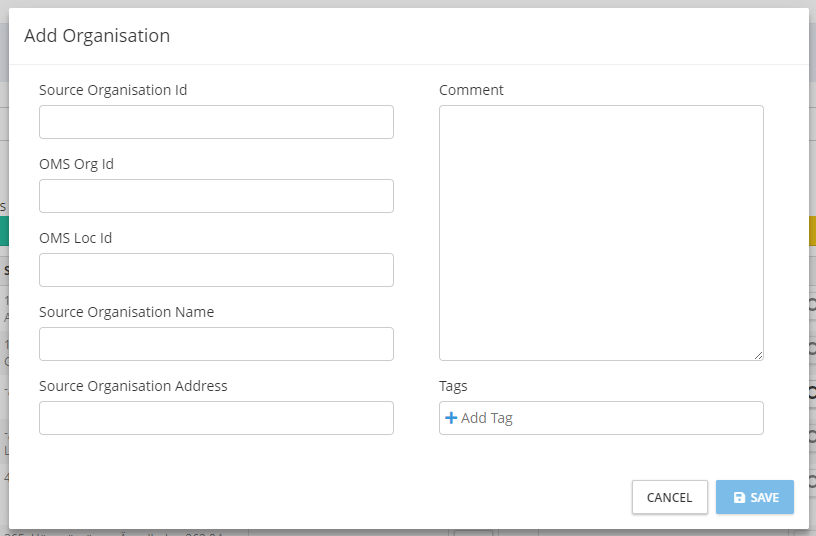

Add Organisations

To add an Organisation to a list, fill in the following fields:

• Source Organisation ID

• OMS Org ID

• OMS Loc ID

• Source Organisation Name

• Source Organisation Address

• Comment

• Tags

Export

Export is where you access your Mapped Data. Exports will contain your original data and also the matched data from the Target System along with any Resolution Status or Tags you have applied, as well as any Data Insights the system has detected.

The are multiple options to Export Mapped Data:

• Export All

  • This option is available on the Source Lists screen and exports all the mapped lists presented onscreen.

• Export English

  • Exports mapped records in English Language only

• Export All Languages

  • Exports mapped records and all Languages available in SPOR OMS

• Export SPOR CSV

  • Exports the mapped records, combined with the full SPOR CSV data. To successfully export SPOR CSV, sufficient EMA credentials must be configured first. Please contact your Administrator or configure your EMA credentials in the My Settings option in your Account Profile.

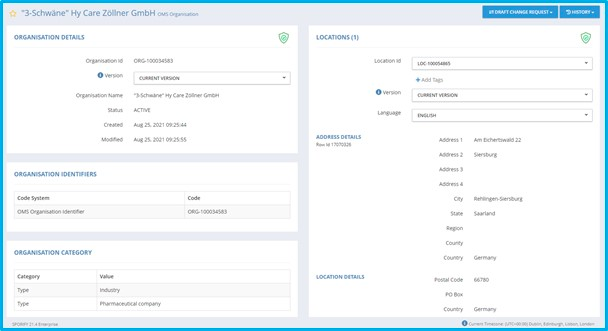

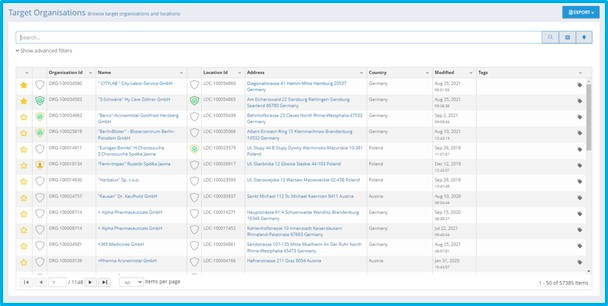

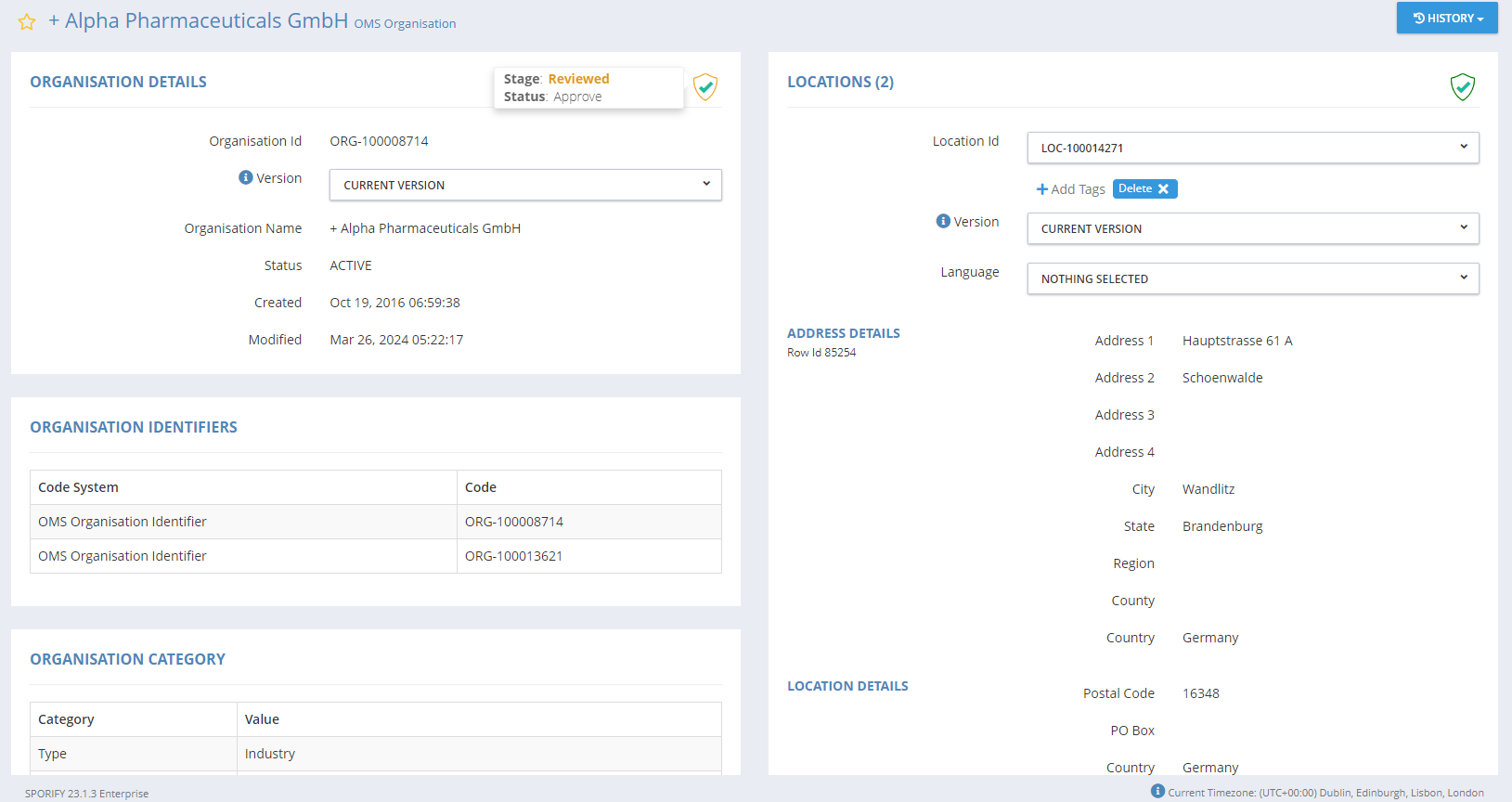

Target Organisations and Locations

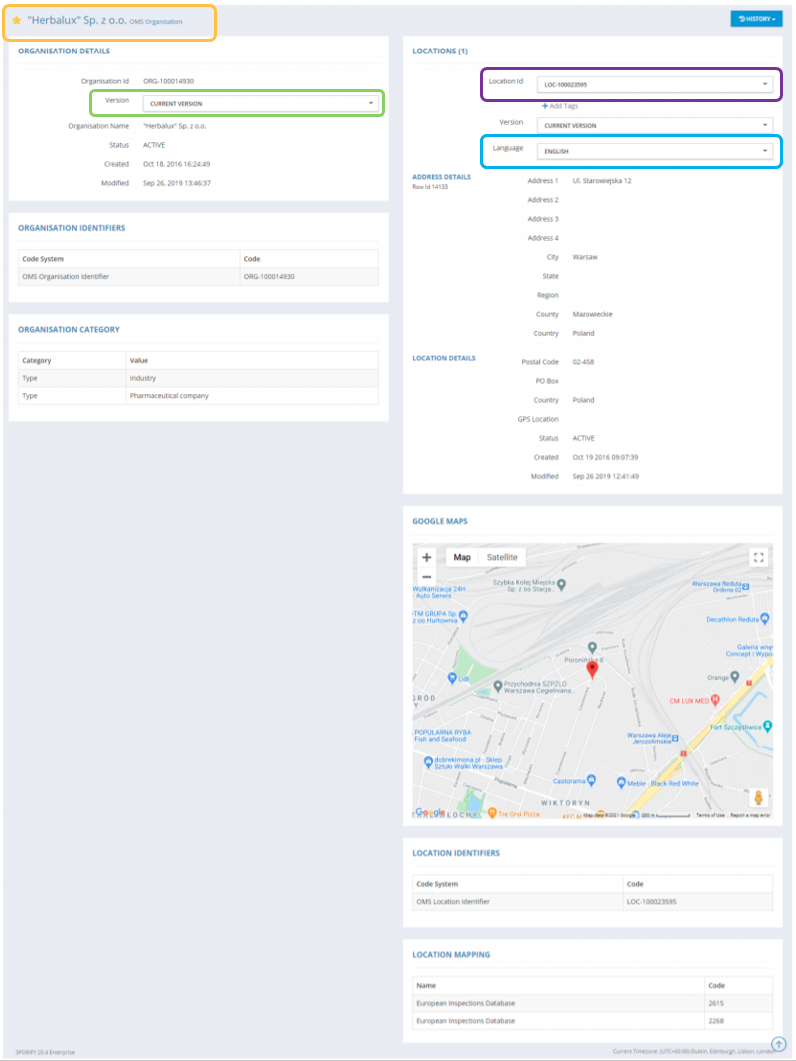

Available Actions:

• Follow Favourites: Click the Favourites (star) icon beside the screen heading to add the record to your Favourites. SPORIFY will then monitor the record for any changes and alert you on the main dashboard.

• Version (Organisation): In the Organisaton Details panel, select any previous versions of the Organisation ranging from the record’s start to end date versions.

• Location ID: In the Locations panel, select from all available location IDs.

• Version: In the Locations panel, select any previous versions of the Location ranging from the record’s start to end date versions.

• Language: View all available languages for the OMS entry. All available data will translate onscreen to the OMS language data.

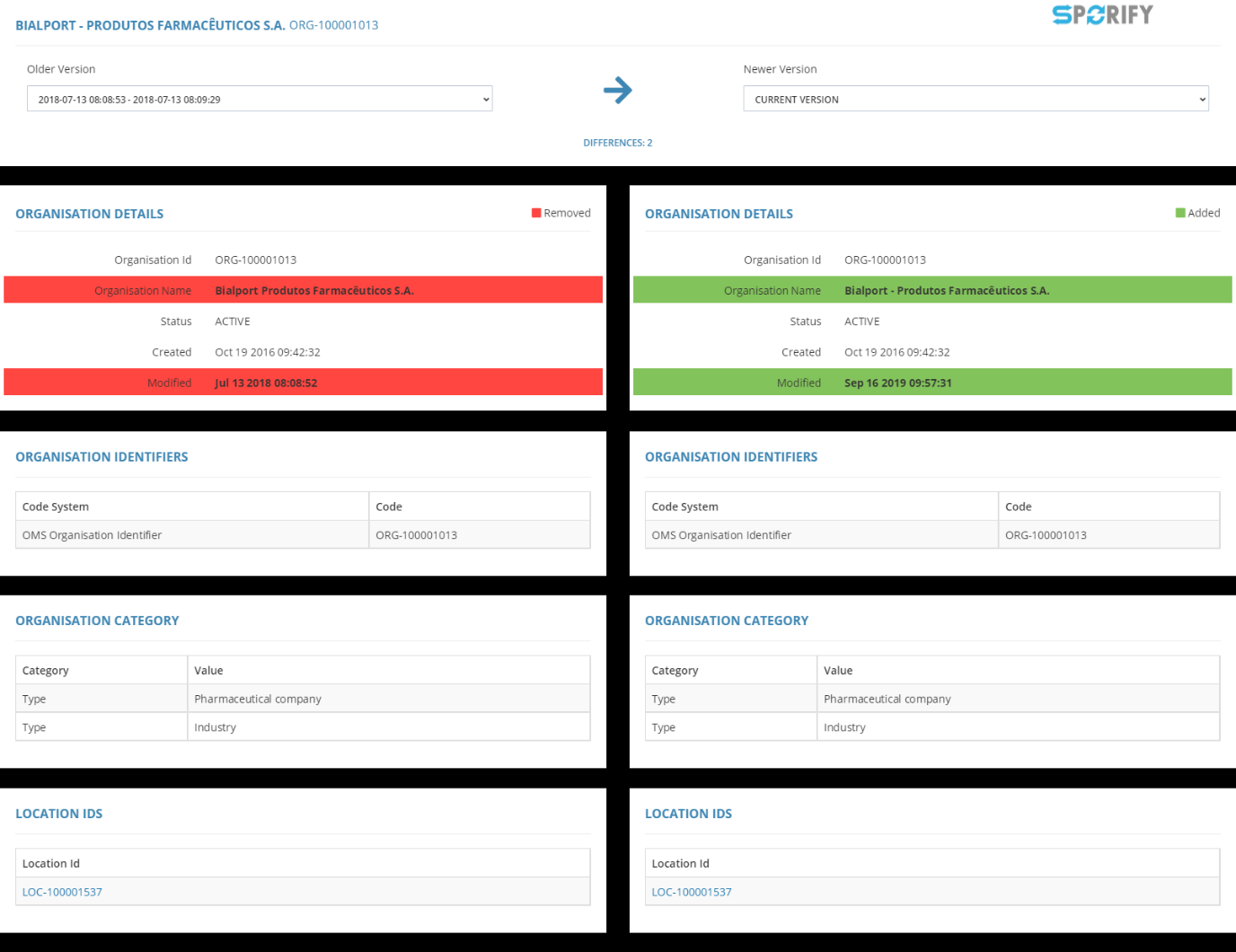

History Comparison

SPORIFY is always monitoring changes to OMS Terms and provides a History Comparison feature to compare versions of both Organisations and Locations, and highlight the changes made. Every changed value is highlighted with a colour:

• Green represents a value that was added.

• Red represents a value that was modified or removed.

Regarding Organisations, the changes are captured for Organisation Details, Organisation Identifiers, Organisation Category, Organisation Mapping, and Location IDs.

Regarding Locations, the changes are captured for Compare Versions, Location Details, Languages, Location Identifiers, and Location Mapping.

The total number of differences between two selected versions is displayed in the centre of the screen.

Please note that full data history is not available from SPOR. SPORIFY will archive all available versions while synchronising for comparison purposes.

Available Actions:

• Older Version

  • Use this drop-down menu to select the older version of the record you wish to compare.

• Newer Version

  • Use this drop-down menu to select the newer version of the record you wish to compare.

• Export

  • Export PNG

Change Requests

SPORIFY provides a Change Requests module in the Organisations domain to enable users to access OMS Change Requests. The Organisations Change Requests area lists all OMS Change Requests found by SPORIFY during the SPOR sync. SPORIFY’s Change Requests feature synchronises with SPOR everyday.

• For each Change Request listed on the grid, the following information is presented: Name, ORQ ID, Status, Change Request Type, Change Request Reason, Org ID, Loc ID, Created, Updated, and Tags.

• Clicking on a Change Request’s Name presents the associated details page.

• Any comments associated with a Change Request can be viewed by hovering over the speech bubble icon beside the record’s name in the Name column.

• Change Requests can be exported using the Export button.

• Change Requests can be searched using the provided search bar.

• Change Requests can be filtered by Status, Change Request Type, and/or Tag.

• Submitted Change Requests are available to view in the Target System Activity area of the Dashboard using the SPOR OMS tab. They also appear in Notifications.

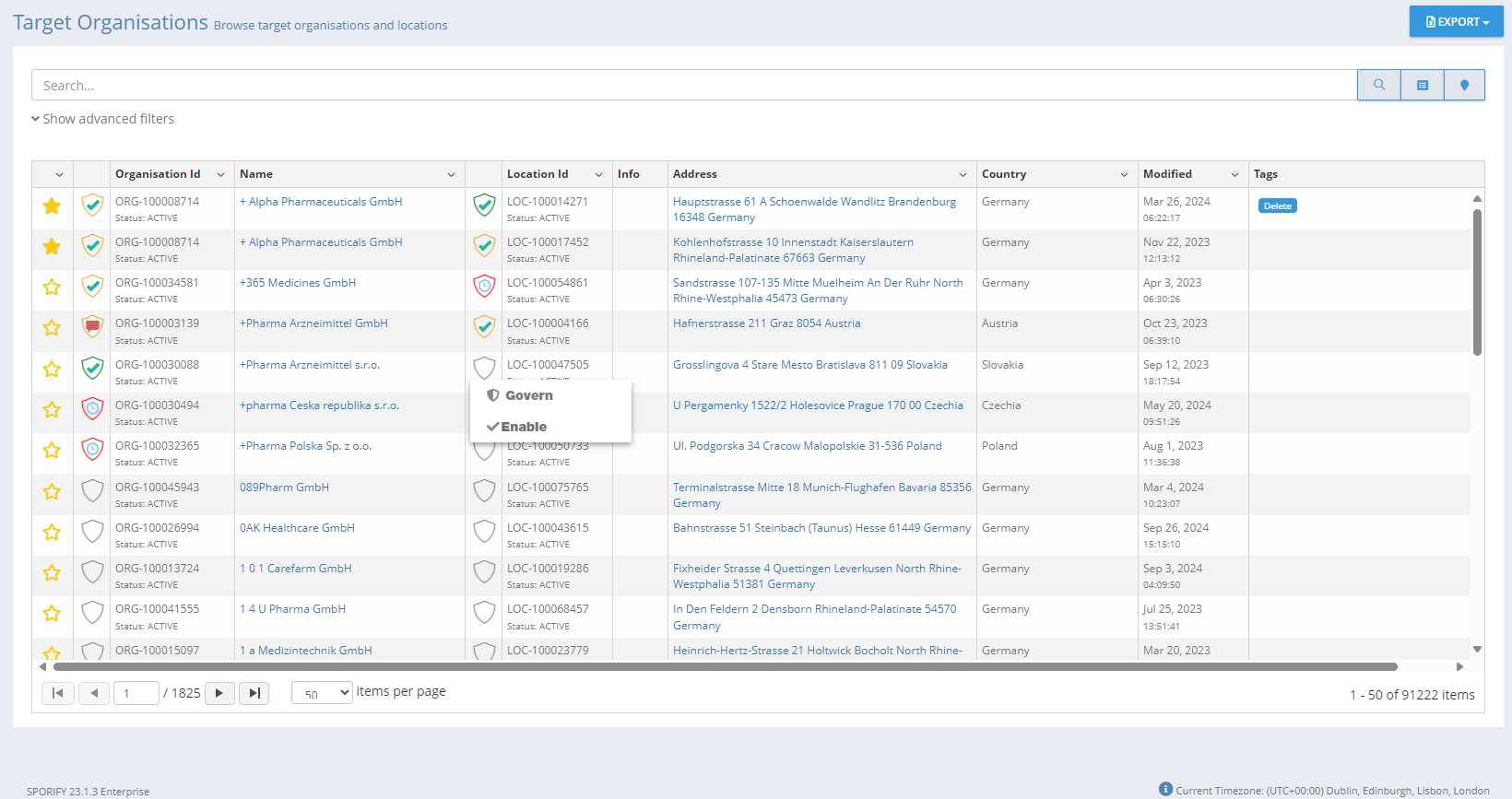

Data Governance

When Data Governance is switched on for the Organisations domain, target data records can be governed via Organisations Source Lists, Organisations Target Lists, and Organisations Details screens. Organisations records will be governed at both organisation and location levels.

A record’s data governance status is initially set to Pending Review. The reviewer can then set a custom status and add an optional comment and the approver can thus accept or reject this status. Comments will be visible by hovering over the comment icon. If the approver rejects the status, then the record is set back to Pending Review. Any approver can also reject an item after it has already been approved to restart the process.

If the 4 eye principle is switched on, the reviewer and approver cannot be the same user.

If e-signature is switched on, the user must apply an e-signature to approve the record.

Users can simultaneously govern multiple records on the Organisations Source Lists screen when Governance Required is switched on, the user has been granted the Bulk Govern permission for Organisations, and a Data Governance Stage filter has been applied. This action can be carried out using the associated Bulk Actions button.

Available Actions:

• Enable/Disable

  • Switch Data Governance on and off for the given record.

• Govern (Stage: Pending Review)

  • Set Review Status

  • Add Comment

• Govern (Stage: Reviewed)

  • Accept

    • Username

    • Password

    • Reason

    • Comment

    • e-Signature (if required)

  • Reject

Substances

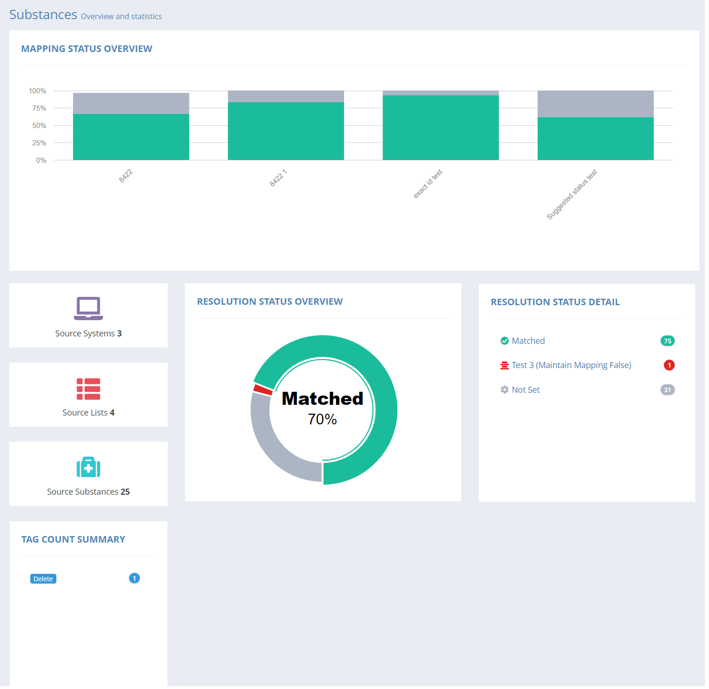

Overview

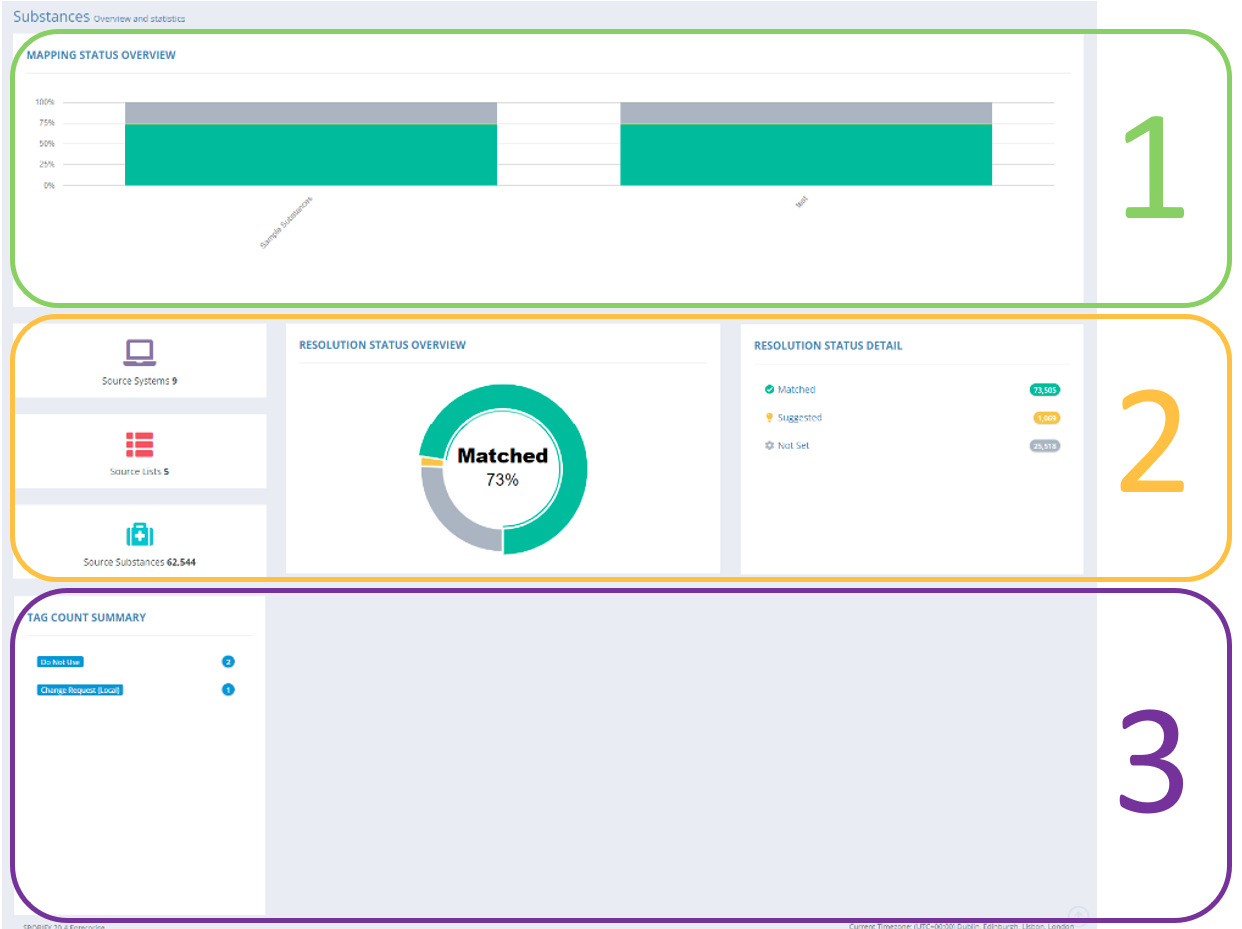

The Substances Overview area provides high-level summaries and statistics pertaining to SPORIFY’s Substances domain.

The following sections are presented on this screen:

• Mapping Status Overview

  • The Mapping Status Overview section presents a bar chart outlining the mapping statuses that have been applied to the Substances lists currently uploaded to the system.

  • To view an exact breakdown of mapping status percentages, hover the mouse over the relevant bar on the chart.

• Source Substances Statistics

  • The Source Substances Statistics boxes present counts for Source Systems, Source Lists, and Source Substances.

• Resolution Status Overview

  • The Resolution Status Overview area provides counts of applied Resolution Statuses for the Substances domain in the form of a donut chart.

  • Simply hover the mouse over a chart segment to see the associated percentage for the given Resolution Status.

• Resolution Status Detail

  • The Resolution Status Detail area lists overall counts of each Resolution Status type that has been applied to Substances records in the system.

• Tag Count Summary

  • The Tag Count Summary section lists overall counts of each Tag that has been applied to Substances records in the system.

Source Lists (Mapping)

Templates: Formatting Source Data

• To format your Source Data:

  • Download the Substances Excel or CSV Template by clicking on the Templates action button and selecting CSV or Excel. This template can be used for all Source Substances Lists.

  • Data Format Required: SPORIFY requires two mandatory* and twelve optional pieces of information to carry out Substance Data Mapping:

    • Source ID* (Unique ID for local database; must be unique for every record)

    • Substance Name* (Name of source substance)

    • Local Substance ID (Not required to be unique, e.g. an alias may share this ID with its common name; this ID is also used during our matching process to provide System to System match type.)

    • SMS/EUTCT

    • EV Code

    • UNII

    • CAS

    • INCHI

    • INN

    • ATC Code

    • Molecular Formula

    • SMILES

    • Name Type

    • Substance Type

  • Using Excel: If your workbook has multiple worksheets, you should select the required worksheet to import from.

  • Using CSV: By default, the system expects CSV files to be delimited with a comma.

  • If your column text contains the delimiter character, the text should be wrapped in quotation marks. For example, 1,2,3-TRIAZOLINE is formatted as “1,2,3-TRIAZOLINE” to correctly import the delimiter character.

  • CSV files should be saved with UTF-8 encoding to preserve special characters.

Upload: Importing Data

Fields Explained:

• List Name: Local list name/friendly name used to recognise your internal list.

• System: Name of the Local System that your list is from. Custom System Names are subject to subscription level. If only one system is available, the name is always “Default”.

• List Language: This drop-down menu is populated with the language list from SPOR SMS. Every language available in SMS will be displayed for selection. SPORIFY uses a matching algorithm to search across all available languages for matches. The system default is English but you can select your primary language here.

• Select Source Excel or CSV File: Browse your computer network and select the source file to upload. By default, the system expects CSV files to be delimited with a comma.

• Number Of Header Rows in My Source File: If your file contains header information, you can enter the number of rows you wish SPORIFY to skip when importing your data in this field.

• Restrict mapping to certain targets, statuses, and name types: Select to set specific mapping restrictions.

  • Restrict mapping to the following targets: Options are EUTCT, EUTCT Vet, G-SRS, XEVMPD, and SMS.

  • For each target, restrict mapping to substances with the following statuses. Options are EUTCT (Non_Current, Nullified, Current, Provisional), EUTCT Vet (Non_Current, Nullified, Current, Provisional), XEVMPD (Nullified, Remapped, To Be Nullified, Active), G-SRS (Approved, Failed), and SMS (Current).

  • For each target, restrict mapping to names with the following name types: Options are EUTCT (Common Name, Company Code), EUTCT Vet (Common Name, Company Code), XEVMPD (Translation, Preferred, Alias), and G-SRS (Brand Name, Code, Common Name, G-SRS Name, Official Status, Systematic Name, Trivial Name).

    • Click Save to import your data and run the SPORIFY matching algorithms.

    • Click Cancel to clear all fields and return to the previous screen.

Note: Source Lists containing more than 1000 records will be imported via background job. As soon the import is finished, a notification is displayed.

Actions Available on List

View Substances

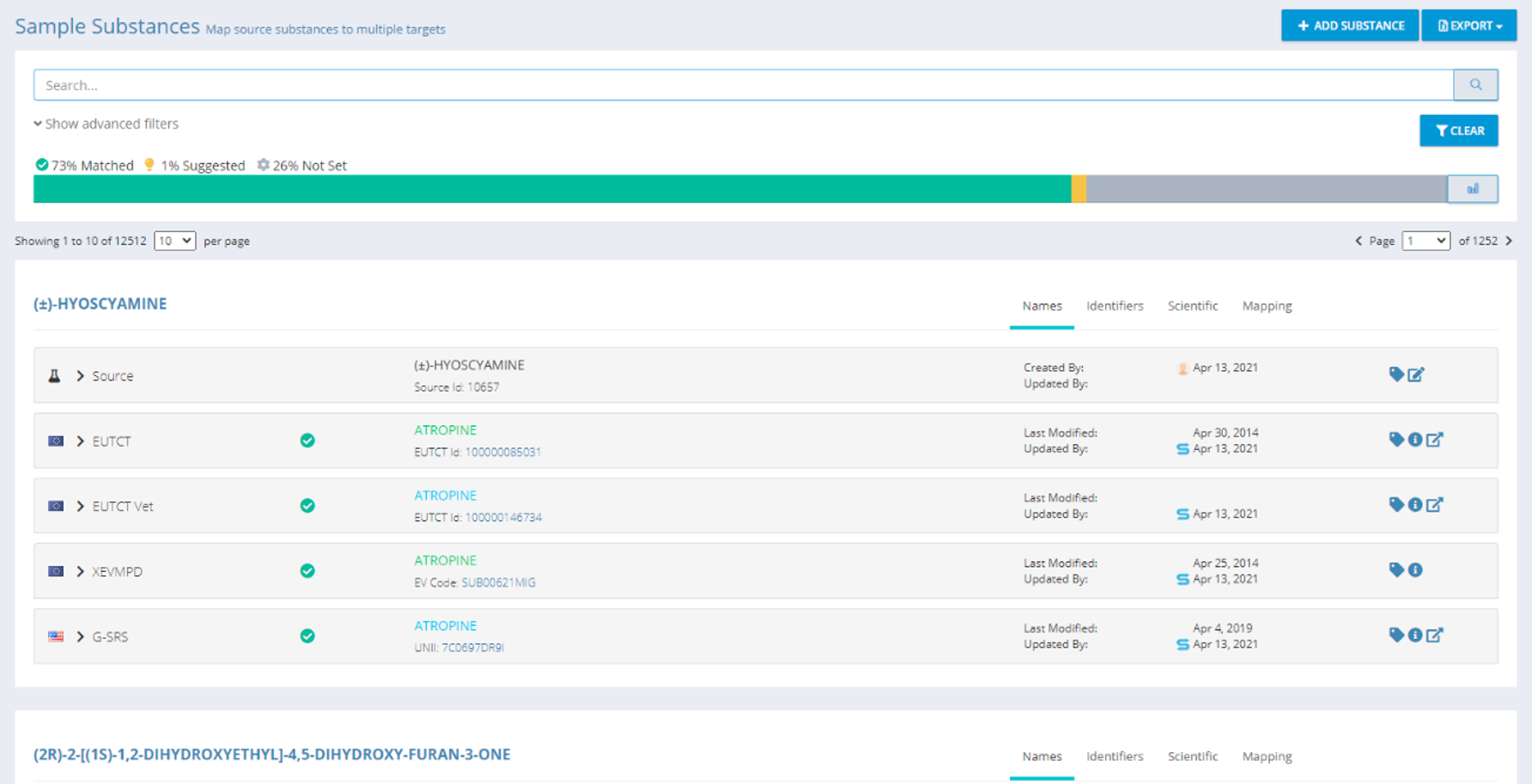

Click View Substances to view all of the Source Substances contained on the given Source List, as well as their associated mappings.

For each Substance, the Source Substance is shown alongside matches made to EUTCT, EUTCT Vet, XEVMPD, G-SRS, and SMS Target Substances. For further information, expand the listed Substances and toggle between the presented Names, Identifiers, Scientific, and Mapping tabs.

Edit

Select Edit to make changes to the list in question.

Here, users can edit the following fields:

• List Name

• System

• Restrict mapping to certain targets, statuses, and name types

When ‘Restrict mapping to certain targets, statuses, and name types’ is switched on, the following fields additionally become available for editing:

• Restrict mapping to the following targets

  • Options for selection are EUTCT, EUTCT Vet, G-SRS, XEVMPD, and SMS.

• For each target, restrict mapping to substances with the following statuses

  • Options for selection are EUTCT (Non_Current, Nullified, Current, Provisional), EUTCT Vet (Non_Current, Nullified, Current, Provisional), XEVMPD (Nullified, Remapped, To Be Nullified, Active), G-SRS (Approved, Failed), and SMS (Current).

• For each target, restrict mapping to names with the following name types

  • Options for selection are EUTCT (Common Name, Company Code), EUTCT Vet (Common Name, Company Code), XEVMPD (Translation, Preferred, Alias), and G-SRS (Brand Name, Code, Common Name, G-SRS Name, Official Status, Systematic Name, Trivial Name).

Update

Select Update to Upsert, Merge, or Overwrite the given list.

Fields Explained:

• Select Source Excel or CSV file: Upload the relevant record from your device.

• Number of Header Rows in my Source File: Insert the relevant number of header rows.

• Upsert List: This option will perform insert and update operations on your current list based on the differences found in the selected list. Where the Source ID is equal on both lists, all current resolution status and matching information will be retained. Where duplicate Source IDs are detected, these records will be skipped.

• Merge List: This option will perform insert, update and delete operations on your current list based on the differences found in the selected list. Where Source ID is equal on both lists, all current resolution status and matching information will be retained. Where duplicate Source IDs are detected, these records will be skipped.

• Overwrite List: This option will delete your current list and replace it with the selected list. All current resolution status and matching information will be deleted.

Delete

Select this option to delete your current list from SPORIFY. You will be prompted to confirm the deletion. This operation is not reversible.

Mapping

• By default, SPORIFY will analyse your uploaded data and apply a Resolution Status to every substance you have uploaded.

• SPORIFY’s system-based Resolution Statuses are:

  • Matched: SPORIFY has located an exact match for your substance on the Target Substances list.

  • Multiple Choice: SPORIFY has located multiple exact matching Substance Names for your data on the Substances list.

  • Suggested: SPORIFY found Substance Names that are closely related to your data.

  • Not Set: SPORIFY could not locate any Substance similar to your data.

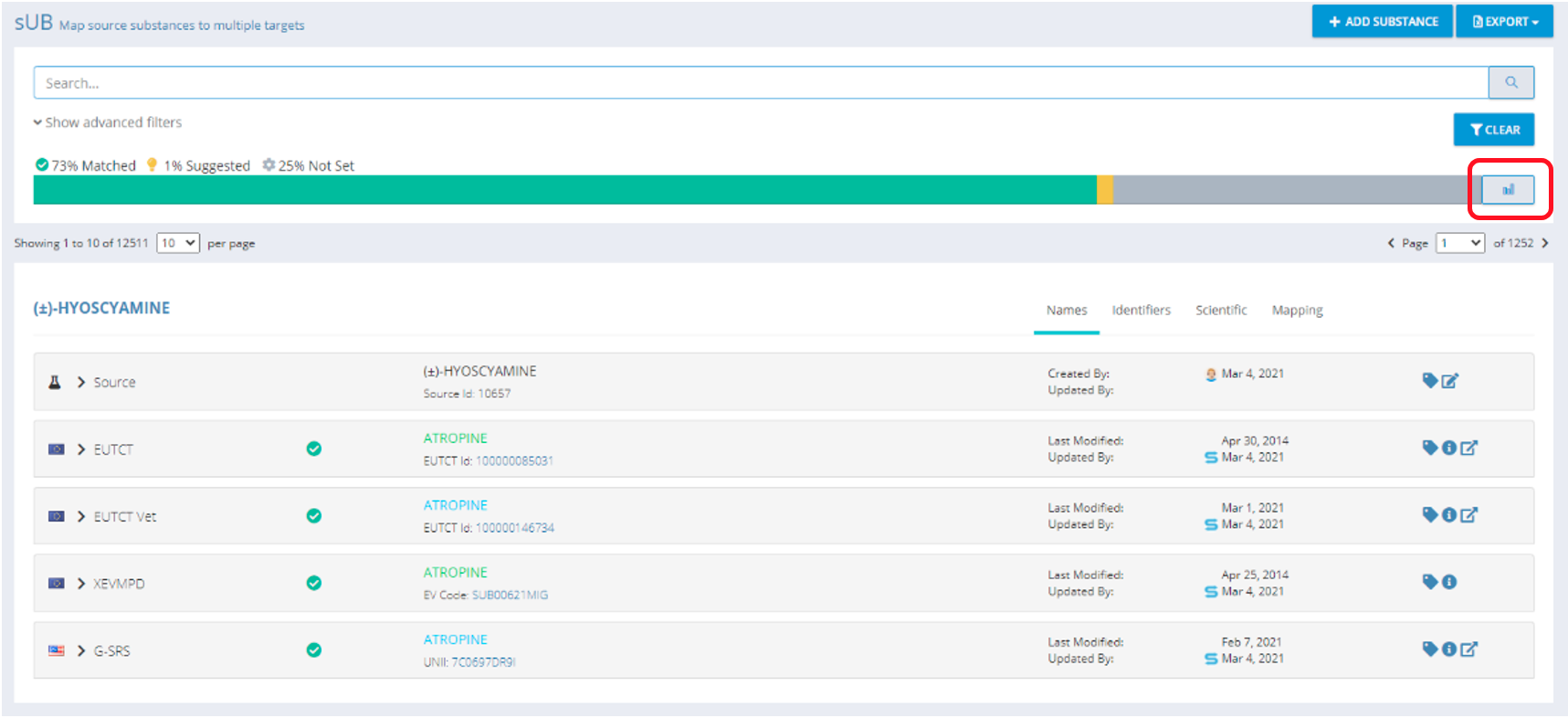

• Once your lists are uploaded, each list will have a progress bar showing Resolution Status percentages for the given list.

• Above the lists, an overall progress bar will show your Resolution Status percentage across all lists.

• Colour-coding is used to indicate match types. In the case of imported mappings only, colour-coding will be based on the text match, even if the mapping was done by an exact ID match.

Manually Matching Substances

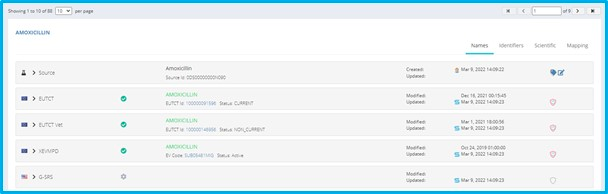

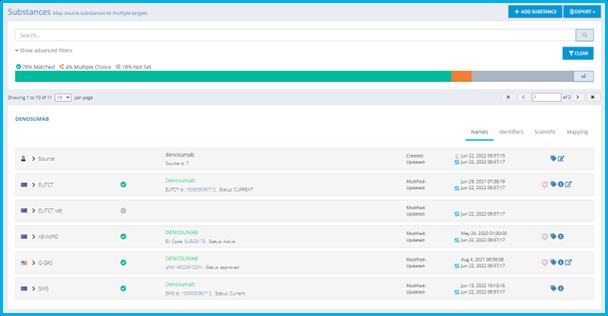

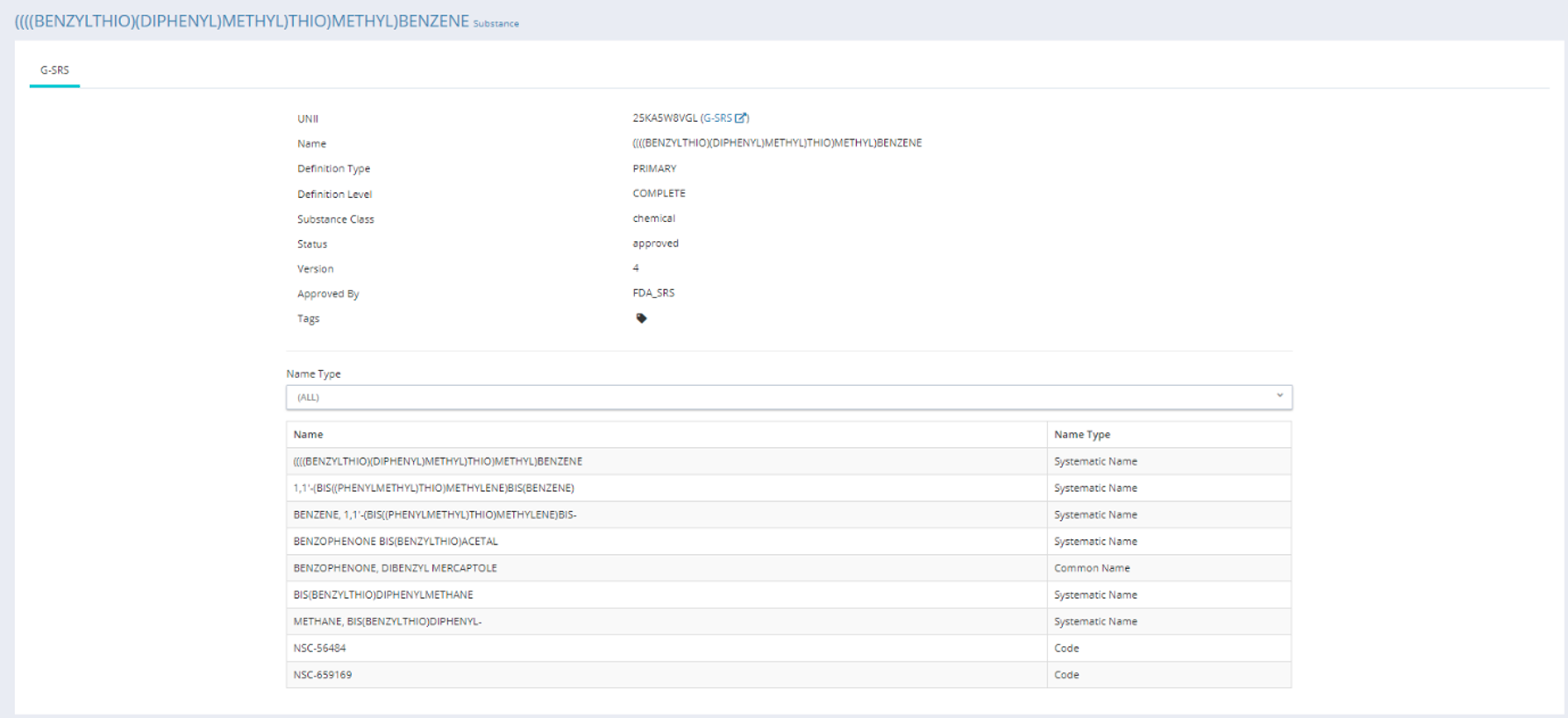

• Click on the Source List's name to move to the substance matching screen.

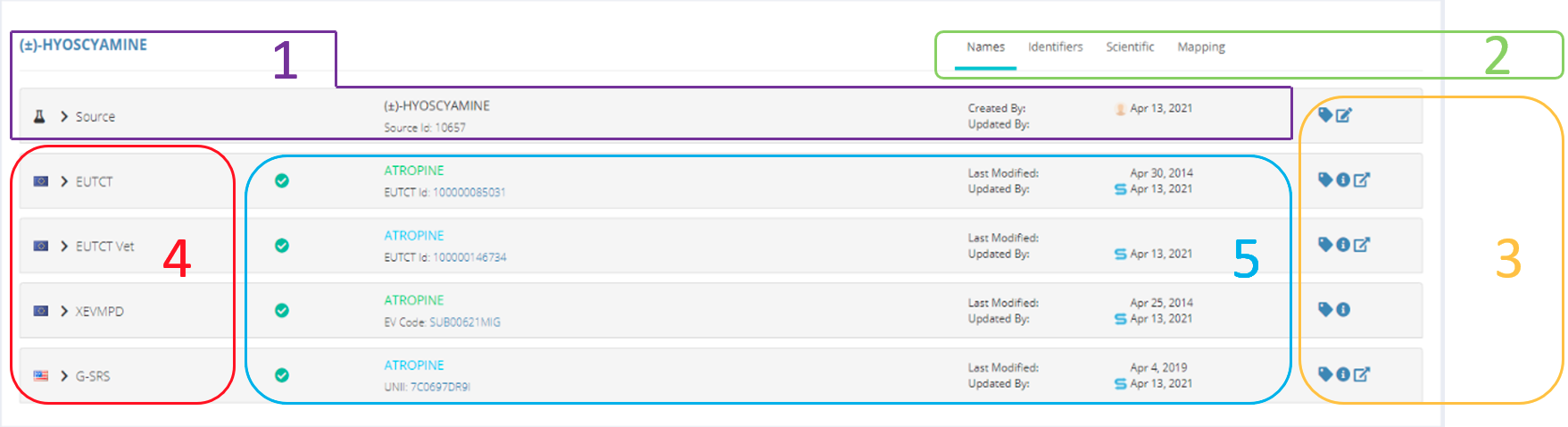

• Substance matching screen explained:

  • The substance matching screen is similar to the target substance screen. However, substances are grouped by the Source Substance Name.

  • Each Target Substance system will be displayed in its own sub panel under the Source Substance.

  • If a substance match exists, a Resolution Status and Matched Term will be displayed along with the associated created and modified timestamp.

  • Each substance panel displayed shows the following information which is related to the Source Substance.

Source Substance information

• Header: Source Substance Name provided in your import file

• Source Substance Panel: All source substance information provided in your import file. Information will be available under each of the available Additional Information Tabs as applicable.

• Created Date: Who created this record and when

Additional Information Tabs

• Names: Name records associated with the relevant substance

• Identifiers: Identifiers associated with the relevant substance where applicable e.g. CAS Number, ATC Code

• Scientific: Scientific information associated with the relevant substance e.g. SMILES, INCHI Key, Structure

• Mapping: Area to edit or manually match a substance record or to apply a Resolution Status to a matched record

Available Options

• Tags: Tags assigned to the substance record (source or target)

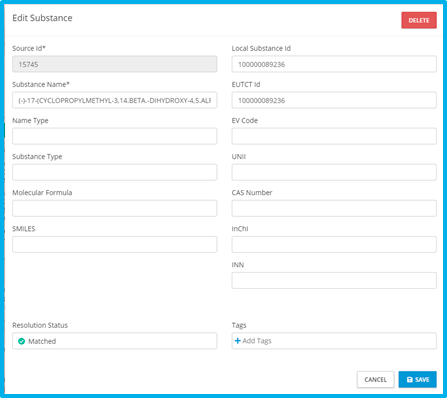

• Edit Source: The edit icon is available only on source substance and will open a form to edit the source substance information

• Information: Hover over the information icon for details of match type

• External Link: The external link icon is only available on matched substances and will open an external link in the browser displaying the associated substance in the Target System

Target System Information

• Target System Name: The name of the associated Target Substance System, e.g. G-SRS

Matched Substance Information:

From left to right the data displayed is as follows:

• Resolution Status: The resolution status icon for the associated mapping

• Mapped substance name: Name of the matched substance. Colour coding is used to indicate match types. In the case of imported mappings only, colour coding will be based on the text match, even if the mapping was done by an exact ID match.

• Updated Date: Who last updated this record and when

• Subtext: Substance ID – hyperlink to further substance detail screen

Assigning Data Tags to Substance Data

• Assign Tags:

• Method #1

  • Select the tag icon on the relevant substance panel.

  • Add or Remove Tags as required from the Tags control.

  • Click Save.

• Method #2

  • Tags can also be added while editing the Source Substance Data. Refer to “#.# edit source substance”

Searching and Advanced Filters

• Search across the data in the data panel using the following fields:

  • Source Substance

  • G-SRS Name

• Advanced filters allow data to be filtered by the following fields:

  • Status

  • Match Type (dependent on status selected)

  • Targets

  • Sort by

  • Sort direction

  • Language

  • Tags

• Refresh: Refresh the data panel with the results of the selected filters

• Clear: Reset all filters to default

Match Types Explained

Data Insights Explained

• Data Insight Information:

  • Data Insights show the Resolution Status for each Target System that is matched.

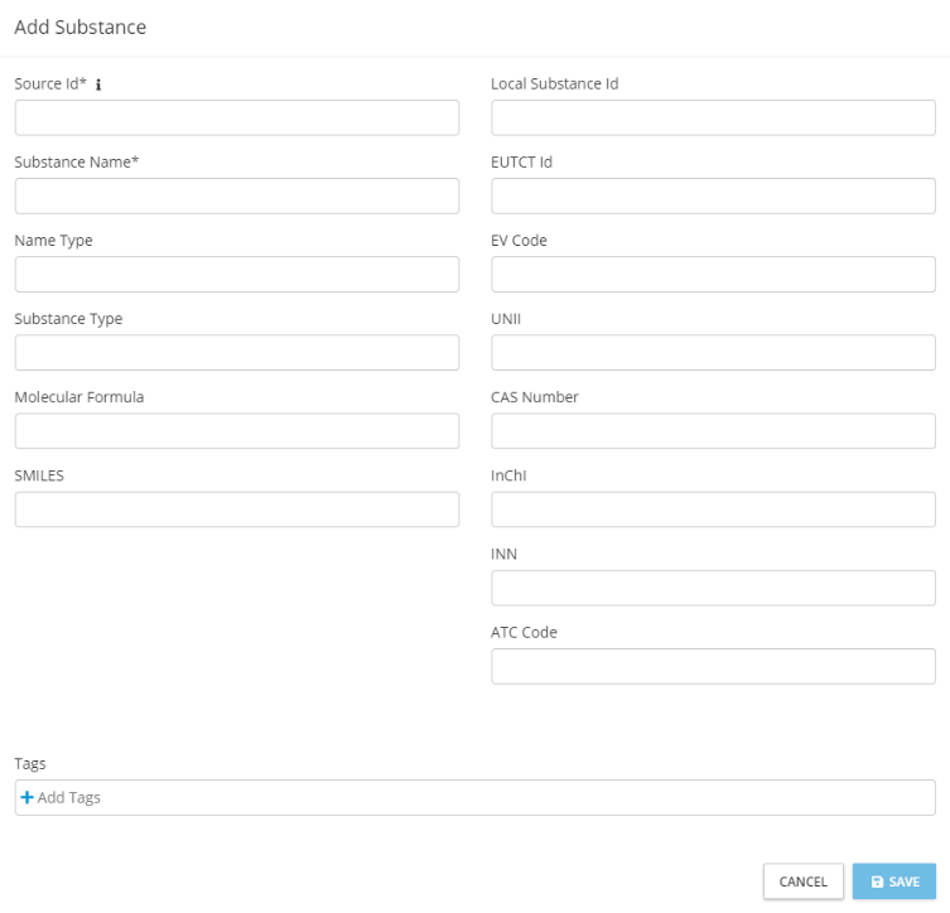

Add Substances

Export

Export is where you access your Mapped Data. Exports will contain your original data and also the matched data from the Target System along with any Resolution Status or Tags you have applied.

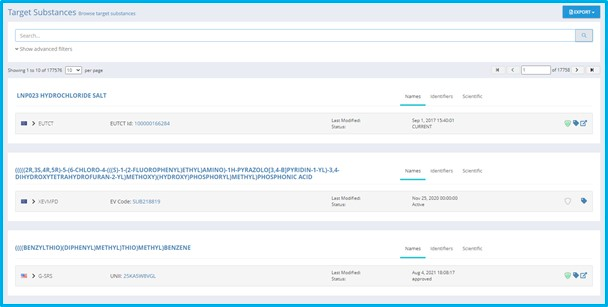

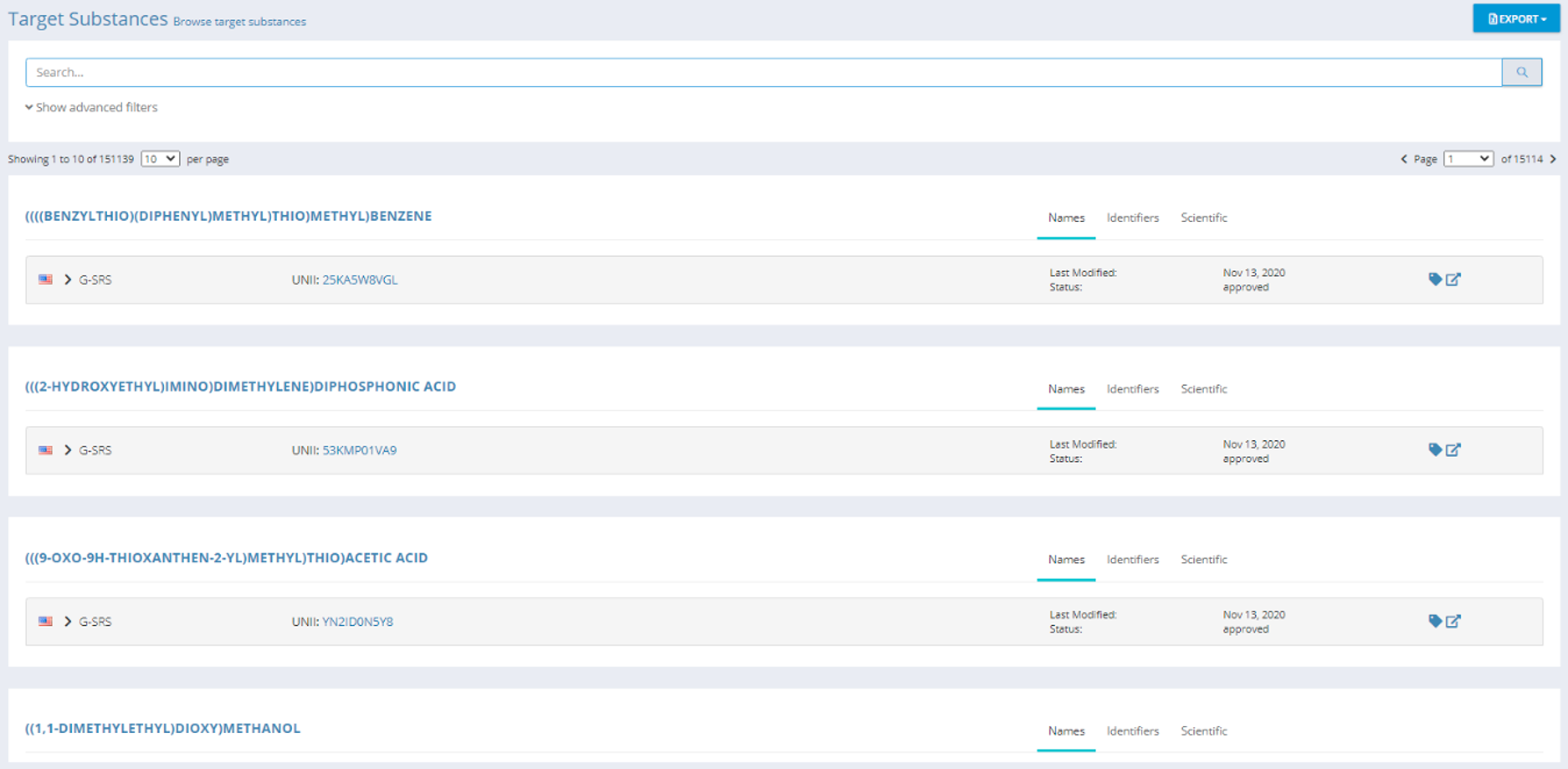

Target Substances (Browse Target Substance Lists)

Data Governance

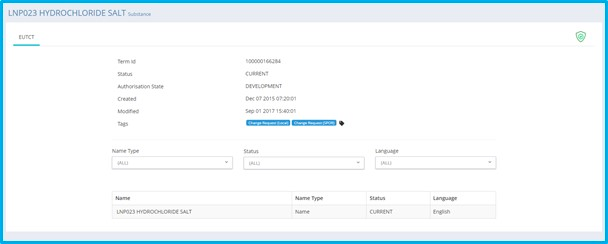

When Data Governance is switched on for the Substances domain, target data records can be governed via Substances Source Lists, Substances Target Lists and Substances Details screens.

A record’s data governance status is initially set to Pending Review. The reviewer can then set a custom status and add an optional comment and the approver can thus accept or reject this status. Comments will be visible by hovering over the comment icon. If the approver rejects the status, then the record is set back to Pending Review. Any approver can also reject an item after it has already been approved to restart the process.

If the 4 eye principle is switched on, the reviewer and approver cannot be the same user.

If e-signature is switched on, the user must apply an e-signature to approve the record.

Users can simultaneously govern multiple records on the Substances Source Lists screen when Governance Required is switched on, the user has been granted the Bulk Govern permission for Substances, and a Data Governance Stage filter has been applied. This action can be carried out using the associated Bulk Actions button.

Available Actions:

• Enable/Disable

  • Switch Data Governance on and off for the given record.

• Govern (Stage: Pending Review)

  • Set Review Status

  • Add Comment

• Govern (Stage: Reviewed)

  • Accept

    • Comment

    • e-Signature (if required)

  • Reject

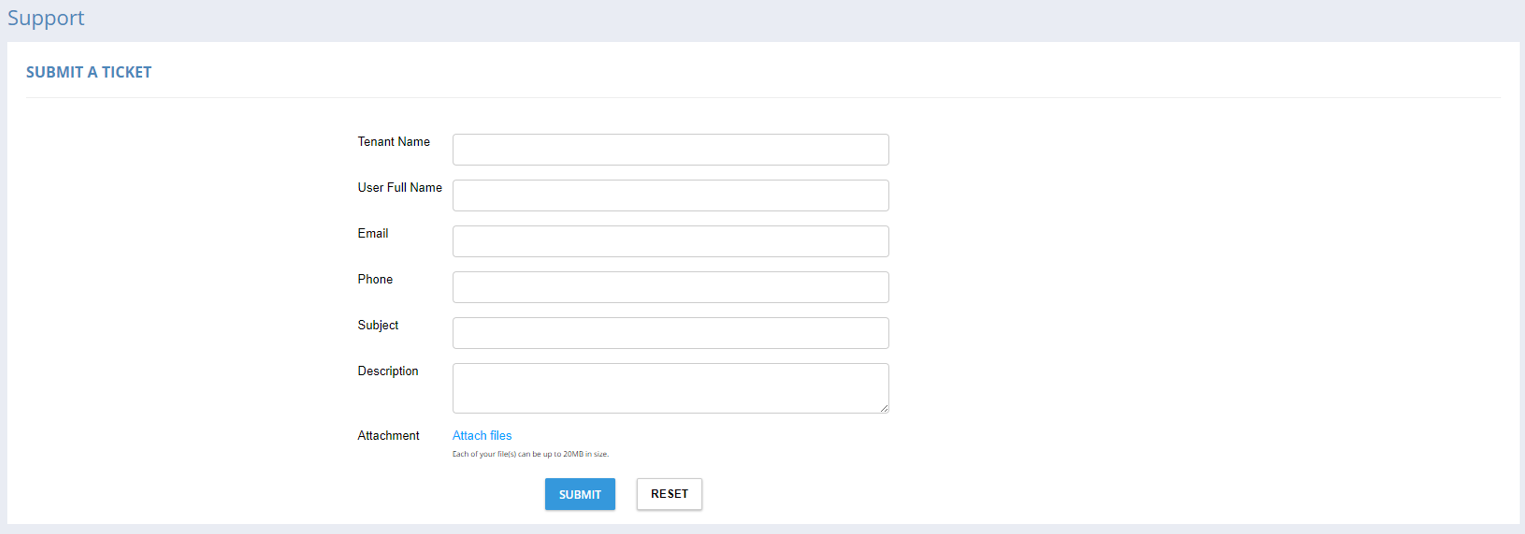

Support

If users are facing issues with the system or have any queries, they can submit a ticket to SPORIFY via the Support area.

When submitting a ticket, the following fields should be filled out:

• Tenant Name

• User Full Name

• Email

• Phone

• Subject

• Description

• Attachment

Click on the Submit button to send the ticket to SPORIFY.

User Guides

Five types of user guide are provided in SPORIFY. They can be accessed by selecting User Guides on the navigation menu, then clicking on the relevant item.

The following guides are available:

• API Guide

• Admin Guide

• User Guide

• Release Notes

• SPOR Documents

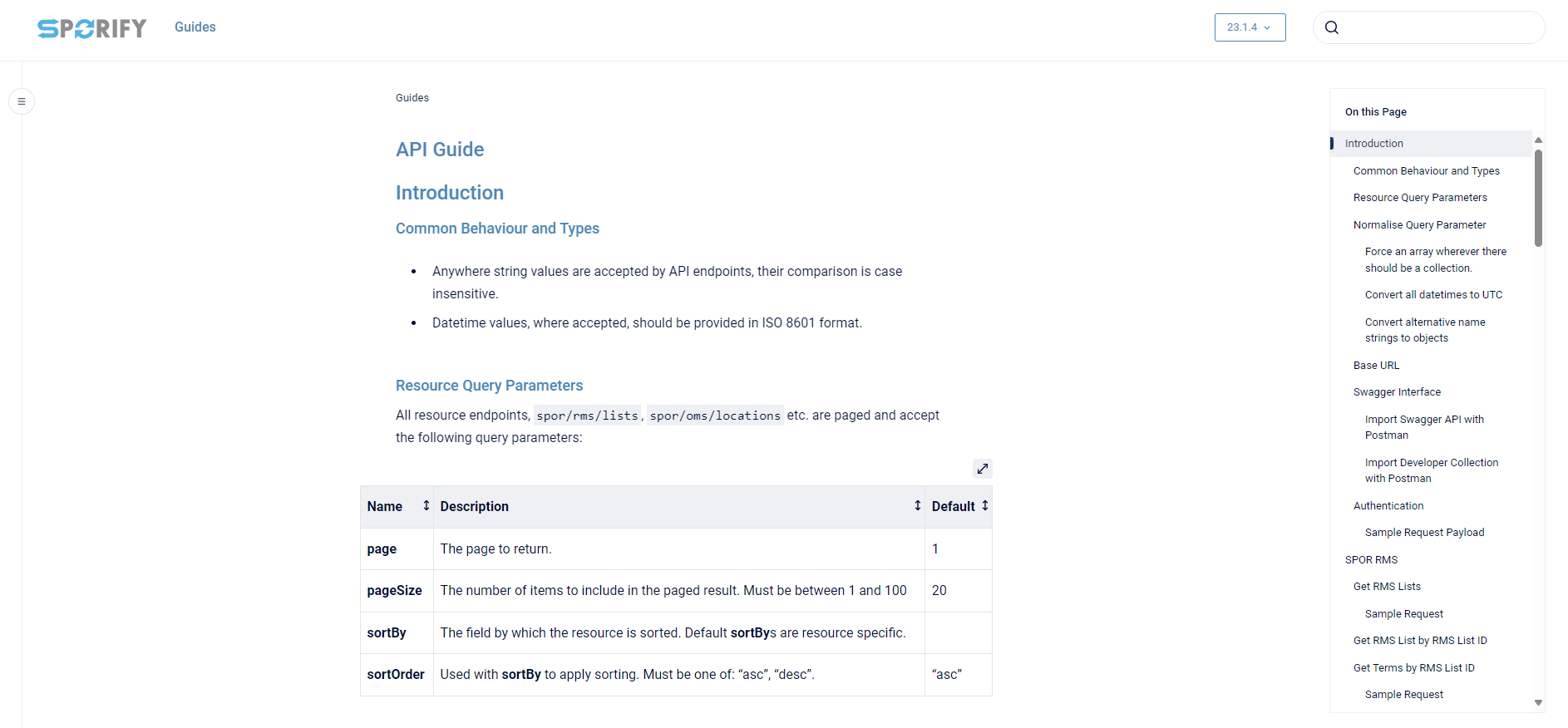

API Guide

When the API Guide is selected, the API Guide on the SPORIFY Guides site appears in a new tab. This guide provides reference documentation, instructions, and code samples to enable the reader to effectively use SPORIFY’s API.

Admin Guide

When the Admin Guide is selected, the Administration Guide on the SPORIFY Guides site appears in a new tab. This guide provides an overview of SPORIFY’s Administration area and how to use it.

User Guide

When the User Guide is selected, the User Guide on the SPORIFY Guides site appears in a new tab. This guide provides an overview of the SPORIFY tool and how to use it.

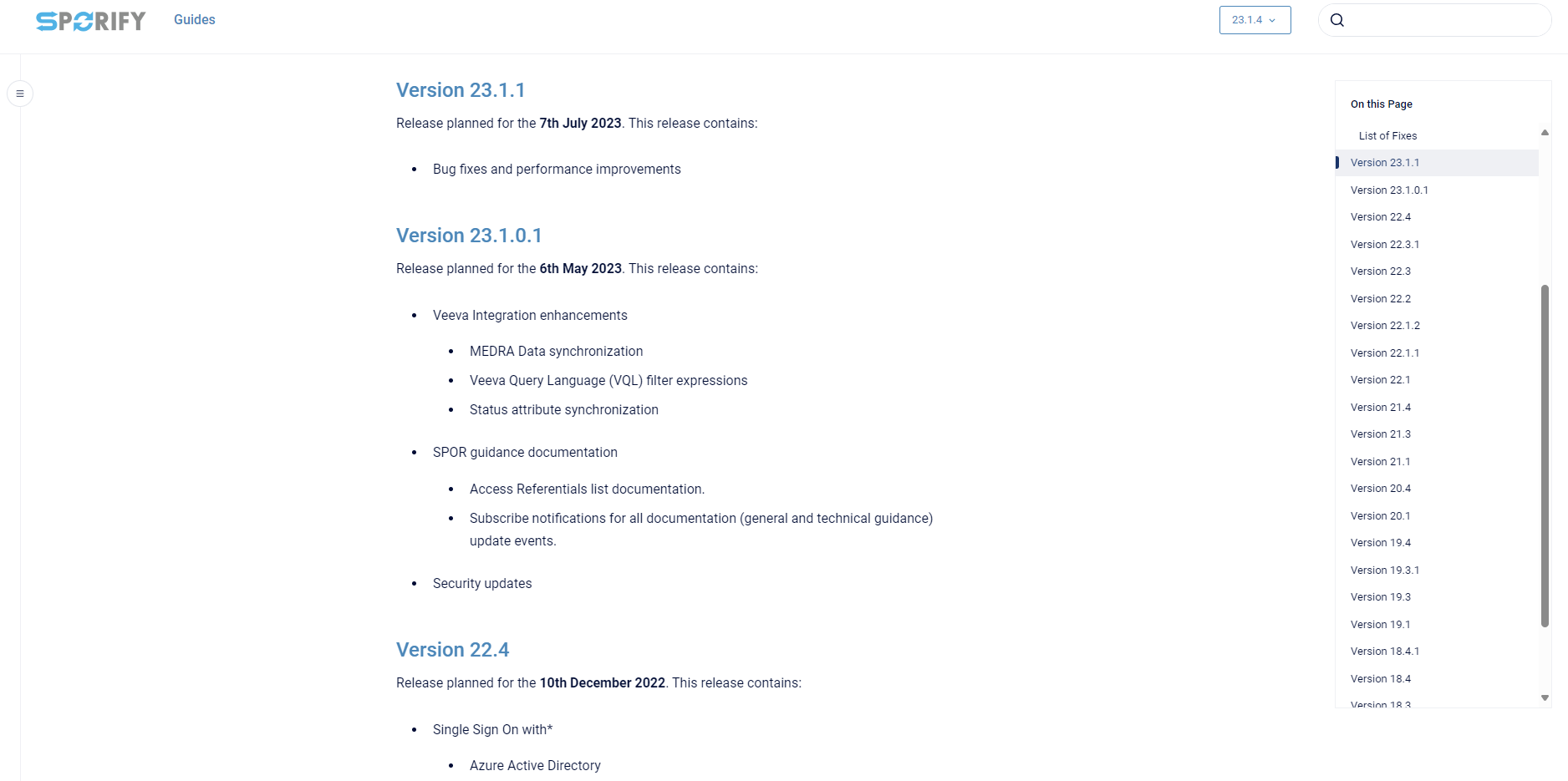

Release Notes

When Release Notes are selected, the Release Notes page on the SPORIFY Guides site appears in a new tab. This guide provides all release notes for each historical iteration of SPORIFY up until the current version, listing relevant enhancements, bug fixes, and new features for every release.

SPOR Documents

When SPOR Documents is selected, a grid containing SPOR guidance documents is presented.

The following columns are contained on the grid:

• Document Name

• Description

• Domain

• Type

• List Name

• Modified On

• Versions

The listed document can be accessed by clicking on the associated link in the Document Name column.

Previous versions of the listed document can be accessed by clicking on the looking glass icon in the Versions column.

Available Actions:

• Search

• Filter

  • By Date Range

  • By Domain

• Export
