FS - 492601369 - Change Logs

Description

SPORIFY’s Change log feature allows administrators to retrieve insert, update and delete events of their tenant’s users.

Change logs can be viewed and managed via the Change Logs area of SPORIFY Administration.

• Change logs can be filtered.

• Change logs can be exported to Excel.

Procedure

1. Login to SPORIFY.

2. Select Administration on the navigation menu.

3. Select Change Logs.

4. Here, the Change Logs grid is presented, which contains the following columns:

   1. Timestamp

   2. Username

   3. Full Name

   4. Action

   5. Entity Type

   6. Entity ID

   7. Field Name

   8. From Value

   9. To Value

   10. Event Description

   11. Record ID

   12. Is Signed

   13. Change Reason

5. Use the following filters to filter change logs:

   1. Date Range

      1. Today

      2. Yesterday

      3. Last 7 Days

      4. Last 30 Days

      5. This Month

      6. Last Month

      7. Custom Range

         • Click Apply to apply the filter.

         • Else, click Cancel.

   2. Username

   3. Action

      1. All

      2. Insert

      3. Update

      4. Delete

   4. Entity Type

   5. Entity ID

   6. Field Name

   7. From Value

   8. To Value

6. To refresh the Change Logs screen, click the Refresh button.

7. To export change logs, click the Export to Excel button.

Acceptance Criteria

We succeed only if Change Logs can be viewed and managed via SPORIFY’s Administration area.

• Verify that administrators can filter change logs by Date Range, From Value, To Value, Username, Action, Entity Type, and Field Name.

• Verify that administrators can export change logs to Excel.

Related / Alternative Procedure

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to enable administrators to view and manage change logs in SPORIFY.

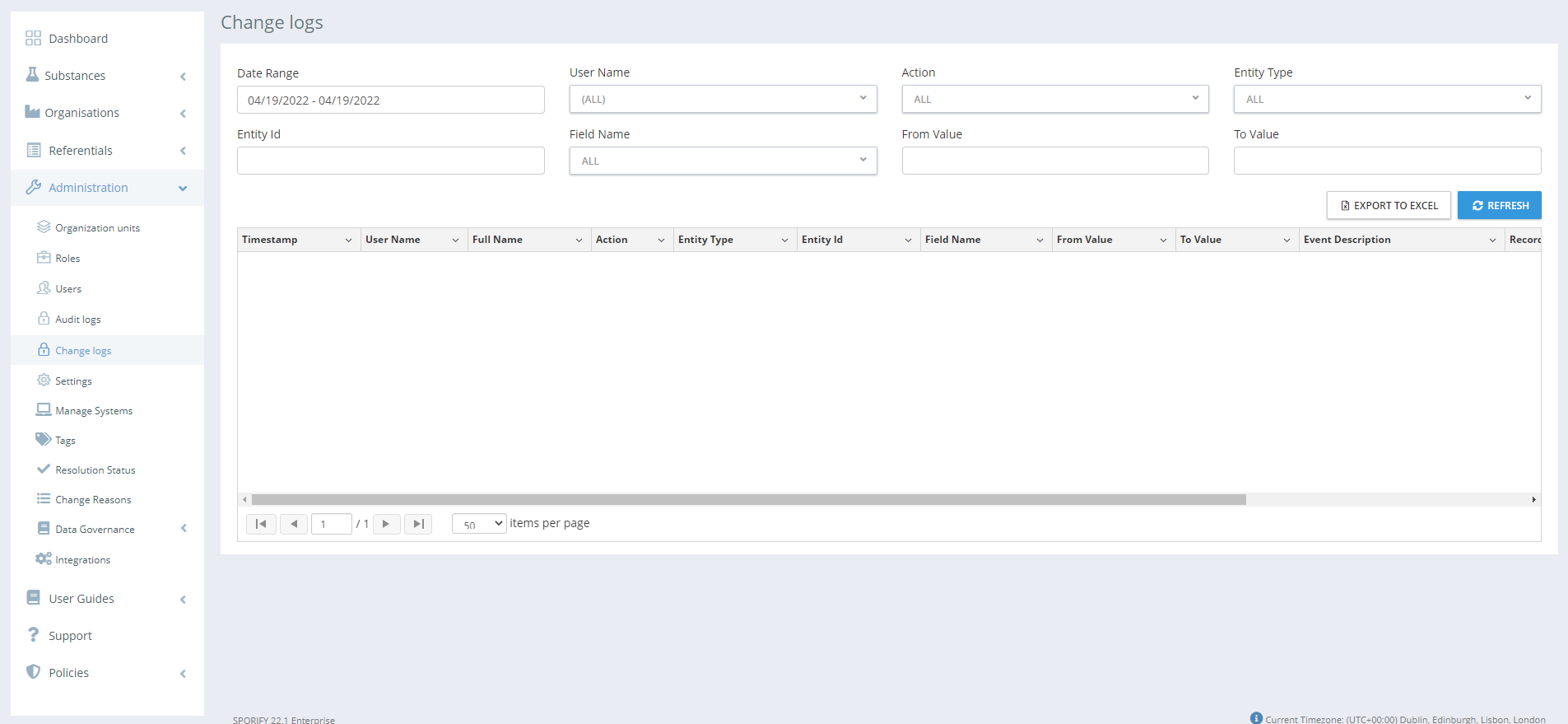

Mockups and Screenshots

GUI Elements

Mockup of GUI Element	Title	Default	Enabled	Type	Data	Description
	Date Range	Current Date	Always	Drop-down menu	String	Here, the administrator can select a date range to filter by.
	From Value	Empty	Always	Textbox	String	Here, the administrator can insert a from value to filter by.
	To Value	Empty	Always	Textbox	String	Here, the administrator can insert a to value to filter by.
	Username	(ALL)	Always	Drop-down menu	String	Here, the administrator can select a username to filter by.
	Action	ALL	Always	Drop-down menu	String	Here, the administrator can select an action to filter by.
	Entity Type	ALL	Always	Drop-down menu	String	Here, the administrator can select an entity type to filter by.
	Field Name	ALL	Always	Drop-down menu	String	Here, the administrator can select a field name to filter by.

Available Actions And Commands

Mockup of GUI Element	Title	Shortcut	Enabled	Type	Role/Permission	Action	Tooltip	Audit Trail
	Export to Excel	N/A	Always	Button	Administration - Change Logs	Exports Change Logs to Excel, downloading directly to the user’s device	N/A	Yes
	Refresh	N/A	Always	Button	Administration - Change Logs	Refreshes Change Logs screen	N/A	No

Related Documentation and Sources

N/A

Specification References

• UC - Change Logs
