FS - 14581844 - User Lockout Policy

Description

In SPORIFY, the administrator can set a user lockout policy. The user lockout settings options are:

  • Enable/disable user account locking on failed login attempts

  • Set maximum number of failed login attempt count before locking the account

  • Set account locking duration

  • Set whether an account is locked out until an administrator unlocks it

Procedure

  1. Login to SPORIFY.

  2. Click Administration on the navigation menu.

  3. Click Settings.

  4. Select the Security tab.

  5. Beneath the User Lock Out heading, the following checkboxes and textboxes are presented:

    1. Enable user account locking on failed login attempts

      1. If enabled, user accounts will be locked on failed login attempts.

      2. If disabled, user accounts will not be locked on failed login attempts.

    2. Maximum number of failed login attempt count before locking the account

      1. Insert the desired number into the input field.

    3. Account locking duration (as seconds)

      1. Insert the desired number into the input field.

    4. Account is locked out until an administrator unlocks it

      1. If enabled, accounts will remain locked out until an administrator unlocks them.

      2. If disabled, accounts will not remain locked out until an administrator unlocks them.

  6. Click Save All to save account lockout preferences.

Acceptance Criteria

To succeed, the administrator must be able to set user lockout preferences in SPORIFY.

  • Verify that user lockout preferences can be managed in the Security tab of SPORIFY Administration Settings.

  • Verify that the administrator can manage these settings as outlined above.

Related / Alternative Procedure

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to allow the administrator to set user lockout setting preferences in SPORIFY.

Mockups and Screenshots

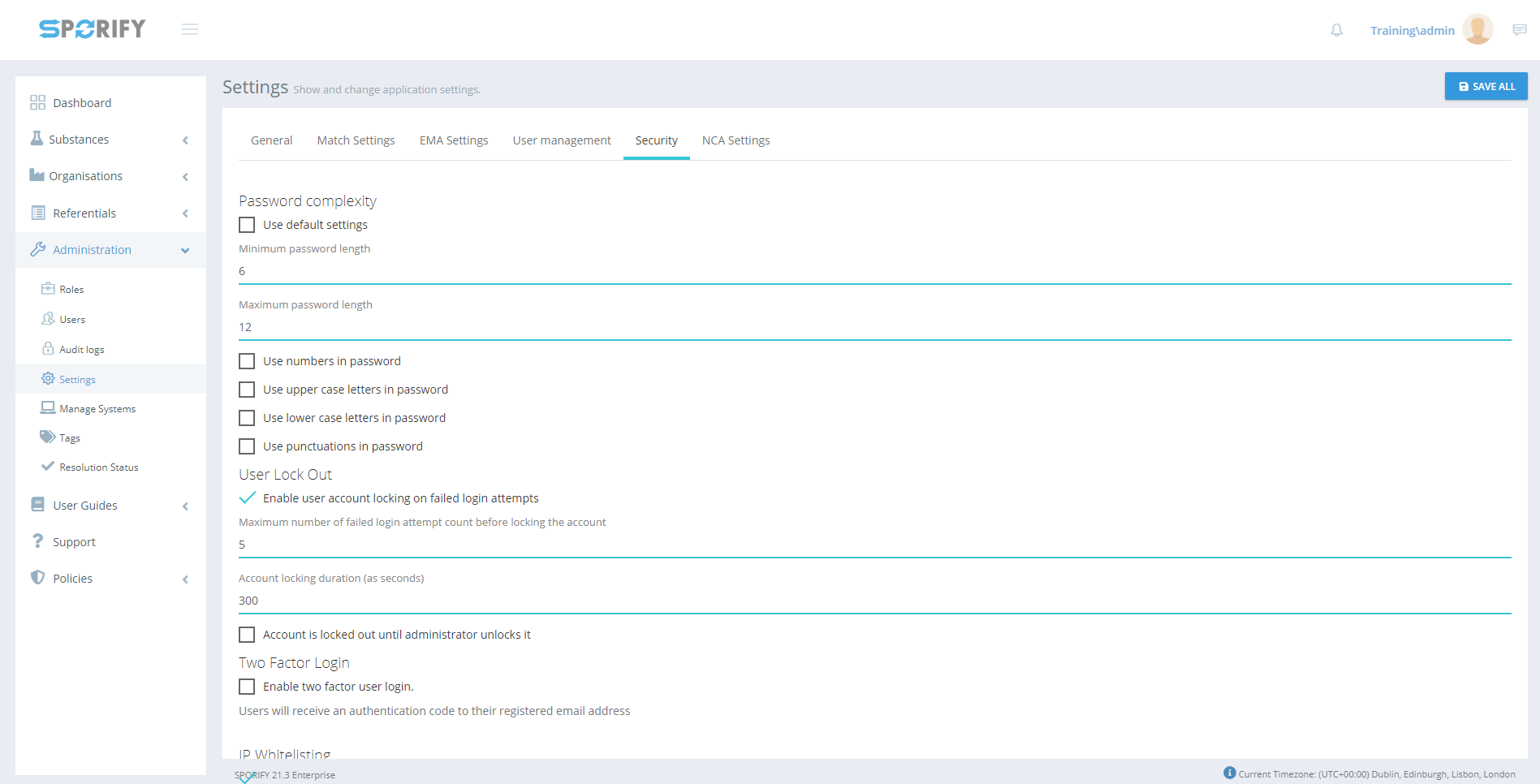

Security tab

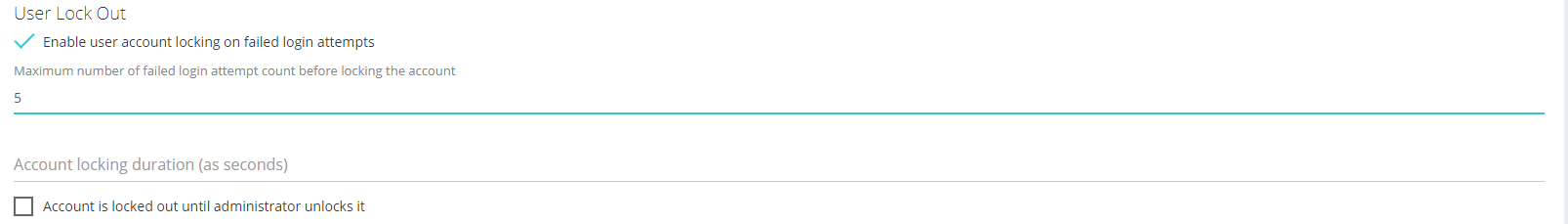

User Lock Out

GUI Elements

Mockup of GUI Element

Title

Default

Enabled

 Type

Data

Description

Enable user account locking on failed login attempts

True

Always

Checkbox

Boolean

If true, the account is locked after failed login attempts. If false, the account is not locked after failed login attempts.

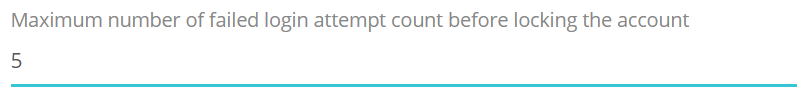

Maximum number of failed login attempt count before locking the account

5

When ‘Enable user account locking on failed login attempts’ is true

Numeric text field

String

Input desired number of attempts before locking.

Account locking duration (as seconds)

Empty

When ‘Enable user account locking on failed login attempts’ is true

Numeric text field

String

Input desired number of seconds for which the account is locked after a failed login attempt.

Account is locked out until administrator unlocks it

False

Always

Checkbox

Boolean

If true, the administrator is responsible for account unlocking. If false, the account is unlocked after “X” seconds.

Administration

N/A

When the user has administrative permissions

Expandable menu item

String

Clicking Administration reveals all available Administration sub-menu items

Settings

N/A

When the administrator has the relevant permission

Menu item

String

Navigates to the Settings screen

Security

N/A

When the administrator has the relevant permissions

Tab

String

Navigates to Security

Available Actions And Commands

Mockup of GUI Element

 Title

Shortcut

Enabled

Type

Role/Permission

Action

Tooltip

Audit Trail

Save All

N/A

Always

Button

Any

Saves settings

N/A

Yes

Related Documentation and Sources

N/A
