Description

In SPORIFY, the user can upload Substances data directly to the system using CSV or Excel files.

Procedure

  1. Login to SPORIFY.

  2. Select Substances.

  3. Select Target Substances.

  4. Click the Upload button.

  5. Fill in the following fields:

    1. List Name

      1. Insert list name into the provided textbox.

    2. System

      1. Use the drop-down menu to select a system.

    3. List Language

      1. Use the drop-down menu to select a list language.

    4. Select Source Excel or CSV file (comma delimited)

      1. Click the Choose File button.

      2. Select a file.

      3. Click Open.

    5. Number Of Header Rows In My Source File

      1. Type a number directly into the field or use the provided arrows to set the number of header rows.

    6. Restrict mapping to certain targets, statuses, and name types

      1. Check or uncheck the checkbox

  6. Click Save, else Cancel.

Acceptance Criteria

To succeed, the user must be able to upload source data to SPORIFY.

  • Verify that both CSV and Excel files can be uploaded.

Related / Alternative Procedure

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to enable the user to upload source data directly to SPORIFY.

Mockups and Screenshots

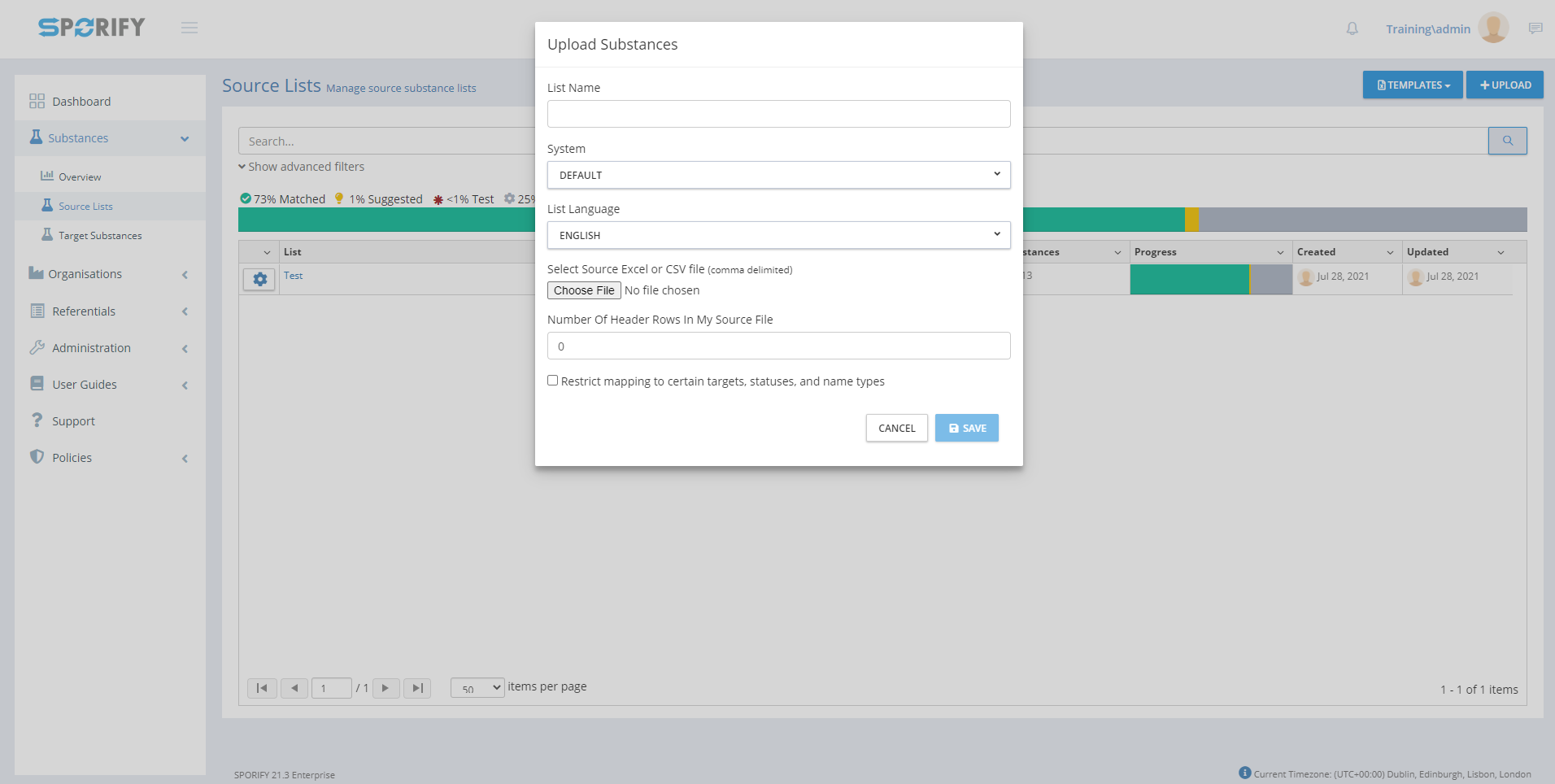

Upload Substances

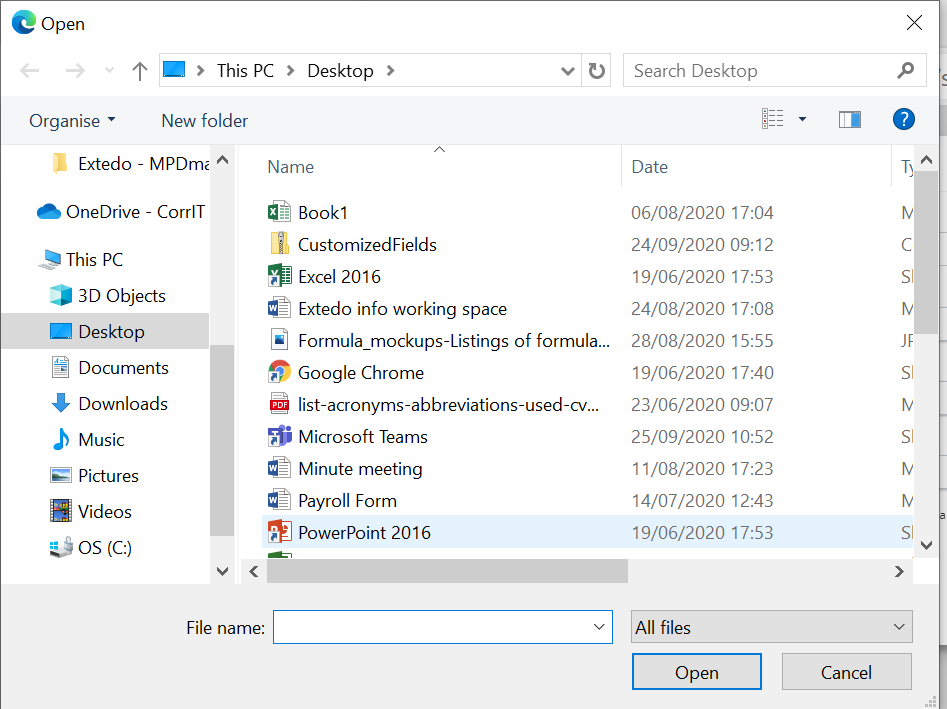

Select File

GUI Elements

Mockup of GUI Element

Title

Default

Enabled

 Type

Data

Description

List name

Empty

Always

Textbox

String

Input a list nam


System

DEFAULT

Always

Drop-down menu

String

Select a system

List Language

ENGLISH

Always

Drop-down menu

String

Select a list language

Number Of Header Rows In My Source File

0

Always

Numerical input field

Numerical

Select a number of header rows

Restrict mapping to certain targets, statuses, and name types

False

Always

Checkbox

Boolean

Turn mapping restrictions on/off

Available Actions And Commands

Mockup of GUI Element

 Title

Shortcut

Enabled

Type

Role/Permission

Action

Tooltip

Audit Trail

Choose File

N/A

Always

Button

Referentials - Source Lists

Opens device files

N/A

No


Upload

N/A

Always

Button

Referentials - Source Lists

Opens Upload List box

N/A

No

Save

N/A

When upload list fields are filled in

Button

Referentials - Source Lists

Saves changes

N/A

Yes

Cancel

N/A

Always

Button

Referentials - Source Lists

Cancels changes

N/A

No

Related Documentation and Sources

  • N/A

Specification References
