FS - 442434155 - Upload: Importing Substances Data
Description
In SPORIFY, the user can upload Substances data directly to the system using CSV or Excel files.
Procedure
Login to SPORIFY.
Select Substances.
Select Target Substances.
Click the Upload button.
Fill in the following fields:
List Name
Insert list name into the provided textbox.
System
Use the drop-down menu to select a system.
List Language
Use the drop-down menu to select a list language.
Select Source Excel or CSV file (comma delimited)

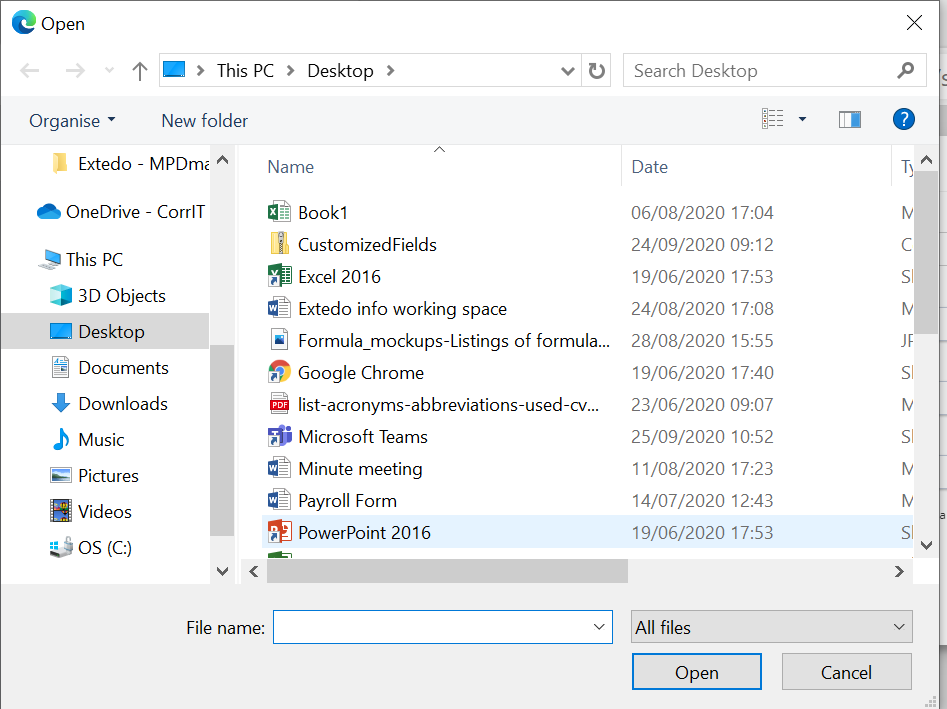

Click the Choose File button.
Select a file.
Click Open.
Number Of Header Rows In My Source File
Type a number directly into the field or use the provided arrows to set the number of header rows.
Restrict mapping to certain targets, statuses, and name types
Check or uncheck the checkbox
Click Save, else Cancel.
Acceptance Criteria
To succeed, the user must be able to upload source data to SPORIFY.
Verify that both CSV and Excel files can be uploaded.
Related / Alternative Procedure
N/A
GUI Specification
Purpose of these GUI elements.
The purpose of these GUI elements is to enable the user to upload source data directly to SPORIFY.

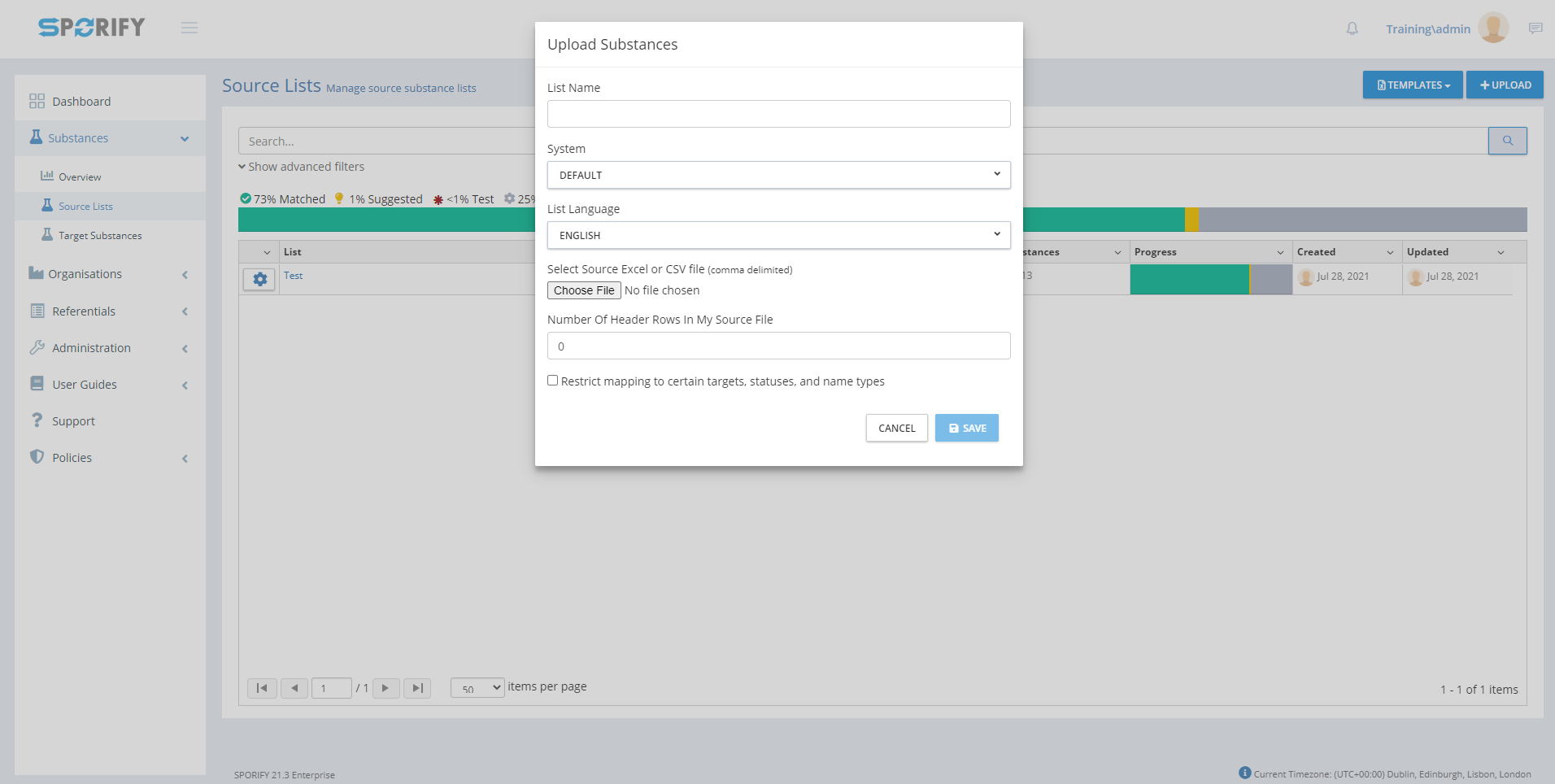

Mockups and Screenshots
GUI Elements
Mockup of GUI Element | Title | Default | Enabled | Type | Data | Description |
---|---|---|---|---|---|---|
| List name | Empty | Always | Textbox | String | Input a list nam |
System | DEFAULT | Always | Drop-down menu | String | Select a system | |
List Language | ENGLISH | Always | Drop-down menu | String | Select a list language | |
Number Of Header Rows In My Source File | 0 | Always | Numerical input field | Numerical | Select a number of header rows | |
Restrict mapping to certain targets, statuses, and name types | False | Always | Checkbox | Boolean | Turn mapping restrictions on/off |
Available Actions And Commands
Mockup of GUI Element | Title | Shortcut | Enabled | Type | Role/Permission | Action | Tooltip | Audit Trail |
---|---|---|---|---|---|---|---|---|
| Choose File | N/A | Always | Button | Referentials - Source Lists | Opens device files | N/A | No |
Upload | N/A | Always | Button | Referentials - Source Lists | Opens Upload List box | N/A | No | |
Save | N/A | When upload list fields are filled in | Button | Referentials - Source Lists | Saves changes | N/A | Yes | |
Cancel | N/A | Always | Button | Referentials - Source Lists | Cancels changes | N/A | No |
Related Documentation and Sources
N/A
