FS - 492601369 - Change Logs

Description

SPORIFY’s Change log feature allows administrators to retrieve insert, update and delete events of their tenant’s users.

Change logs can be viewed and managed via the Change Logs area of SPORIFY Administration.

  • Change logs can be filtered.

  • Change logs can be exported to Excel.

Procedure

  1. Login to SPORIFY.

  2. Select Administration on the navigation menu.

  3. Select Change Logs.

  4. Here, the Change Logs grid is presented, which contains the following columns:

    1. Timestamp

    2. Username

    3. Full Name

    4. Action

    5. Entity Type

    6. Entity ID

    7. Field Name

    8. From Value

    9. To Value

    10. Event Description

    11. Record ID

    12. Is Signed

    13. Change Reason

  5. Use the following filters to filter change logs:

    1. Date Range

      1. Today

      2. Yesterday

      3. Last 7 Days

      4. Last 30 Days

      5. This Month

      6. Last Month

      7. Custom Range

        • Click Apply to apply the filter.

        • Else, click Cancel.

    2. Username

    3. Action

      1. All

      2. Insert

      3. Update

      4. Delete

    4. Entity Type

    5. Entity ID

    6. Field Name

    7. From Value

    8. To Value

  6. To refresh the Change Logs screen, click the Refresh button.

  7. To export change logs, click the Export to Excel button.

Acceptance Criteria

We succeed only if Change Logs can be viewed and managed via SPORIFY’s Administration area.

  • Verify that administrators can filter change logs by Date Range, From Value, To Value, Username, Action, Entity Type, and Field Name.

  • Verify that administrators can export change logs to Excel.

  • Verify deleted user accounts will be displayed with the addition of (deleted) after the account

  • Verify for deleted user account no full name is displayed any longer

Related / Alternative Procedure

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to enable administrators to view and manage change logs in SPORIFY.

Mockups and Screenshots

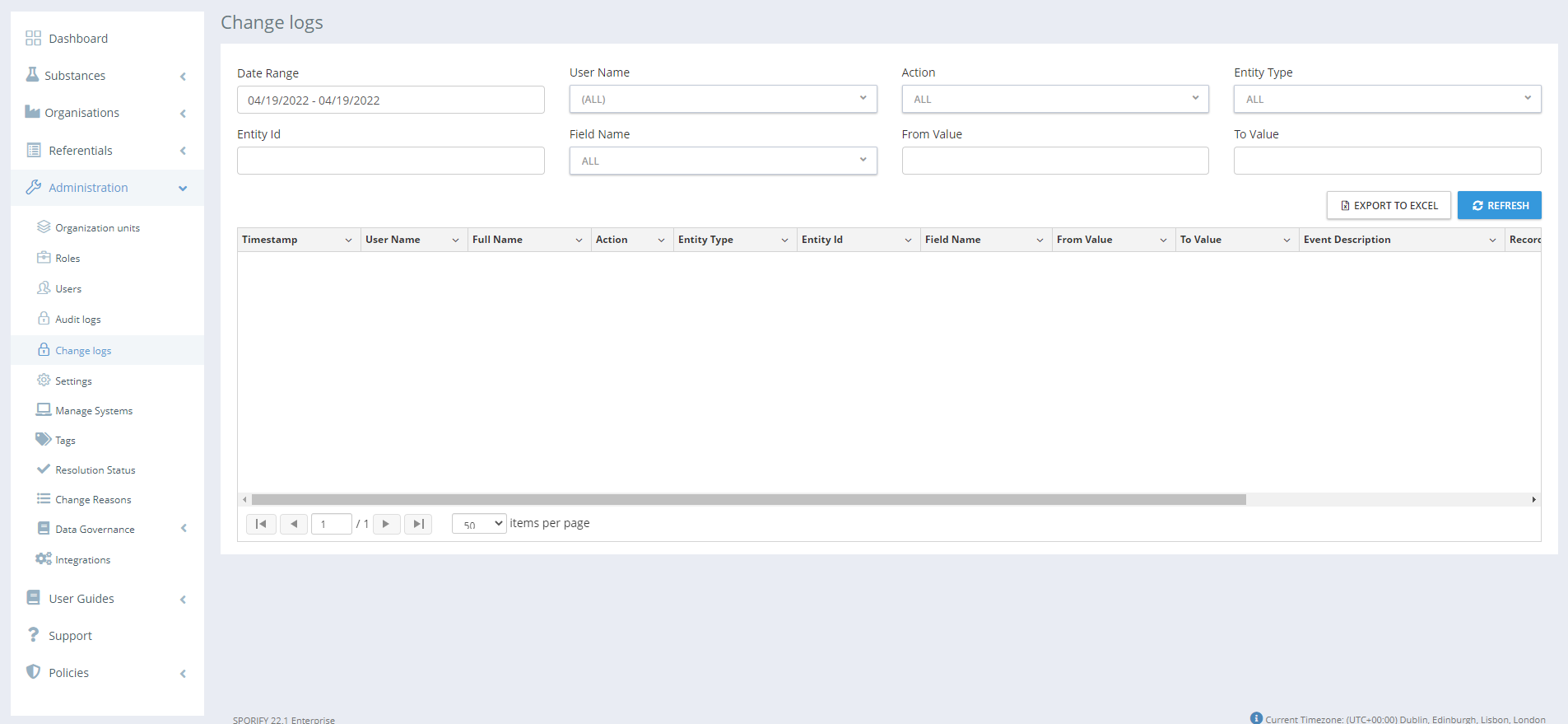

Change Logs Screen

GUI Elements

Mockup of GUI Element

Title

Default

Enabled

 Type

Data

Description


Date Range

Current Date

Always

Drop-down menu

String

Here, the administrator can select a date range to filter by.

From Value

Empty

Always

Textbox

String

Here, the administrator can insert a from value to filter by.

To Value

Empty

Always

Textbox

String

Here, the administrator can insert a to value to filter by.

Username

(ALL)

Always

Drop-down menu

String

Here, the administrator can select a username to filter by.

Action

ALL

Always

Drop-down menu

String

Here, the administrator can select an action to filter by.

Entity Type

ALL

Always

Drop-down menu

String

Here, the administrator can select an entity type to filter by.

Field Name

ALL

Always

Drop-down menu

String

Here, the administrator can select a field name to filter by.

Available Actions And Commands

Mockup of GUI Element

 Title

Shortcut

Enabled

Type

Role/Permission

Action

Tooltip

Audit Trail

Export to Excel

N/A

Always

Button

Administration - Change Logs

Exports Change Logs to Excel, downloading directly to the user’s device

N/A

Yes


Refresh

N/A

Always

Button

Administration - Change Logs

Refreshes Change Logs screen

N/A

No

Related Documentation and Sources

N/A
