FS - 41124093 - Referentials Term View: Searching and Filtering

Description

The SPORIFY user can search and filter RMS Target Lists using the Referentials Target Terms grid screen.

Procedure

1. Login to SPORIFY.

2. Select Referentials on the navigation menu.

3. Click Target Lists.

4. Select Term View.

To search target terms:

1. Type keyword into the search bar.

2. Click the search button.

To filter target terms:

1. Select Show advanced filters.

2. The following filter options are then presented:

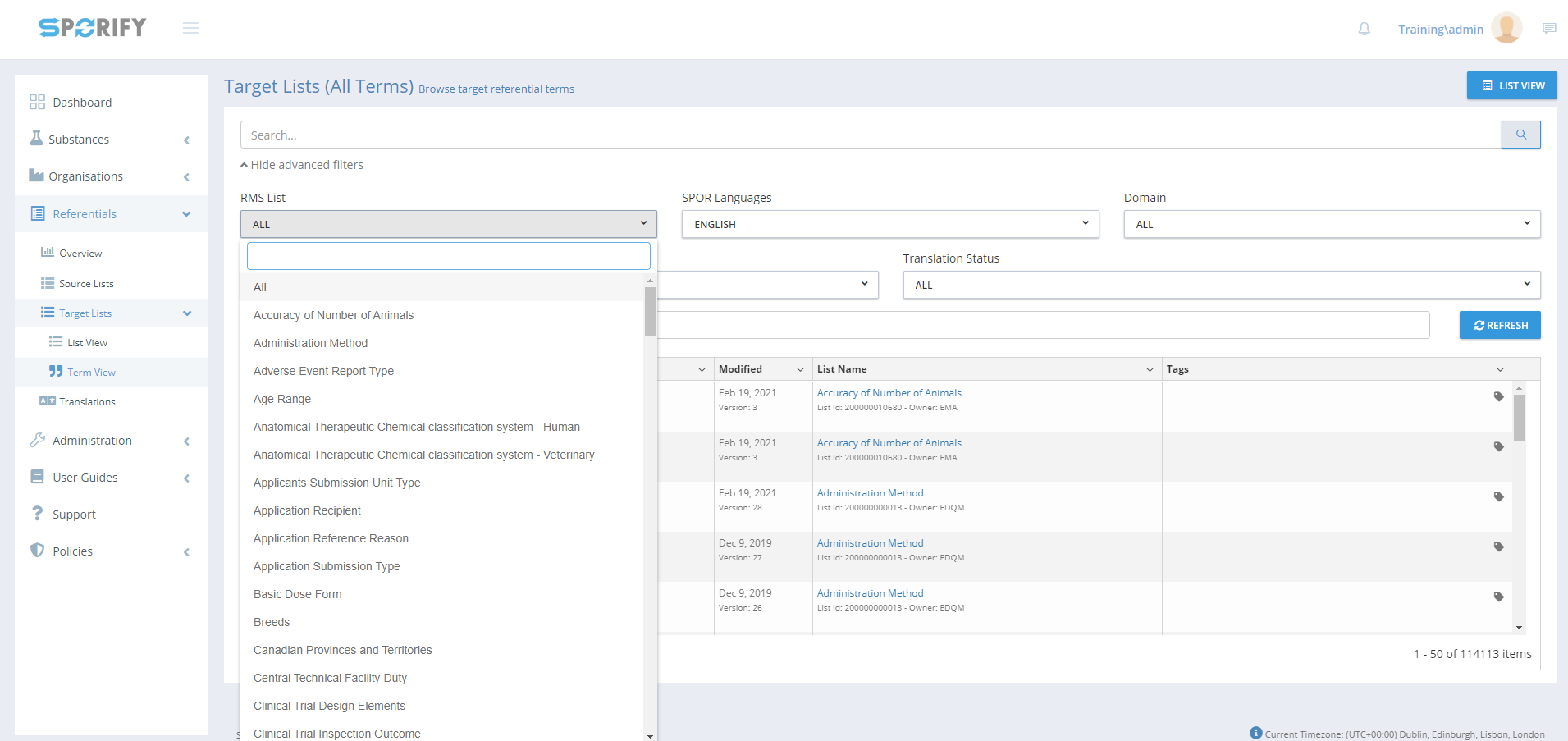

   1. RMS List

      1. Use the drop-down menu to select an RMS List.

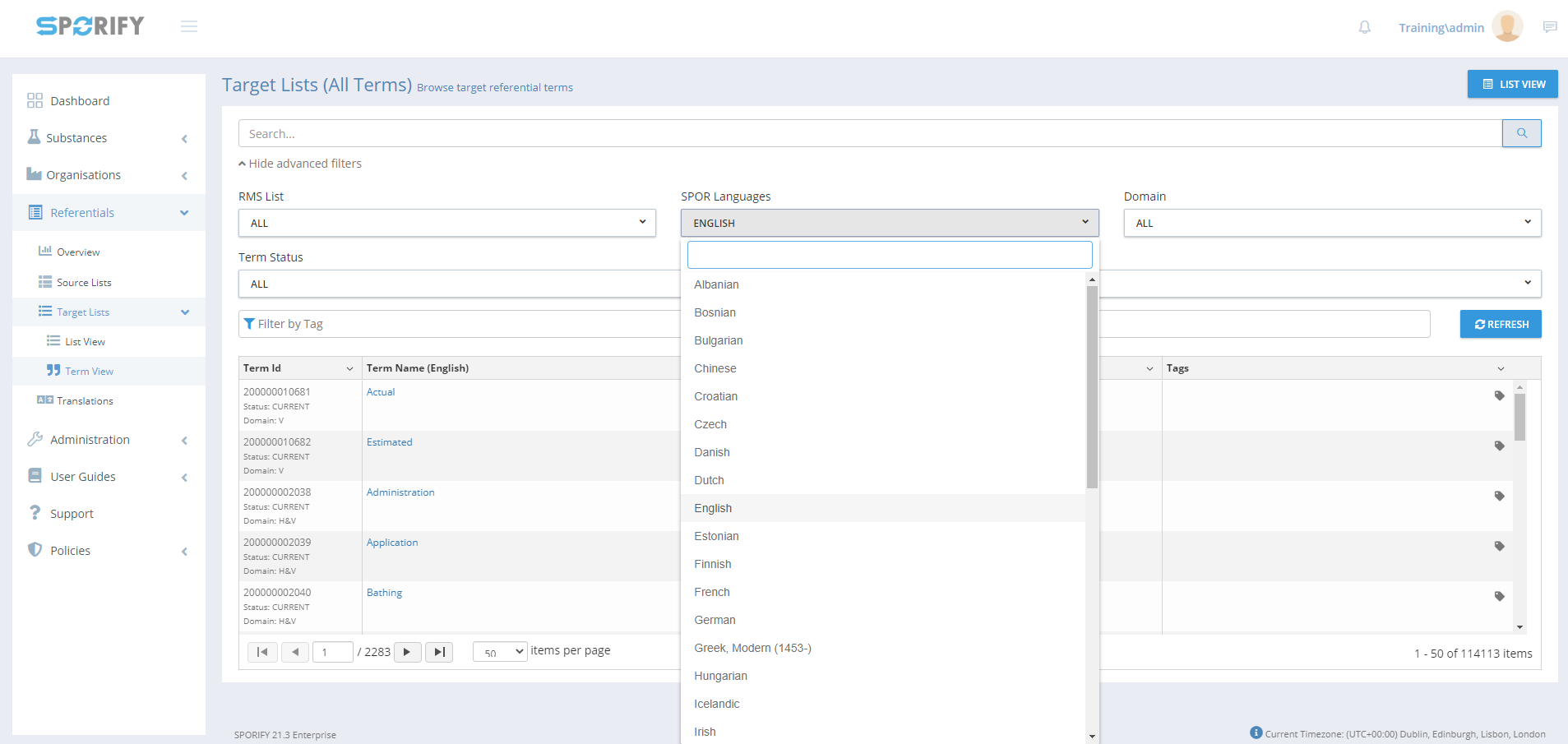

   2. SPOR Languages

      1. Use the drop-down menu to select a SPOR language.

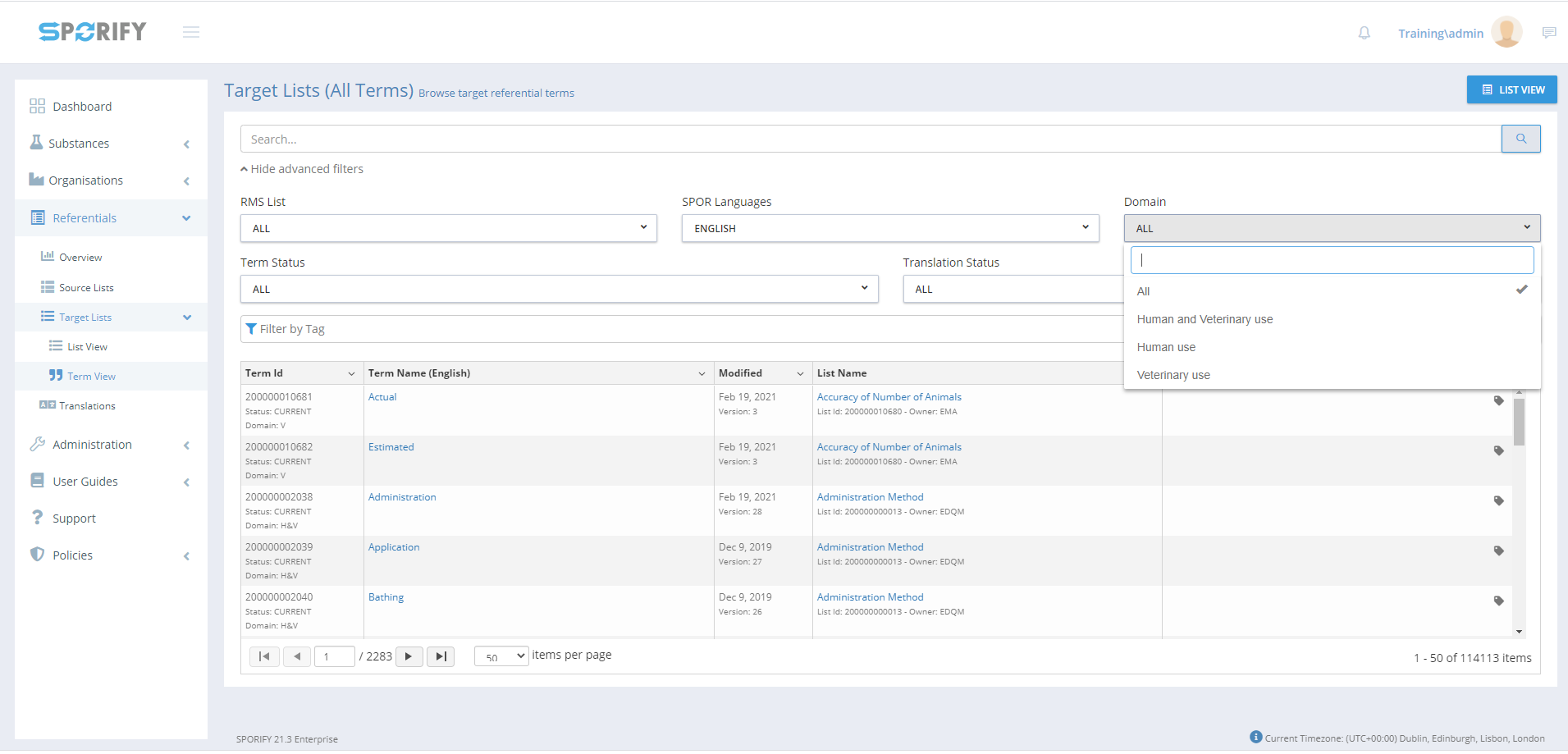

   3. Domain

      1. Use the drop-down menu to select a domain.

      2. The filter options here are All, Human and Veterinary use, Human use and Veterinary use.

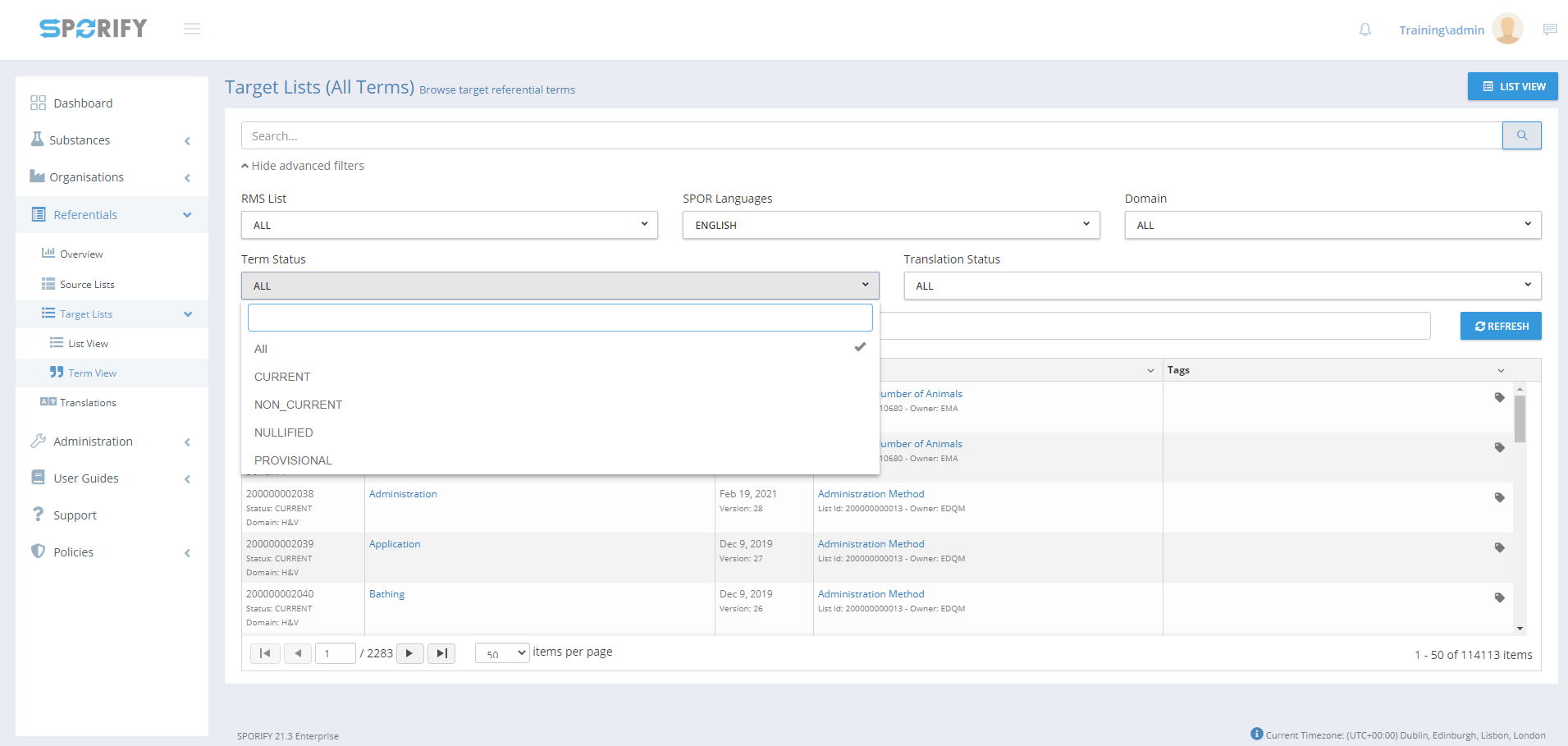

   4. Term Status

      1. Use the drop-down menu to select a term status.

      2. The filter options here are All, Current, Non_Current, Nullified and Provisional.

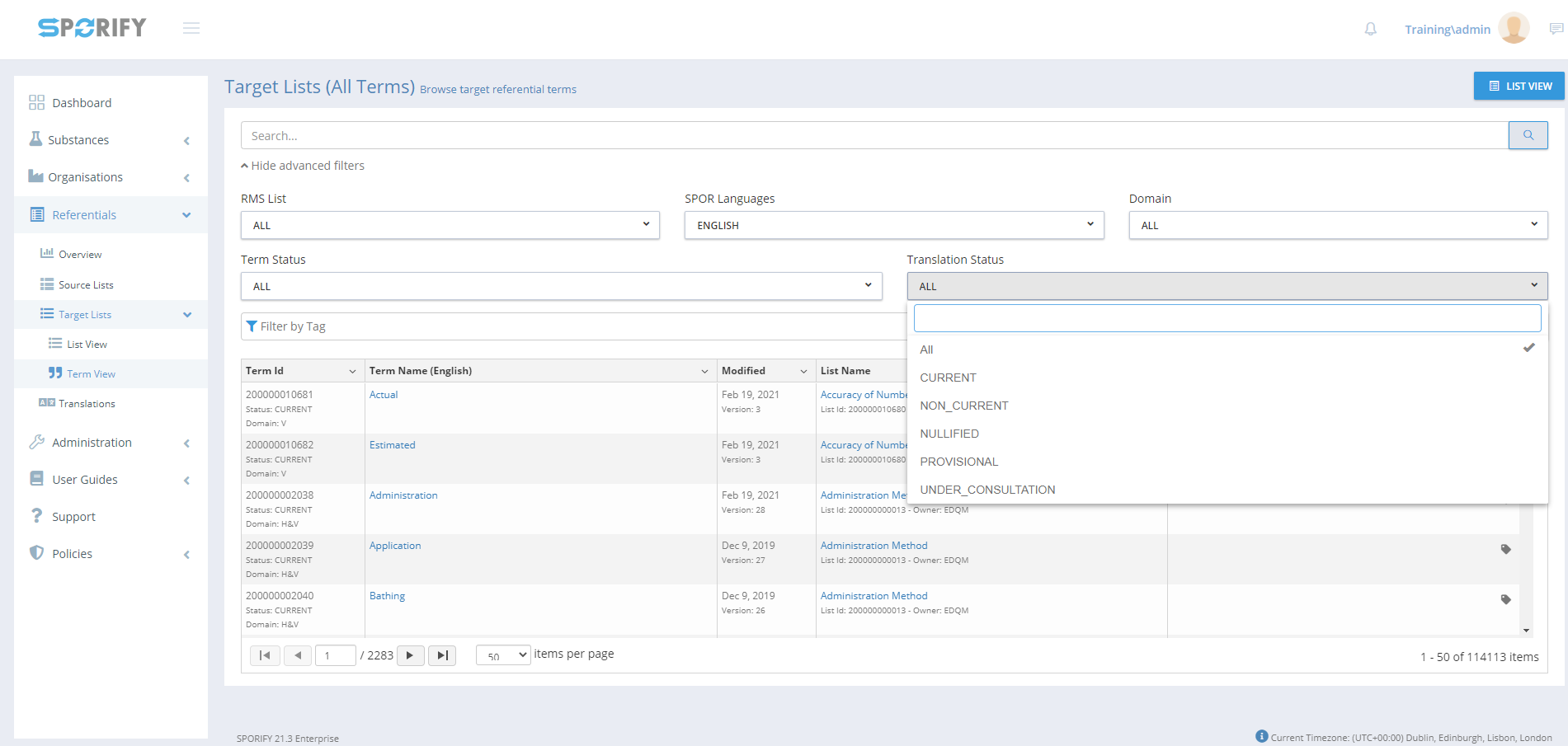

   5. Translation Status

      1. Use the drop-down menu to select a translation status.

      2. The filter options here are All, Current, Non_Current, Nullified, Provisional and Under_Consultation.

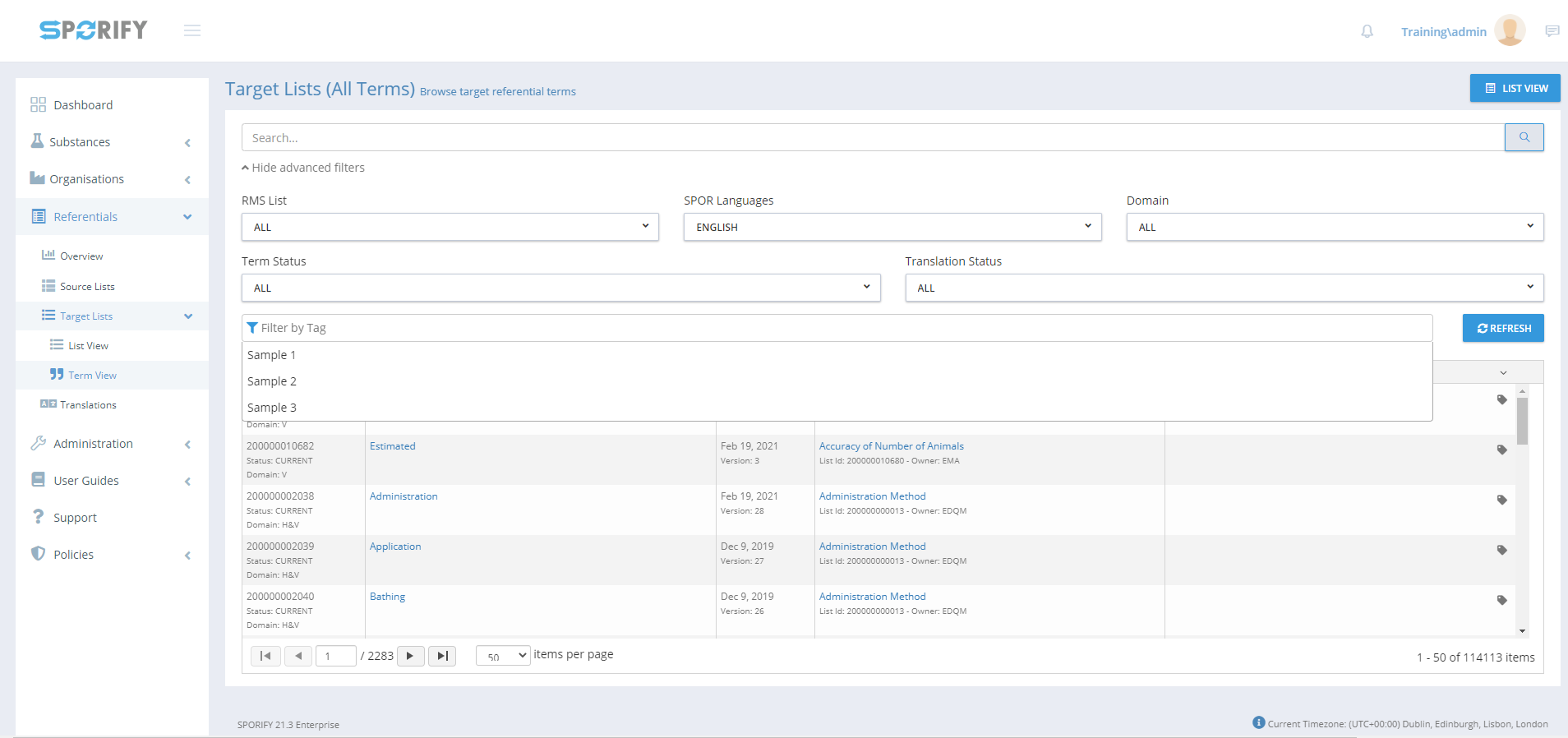

   6. Filter by Tag

      1. Click on the field and select the relevant tags.

3. Note: Specific filters can be searched for using the drop-down menus' search fields.

4. Click Refresh to apply filter(s).

Acceptance Criteria

To succeed, the user must be able to search and filter the records presented on the Referentials Target Terms grid screen.

• Verify that the user can search Referentials target terms using the provided search bar.

• Verify that Referentials target terms can be filtered using the following filters:

  • RMS List

  • SPOR Languages

  • Domain

  • Term Status

  • Translation Status

  • Filter by Tag

Related / Alternative Procedure

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to allow the user to search and filter Referentials target terms, thus making it easier to view and navigate these records.

Mockups and Screenshots

GUI Elements

Mockup of GUI Element	Title	Default	Enabled	Type	Data	Description
	Search	Search…	Always	Search bar	String	Searches terms using inserted keywords
	RMS List	ALL	When advanced filters are shown	Drop-down menu	String	Select RMS list to filter by
	SPOR Languages	ENGLISH	When advanced filters are shown	Drop-down menu	String	Select SPOR languages to filter by
	Domain	ALL	When advanced filters are shown	Drop-down menu	String	Select Domain to filter by
	Term Status	ALL	When advanced filters are shown	Drop-down menu	String	Select Term Status to filter by
	Translation Status	ALL	When advanced filters are shown	Drop-down menu	String	Select Translation Status to filter by
	Filter by Tag	Filter by Tag	When advanced filters are shown	Textbox	String	Select tag(s) to filter by

Available Actions And Commands

Mockup of GUI Element	Title	Shortcut	Enabled	Type	Role/Permission	Action	Tooltip	Audit Trail
	Refresh	N/A	Always	Button	Referentials - Target Lists	Refreshes page	N/A	No

Related Documentation and Sources

• N/A

Specification References

• UC - Referentials

• FS - 432046087 - Referentials

• FS - 433782913 - Referentials Target Lists

• FS - 433783012 - Referentials Target Lists: Term View
