FS - 41123894 - Upload: Importing Referentials Data

Description

In SPORIFY, the user can upload Referentials data directly to the system using CSV or Excel files.

Procedure

1. Login to SPORIFY.

2. Click Referentials on the navigation menu.

3. Select Source Lists.

4. Click the Upload button.

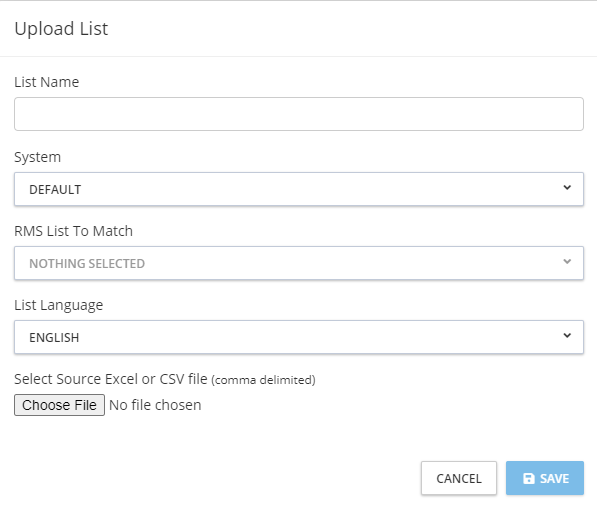

5. The following fields are then presented:

   1. List Name

      1. Type list name into textbox

   2. System

      1. Use the drop-down list to select a system

   3. RMS List To Match

      1. Use the drop-down list to select a RMS list

   4. List Language

      1. Use the drop-down list to select a language

   5. Select Source Excel or CSV file

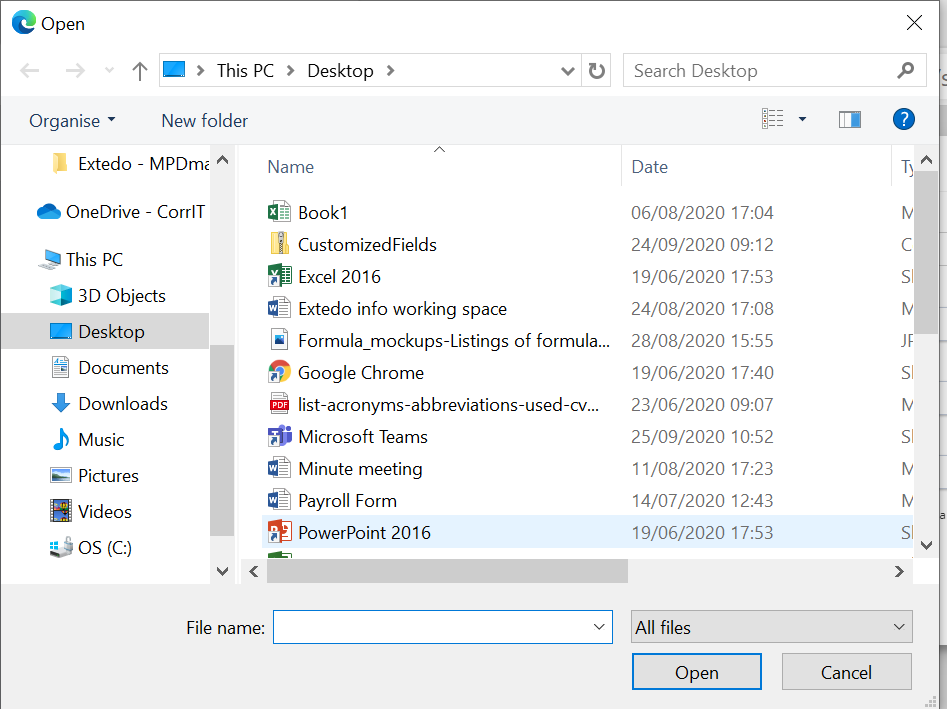

      1. Click the Choose File button and select the appropriate file.

      2. Select Open, else Cancel.

6. Click Save, else Cancel.

Acceptance Criteria

To succeed, the user must be able to upload source data to SPORIFY.

• Verify that both CSV and Excel files can be uploaded.

Related / Alternative Procedure

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to enable the user to upload source data directly to SPORIFY.

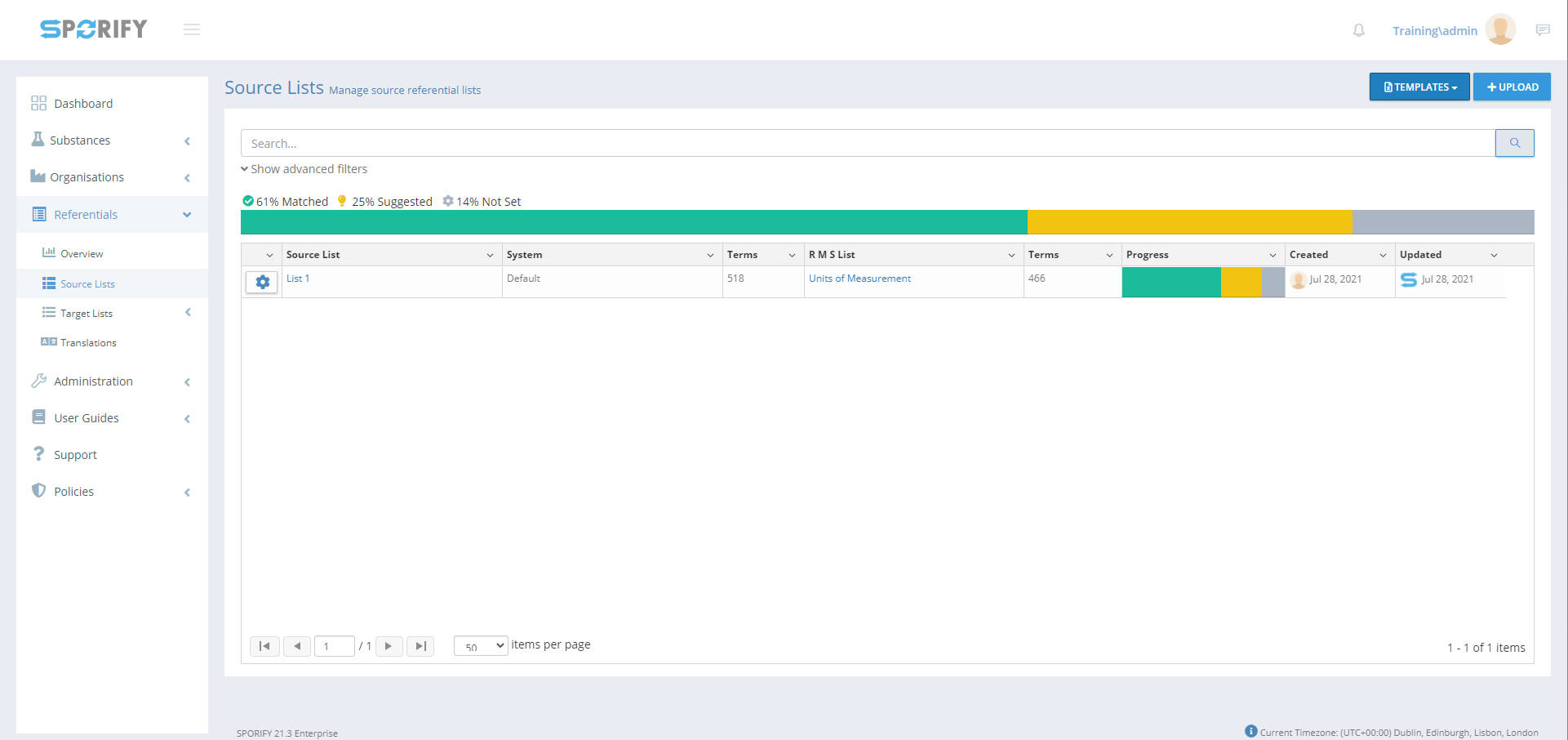

Mockups and Screenshots

GUI Elements

Mockup of GUI Element	Title	Default	Enabled	Type	Data	Description
	List name	Empty	Always	Textbox	String	Input a list name
	System	DEFAULT	Always	Drop-down menu	String	Select a system
	RMS List To Match	NOTHING SELECTED	Always	Drop-down menu	String	Select a RMS list to match
	Languages Available in RMS List	English	Always	Drop-down menu	String	Select a language

Available Actions And Commands

Mockup of GUI Element	Title	Shortcut	Enabled	Type	Role/Permission	Action	Tooltip	Audit Trail
	Upload	N/A	Always	Button	Referentials - Source Lists	Opens Upload List box	N/A	No
	Save	N/A	When upload list fields are filled in	Button	Referentials - Source Lists	Saves changes	N/A	Yes
	Cancel	N/A	Always	Button	Referentials - Source Lists	Cancels changes	N/A	No
	Choose File	N/A	Always	Button	Referentials - Source Lists	Opens device files	N/A	No

Related Documentation and Sources

N/A

Specification References

• FS - 41156625 - Referentials Source Lists
