FS - 427819518 - Dashboard
Description
The SPORIFY dashboard provides an overview of activity on SPORIFY, as well as external activity on target master data systems.
The left-hand side of the dashboard is dedicated to SPORIFY activity.
The right-hand side of the dashboard is dedicated to target master data activity.
The following sections are included on the dashboard:
Mapping Status Overview
Substances, Products, Organisations and Referentials count boxes
Resolution Status Overview
Target System Updates
SPORIFY Activity
Target System Activity
Procedure
Login to SPORIFY to navigate to the dashboard.
On the first dashboard panel, the following is presented:
Mapping Status Overview
Hover over the bars on the graph to access counts per status.
Substances, Products, Organisations and Referentials count boxes
The Substances box contains counts of G-SRS, EUTCT and XEVMPD.
The Products box counts are coming soon.
The Organisations box contains counts of SPOR Organisations and SPOR Locations.
The Referentials box contains counts of SPOR Lists and SPOR Terms.
On the second dashboard panel, the following is presented:
Resolution Status Overview
Here, resolution status percentages for each domain of SPOR data (Substances, Products, Organisations and Referentials) are presented.
Hover over the charts to view associated statistics.
Target System Updates
The presented graph shows any target system updates that have been made.
Hover over the chart to view further details.
Updates relating to different types of SPOR data can be accessed by navigating between the All, SPOR RMS, SPOR OMS and Substances tabs.
On the third dashboard panel, the following is presented:
SPORIFY Activity
Here, a list of the activity that has been carried out in SPORIFY is presented.
Activity relating to different types of SPOR data can be accessed by navigating between the All, Substances, Referentials and Organisations tabs.
Activity related to data governance is also included here.
Target System Activity
Here, a list of activity carried out within the relevant target system is presented.
Activity relating to different types of SPOR data can be accessed by navigating between the All, SPOR RMS, SPOR OMS and Substances tabs, while any activity that has been starred can be viewed via the Favourites tab.
The Target System Activity heading is also a link, which navigates to the Target System Activity Screen.
To return to the dashboard from another screen, select the Dashboard option on the navigation menu.
Acceptance Criteria
To succeed, the dashboard must provide an overview of both SPORIFY and target master data activity.
Verify that the first panel presents a Mapping Status Overview chart and numerical counts for each SPOR data domain.
Verify that the second panel presents a Resolution Status Overview for each SPOR data domain and a graph outlining Target System Updates.
Verify that Target System Updates can be filtered by All, SPOR RMS, SPOR OMS and Substances.
Verify that the third panel presents a list for both SPORIFY Activity and Target System Activity.
Verify that SPORIFY activity can be filtered by All, Substances, Referentials and Organisations.
Verify that Target System Activity can be filtered by All, SPOR RMS, SPOR OMS, Substances and Favourites.
Related / Alternative Procedure
N/A
GUI Specification
Purpose of this screen.
The purpose of this screen is to allow the user to view and explore any information related to the activity that has occurred within SPORIFY and relevant target master data systems.
Mockups and Screenshots

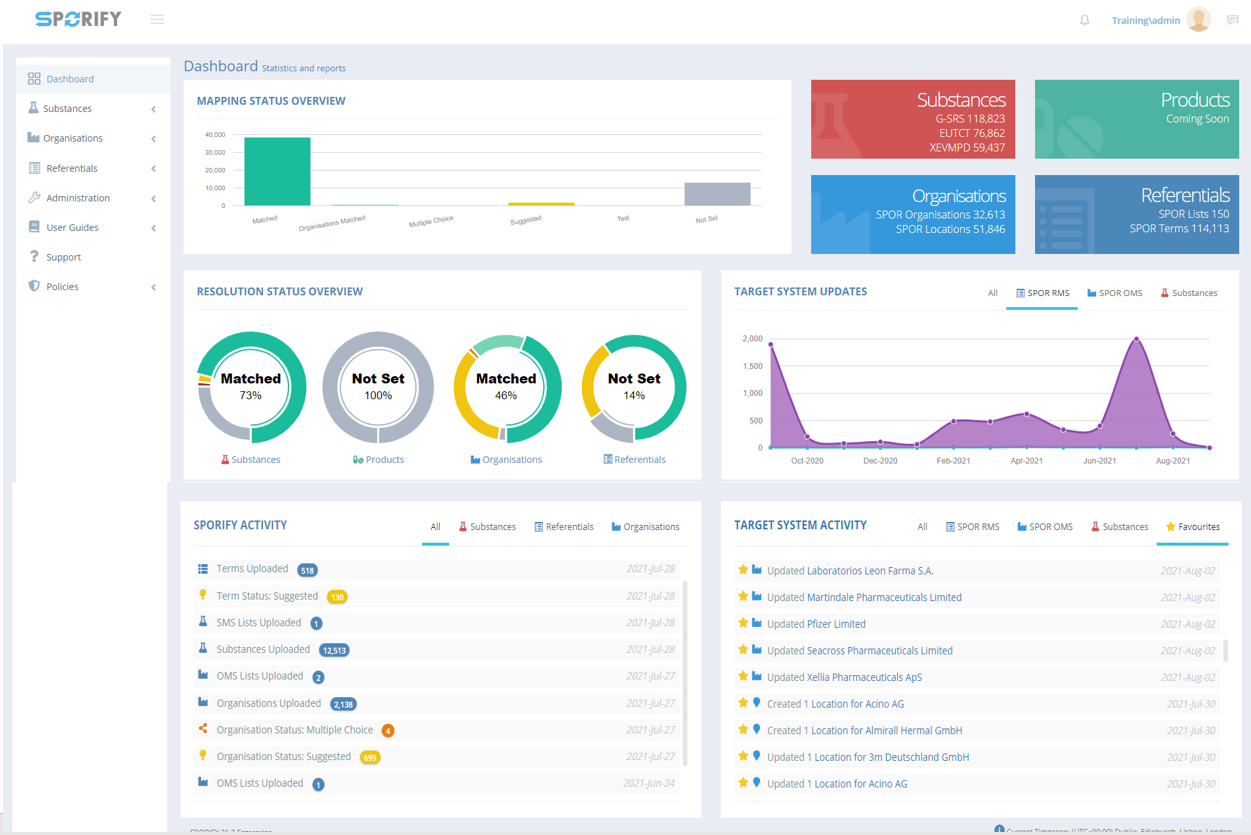

![](../../__attachments/705890355/image-20210906-140139.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)
SPORIFY dashboard
GUI Elements
Mockup of GUI Element | Title | Default | Enabled | Type | Data | Description |
---|---|---|---|---|---|---|
![]() | Dashboard | N/A | Always | Menu item | String | Navigates to the dashboard screen |
![]() | All | N/A | Always | Tab | String | Shows all relevant activity/updates |
![]() | SPOR RMS | N/A | Depending on the user’s permissions | Tab | String | Shows activity/updates related to SPOR RMS only |
![]() | SPOR OMS | N/A | Depending on the user’s permissions | Tab | String | Shows activity/updates related to SPOR OMS only |
![]() | Substances | N/A | Depending on the user’s permissions | Tab | String | Shows activity/updates related to Substances only |
![]() | Referentials | N/A | Depending on the user’s permissions | Tab | String | Shows activity related to Referentials only |
![]() | Organisations | N/A | Depending on the user’s permissions | Tab | String | Shows activity related to Organisations only |
![]() | Favourites | N/A | Always | Tab | String | Shows starred activity only |
![]() | Target System Activity | N/A | Always | Link | String | Navigates to the Target System Activity screen |
Available Actions And Commands
Mockup of GUI Element | Title | Shortcut | Enabled | Type | Role/Permission | Action | Tooltip | Audit Trail |
---|---|---|---|---|---|---|---|---|
N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
Related Documentation and Sources
N/A
