FS - 481787905 - Data Governance
Description
A data governance feature is available in SPORIFY. Users can view and manage records' data governance statuses and administrators can manage data governance statuses and integrations settings.
A record’s data governance status is initially set to Review. The reviewer can then set a custom status and the approver can thus accept or reject this status. If the approver rejects the status, then the record is set back to Review.
If the 4 eyes principle is applied and a record is approved and then rejected, the status is set back to Review.
If enabled, data governance is applied after system mapping.
Data governance is also applied if manual mapping occurs.
Procedure
Data Governance Workflow Overview
When a record is Pending Review, the relevant reviewer receives a notification.
When the reviewer has reviewed the record, its state becomes Pending Approval.
When a record is pending approval, the relevant approver receives a notification.
If the approver rejects the record, its state is set back to Pending Review and the reviewer receives a notification.
Else, if the approver approves the record, its state is set to Approved.
Otherwise, if the 4 eyes principle is applied and a record is approved and then rejected, its state is set back to Review.
Colour-coding is applied to the data governance process in SPORIFY:
When a record is coded red, it is pending review.
When a record is coded orange, it is pending approval.
When a record is coded green, it has been approved.
Note: For more details about data governance notifications, see FS - 483754047 - Data Governance Notifications.
Manage Data Governance Statuses for Given Records
Login to SPORIFY.
Navigate to one of the following areas:
The record’s relevant source list
The record’s relevant target list
The record’s relevant details screen
For more details, see: https://corrit.atlassian.net/wiki/spaces/SPORIFY/pages/edit-v2/491454492?draftShareId=d54dd982-ad0f-46ce-8e2a-ed9952cf3988, https://corrit.atlassian.net/wiki/spaces/SPORIFY/pages/edit-v2/491520034?draftShareId=fdf19089-136a-46ac-a385-738424ad5304, https://corrit.atlassian.net/wiki/spaces/SPORIFY/pages/edit-v2/491454499?draftShareId=c29b339e-80c3-4967-ad6c-6b38d39fed9e.
Click on the record’s associated data governance (shield) icon.
Depending on the user’s permissions and the current status of the record, the following options are presented:
Enable
Select this to enable governance for the given record.
Disable
Select this to disable governance for the given record.
Govern
Select this to govern the given record.
When Govern is selected, the Data Governance modal is presented.
This modal contains the following:
A heading indicating the current stage of the data governance process for the given record
Record details with a link to the relevant details screen
The record’s current status
Who applied the status and when it was applied is shown for each stage of the process
Status options
When reviewing a record:
Click on the desired status to add to the record.
Insert a comment on the Add Comment modal.
Click Save, else Skip.
When approving a record:
Click on the desired status to add to the record.
If e-signature is switched on:
Insert the relevant username in the Username.
Click Send Verification Code.
Insert the relevant code in the Code field.
Click Save.
Add comment if desired.
Click Save, else Skip.
Manage Data Governance Integration Settings
Login to SPORIFY.
Select Administration on the navigation menu.
Select Data Governance.
Select Integrations.
Expandable sections for Substances, Organisations and Referentials are then presented.
Click on the relevant section’s associated arrow icon to expand it.
Complete the following fields:
Governance Required
This checkbox enables/disables data governance for the given integration.
Assign Reviewers
This drop-down menu allows the administrator to select the users and/or groups who are permitted to review records.
Assign Approvers
This drop-down menu allows the administrator to select the users and/or groups who are permitted to approve records.
4 Eye Principle
This checkbox enables/disables approvers from approving their own reviews.
When the 4 eye principle is enabled, only a reviewer will be able to apply the status to a record and only an approver will be able to accept or reject it. Both of these actions cannot be performed by the same user, even if said user is part of both the reviewers and approvers list.
When the 4 eye principle is disabled, anyone from the reviewers or approvers list can carry out either step once they are in the reviewers or approvers group.
Enable Governance Where Record Matched
This checkbox enables/disables governance for all matched target records.
e-Signature
This checkbox enables/disables the requirement for users to enter a username and verification code when saving a record.
Click Save to save all changes.
Manage Data Governance Statuses
Login to SPORIFY.
Select Administration on the navigation menu.
Select Data Governance.
Select Governance Status.
To create a new status:
Click the Create New Status button.
Fill in the following fields:
Name (Textbox)
Colour (Colour picker)
Icon (Drop-down menu)
Publish (Checkbox)
Active (Checkbox)
Click Save, else Cancel.
To edit a status (static or user defined):
Select the associated Actions (cog) icon.
Select Edit.
Make the desired changes to the status.
Click Save, else Cancel.
To view a status' history (static or user defined): (Note: This action is currently out of scope but may be applied in the future)
Select the associated Actions icon.
Select History.
Click on the associated Select icon to view a listed action’s history details.
Click Close to exit the modal.
To delete a status (user defined only):
Select the associated Actions icon.
Select Delete.
A modal reading ‘Are you sure?’ then appears.
Click Yes, else Cancel.
Acceptance Criteria
We succeed only if a data governance feature is available in SPORIFY.
Verify that SPORIFY’s data governance follows reflects that which is described in the Description chapter of this document.
Verify that records' data governance statuses can be viewed via source list screens, target list screens and details pages.
Verify that administrators can set data governance integrations settings for their users as described in the Procedure chapter of this document.
Verify that administrators with the relevant permissions can create new data governance statuses. Verify that they can also edit and delete currently existing data governance statuses.
Verify that the data governance modal can always be accessed, even when the user cannot govern the given record.
Verify that data governance updates are presented in the Dashboard Activity Panel.
Verify that data governance filters are available on source and target list screens.
Verify the link to the history comparison page is available, if comparison data is available for that record.
Related / Alternative Procedure
N/A
GUI Specification
Purpose of these GUI elements
The purpose of these GUI elements is to facilitate data governance in SPORIFY.
Mockups and Screenshots
![](../../__attachments/706022695/image-20220119-124847.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

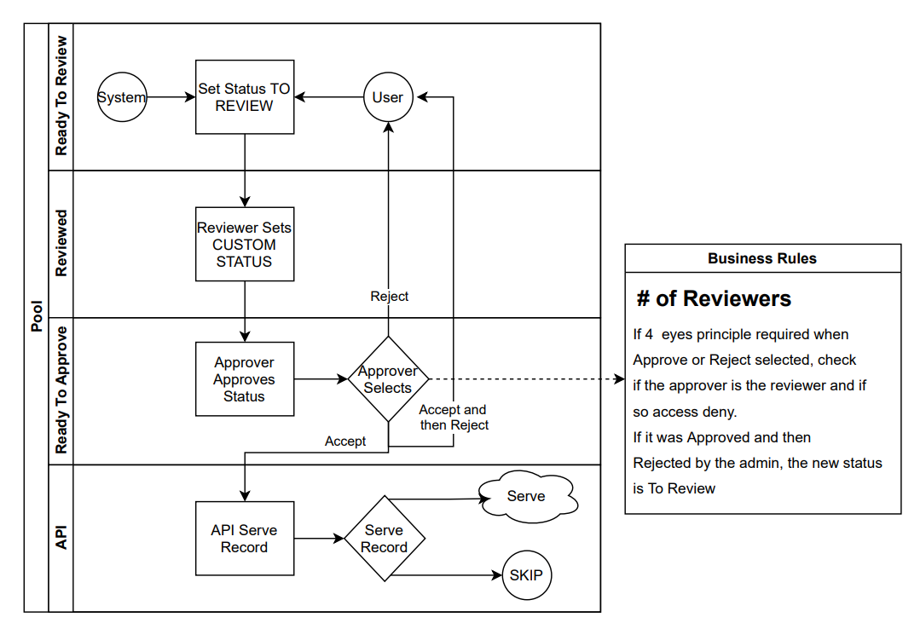

SPORIFY Data Governance Rules
![](../../__attachments/706022695/image-20220405-103615.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

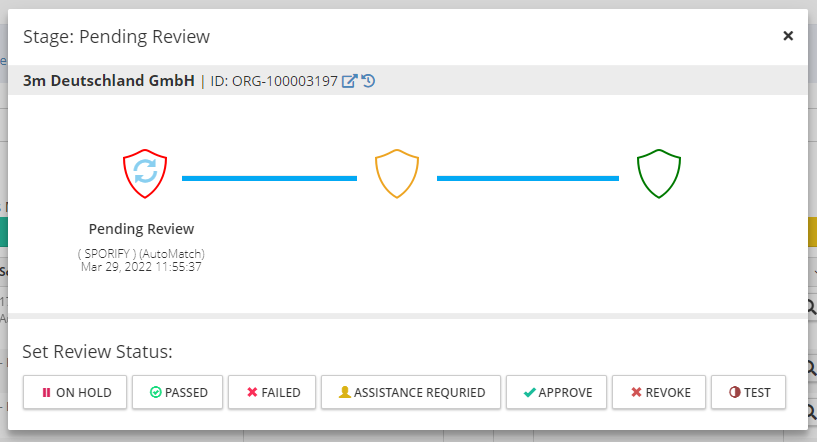

Data Governance Modal
![](../../__attachments/706022695/image-20220405-103700.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

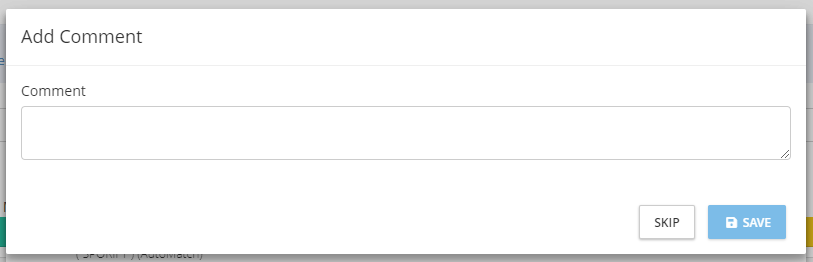

Add Comment Modal
![](../../__attachments/706022695/image-20220405-103816.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

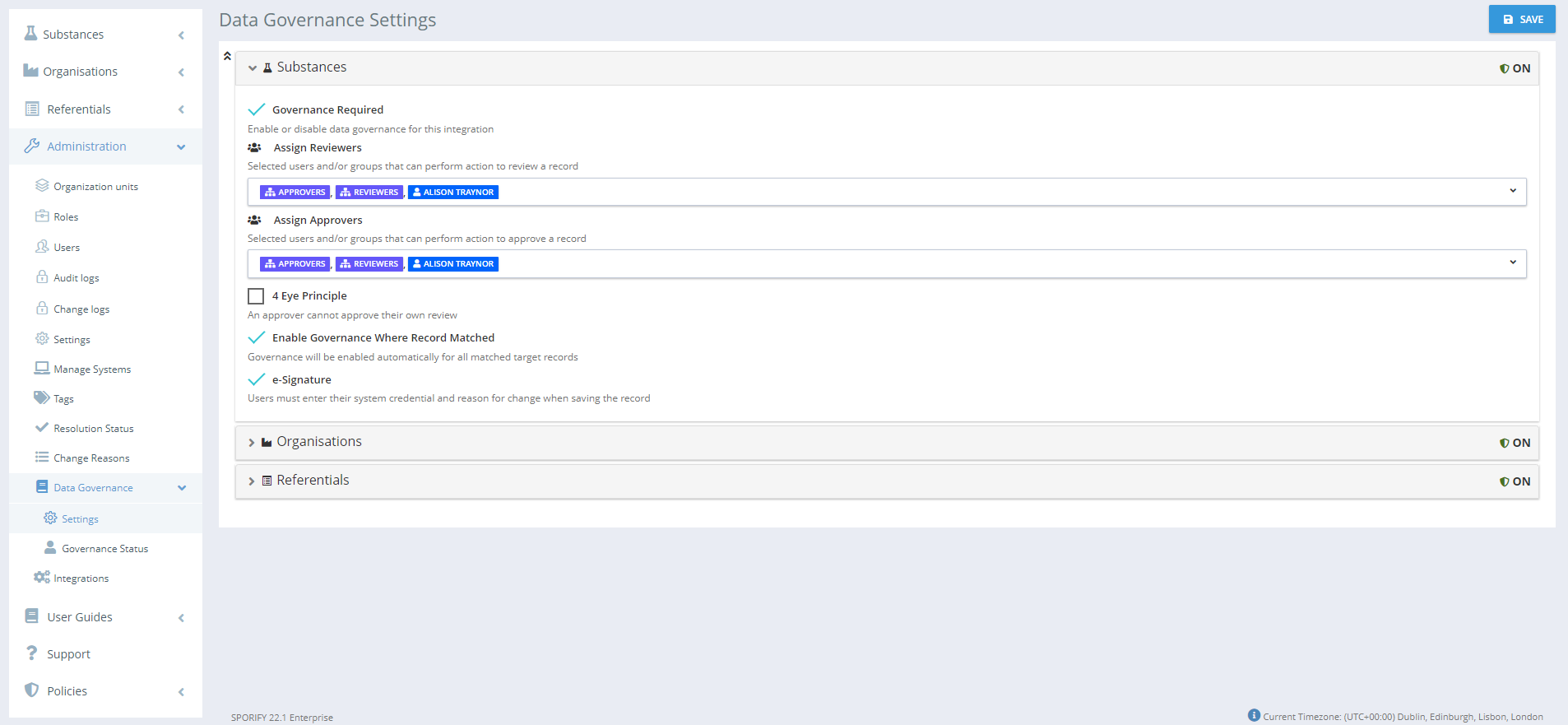

Data Governance Settings
![](../../__attachments/706022695/image-20220405-103842.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

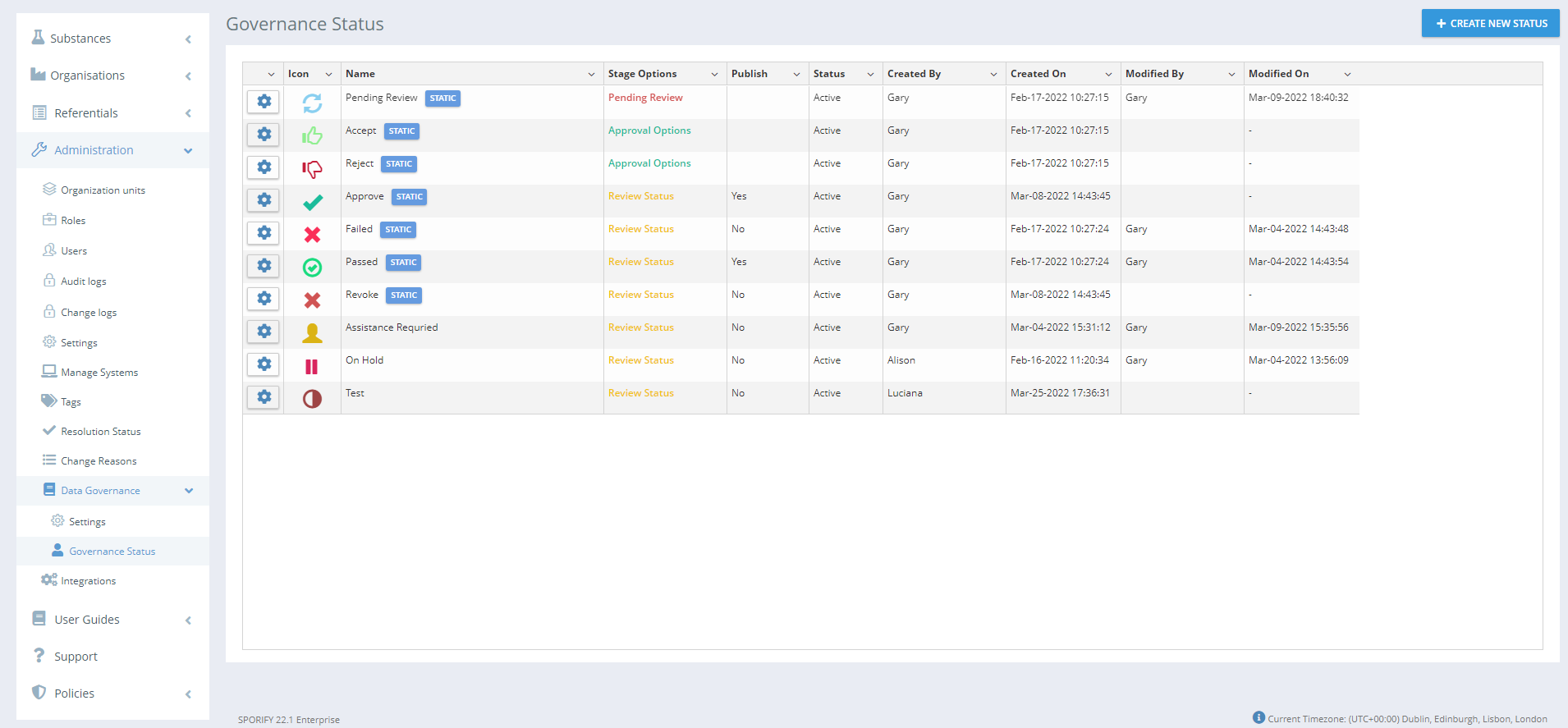

Governance Status Screen
![](../../__attachments/706022695/image-20220405-103916.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

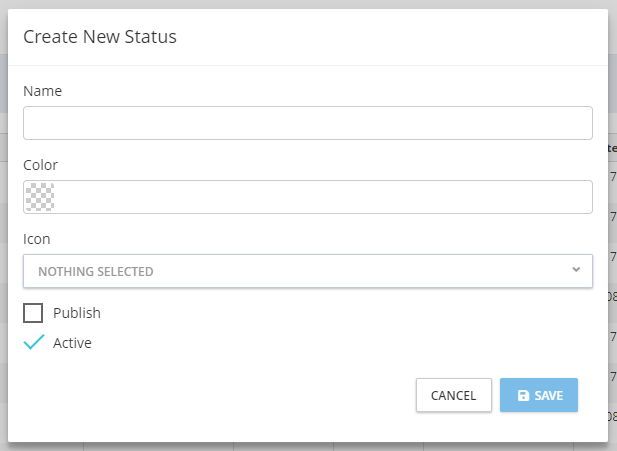

Create New Status Modal
![](../../__attachments/706022695/image-20220405-103936.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

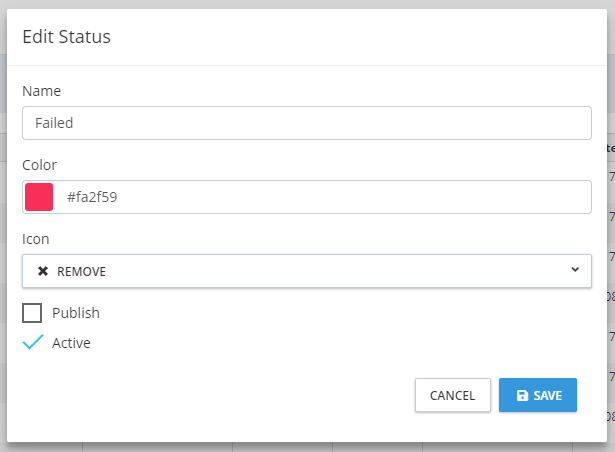

Edit Status Modal
![](../../__attachments/706022695/image-20220120-101722.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

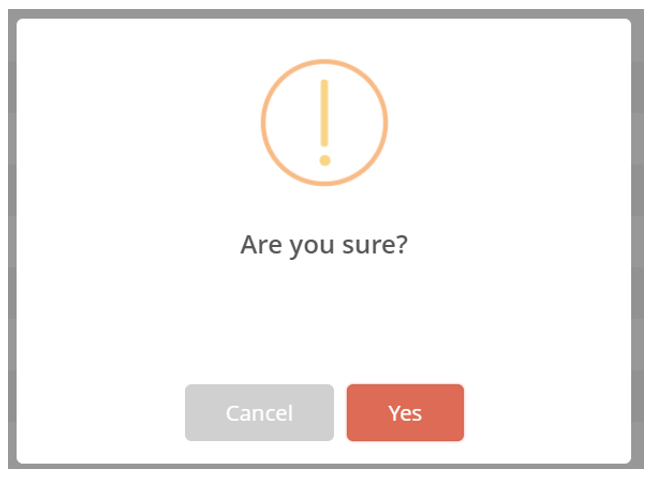

Delete Status Pop-Up
GUI Elements
Mockup of GUI Element | Title | Default | Enabled | Type | Data | Description |
---|---|---|---|---|---|---|
![]() | Name | Empty | Always | Textbox | String | The status name is inserted here |
![]() | Icon | Select an Icon | Always | Drop-down menu | Icon | The status icon is selected here |
![]() | Colour | None selected | Always | Colour picker | Colour | The status icon colour is selected here |
![]() | Active | True | Always | Checkbox | Boolean | Status is set to active or inactive here |
![]() | Publish | False | Always | Checkbox | Boolean | Status is set to publish/do not publish here |
Available Actions And Commands
Mockup of GUI Element | Title | Shortcut | Enabled | Type | Role/Permission | Action | Tooltip | Audit Trail |
---|---|---|---|---|---|---|---|---|
![]() | Yes | N/A | Always | Button | Administration - Data Governance | Deletes the associated governance status | N/A | Yes |
![]() | Cancel | N/A | Always | Button | Administration - Data Governance | Closes the Delete Status modal without deleting the status | N/A | No |
![]() | Close | N/A | Always | Button | Administration - Data Governance | Closes the Status History modal | N/A | No |
![]() | Select | N/A | Always | Button | Administration - Data Governance | Expands the associated Action to reveal its history details | N/A | No |
![]() | Cancel | N/A | Always | Button | Administration - Data Governance | Closes the associated modal without saving changes | N/A | No |
![]() | Save | N/A | Always | Button | Administration - Data Governance | Saves the associated configuration | N/A | Yes |
![]() | Create New Status | N/A | Always | Button | Administration - Data Governance | Presents the Create New Status modal | N/A | No |
![]()
| Actions | N/A | Always | Icon | Administration - Data Governance | Presents a list of available actions when selected | N/A | No |
Related Documentation and Sources
https://corritltd.visualstudio.com/Sporify/_boards/board/t/Sporify Team/Stories/?workitem=4512
https://corritltd.visualstudio.com/Sporify/_boards/board/t/Sporify Team/Stories/?workitem=4435
https://corritltd.visualstudio.com/Sporify/_workitems/edit/4262
https://corritltd.visualstudio.com/Sporify/_workitems/edit/4261
https://corritltd.visualstudio.com/Sporify/_boards/board/t/Sporify Team/Stories/?workitem=4252
https://corritltd.visualstudio.com/Sporify/_workitems/edit/6079
