FS - 433783012 - Referentials Target Lists: Term View
Description
The Term View area of Referentials Target Lists allows the user to view and manage RMS Target Lists terms.
The user can search and filter terms in this area.
The user can also add tags to these terms.
Procedure
Login to SPORIFY.
Select Referentials on the navigation menu.
Click Target Lists.
Select Term View.
To search Target List terms:
Type keyword into the search bar.
Click the search button.
To filter Target Lists terms:
Select Show advanced filters.
The following filter options are then presented:
RMS List
Use the drop-dwon menu to select an RMS list.
SPOR Languages
Use the drop-down menu to select a SPOR language.
Domain
Use the drop-down menu to select a domain.
Term Status
Use the drop-down menu to select a term status.
Translation Status
Use the drop-down menu to select a translation status.
Filter by Tag
Click on the field and select the relevant tags.
Click Refresh to apply filter(s).
To assign tags to a Target List term:
Click the tag icon located on the grid row of the associated term.
Click Add Tag on the Assign tags modal.
Select the desired tag(s).
Click Save, else Cancel.
Acceptance Criteria
To succeed, the user must be able to view and manage RMS Target Lists terms via the Referentials Target Lists Term View area of SPORIFY.
Verify that Term View can be accessed via the navigation menu.
Verify that navigating to this area presents a list of Referentials Target Lists terms to the user.
Verify that the user can search and filter terms.
Verify that the user can add tags to terms.
Related / Alternative Procedure
N/A
GUI Specification
Purpose of these GUI elements.
The purpose of these GUI elements is to enable the user to view and easily navigate and manage Target Lists terms within SPORIFY.
Mockups and Screenshots
![](../../__attachments/785023585/image-20210909-110912.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

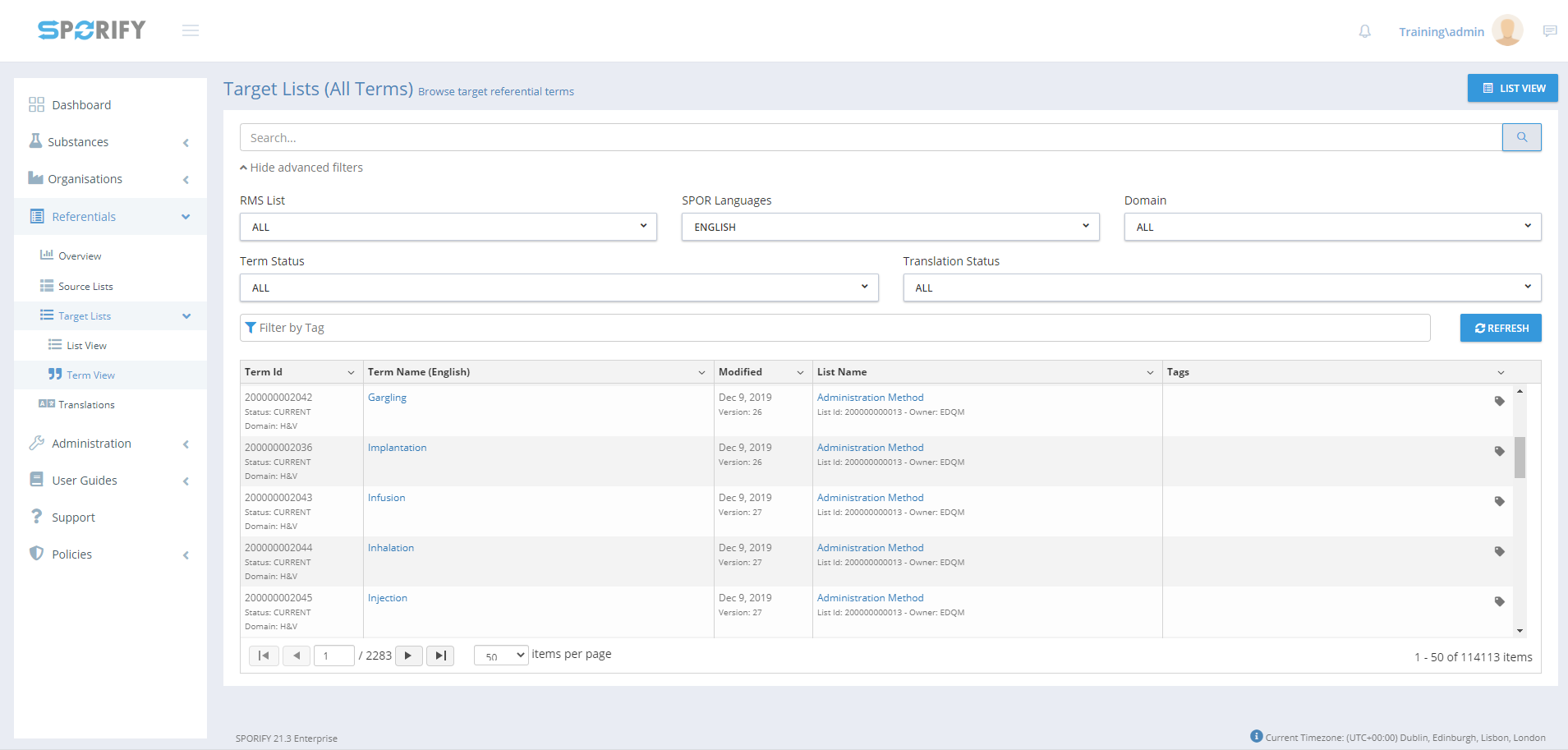

Target Lists - Term View
![](../../__attachments/785023585/image-20210909-110946.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

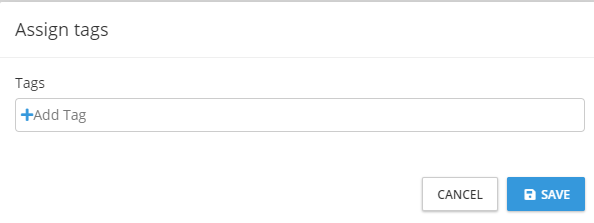

Assign Tags Modal
GUI Elements
Mockup of GUI Element | Title | Default | Enabled | Type | Data | Description |
---|---|---|---|---|---|---|
![]()
| Search | Search… | Always | Search bar | String | Searches terms using inserted keywords |
![]() | RMS List | ALL | When advanced filters are shown | Drop-down menu | String | Select RMS list to filter by |
![]() | SPOR Languages | ENGLISH | When advanced filters are shown | Drop-down menu | String | Select SPOR languages to filter by |
![]() | Domain | ALL | When advanced filters are shown | Drop-down menu | String | Select Domain to filter by |
![]() | Term Status | ALL | When advanced filters are shown | Drop-down menu | String | Select Term Status to filter by |
![]() | Translation Status | ALL | When advanced filters are shown | Drop-down menu | String | Select Translation Status to filter by |
![]() | Filter by Tag | Filter by Tag | When advanced filters are shown | Textbox | String | Select tag(s) to filter by |
Available Actions And Commands
Mockup of GUI Element | Title | Shortcut | Enabled | Type | Role/Permission | Action | Tooltip | Audit Trail |
---|---|---|---|---|---|---|---|---|
![]() | Refresh | N/A | Always | Button | Referentials - Target Lists | Refreshes page | N/A | No |
![]() | Add Tag | N/A | Always | Button | Referentials - Target Lists | Allows user to add tags to record | N/A | No |
![]() | Tags | N/A | Always | Interactive icon | Referentials - Target Lists | Presents Assign Tags modal | N/A | No |
![]() | Cancel | N/A | Always | Button | Referentials - Target Lists | Closes modal | N/A | No |
![]() | Save | N/A | Always | Button | Referentials - Target Lists | Saves assigned tag | N/A | Yes |
Related Documentation and Sources
N/A
