FS - 442401771 - Formatting Substances Source Data
Description
The user can format their Substances Source Data using Excel or CSV.
Procedure
Login to SPORIFY.
Click Substances on the navigation menu.
Select Source Lists.
Click the Templates button.
Select CSV or Excel to download the relevant template.
When the template has downloaded, open it and fill in the provided fields.
The presented fields are:
Source Id (Mandatory)
Substance Name (Mandatory)
Local Substance Id
EUTCT
EV Code
UNII
CAS
INCHI
INN
ATC Code
Molecular Formula
SMILES
Name Type
Substance Type
Acceptance Criteria
To succeed, the user must be able to format their source data using a template provided by SPORIFY.
Verify that the user can format their source data via CSV and Excel.
Verify that Source Id and Substance Name are mandatory.
Related / Alternative Procedure
N/A
GUI Specification
Purpose of these GUI elements.
The purpose of these GUI elements is to enable the user to format their source data using templates provided by SPORIFY.
Mockups and Screenshots
![](../../__attachments/784629870/image-20210915-102709.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

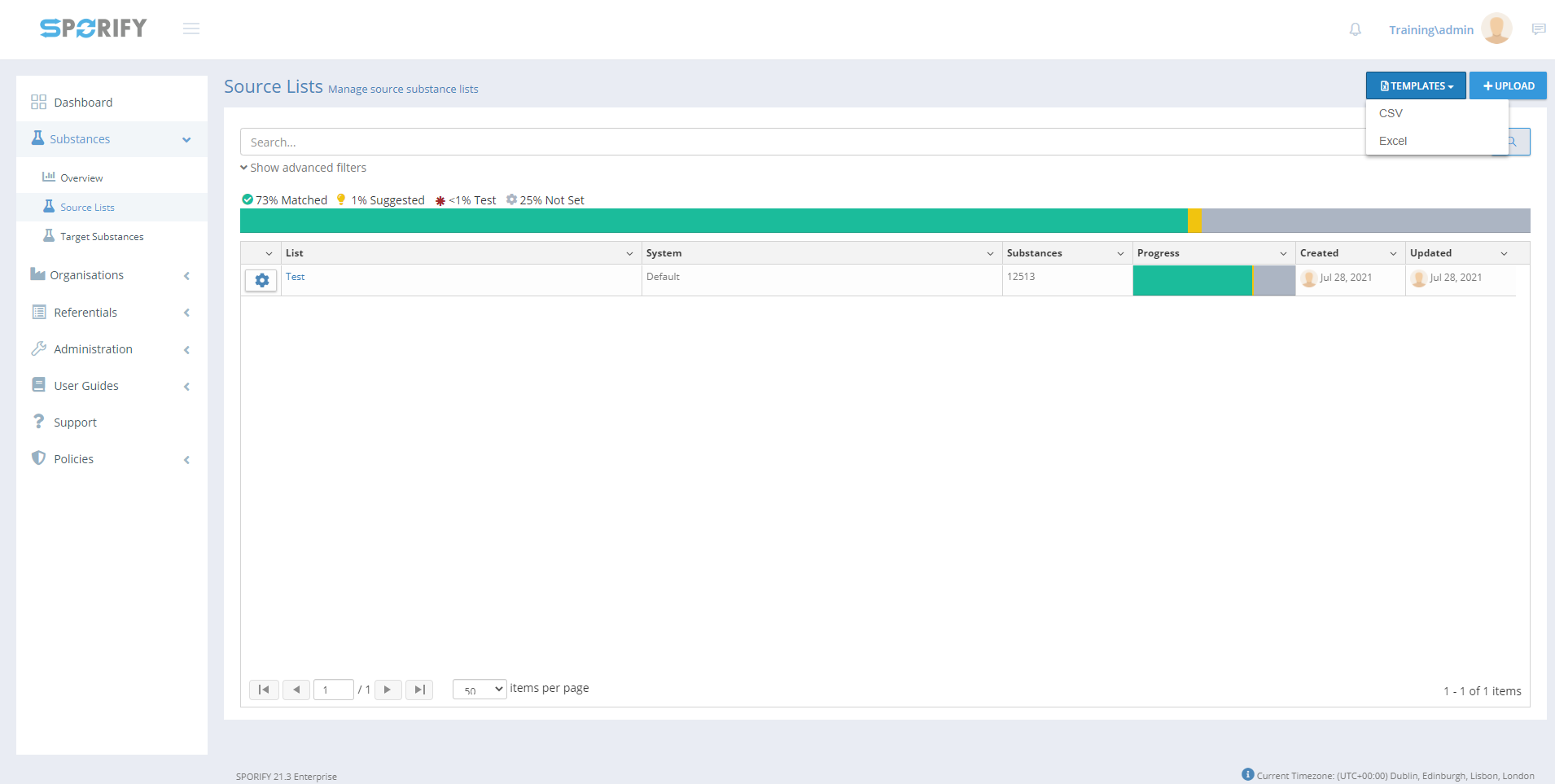

Source Lists Screen
![](../../__attachments/784629870/image-20210915-102620.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

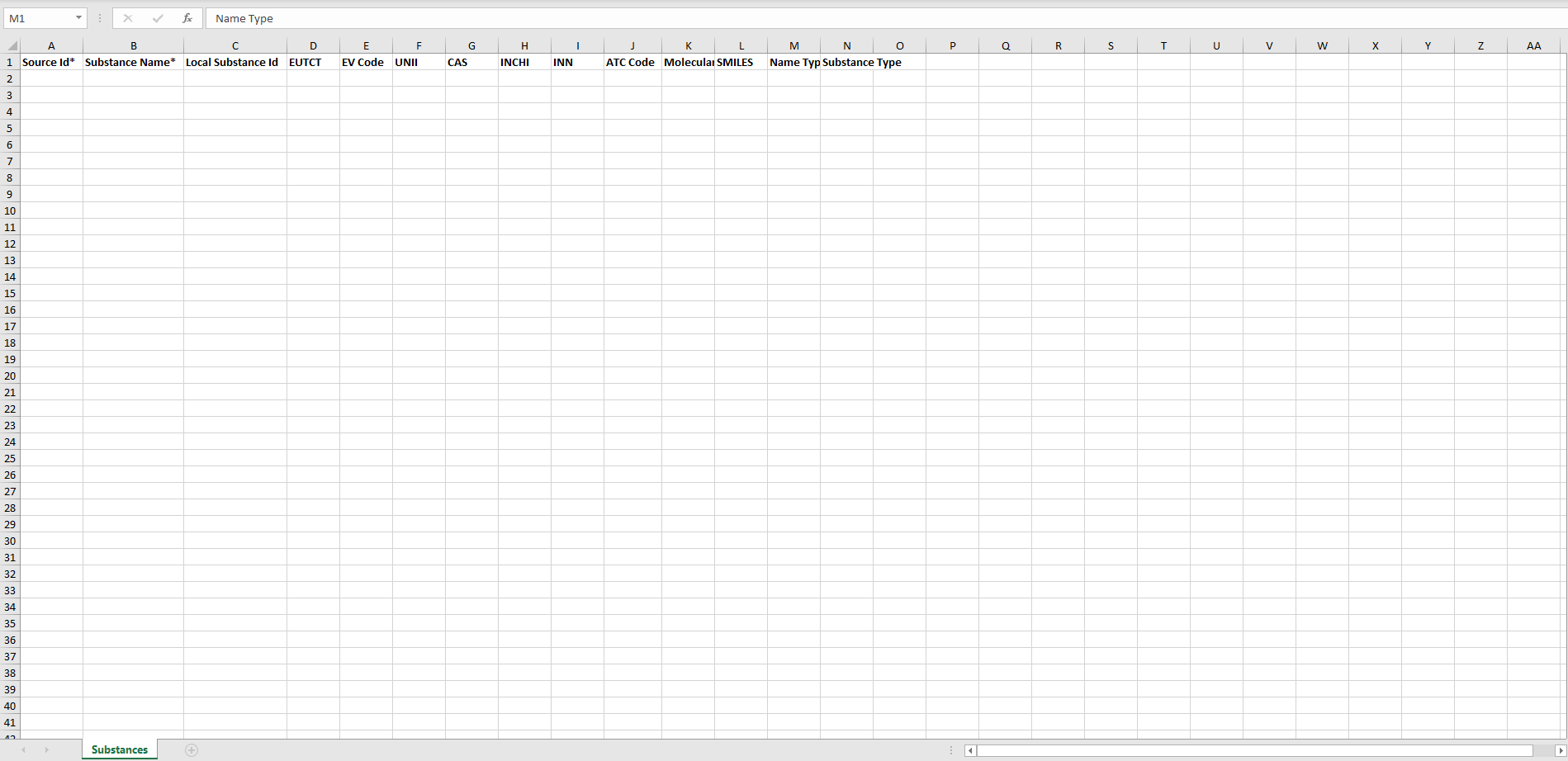

Substances Template
GUI Elements
Mockup of GUI Element | Title | Default | Enabled | Type | Data | Description |
---|---|---|---|---|---|---|
![]() | Substances | N/A | Always | Menu item | String | Presents the sub-menu items: Overview, Source Lists, Target Substances |
![]() | Source Lists | N/A | Always | Menu item | String | Navigates to the Source Lists screen |
Available Actions And Commands
Mockup of GUI Element | Title | Shortcut | Enabled | Type | Role/Permission | Action | Tooltip | Audit Trail |
---|---|---|---|---|---|---|---|---|
![]() | Templates | N/A | Always | Button | Referentials - Source Lists | Brings up the options: CSV and Excel | N/A | No |
Related Documentation and Sources
N/A
