FS - 41123894 - Upload: Importing Referentials Data
Description
In SPORIFY, the user can upload Referentials data directly to the system using CSV or Excel files.
Procedure
Login to SPORIFY.
Click Referentials on the navigation menu.
Select Source Lists.
Click the Upload button.
The following fields are then presented:
List Name
Type list name into textbox
System
Use the drop-down list to select a system
RMS List To Match
Use the drop-down list to select a RMS list
List Language
Use the drop-down list to select a language
Select Source Excel or CSV file
Click the Choose File button and select the appropriate file.
Select Open, else Cancel.
Click Save, else Cancel.
Acceptance Criteria
To succeed, the user must be able to upload source data to SPORIFY.
Verify that both CSV and Excel files can be uploaded.
Related / Alternative Procedure
N/A
GUI Specification
Purpose of these GUI elements.
The purpose of these GUI elements is to enable the user to upload source data directly to SPORIFY.
Mockups and Screenshots
![](../../__attachments/858259497/image-20210908-115736.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

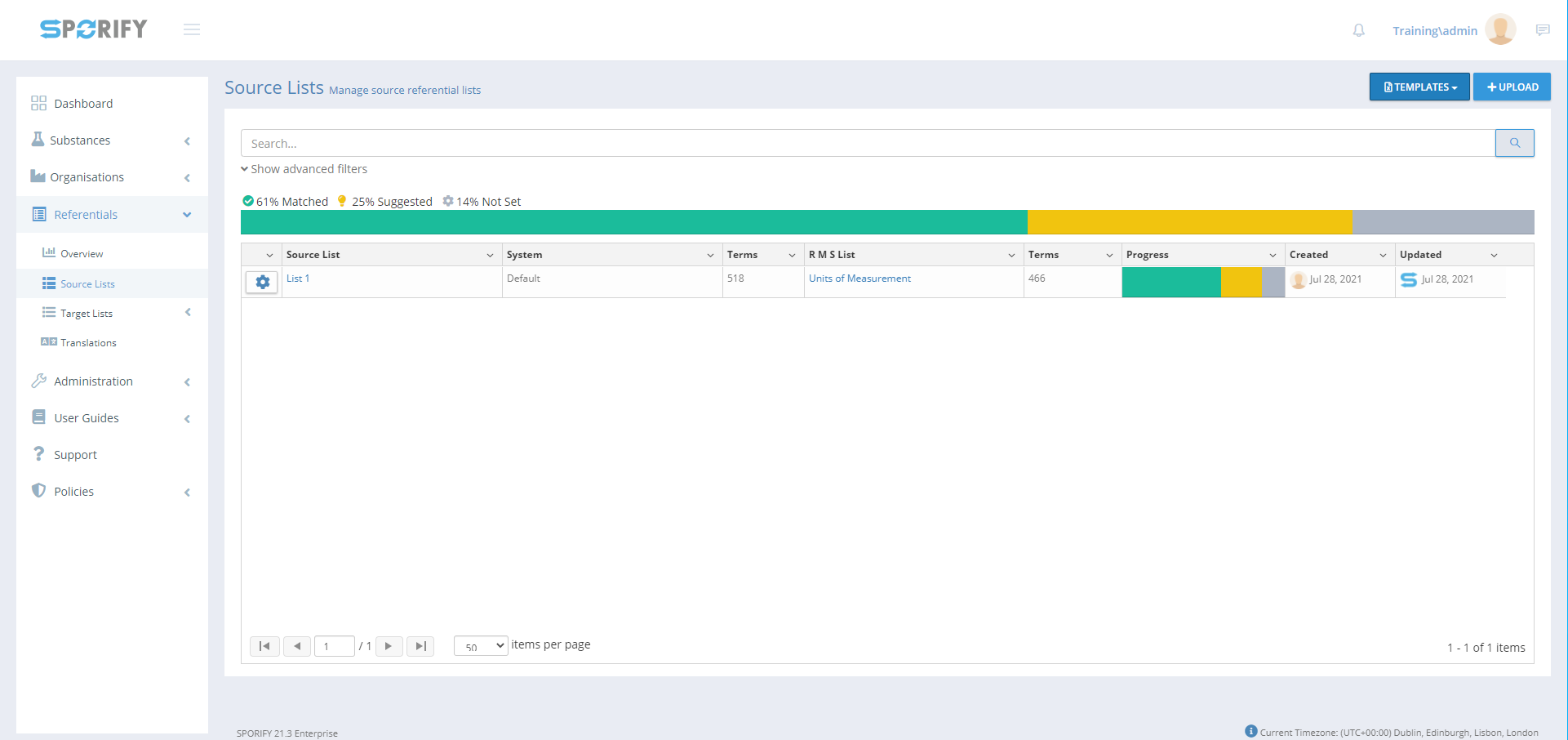

Source Lists screen
![](../../__attachments/858259497/image-20210908-115806.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

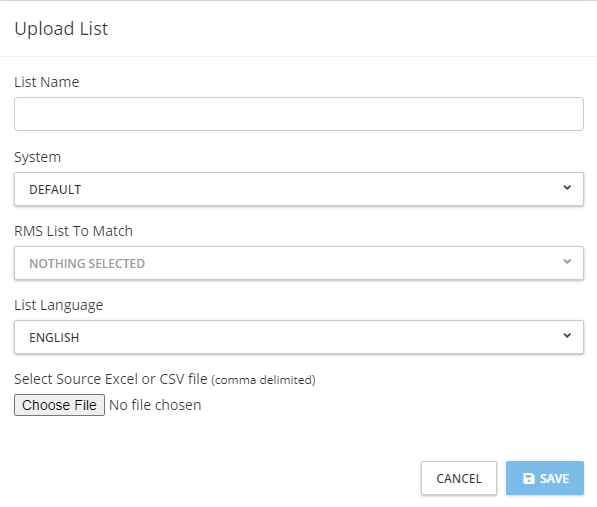

Upload list
![](../../__attachments/858259497/image-20201009-112415.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

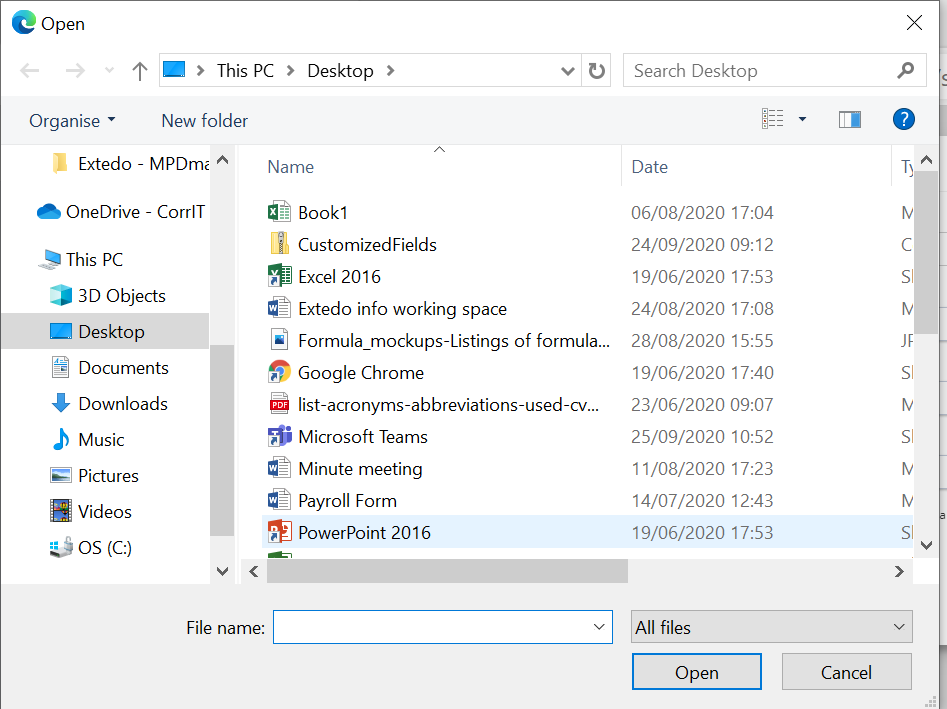

Select file
GUI Elements
Mockup of GUI Element | Title | Default | Enabled | Type | Data | Description |
---|---|---|---|---|---|---|
![]() | List name | Empty | Always | Textbox | String | Input a list name |
![]() | System | DEFAULT | Always | Drop-down menu | String | Select a system |
![]() | RMS List To Match | NOTHING SELECTED | Always | Drop-down menu | String | Select a RMS list to match |
![]() | Languages Available in RMS List | English | Always | Drop-down menu | String | Select a language |
Available Actions And Commands
Mockup of GUI Element | Title | Shortcut | Enabled | Type | Role/Permission | Action | Tooltip | Audit Trail |
---|---|---|---|---|---|---|---|---|
![]() | Upload | N/A | Always | Button | Referentials - Source Lists | Opens Upload List box | N/A | No |
![]() | Save | N/A | When upload list fields are filled in | Button | Referentials - Source Lists | Saves changes | N/A | Yes |
![]() | Cancel | N/A | Always | Button | Referentials - Source Lists | Cancels changes | N/A | No |
![]() | Choose File | N/A | Always | Button | Referentials - Source Lists | Opens device files | N/A | No |
Related Documentation and Sources
N/A
