FS - 41124093 - Referentials Term View: Searching and Filtering
Description
The SPORIFY user can search and filter RMS Target Lists using the Referentials Target Terms grid screen.
Procedure
Login to SPORIFY.
Select Referentials on the navigation menu.
Click Target Lists.
Select Term View.
To search target terms:
Type keyword into the search bar.
Click the search button.
To filter target terms:
Select Show advanced filters.
The following filter options are then presented:
RMS List
Use the drop-down menu to select an RMS List.
SPOR Languages
Use the drop-down menu to select a SPOR language.
Domain
Use the drop-down menu to select a domain.
The filter options here are All, Human and Veterinary use, Human use and Veterinary use.
Term Status
Use the drop-down menu to select a term status.
The filter options here are All, Current, Non_Current, Nullified and Provisional.
Translation Status
Use the drop-down menu to select a translation status.
The filter options here are All, Current, Non_Current, Nullified, Provisional and Under_Consultation.
Filter by Tag
Click on the field and select the relevant tags.
Note: Specific filters can be searched for using the drop-down menus' search fields.
Click Refresh to apply filter(s).
Acceptance Criteria
To succeed, the user must be able to search and filter the records presented on the Referentials Target Terms grid screen.
Verify that the user can search Referentials target terms using the provided search bar.
Verify that Referentials target terms can be filtered using the following filters:
RMS List
SPOR Languages
Domain
Term Status
Translation Status
Filter by Tag
Related / Alternative Procedure
N/A
GUI Specification
Purpose of these GUI elements.
The purpose of these GUI elements is to allow the user to search and filter Referentials target terms, thus making it easier to view and navigate these records.
Mockups and Screenshots
![](../../__attachments/858357878/image-20210909-140717.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

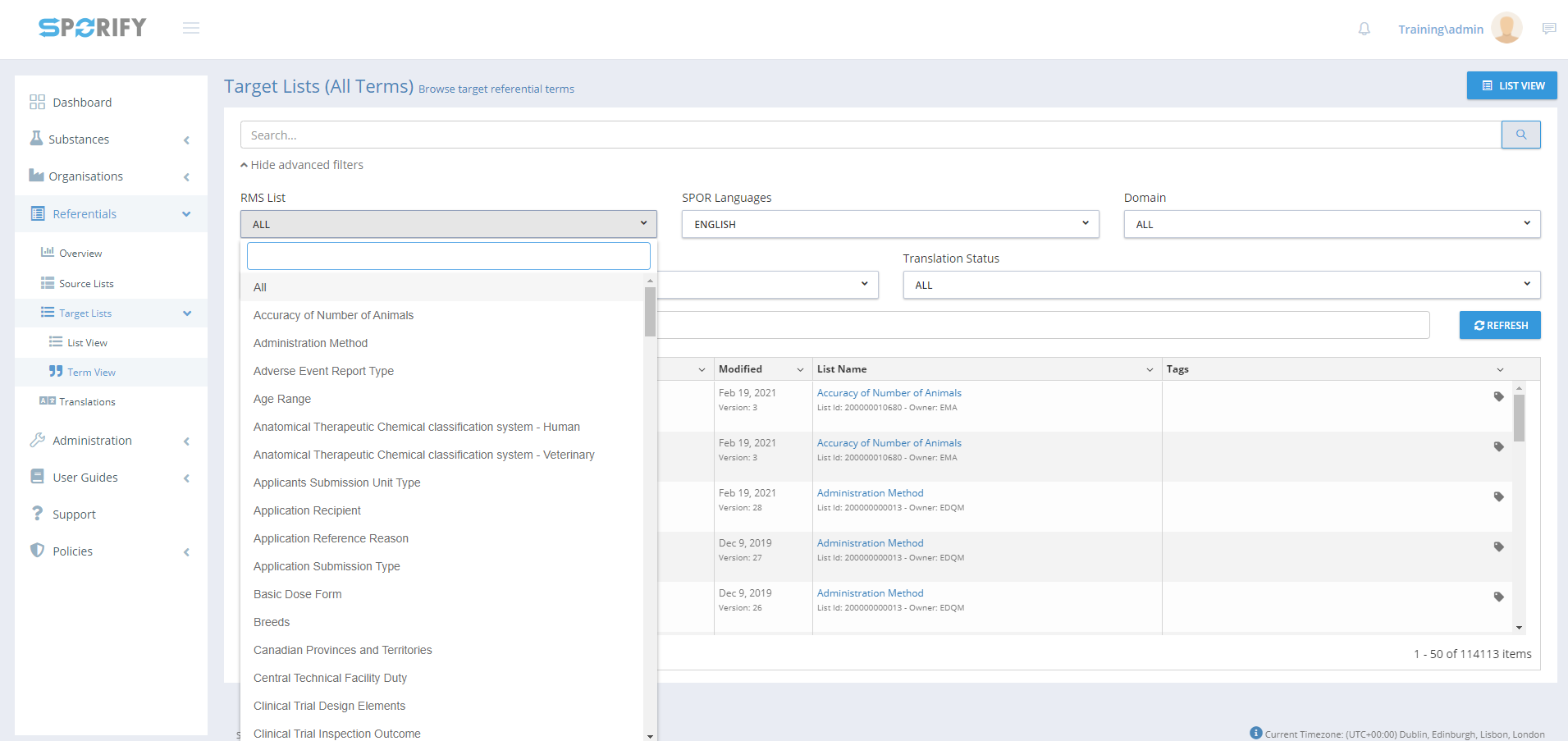

RMS List filter
![](../../__attachments/858357878/image-20210909-140744.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

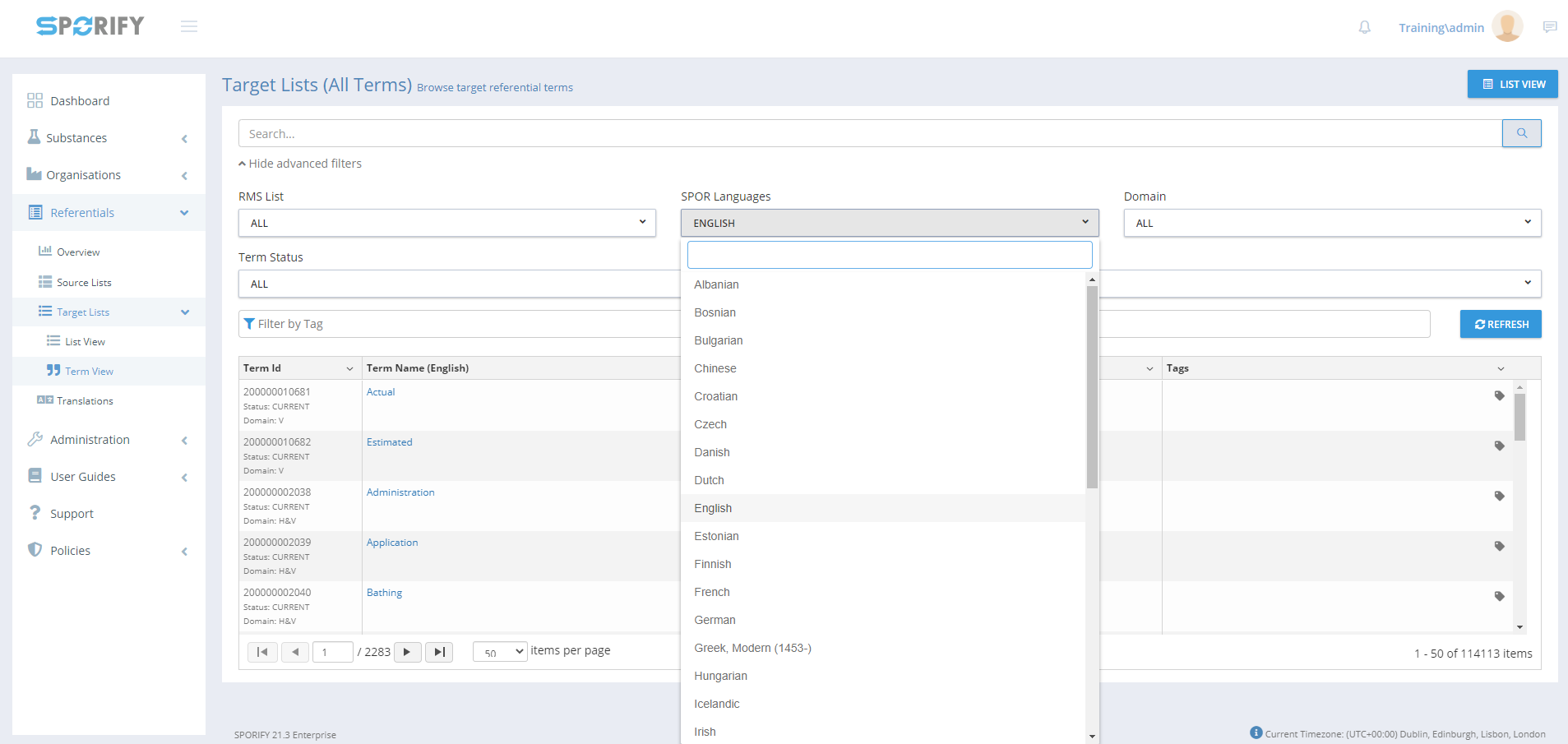

SPOR Languages filter
![](../../__attachments/858357878/image-20210909-140808.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

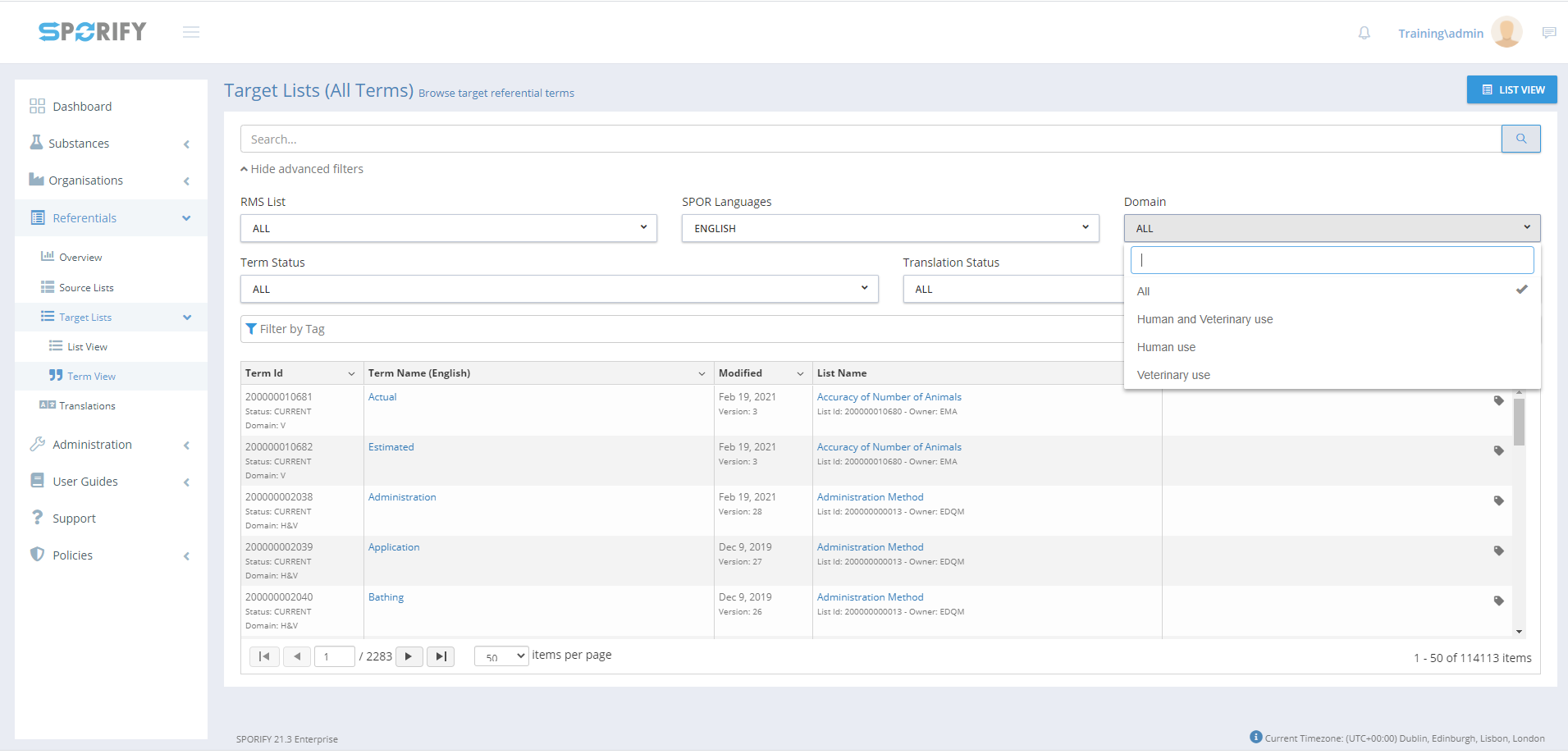

Domain filter
![](../../__attachments/858357878/image-20210909-140836.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

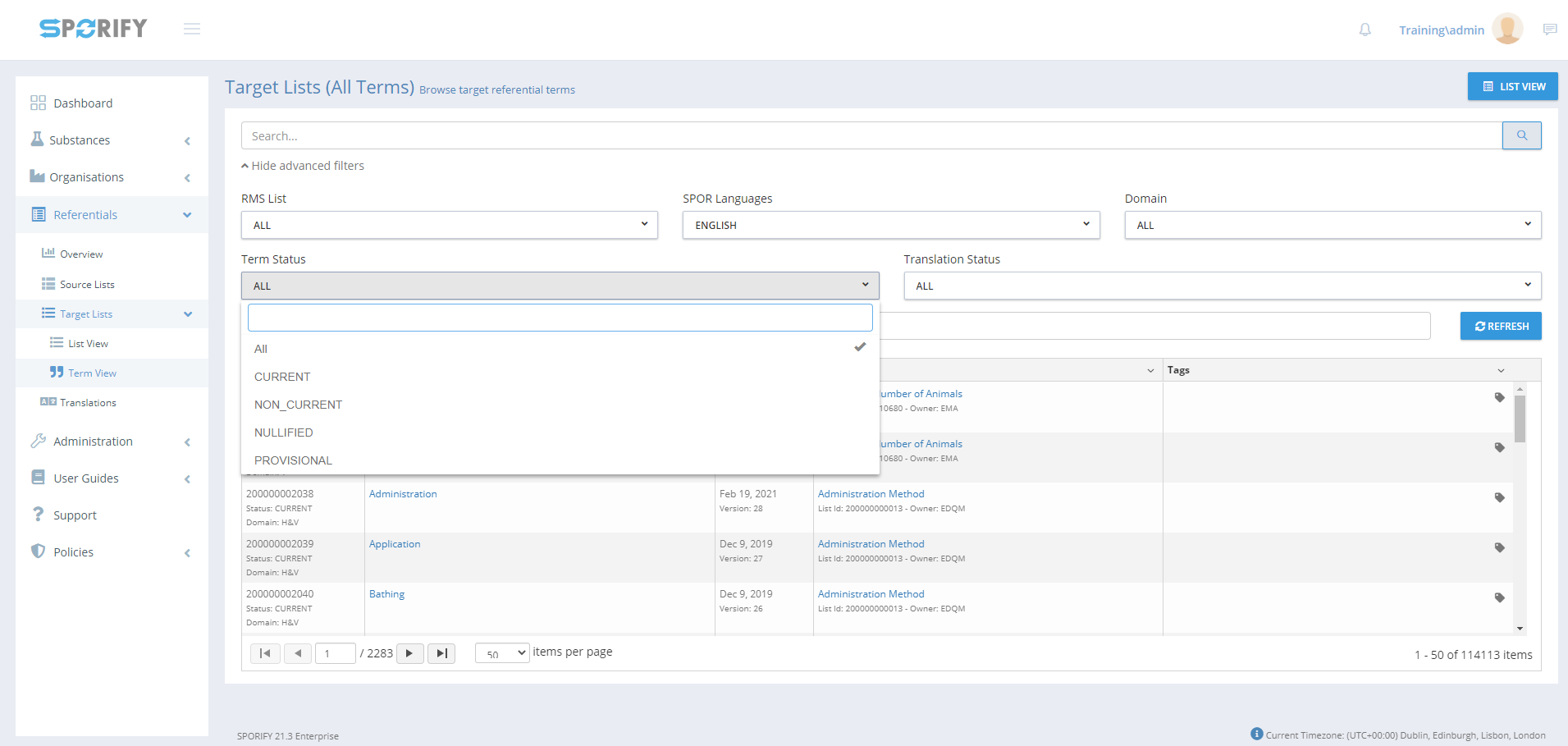

Term Status filter
![](../../__attachments/858357878/image-20210909-140858.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

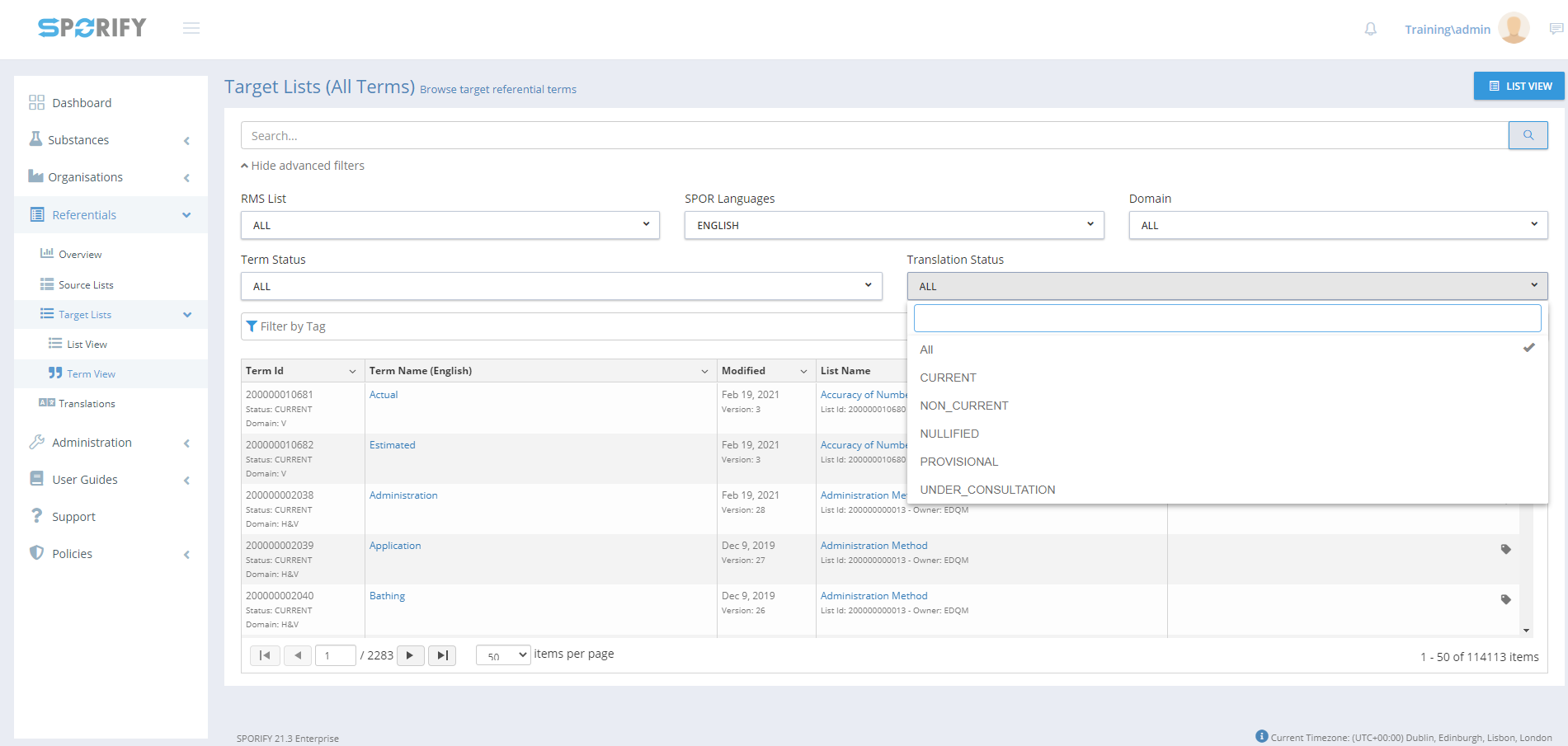

Translation Status filter
![](../../__attachments/858357878/image-20210909-140924.png?inst-v=5cb0ba68-9758-4e0e-9e70-a685a146f630)

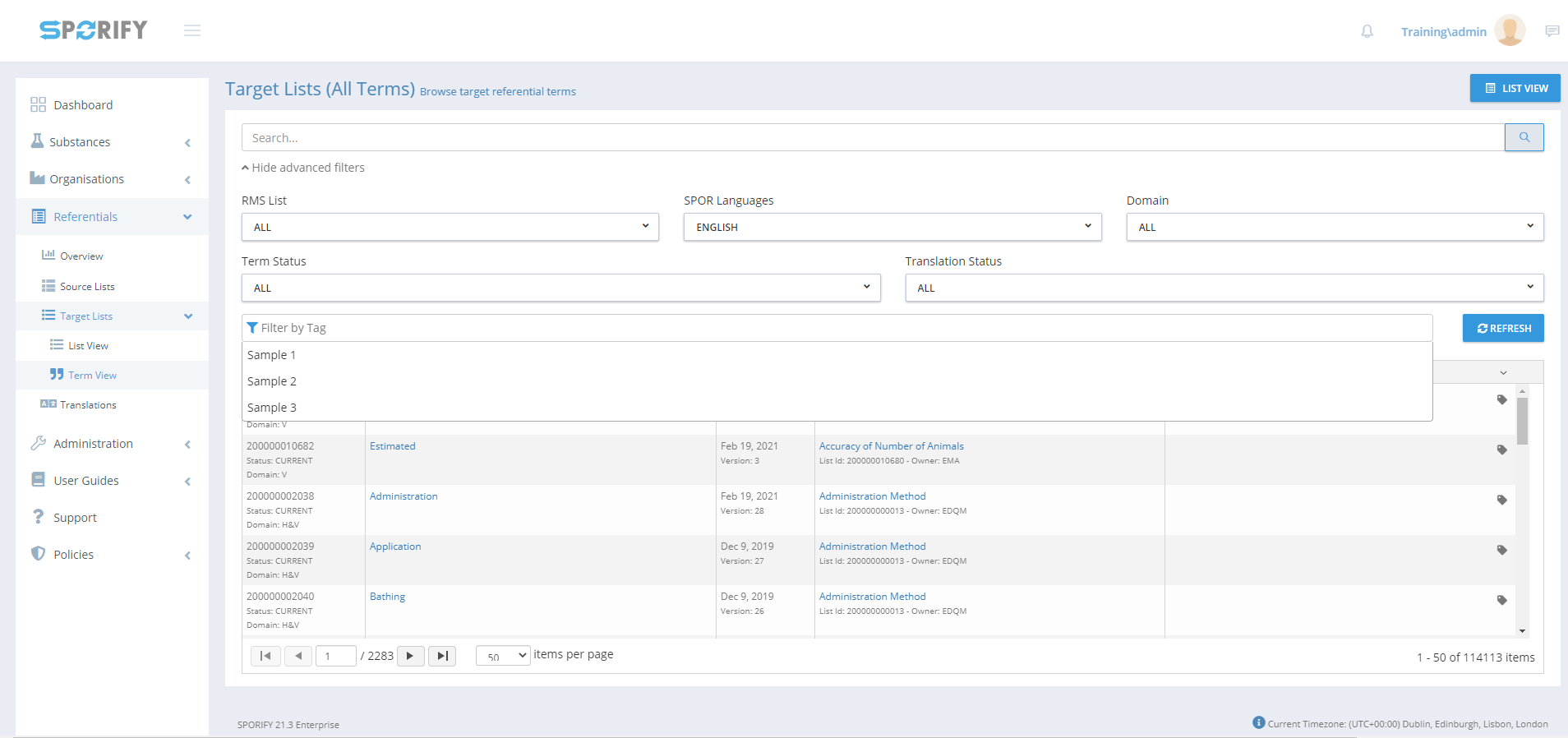

Tag filter
GUI Elements
Mockup of GUI Element | Title | Default | Enabled | Type | Data | Description |
---|---|---|---|---|---|---|
![]() | Search | Search… | Always | Search bar | String | Searches terms using inserted keywords |
![]() | RMS List | ALL | When advanced filters are shown | Drop-down menu | String | Select RMS list to filter by |
![]() | SPOR Languages | ENGLISH | When advanced filters are shown | Drop-down menu | String | Select SPOR languages to filter by |
![]() | Domain | ALL | When advanced filters are shown | Drop-down menu | String | Select Domain to filter by |
![]() | Term Status | ALL | When advanced filters are shown | Drop-down menu | String | Select Term Status to filter by |
![]() | Translation Status | ALL | When advanced filters are shown | Drop-down menu | String | Select Translation Status to filter by |
![]() | Filter by Tag | Filter by Tag | When advanced filters are shown | Textbox | String | Select tag(s) to filter by |
Available Actions And Commands
Mockup of GUI Element | Title | Shortcut | Enabled | Type | Role/Permission | Action | Tooltip | Audit Trail |
---|---|---|---|---|---|---|---|---|
![]()
| Refresh | N/A | Always | Button | Referentials - Target Lists | Refreshes page | N/A | No |
Related Documentation and Sources
N/A
