FS - 45219938 - Referentials List View: Searching and Filtering

Description

The SPORIFY user can search and filter Referentials Target Lists using the Referentials Target Lists grid screen.

Procedure

1. Login to SPORIFY.

2. Select Referentials on the navigation menu.

3. Click Target Lists.

4. Select List View.

To search Target Lists:

1. Type keyword into the search bar.

2. Click the search button.

To filter Target Lists:

1. Select Show advanced filters.

2. The following filter options are then presented:

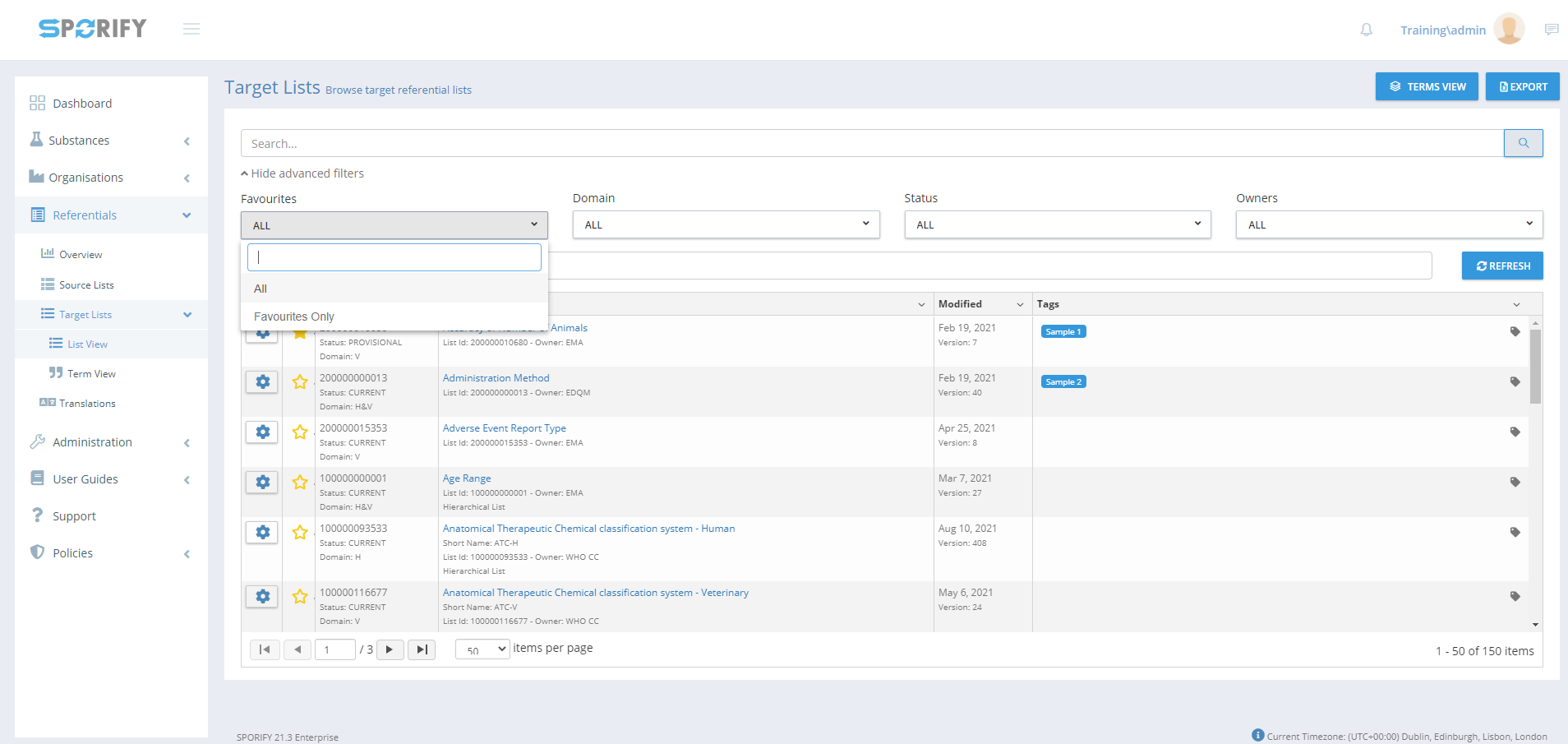

   1. Favourites

      1. Use the drop-dwon menu to select an option.

      2. The filter options here are All and Favourites Only.

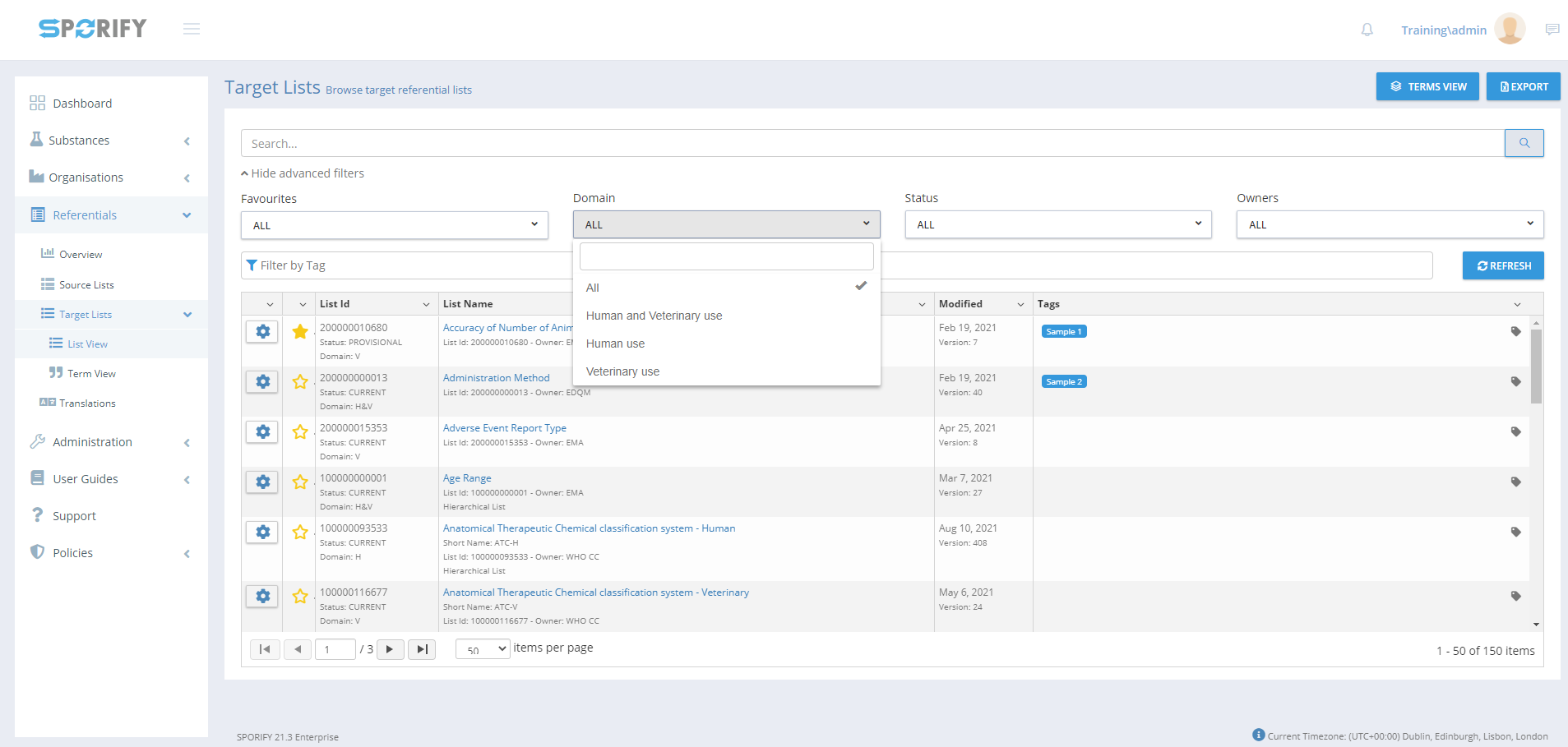

   2. Domain

      1. Use the drop-down menu to select a domain.

      2. The filter options here are All, Human and Veterinary use, Human use and Veterinary use.

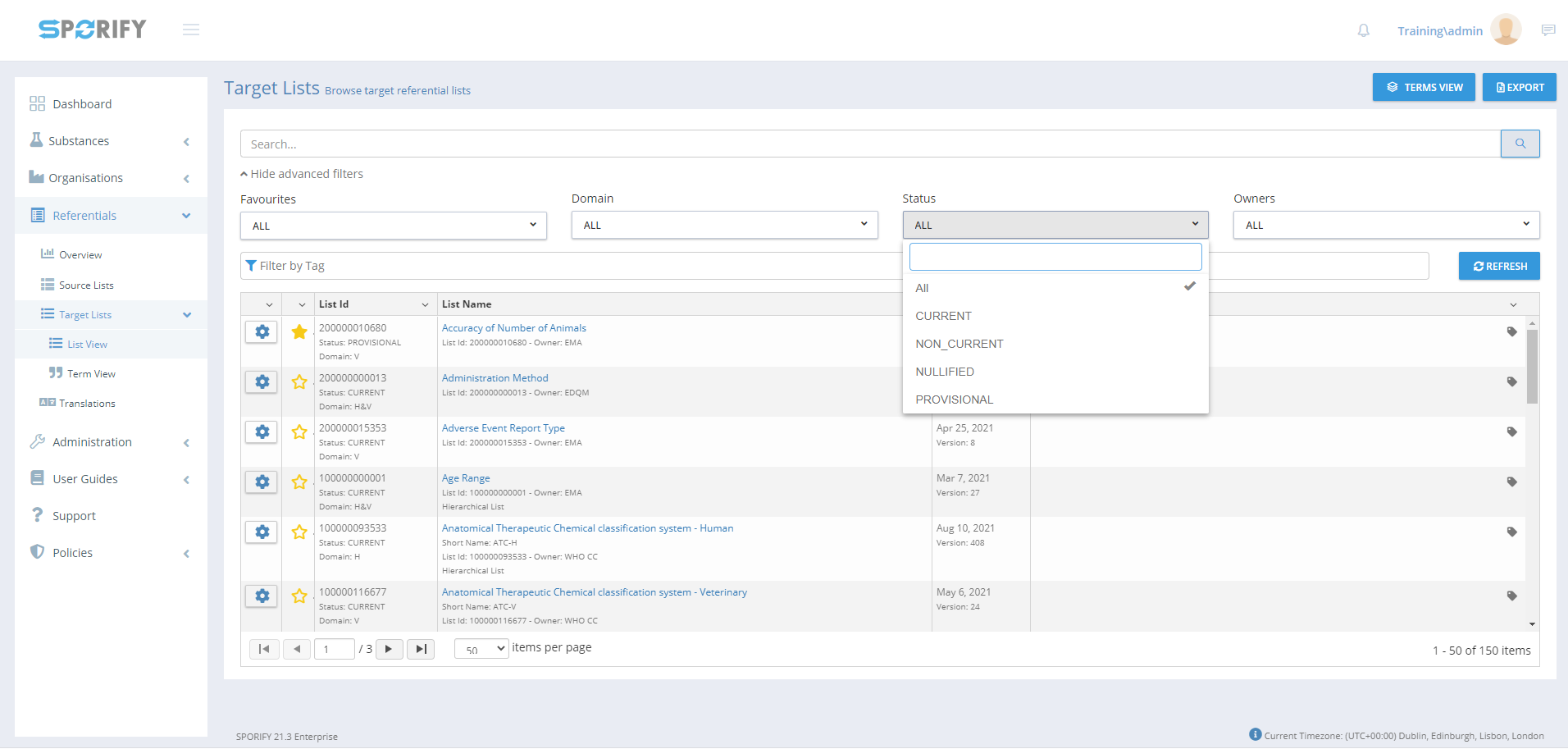

   3. Status

      1. Use the drop-down menu to select a status.

      2. The filter options here are All, Current, Non_Current, Nullified and Provisional.

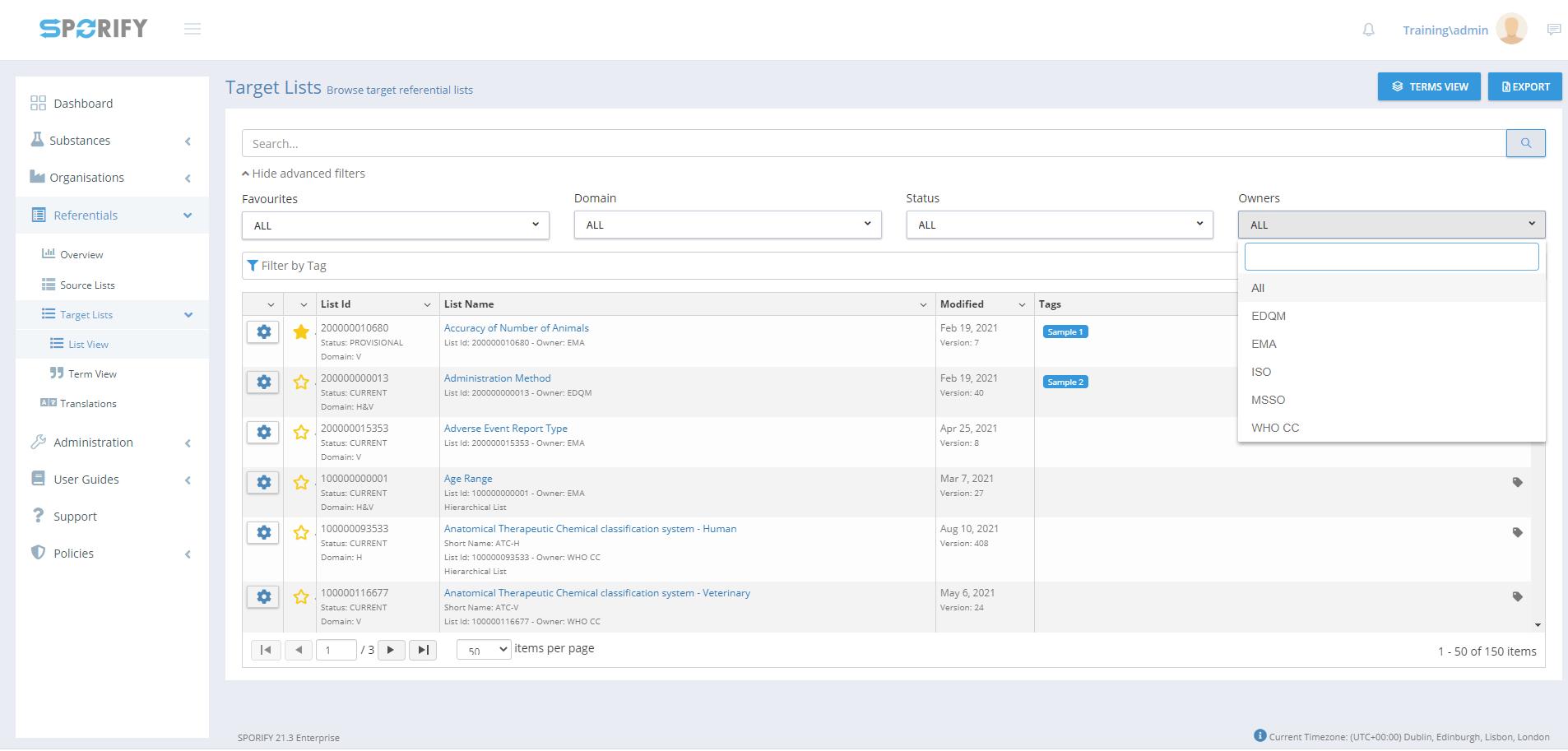

   4. Owners

      1. Use the drop-down menu to select an owner.

      2. The filter options here are All, EDQM, EMA, ISO, MSSO and WHO CC.

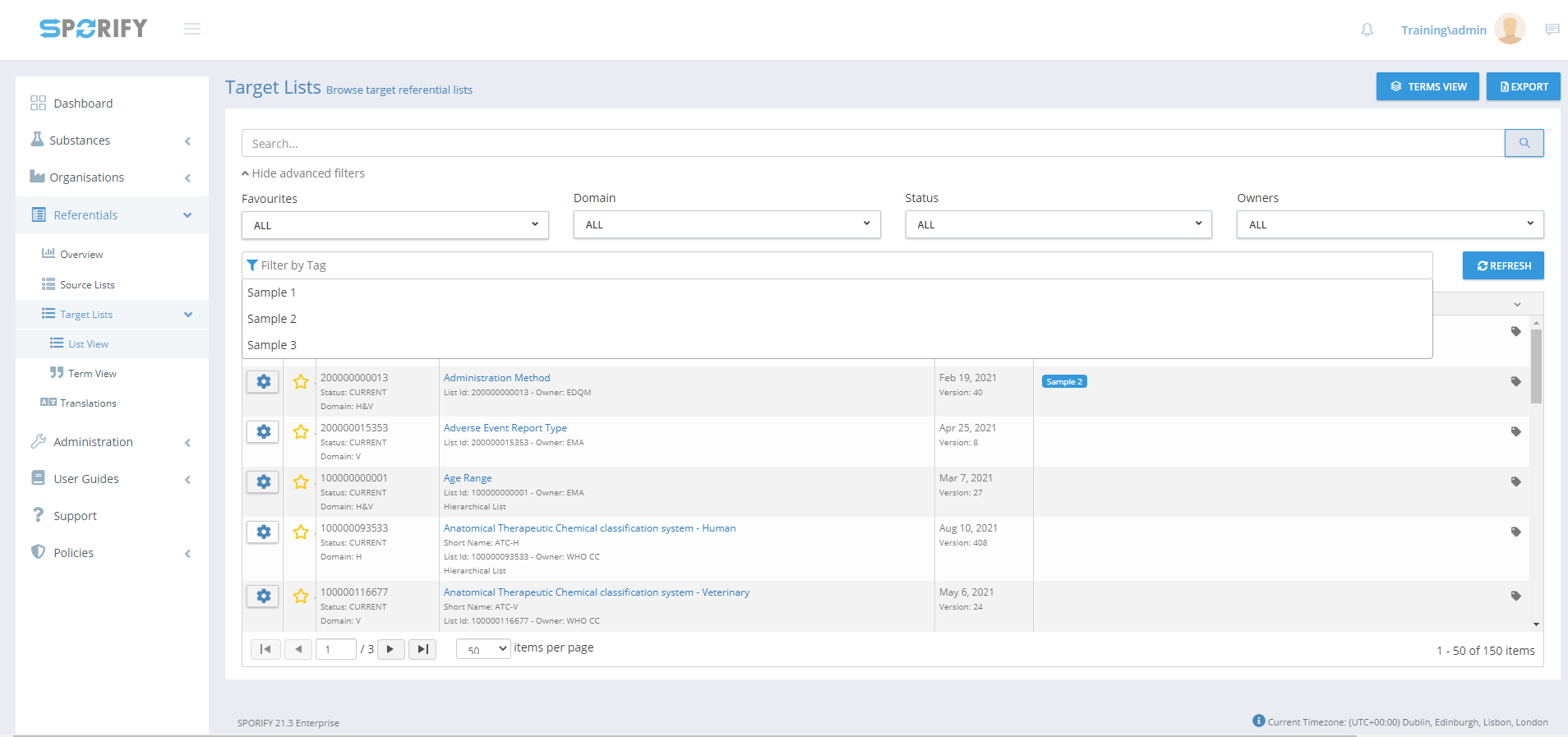

   5. Filter by Tag

      1. Click on the field and select the relevant tags.

3. Note: Specific filters can be searched for using the drop-down menus' search fields.

4. Click Refresh to apply filter(s).

Acceptance Criteria

To succeed, the user must be able to search and filter the records presented on the Referentials Target Lists grid screen.

• Verify that the user can search Referentials Target Lists using the provided search bar.

• Verify that Referentials Target Lists can be filtered using the following filters:

  • Favourites

  • Domain

  • Status

  • Owners

  • Tag

Related / Alternative Procedure

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to allow the user to search and filter Referentials Target Lists, thus making it easier to view and navigate these records.

Mockups and Screenshots

GUI Elements

Mockup of GUI Element	Title	Default	Enabled	Type	Data	Description
	Search	Search…	Always	Search bar	String	Searches lists using inserted keywords
	Favourites	ALL	When advanced filters are shown	Drop-down menu	String	Select Favourites to filter by
	Domain	ALL	When advanced filters are shown	Drop-down menu	String	Select Domain to filter by
	Status	ALL	When advanced filters are shown	Drop-down menu	String	Select Status to filter by
	Owners	ALL	When advanced filters are shown	Drop-down menu	String	Select Owners to filter by
	Filter by Tag	Filter by Tag	When advanced filters are shown	Textbox	String	Select tag(s) to filter by

Available Actions And Commands

Mockup of GUI Element	Title	Shortcut	Enabled	Type	Role/Permission	Action	Tooltip	Audit Trail
	Refresh	N/A	Always	Button	Referentials - Target Lists	Refreshes page	N/A	No

Related Documentation and Sources

N/A

Specification References

• UC - Referentials

• FS - 432046087 - Referentials

• FS - 433782913 - Referentials Target Lists
