In SPORIFY, the administrator can set IP Whitelisting values for the tenant account.
Procedure
Login to SPORIFY.
Click Administration on the navigation menu.
Click Settings.

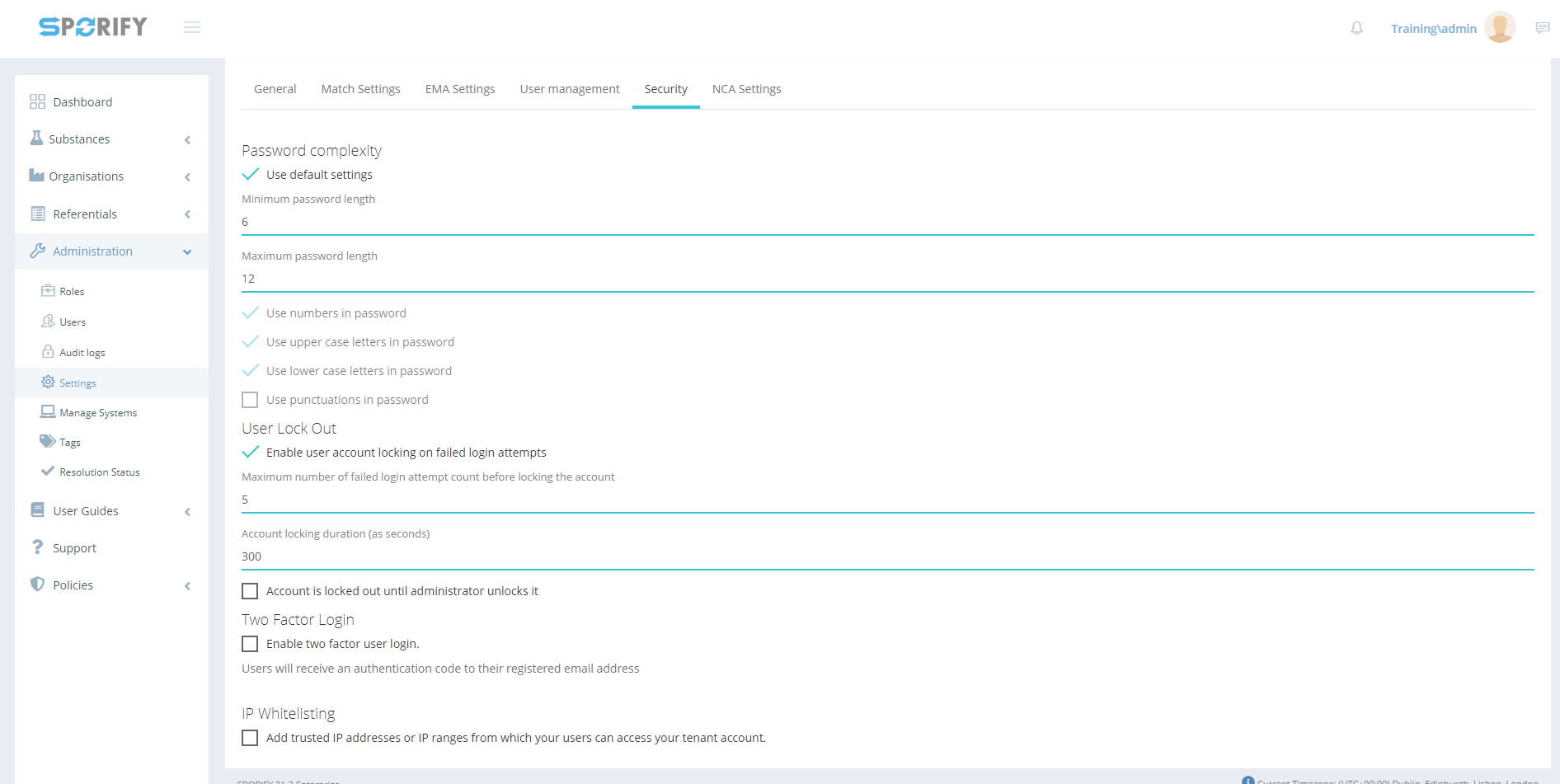

Select the Security tab.

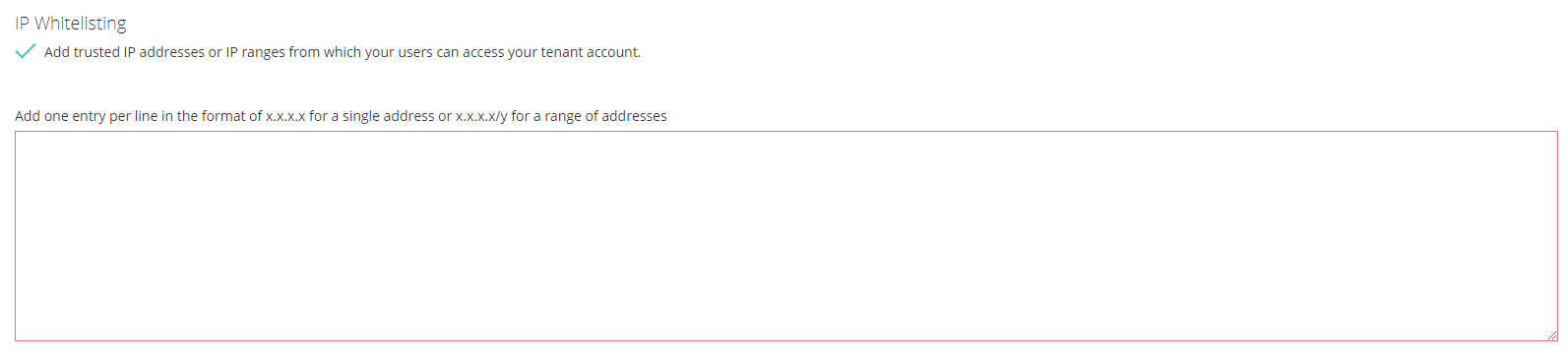

Beneath the IP Whitelisting heading is a checkbox entitled ‘Add trusted IP addresses or IP ranges from which your users can access your tenant account.’
Check this checkbox to add trusted IP addresses or IP ranges from which your users can access your tenant account.
In the textbox that appears, add one entry per line in the format of x.x.x.x for a single address or x.x.x.x/y for a range of addresses.
Uncheck this checkbox if you do not wish to enable IP Whitelisting.
Click Save All to save IP Whitelisting settings.
Acceptance Criteria
To succeed, the administrator must be able to enable and disable IP Whitelisting for their tenant account.
Verify that IP Whitelisting can be managed via the Security tab of SPORIFY Administration Settings.
Verify that if IP Whitelisting is turned on, the administrator can list the relevant whitelisted accounts below the given checkbox.
Related / Alternative Procedure
N/A
GUI Specification
Purpose of these GUI elements.
The purpose of these GUI elements is to allow the administrator to manage IP Whitelisting settings for their tenant account.
Mockups and Screenshots
GUI Elements
Mockup of GUI Element
Title
Default
Enabled
Type
Data
Description
Add trusted IP addresses or IP ranges from which your users can access your tenant account
False
Always
Checkbox
Boolean
Check or uncheck depending on setting preference

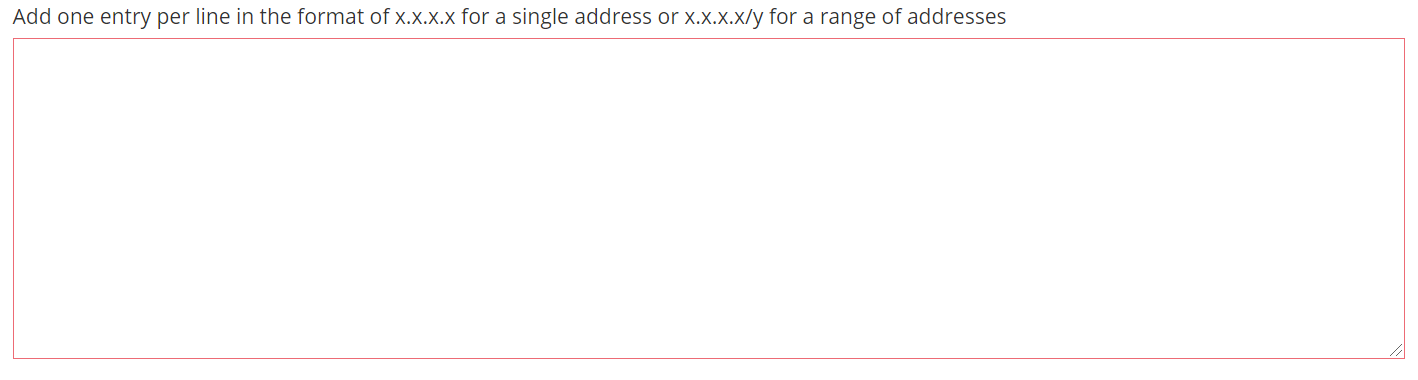

Add one entry per line in the format of x.x.x.x for a single address or x.x.x.x/y for a range of addresses
Empty
When ‘Add trusted IP addresses or IP ranges from which your users can access your tenant account' is true
Textbox
String
Input IP address or IP ranges
Administration
N/A
When the user has administrative permissions
Expandable menu item
String
Clicking Administration reveals all available Administration sub-menu items
Settings
N/A
When the administrator has the relevant permissions
Menu item
String
Navigates to the Settings screen
Security
N/A
When the administrator has the relevant permissions
