FS - 443285923 - Search and Filter Target Substances

Description

In SPORIFY, Target Substances can be searched and filtered.

• The search bar enables the user to search using keywords.

• Target Substances can be filtered by Favourites, Data Insights, Language, Country, Categories and Tag.

Procedure

1. Login to SPORIFY.

2. Click Substances.

3. Click Target Substances.

To search Target Substances:

1. Type keyword into the search bar.

2. Click the search button.

To filter Target Substances:

1. Select Show advanced filters.

2. The following filter options are then presented:

   1. Targets

      1. Use the drop-down menu to select an option.

   2. Domains

      1. Use the drop-down menu to select an option.

   3. Sort By

      1. Use the drop-down menu to select an option.

   4. Sort Direction

      1. Use the drop-down menu to select an option.

   5. Filter by Tag

      1. Use the field to select tags to filter by.

3. Click Refresh to apply filter(s).

Acceptance Criteria

To succeed, the user must be able to search and filter their Target Substances.

• Verify that a search bar is provided to enable searching.

• Verify that the following filters are provided: Favourites, Data Insights, Language, Country, Categories and Tag.

Related / Alternative Procedure

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to enable the user to quickly and easily find specific Target Substances using searching and filtering functionalities.

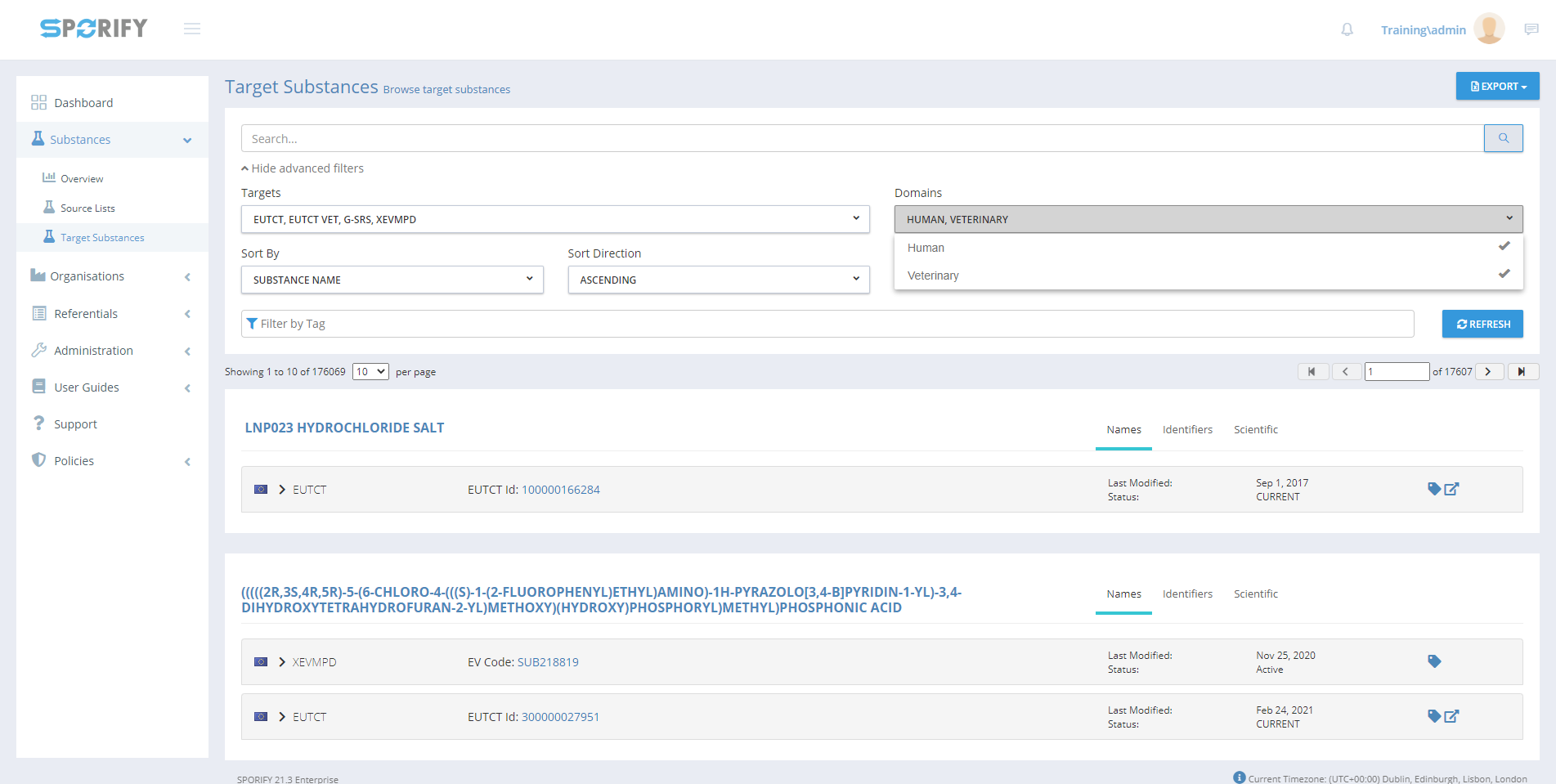

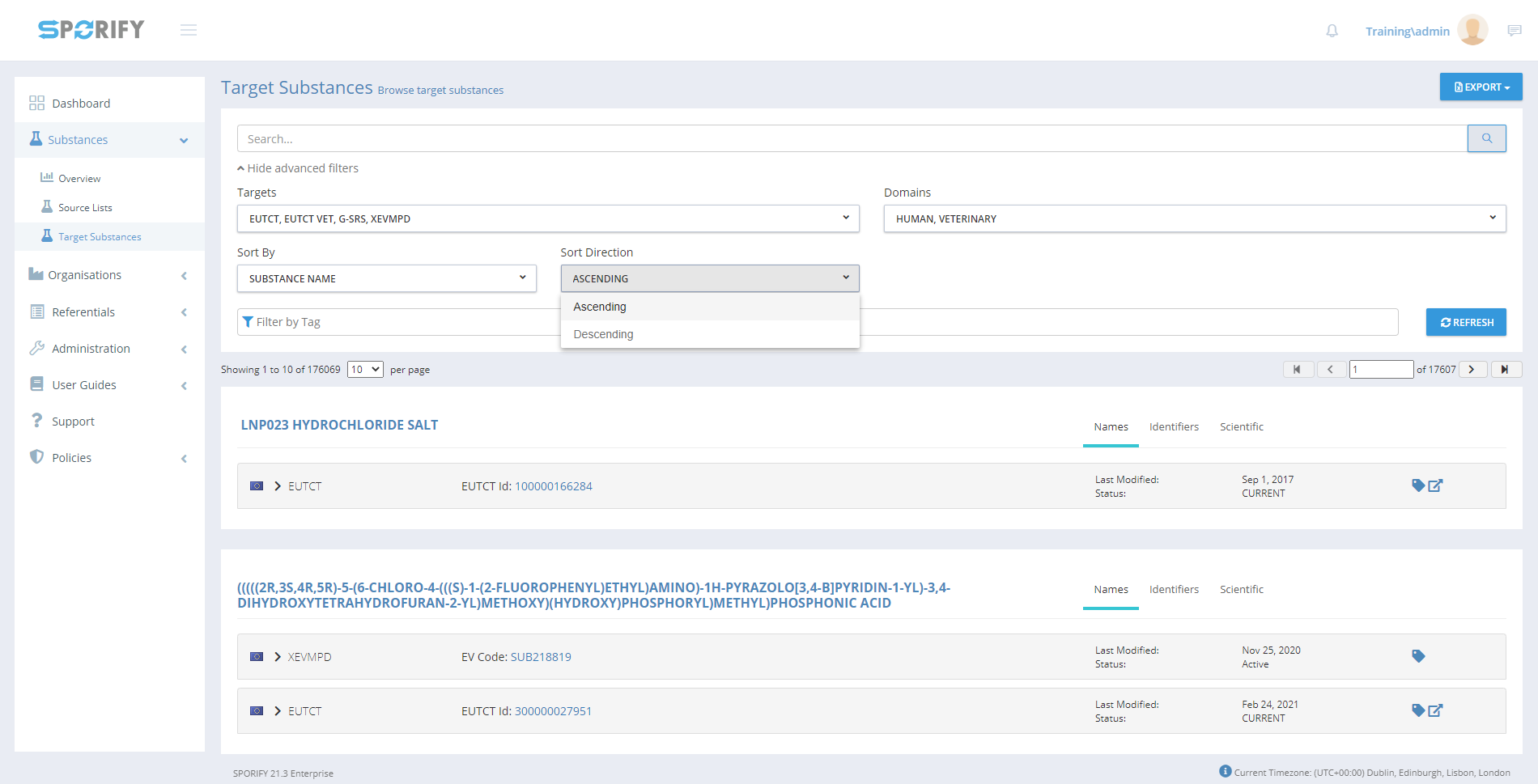

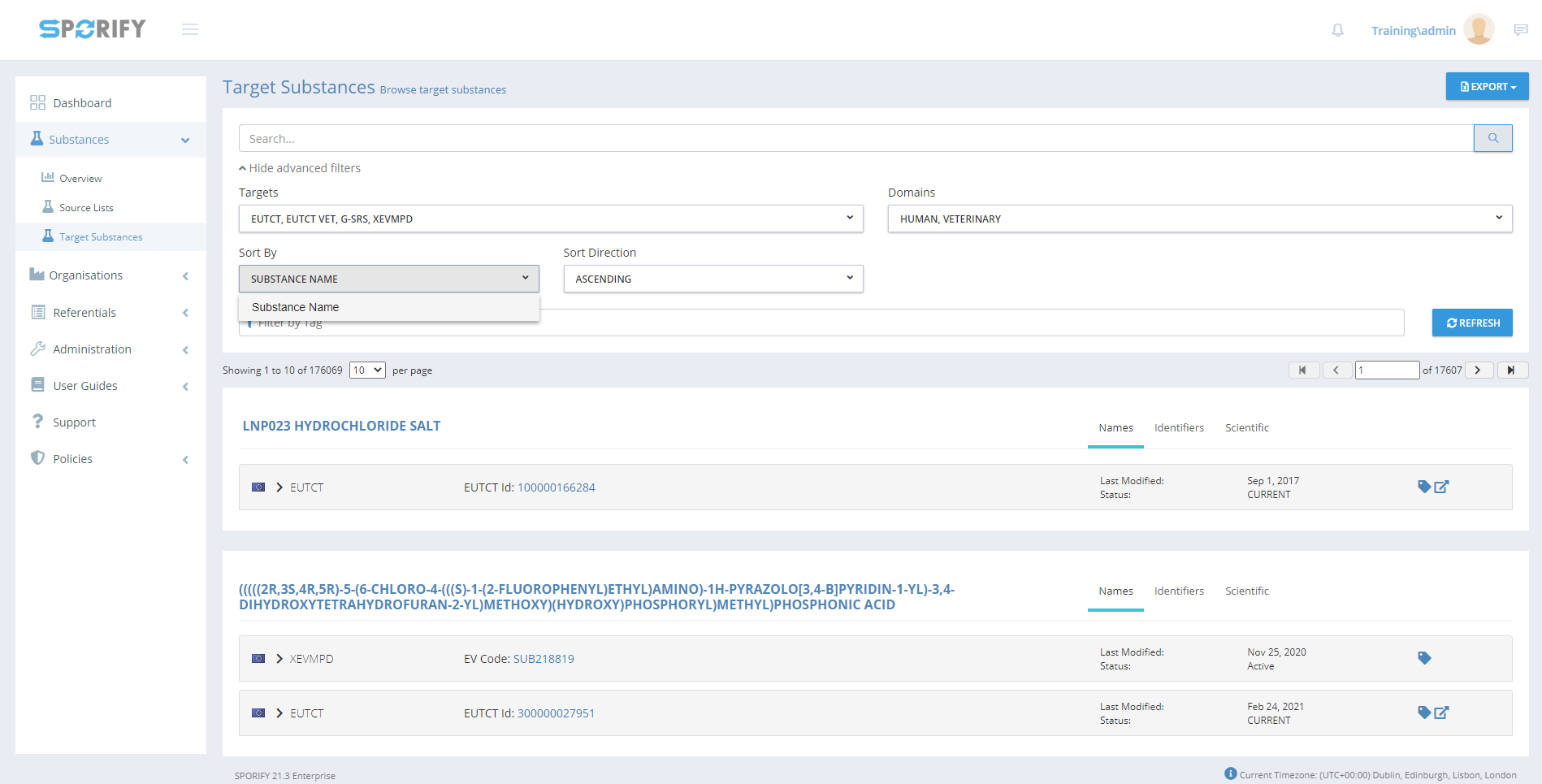

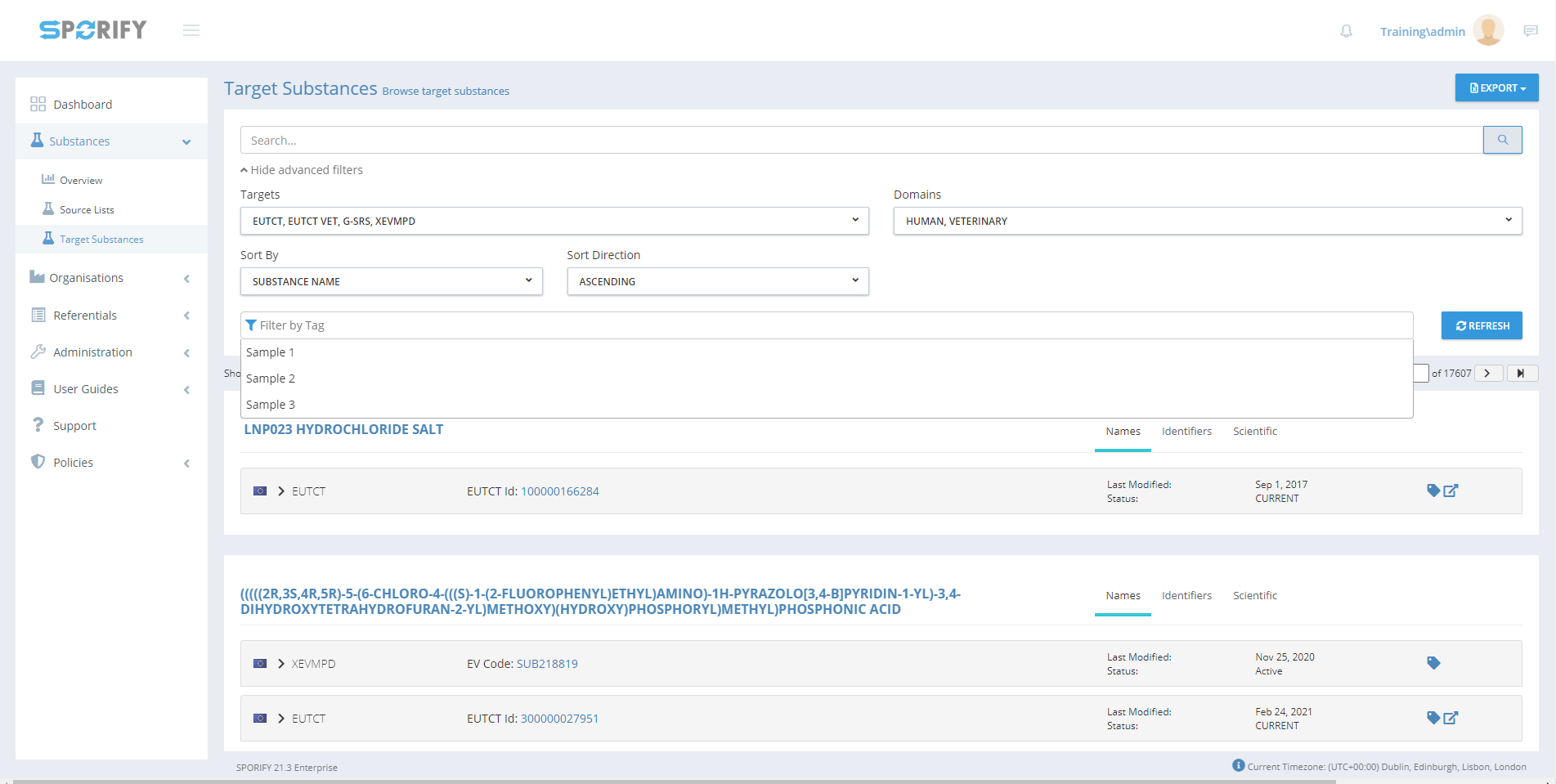

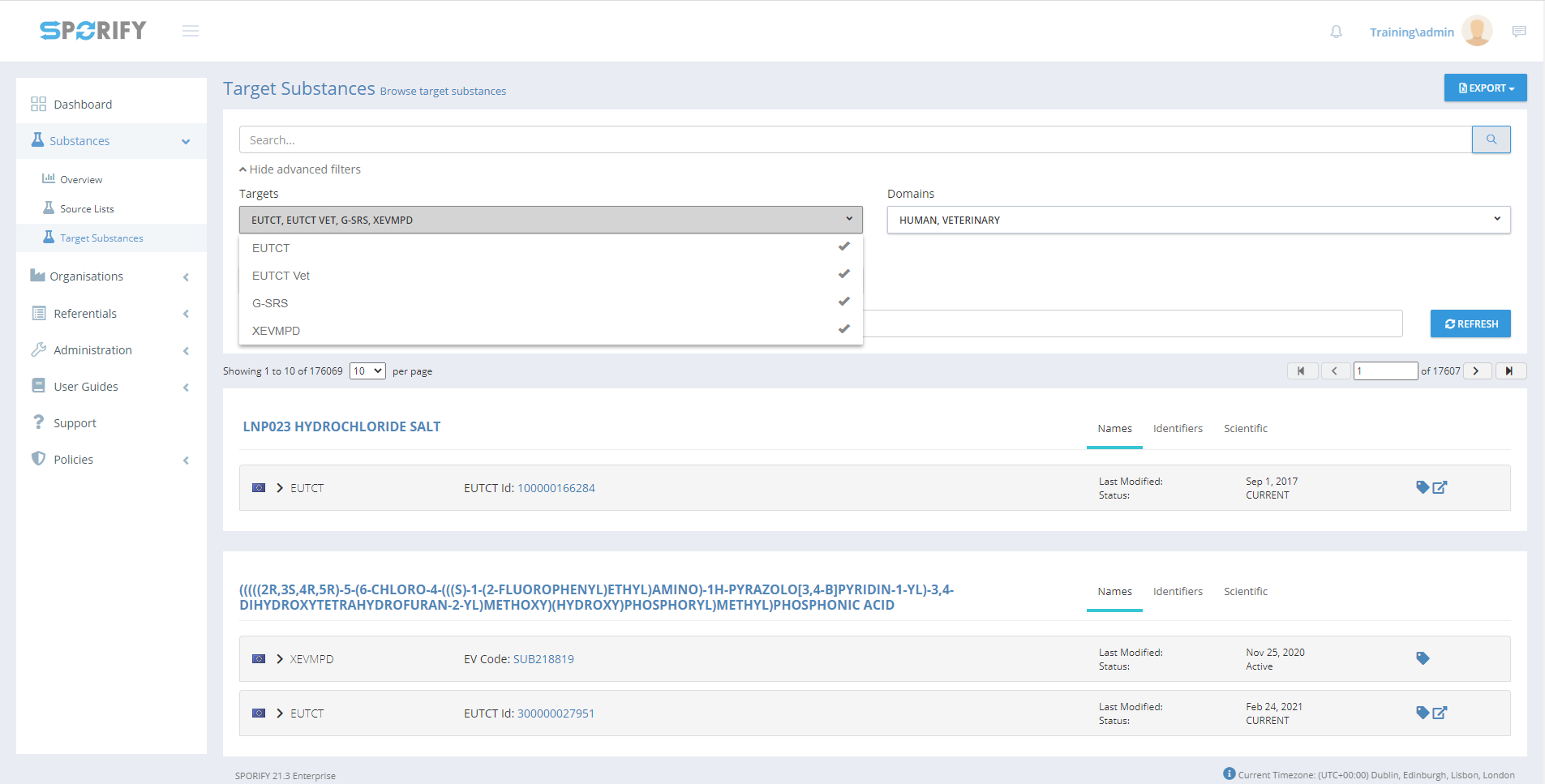

Mockups and Screenshots

GUI Elements

Mockup of GUI Element	Title	Default	Enabled	Type	Data	Description
	Search	Search…	Always	Search bar	String	Searches Target Substances
	Filter by Tag	Filter by Tag	Always	Input field	String	Provides Tags filter options
	Targets	All	Always	Drop-down menu	String	Provides Targets filter options
	Domains	HUMAN, VETERINARY	Always	Drop-down menu	String	Provides Domains filter options
	Sort By	SUBSTANCE NAME	Always	Drop-down menu	String	Provides Sort By filter options
	Sort Direction	ASCENDING	Always	Drop-down menu	String	Provides Sort Direction filter options

Available Actions And Commands

Mockup of GUI Element	Title	Shortcut	Enabled	Type	Role/Permission	Action	Tooltip	Audit Trail
	Refresh	N/A	Always	Button	Substances - Target Substances	Refreshes page	N/A	No

Related Documentation and Sources

• N/A

Specification References

• FS - 443285869 - Target Substances

• UC - Substances

• FS - 442499577 - Substances
