FS - 526909457 - Session Idle Timeout

Description

SPORIFY’s Session Idle Timeout feature allows administrators to manage the amount of time their tenant’s users can remain inactive before their session times out and closes.

• Administrators can enable and disable Session Idle Timeout for their tenant.

• When Session Idle Timeout is enabled, administrators can set the amount of time for which a user must be inactive before being timed out of their session.

Procedure

1. Login to SPORIFY.

2. Select Administration on the navigation menu.

3. Select Settings.

4. Click on the Security tab.

5. Navigate to the Session Idle Timeout heading.

6. To enable Session Idle Timeout for your tenant, check the ‘Time user out after a set period of inactivity’ checkbox.

   1. When this checkbox is checked, the ‘Duration of inactivity (as seconds)’ field is presented.

   2. Using this field, add the number of seconds of inactivity after which a user should be timed out for your tenant.

7. To disable Session Idle Timeout for your tenant, uncheck the ‘Time user out after a set period of inactivity’ checkbox.

8. Click Save All.

Acceptance Criteria

• Verify that administrators can enable and disable the Session Idle Timeout feature in the Settings area of SPORIFY Administration.

• Verify that administrators can set the amount of time for which a user must be inactive before being timed out of their session in the Settings area of SPORIFY Administration.

• Verify that administrators cannot set timeouts to be less than 300 seconds (5 minutes).

• Verify that administrators cannot set timeouts to be more than 4320 seconds (12 hours).

• Verify that users are redirected to the login screen when their session times out.

• Verify that when a user logs in again after being timed out, they are returned to the page on which they timed out.

GUI Specification

Purpose of these GUI elements

The purpose of these GUI elements is to enable the administrator to manage Session Idle Timeout settings for their tenant. These GUI elements allow the administrator to enable Session Idle Timeout, disable Session Idle Timeout, and set the amount of time after which users are timed out due to inactivity.

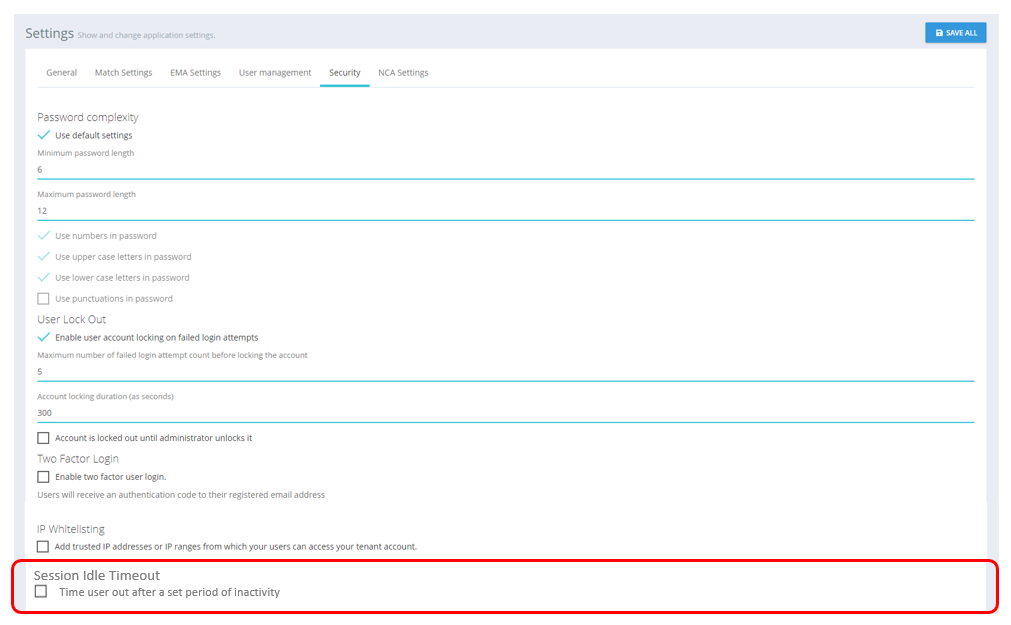

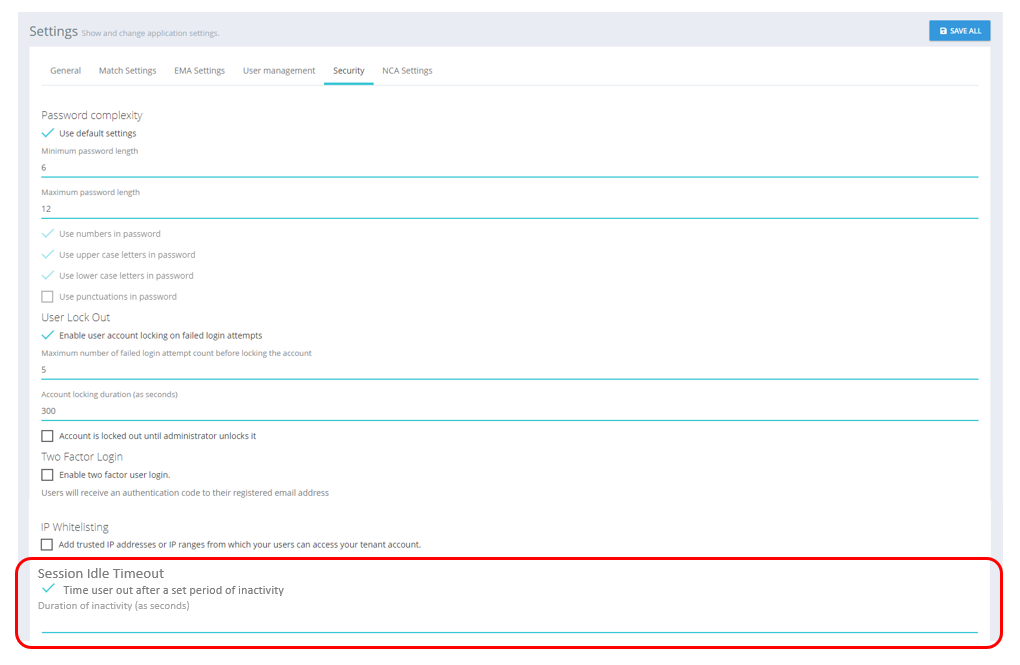

Mockups and Screenshots

GUI Elements

Mockup of GUI Element	Title	Default	Enabled	Type	Data	Description
	Time user out after a set period of inactivity	False	Always	Checkbox	Boolean	Used to enable/disable Session Idle Timeout for a given tenant
	Duration of inactivity (as seconds)	Empty	When ‘Time user out after a set period of inactivity’ is True	Text field	Numerical	Used to set the duration of inactivity that occurs before a user is timed out

Available Actions And Commands

Mockup of GUI Element	Title	Shortcut	Enabled	Type	Role/Permission	Action	Tooltip	Audit Trail
	Save All	N/A	Always	Button	Administration - Settings	Saves presented configuration	N/A	Yes

Related Documentation and Sources

• N/A

Specification References

• UC - Session Idle Timeout
