FS - 41124093 - Referentials Term View: Searching and Filtering


Description

The SPORIFY user can search and filter RMS Target Lists using the Referentials Target Terms grid screen.

Procedure

  1. Login to SPORIFY.

  2. Select Referentials on the navigation menu.

  3. Click Target Lists.

  4. Select Term View.



To search target terms:

  1. Type keyword into the search bar.

  2. Click the search button.



To filter target terms:

  1. Select Show advanced filters.

  2. The following filter options are then presented:

    1. RMS List

      1. Use the drop-down menu to select an RMS List.

    2. SPOR Languages

      1. Use the drop-down menu to select a SPOR language.

    3. Domain

      1. Use the drop-down menu to select a domain.

      2. The filter options here are All, Human and Veterinary use, Human use and Veterinary use.

    4. Term Status

      1. Use the drop-down menu to select a term status.

      2. The filter options here are All, Current, Non_Current, Nullified and Provisional.

    5. Translation Status

      1. Use the drop-down menu to select a translation status.

      2. The filter options here are All, Current, Non_Current, Nullified, Provisional and Under_Consultation.

    6. Filter by Tag

      1. Click on the field and select the relevant tags.

  3. Note: Specific filters can be searched for using the drop-down menus' search fields.

  4. Click Refresh to apply filter(s).

Acceptance Criteria

To succeed, the user must be able to search and filter the records presented on the Referentials Target Terms grid screen.

  • Verify that the user can search Referentials target terms using the provided search bar.

  • Verify that Referentials target terms can be filtered using the following filters:

    • RMS List

    • SPOR Languages

    • Domain

    • Term Status

    • Translation Status

    • Filter by Tag

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to allow the user to search and filter Referentials target terms, thus making it easier to view and navigate these records.

Mockups and Screenshots

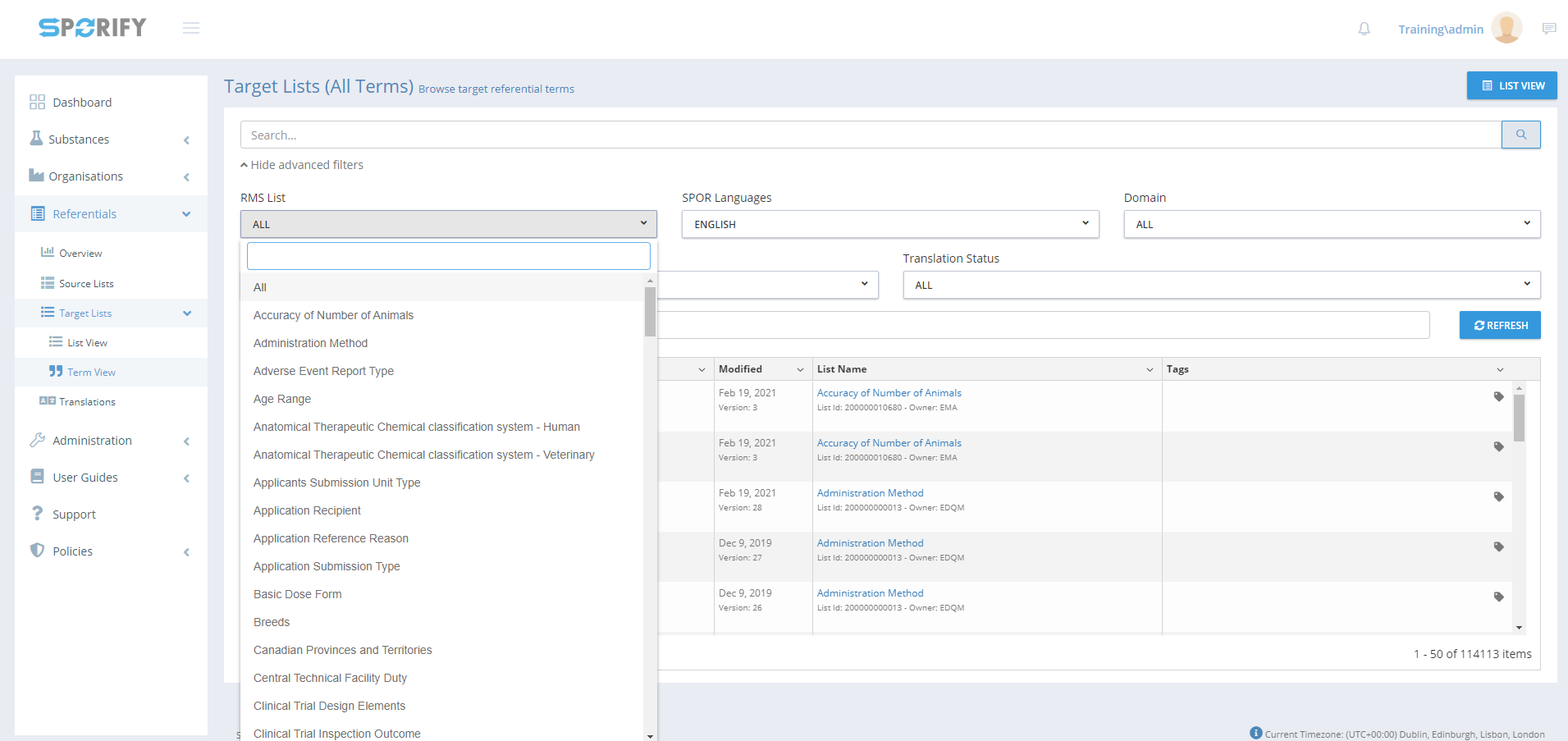

RMS List filter

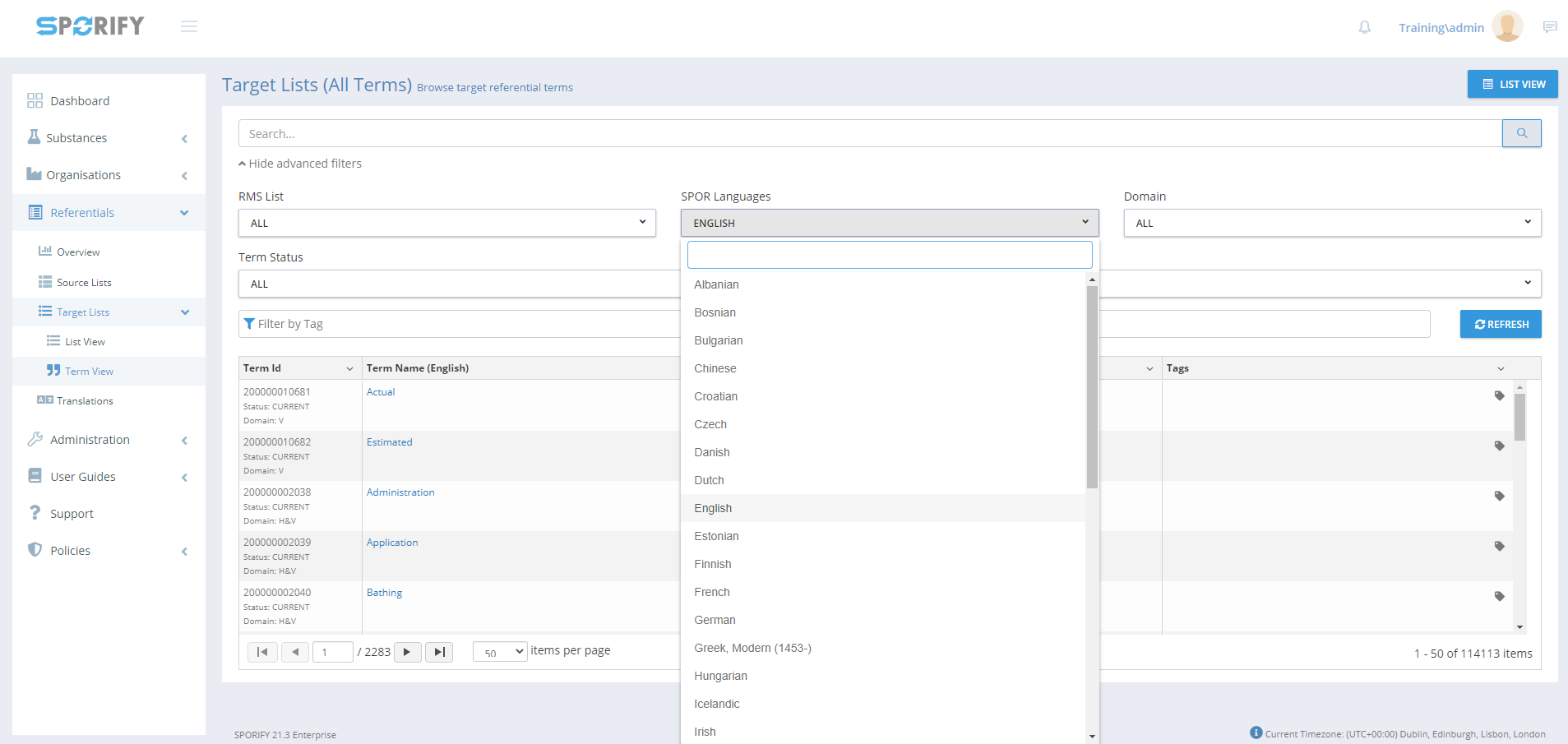

SPOR Languages filter

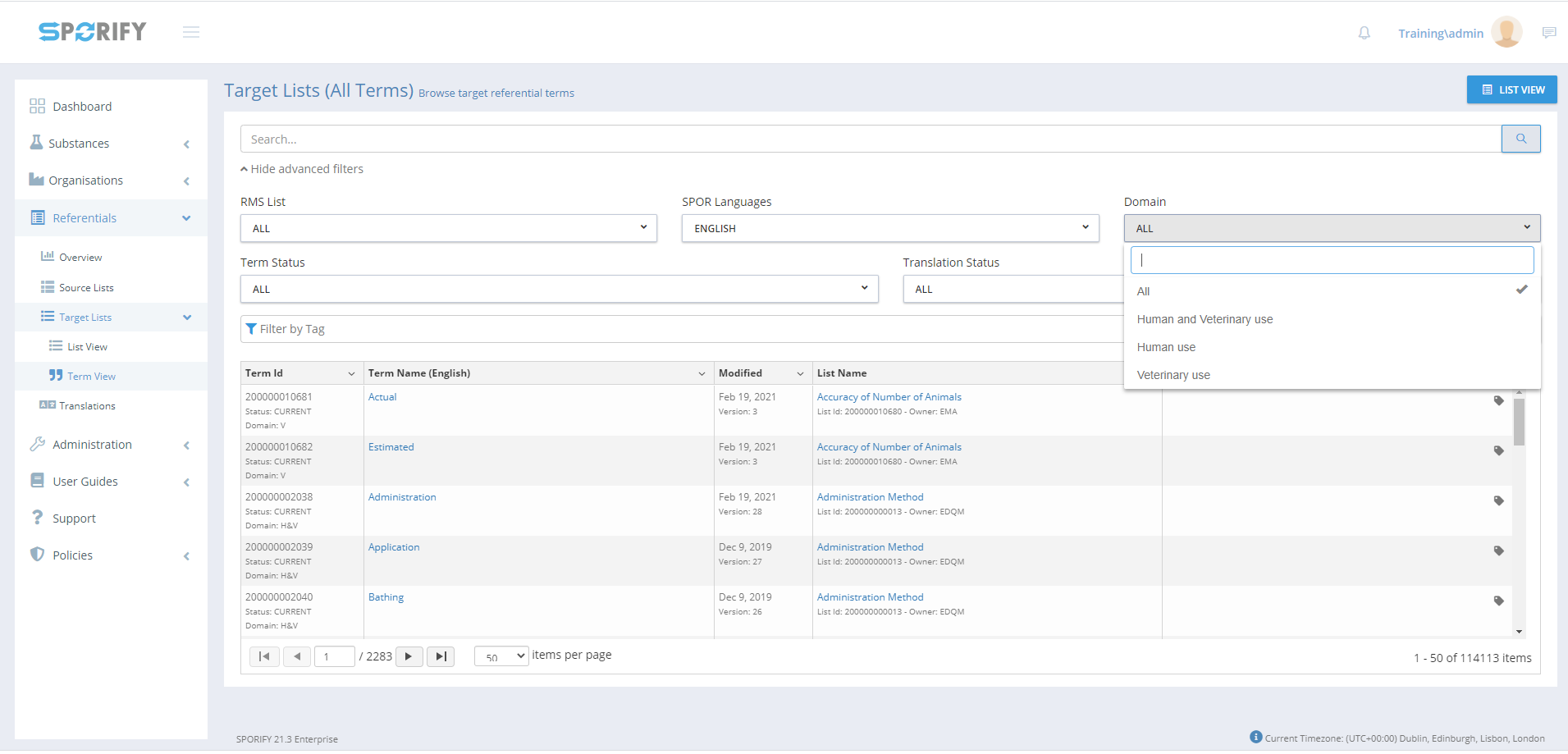

Domain filter

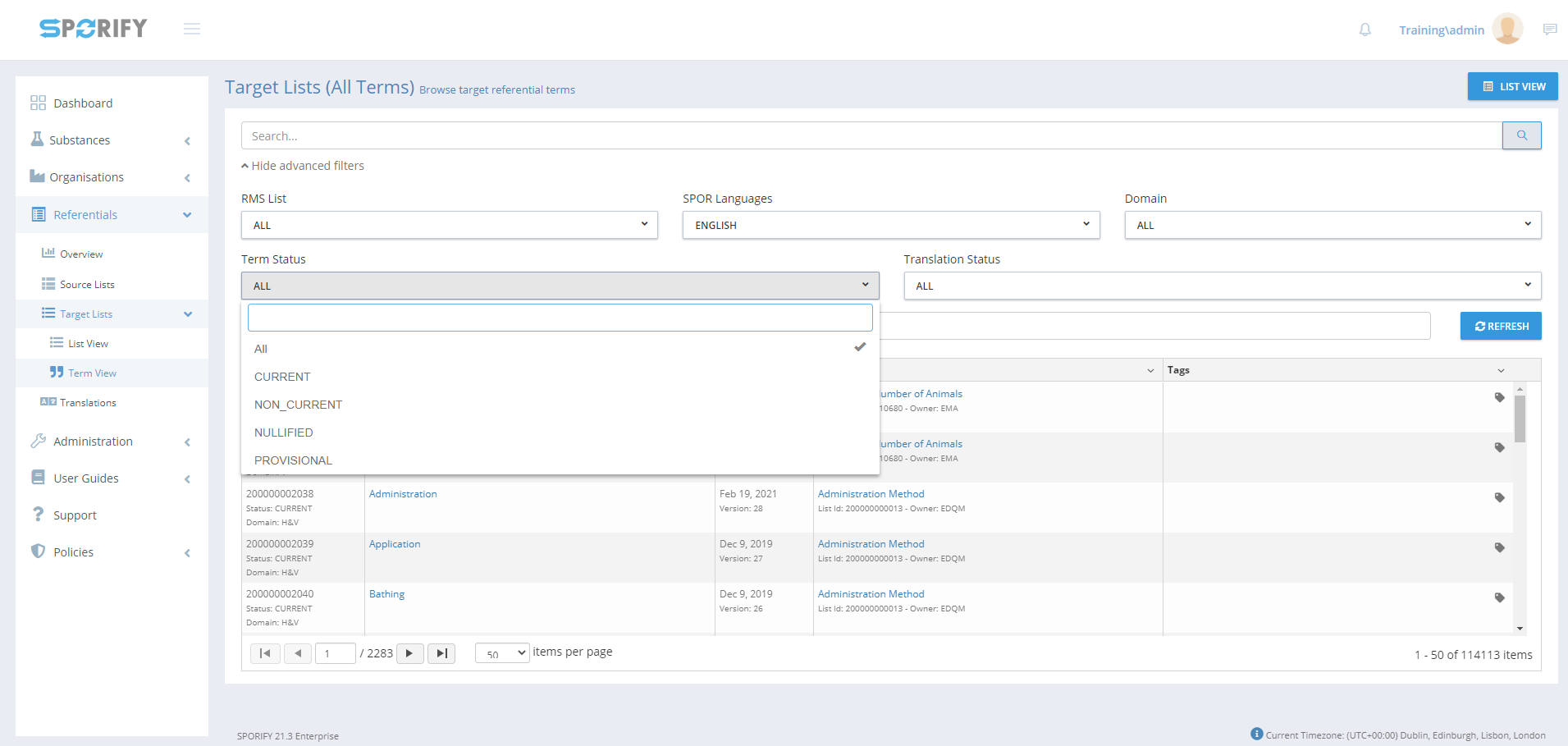

Term Status filter

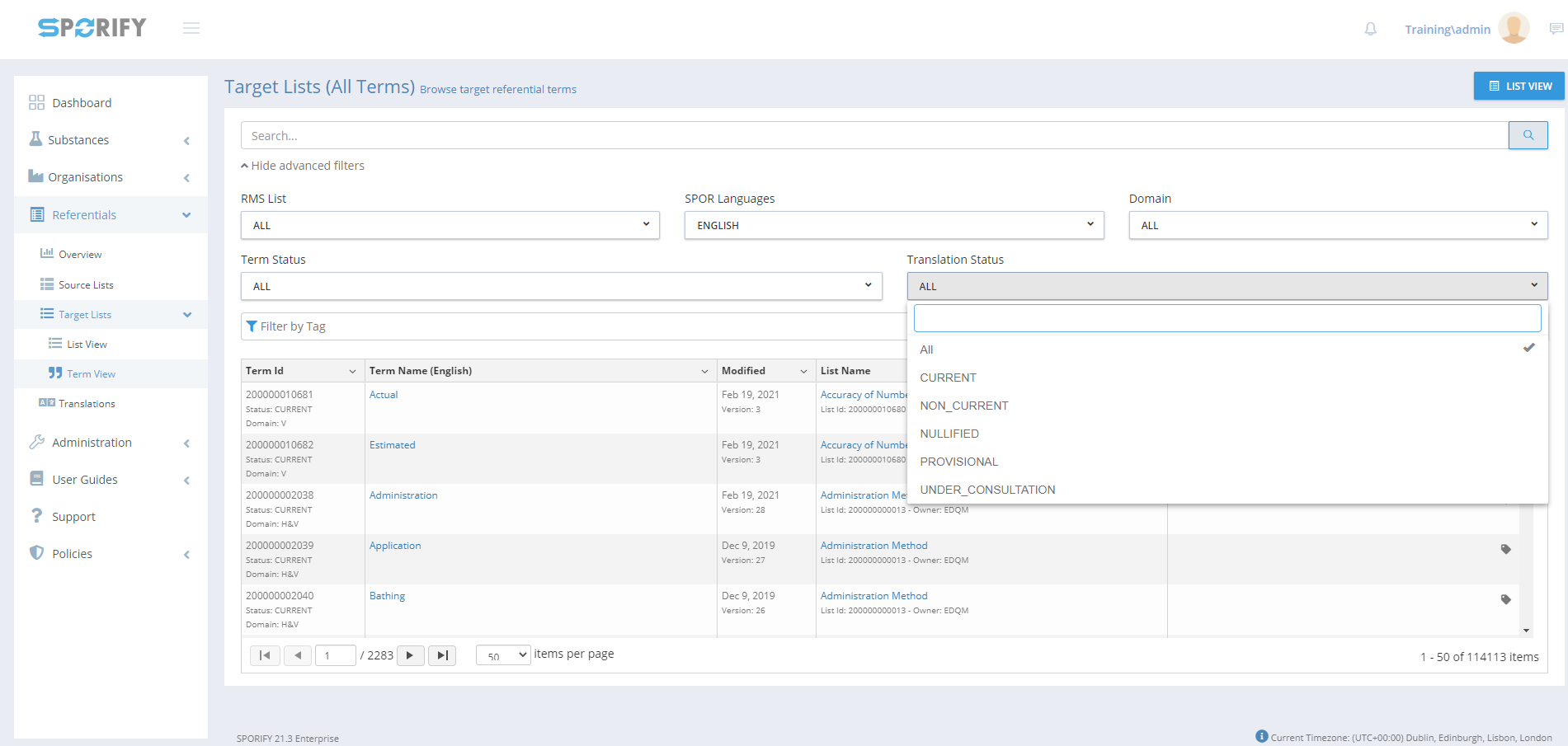

Translation Status filter

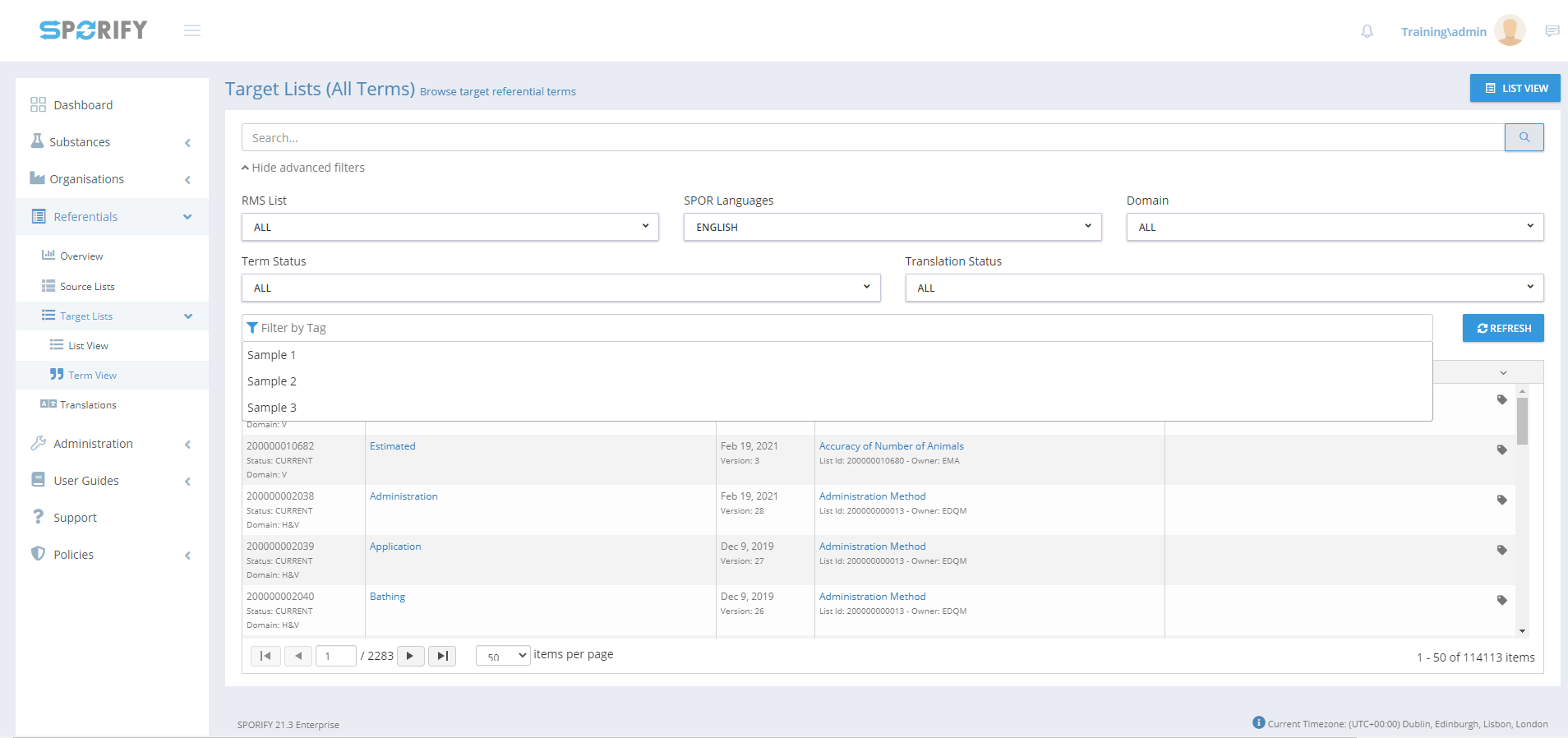

Tag filter


GUI Elements

Mockup of GUI Element

Title

Default

Enabled

 Type

Data

Description



Search

Search…

Always

Search bar

String

Searches terms using inserted keywords

RMS List

ALL

When advanced filters are shown

Drop-down menu

String

Select RMS list to filter by


SPOR Languages

ENGLISH

When advanced filters are shown

Drop-down menu

String

Select SPOR languages to filter by

Domain

ALL

When advanced filters are shown

Drop-down menu

String

Select Domain to filter by

Term Status

ALL

When advanced filters are shown

Drop-down menu

String

Select Term Status to filter by

Translation Status

ALL

When advanced filters are shown

Drop-down menu

String

Select Translation Status to filter by

Filter by Tag

Filter by Tag

When advanced filters are shown

Textbox

String

Select tag(s) to filter by

Available Actions And Commands

Mockup of GUI Element

 Title

Shortcut

Enabled

Type

Role/Permission

Action

Tooltip

Audit Trail


Refresh

N/A

Always

Button

Referentials - Target Lists

Refreshes page

N/A

No

  • N/A

Specification References
