FS - 442401771 - Formatting Substances Source Data

Description

The user can format their Substances Source Data using Excel or CSV.

Procedure

1. Login to SPORIFY.

2. Click Substances on the navigation menu.

3. Select Source Lists.

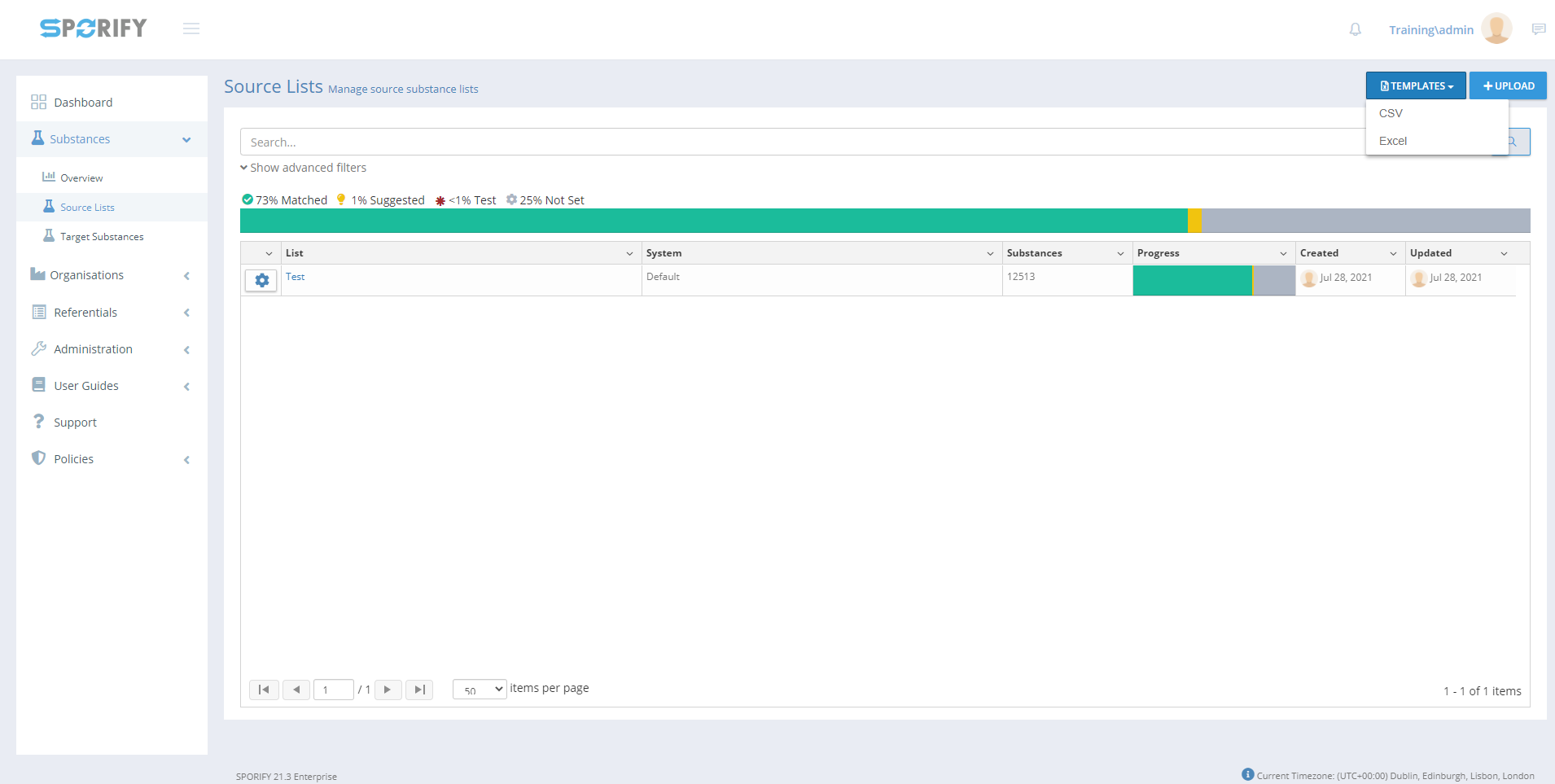

4. Click the Templates button.

5. Select CSV or Excel to download the relevant template.

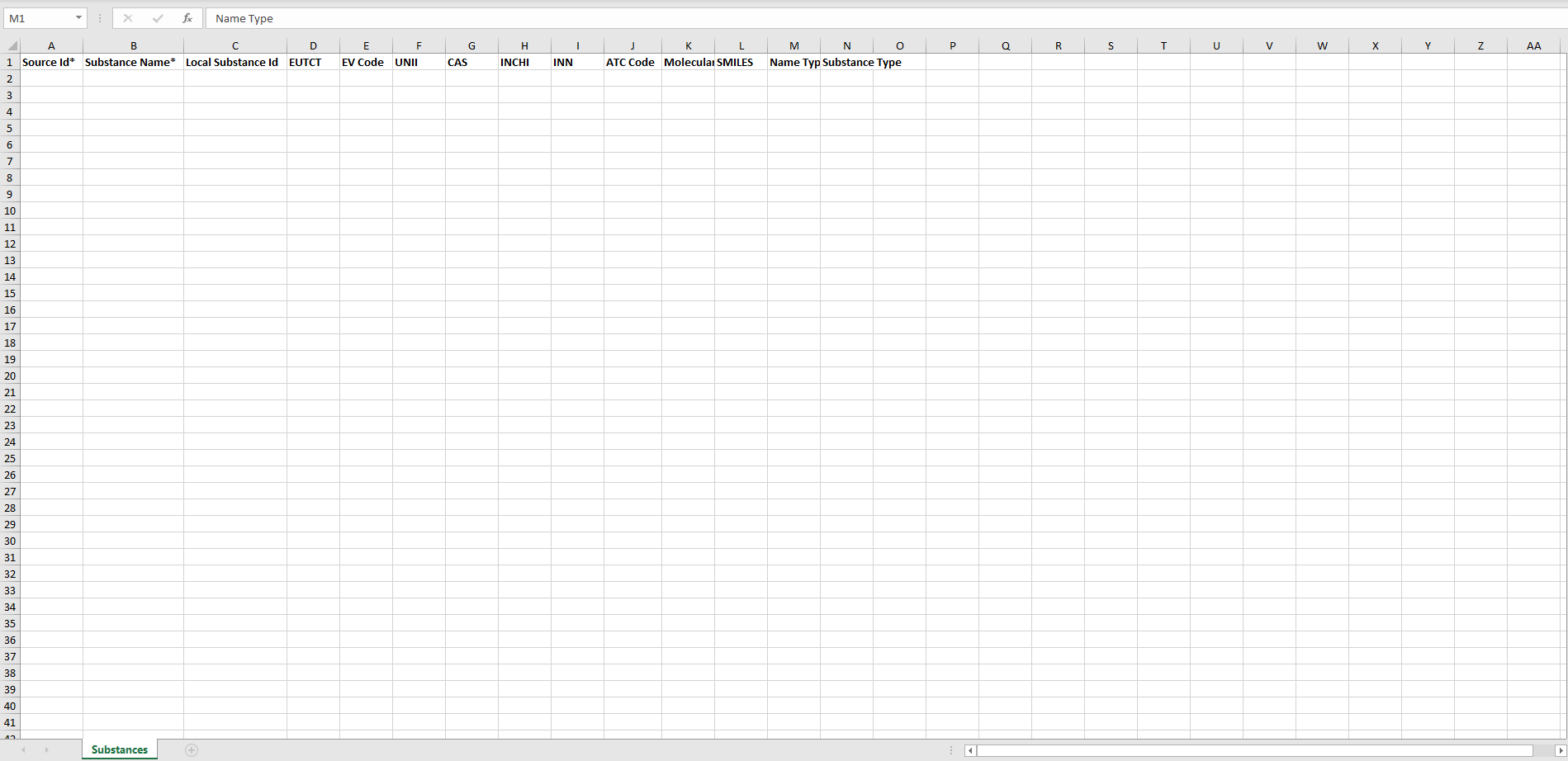

6. When the template has downloaded, open it and fill in the provided fields.

7. The presented fields are:

   1. Source Id (Mandatory)

   2. Substance Name (Mandatory)

   3. Local Substance Id

   4. EUTCT

   5. EV Code

   6. UNII

   7. CAS

   8. INCHI

   9. INN

   10. ATC Code

   11. Molecular Formula

   12. SMILES

   13. Name Type

   14. Substance Type

Acceptance Criteria

To succeed, the user must be able to format their source data using a template provided by SPORIFY.

• Verify that the user can format their source data via CSV and Excel.

• Verify that Source Id and Substance Name are mandatory.

Related / Alternative Procedure

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to enable the user to format their source data using templates provided by SPORIFY.

Mockups and Screenshots

GUI Elements

Mockup of GUI Element	Title	Default	Enabled	Type	Data	Description
	Substances	N/A	Always	Menu item	String	Presents the sub-menu items: Overview, Source Lists, Target Substances
	Source Lists	N/A	Always	Menu item	String	Navigates to the Source Lists screen

Available Actions And Commands

Mockup of GUI Element	Title	Shortcut	Enabled	Type	Role/Permission	Action	Tooltip	Audit Trail
	Templates	N/A	Always	Button	Referentials - Source Lists	Brings up the options: CSV and Excel	N/A	No

Related Documentation and Sources

• N/A

Specification References

• UC - Referentials

• FS - 432046087 - Referentials

• FS - 41156625 - Referentials Source Lists
