FS - 433783136 - Hierarchical Referentials Lists


Description

In SPORIFY, hierarchical Referentials lists can be viewed using Hierarchy View.

  • Hierarchical list terms can be expanded to show child items.

  • Hierarchical list terms can be collapsed to hide child items.

Procedure

  1. Login to SPORIFY.

  2. Select Referentials on the navigation menu.

  3. Select Target Lists.

  4. Select List View.

  5. Click on the link to the relevant hierarchical list, which can be found in the presented Target Lists grid List Name column.

  6. Click the Hierarchy View button.

  7. Hierarchical lists can be added and removed from favourites by clicking the star icon beside the list heading.

    1. The list is favourited when the star is yellow.

    2. The list is not favourited when the star is white.

  8. To expand all listed terms, click the Expand All button.

  9. To collapse all listed terms, click the Collapse All button.

  10. To expand a single term, click the + icon associated with the given list.

  11. To collapse a single term, click the - icon associated with the given list.

Acceptance Criteria

To succeed, the user must be able to view hierarchical lists using Hierarchy View.

  • Verify that hierarchical lists can be accessed via Referentials List View.

  • Verify that hierarchical terms can be expanded and collapsed.

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to enable the user to view hierarchical lists in Hierarchy View.

Mockups and Screenshots

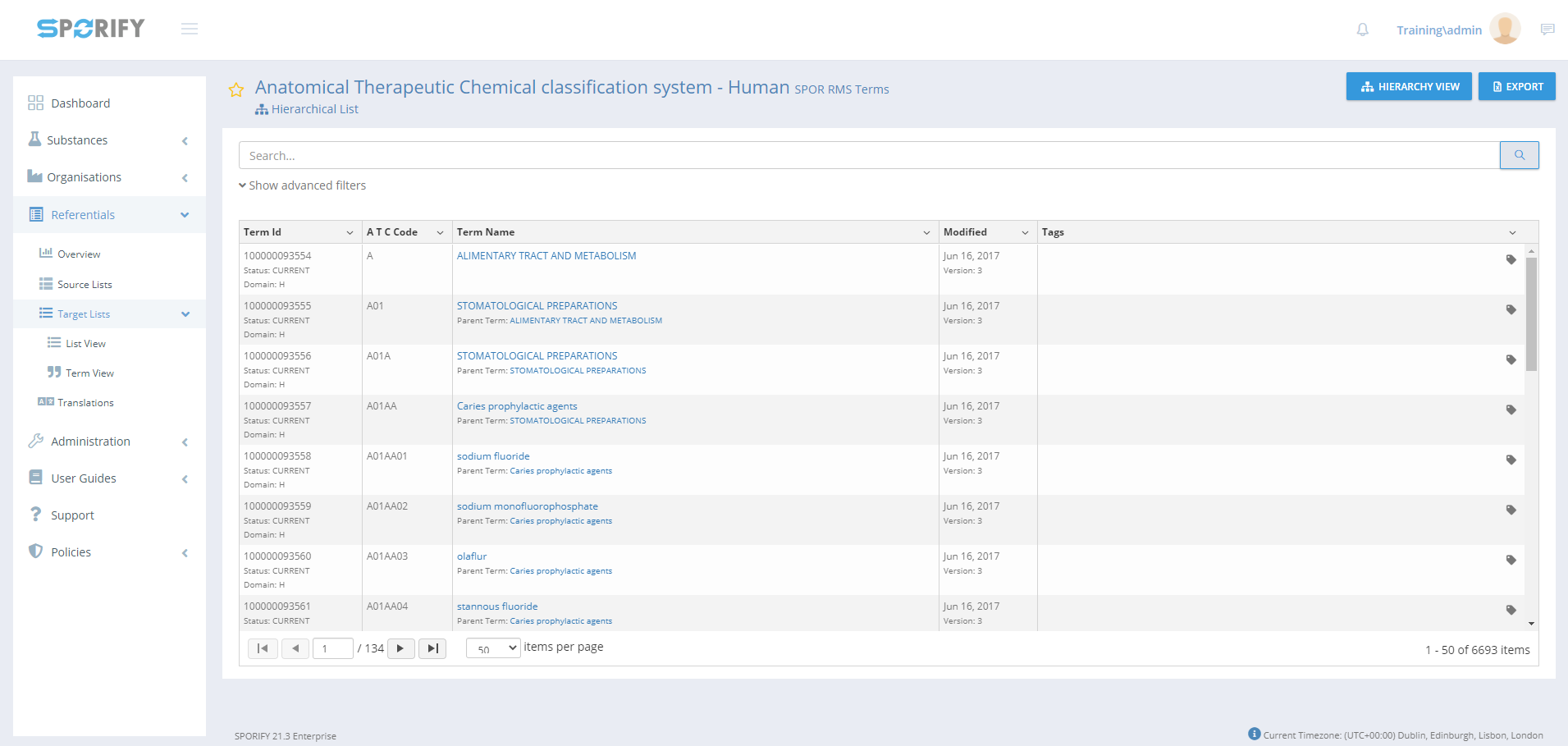

Hierarchical List

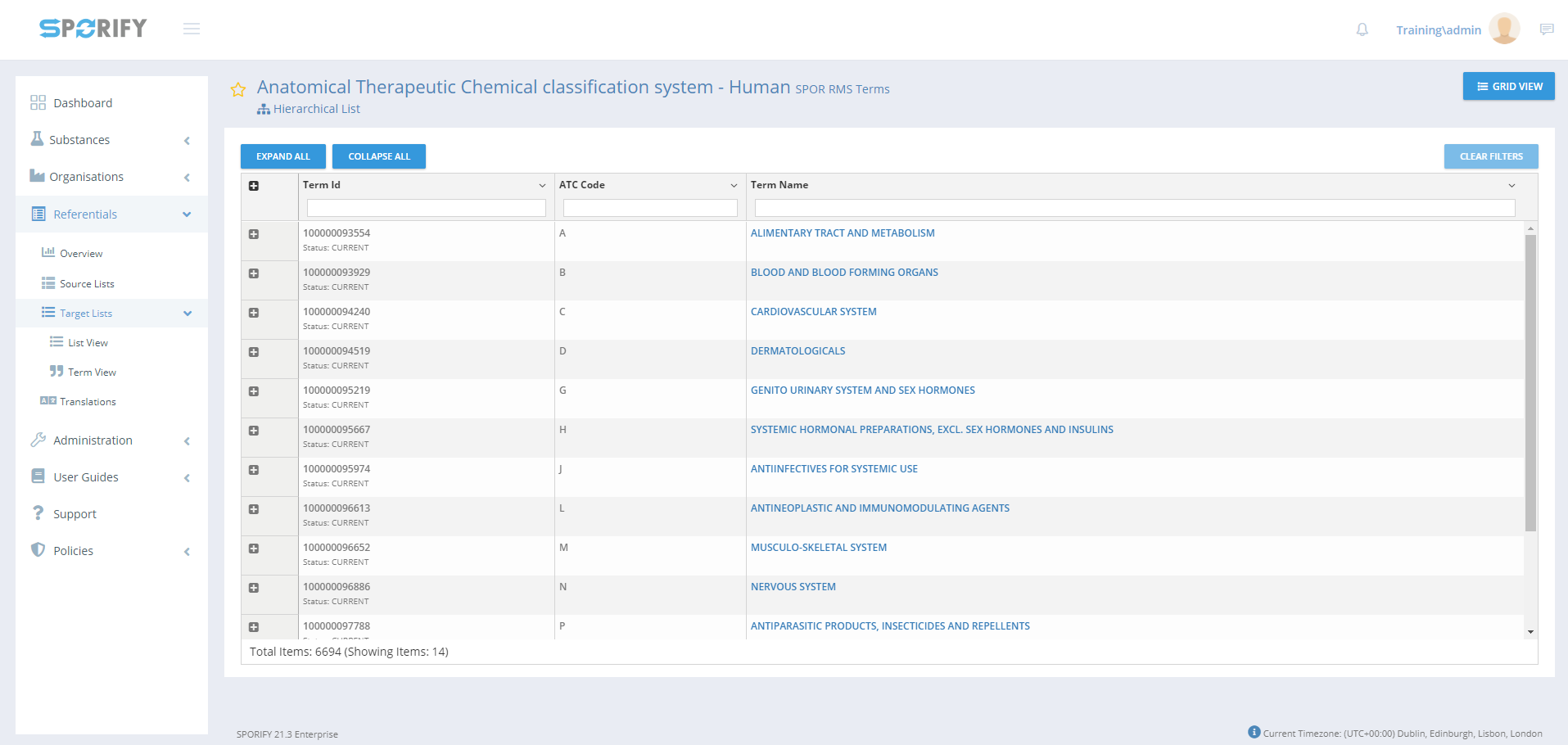

Hierarchy View


GUI Elements

Mockup of GUI Element

Title

Default

Enabled

 Type

Data

Description

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Available Actions And Commands

Mockup of GUI Element

 Title

Shortcut

Enabled

Type

Role/Permission

Action

Tooltip

Audit Trail



Hierarchy View

N/A

Always

Button

Referentials - Target Lists

Navigates to Hierarchy View

N/A

No



Expand All

N/A

Always

Button

Referentials - Target Lists

Expands all terms

N/A

No



Collapse All

N/A

Always

Button

Referentials - Target Lists

Collapses all terms

N/A

No



Expand

N/A

When term is collapsed

Interactive icon

Referentials - Target Lists

Expands term

N/A

No



Collapse

N/A

When term is expanded

Interactive icon

Referentials - Target Lists

Collapses term

N/A

No



Favourite (On/Off)

N/A

Always

Interactive icon

Referentials - Target Lists

Marks list as favourite / removes list as favourite

N/A

Yes

  • N/A
