FS - 433783012 - Referentials Target Lists: Term View

Description

The Term View area of Referentials Target Lists allows the user to view and manage RMS Target Lists terms.

• The user can search and filter terms in this area.

• The user can also add tags to these terms.

Procedure

1. Login to SPORIFY.

2. Select Referentials on the navigation menu.

3. Click Target Lists.

4. Select Term View.

To search Target List terms:

1. Type keyword into the search bar.

2. Click the search button.

To filter Target Lists terms:

1. Select Show advanced filters.

2. The following filter options are then presented:

   1. RMS List

      1. Use the drop-dwon menu to select an RMS list.

   2. SPOR Languages

      1. Use the drop-down menu to select a SPOR language.

   3. Domain

      1. Use the drop-down menu to select a domain.

   4. Term Status

      1. Use the drop-down menu to select a term status.

   5. Translation Status

      1. Use the drop-down menu to select a translation status.

   6. Filter by Tag

      1. Click on the field and select the relevant tags.

3. Click Refresh to apply filter(s).

To assign tags to a Target List term:

• Click the tag icon located on the grid row of the associated term.

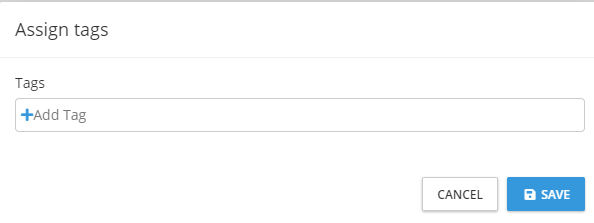

• Click Add Tag on the Assign tags modal.

• Select the desired tag(s).

• Click Save, else Cancel.

Acceptance Criteria

To succeed, the user must be able to view and manage RMS Target Lists terms via the Referentials Target Lists Term View area of SPORIFY.

• Verify that Term View can be accessed via the navigation menu.

• Verify that navigating to this area presents a list of Referentials Target Lists terms to the user.

• Verify that the user can search and filter terms.

• Verify that the user can add tags to terms.


Related / Alternative Procedure

N/A

GUI Specification

Purpose of these GUI elements.

The purpose of these GUI elements is to enable the user to view and easily navigate and manage Target Lists terms within SPORIFY.

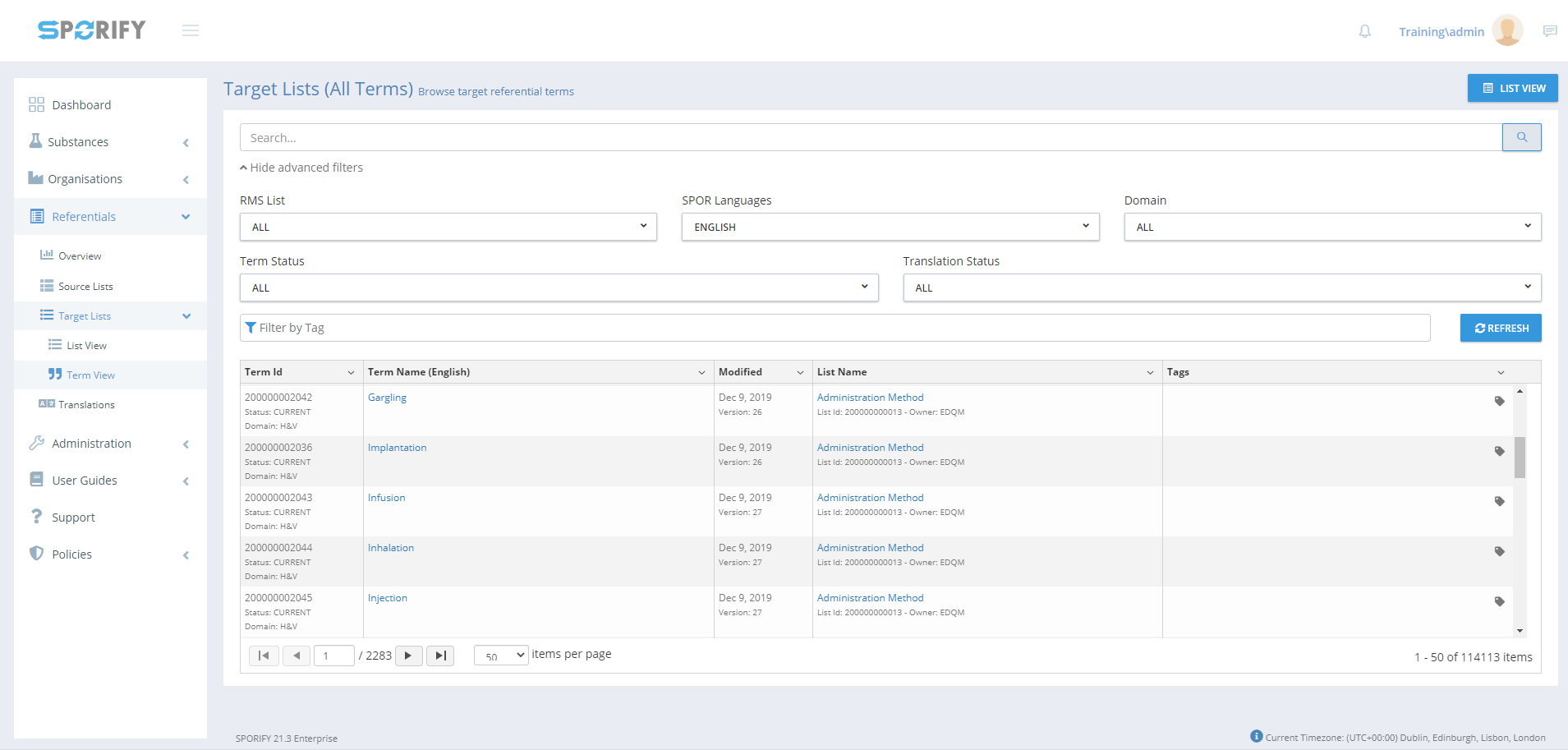

Mockups and Screenshots

GUI Elements

Mockup of GUI Element	Title	Default	Enabled	Type	Data	Description
	Search	Search…	Always	Search bar	String	Searches terms using inserted keywords
	RMS List	ALL	When advanced filters are shown	Drop-down menu	String	Select RMS list to filter by
	SPOR Languages	ENGLISH	When advanced filters are shown	Drop-down menu	String	Select SPOR languages to filter by
	Domain	ALL	When advanced filters are shown	Drop-down menu	String	Select Domain to filter by
	Term Status	ALL	When advanced filters are shown	Drop-down menu	String	Select Term Status to filter by
	Translation Status	ALL	When advanced filters are shown	Drop-down menu	String	Select Translation Status to filter by
	Filter by Tag	Filter by Tag	When advanced filters are shown	Textbox	String	Select tag(s) to filter by

Available Actions And Commands

Mockup of GUI Element	Title	Shortcut	Enabled	Type	Role/Permission	Action	Tooltip	Audit Trail
	Refresh	N/A	Always	Button	Referentials - Target Lists	Refreshes page	N/A	No
	Add Tag	N/A	Always	Button	Referentials - Target Lists	Allows user to add tags to record	N/A	No
	Tags	N/A	Always	Interactive icon	Referentials - Target Lists	Presents Assign Tags modal	N/A	No
	Cancel	N/A	Always	Button	Referentials - Target Lists	Closes modal	N/A	No
	Save	N/A	Always	Button	Referentials - Target Lists	Saves assigned tag	N/A	Yes

Related Documentation and Sources

• N/A

Specification References

• UC - Referentials

• FS - 432046087 - Referentials

• FS - 433782913 - Referentials Target Lists
